APPLICATION
For installation in ground, outdoors, indoors and in cable ducts for power station, industry and distribution networks.
STANDARD
IEC 60502-2,GBT 12706.2
VOLTAGE
12/20kV

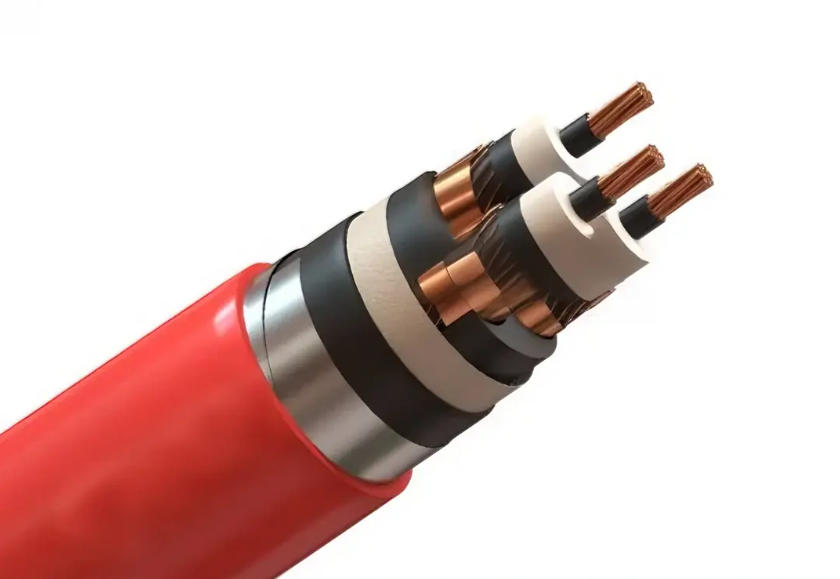

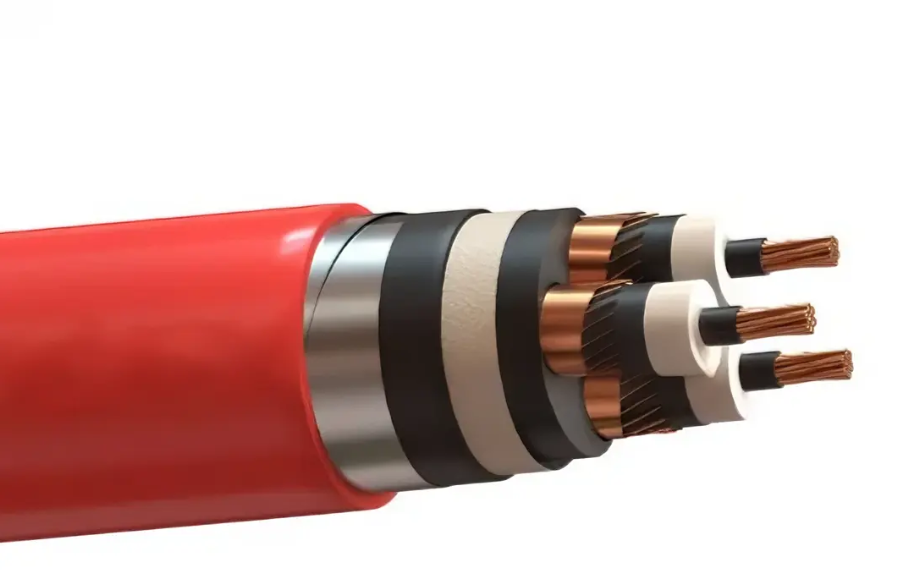

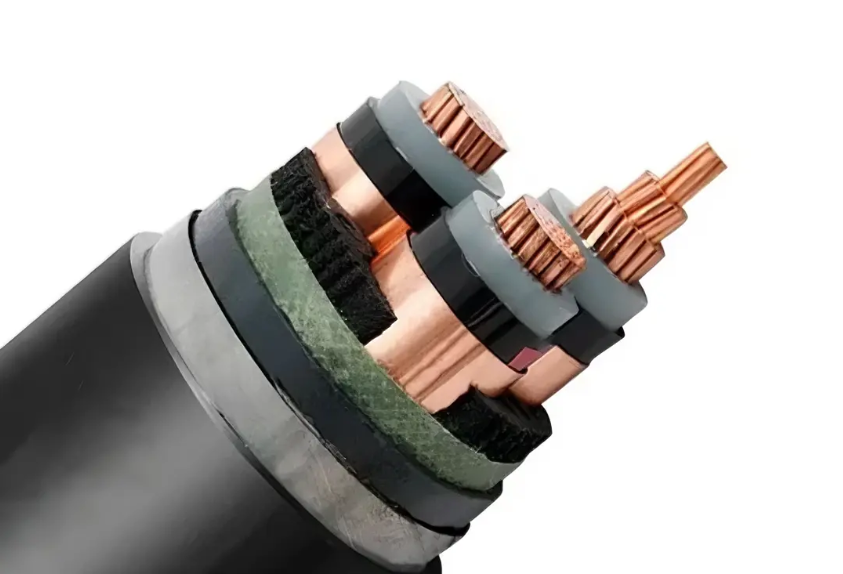

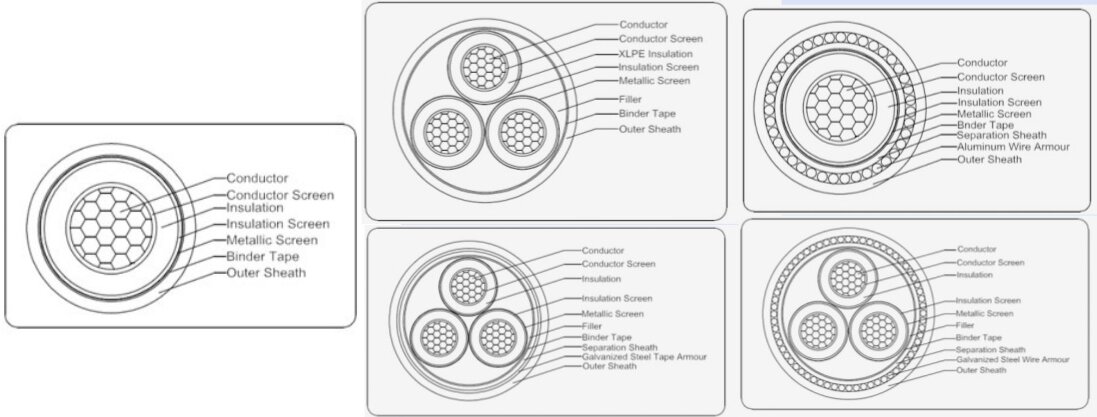

CONSTRUCTION
1.Conductor：Circular stranded, compacted copper conductor or aluminum conductor, class 2
2.Conductor Screen：Semi-conducting Compound
3.Insulation：XLPE (Cross-linked polyethylene)
4.Insulation Screen：Semi-conducting Compound
5.Metallic Screen：Copper Tape
6.Filler (only for multi core cable)：Non-hygroscopic
7.Binder Tape：Non-woven fabric
8.Separation Sheath(for armoured cables)：PVC (Polyvinyl chloride)
9.Armour
Single core: Aluminum Wire Armour(AWA)
Three cores:Galvanized Steel Tape(STA) or Galvanized Steel Wire(SWA)
10.Outer Sheath：PVC (Polyvinyl chloride), PE(Polyethylene), LSZH(Low Smoke Zero Halogen)
