APPLICATION
For installation in ground, outdoors, indoors and in cable ducts for power station, industry and distribution networks.
STANDARD
AS/NZS 1429.1
VOLTAGE
19/33kV

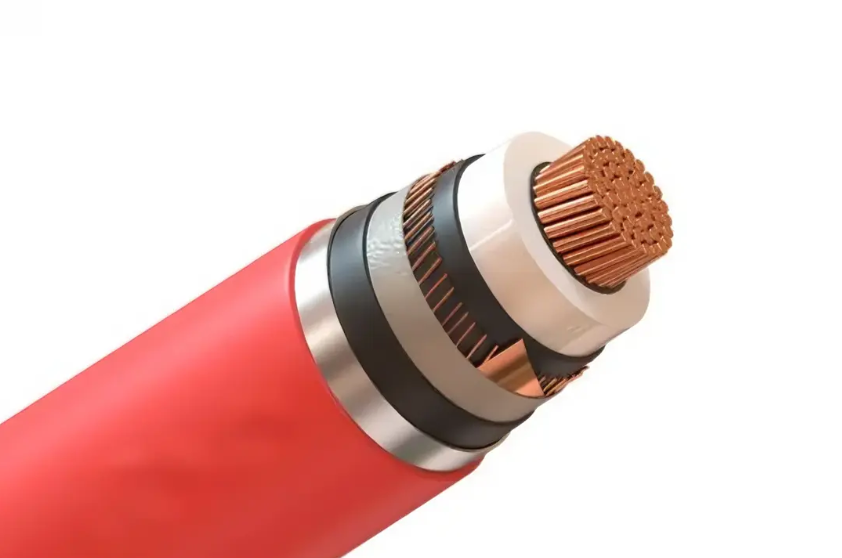

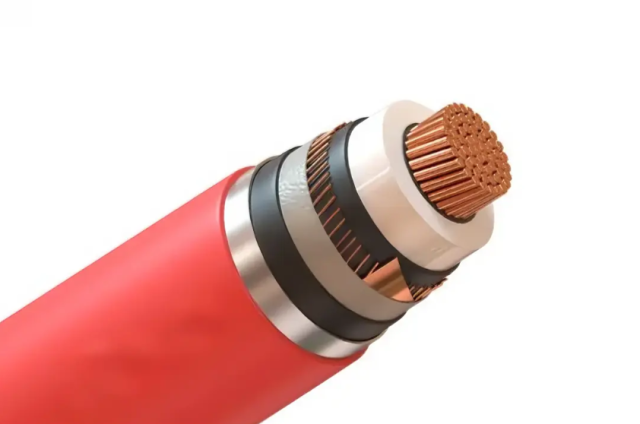

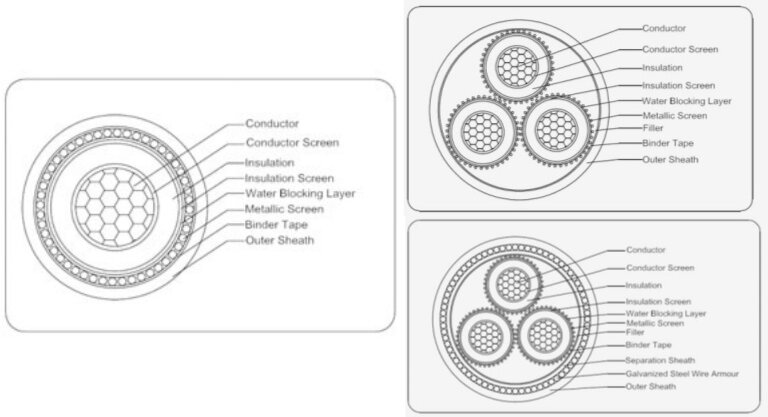

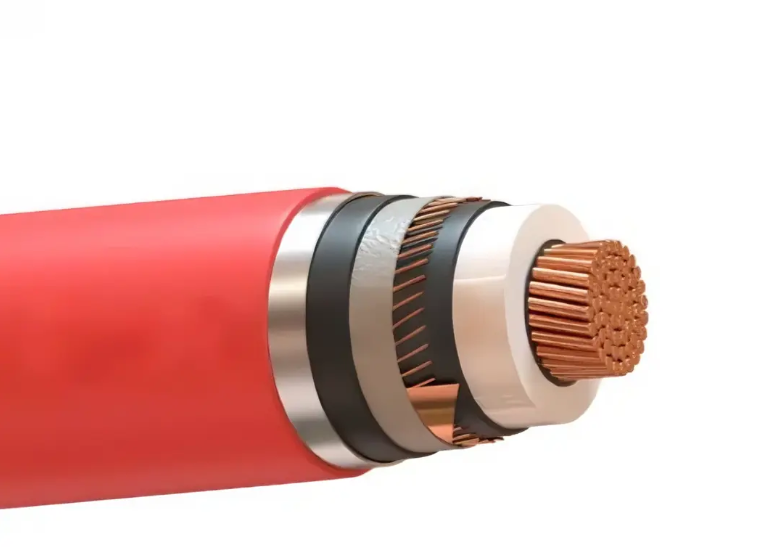

CONSTRUCTION
1.Conductor:Circular stranded, compacted copper conductor or aluminum conductor,class 2
2.Conductor Screen:Semi-conductive Compound
3.Insulation:XLPE (Cross-linked polyethylene)
4.Insulation Screen:Semi-conductive Compound
5.Water Blocking Layer:Semi-conductive Water-blocking Tape
6.Metallic Screen:Copper Wire
7.Filler (only for multi core cable):Non-hygroscopic
8.Binder Tape:Non-woven fabric
9.Separation Sheath(for armoured cables):PVC (Polyvinyl chloride)
10.Armour
Three cores: Galvanized Steel Wire(SWA)
11.Outer Sheath:PVC (Polyvinyl chloride), PE(Polyethylene), LSZH(Low Smoke Zero Halogen)
