DESCRIPTION

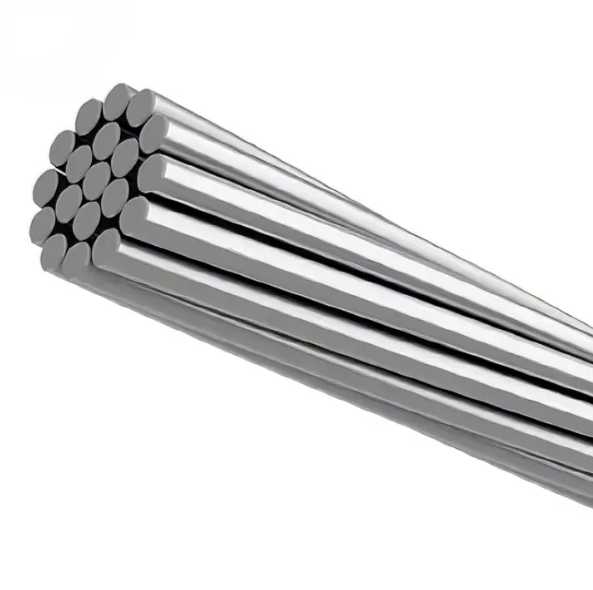

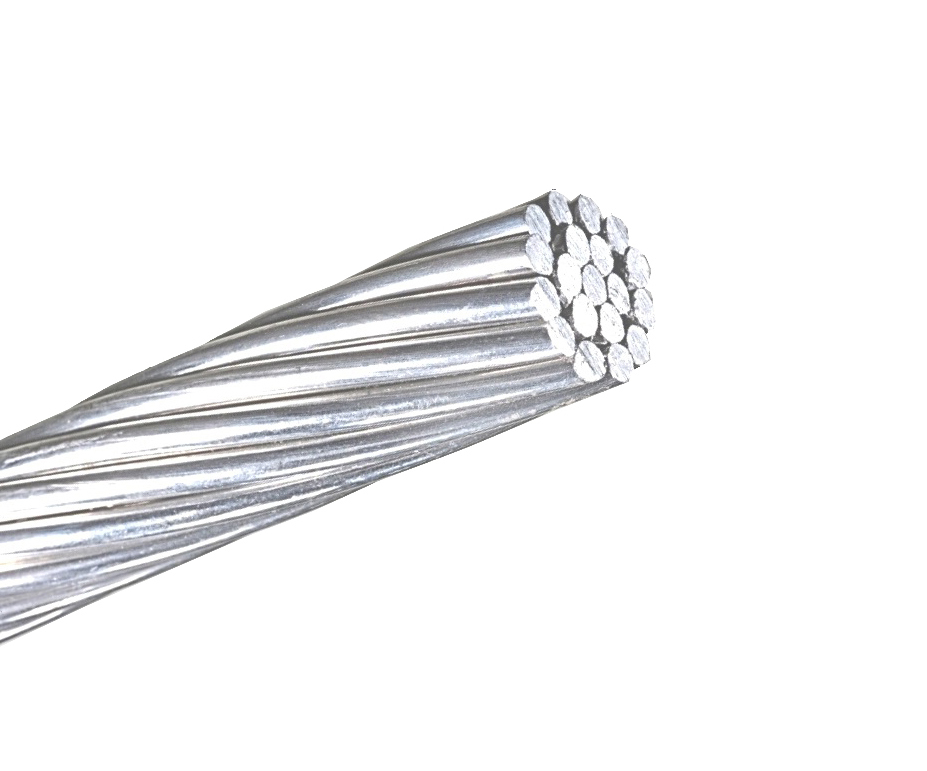

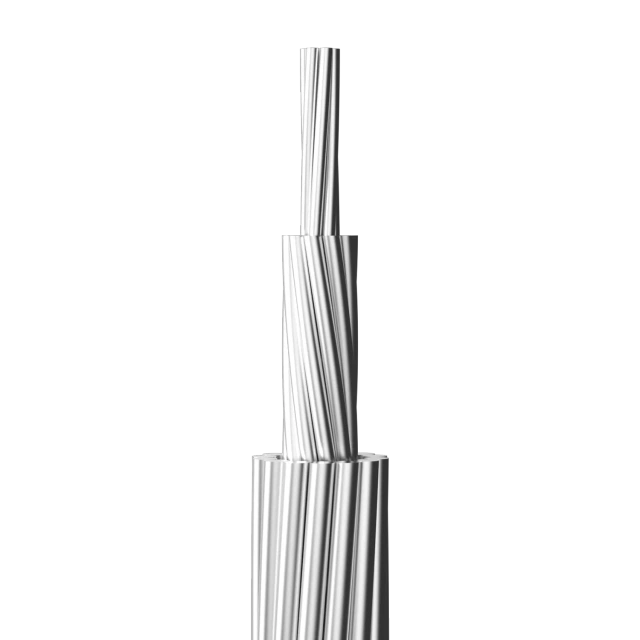

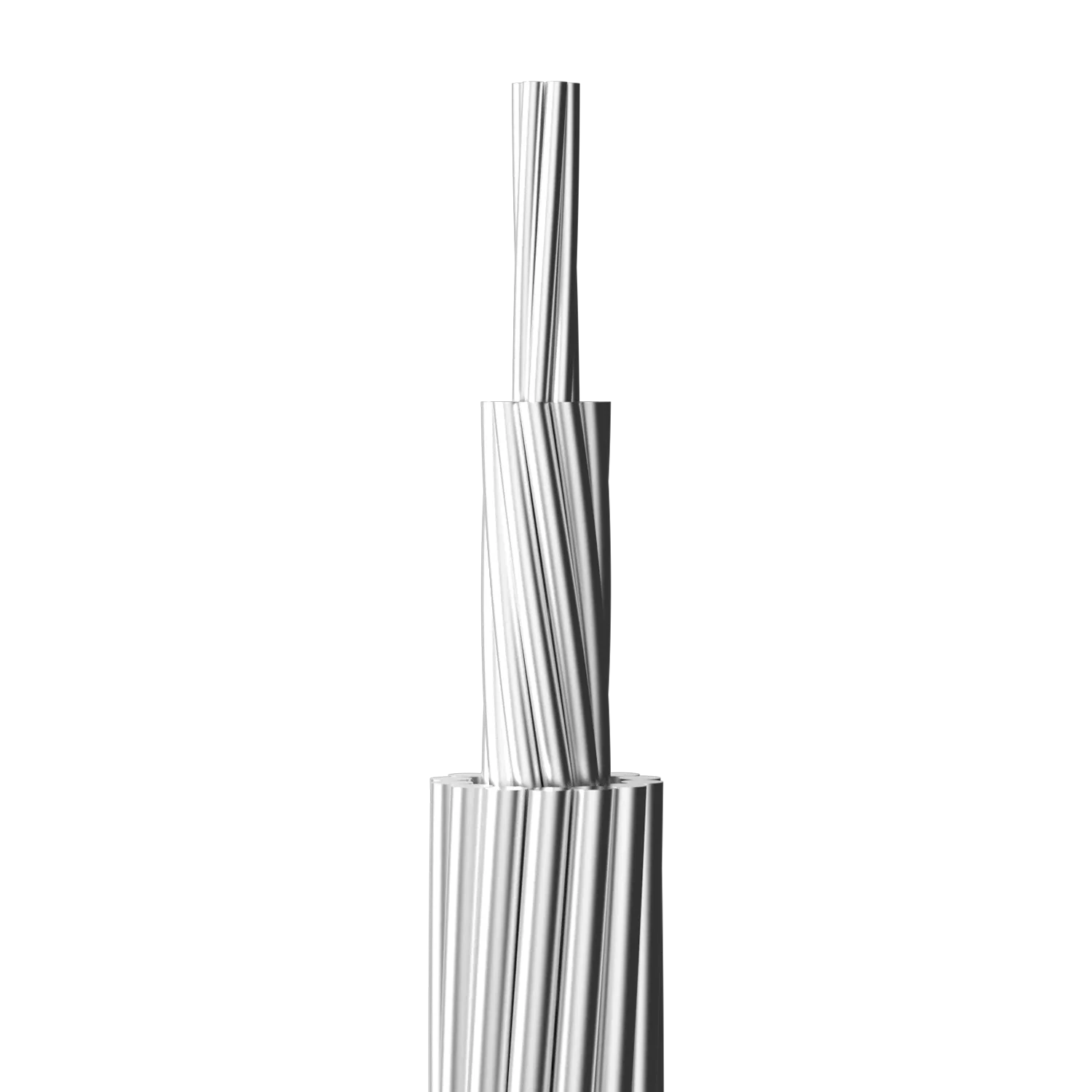

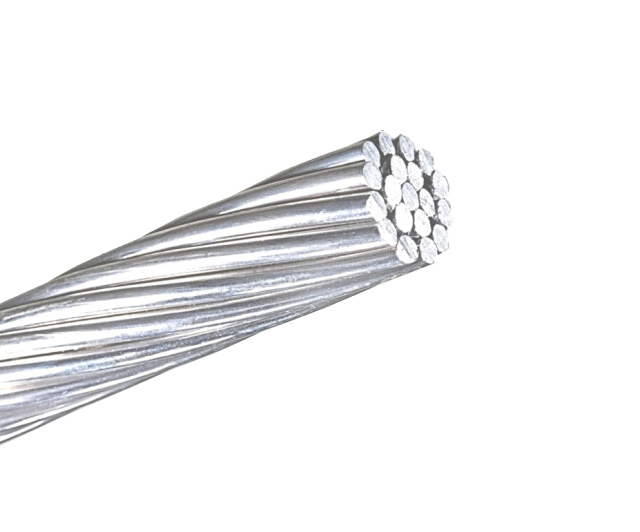

All Aluminum alloy(ALMELEC) conductors, stranded in successive layers to form the stranded AAAC conductor.
APPLICATION
AAAC are mainly used to overhead lines, in transmission and distribution electrical networks, having relatively long spans. They are also used a messenger to support overhead electrical cables.
STANDARD
ASTM B 399/B 399M, IEC 61089, BS EN 50182,AS 1531,DIN48201-6,BS EN 50183,BS 3242,NF C 34-125,GB/T 1179
CONSTRUCTION
1.Conductor:
Hard drawn aluminum alloy wire 6201

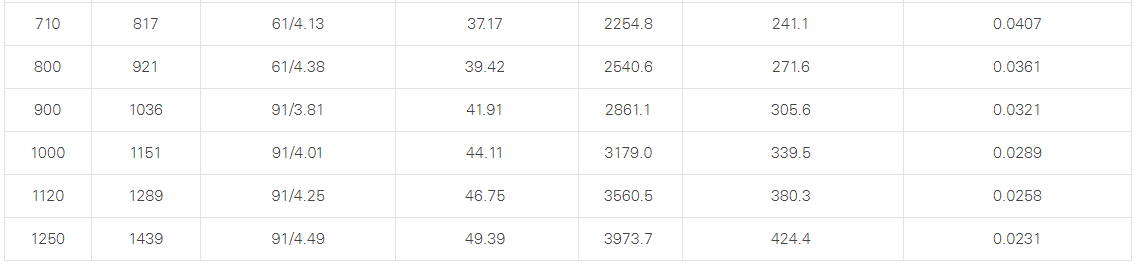

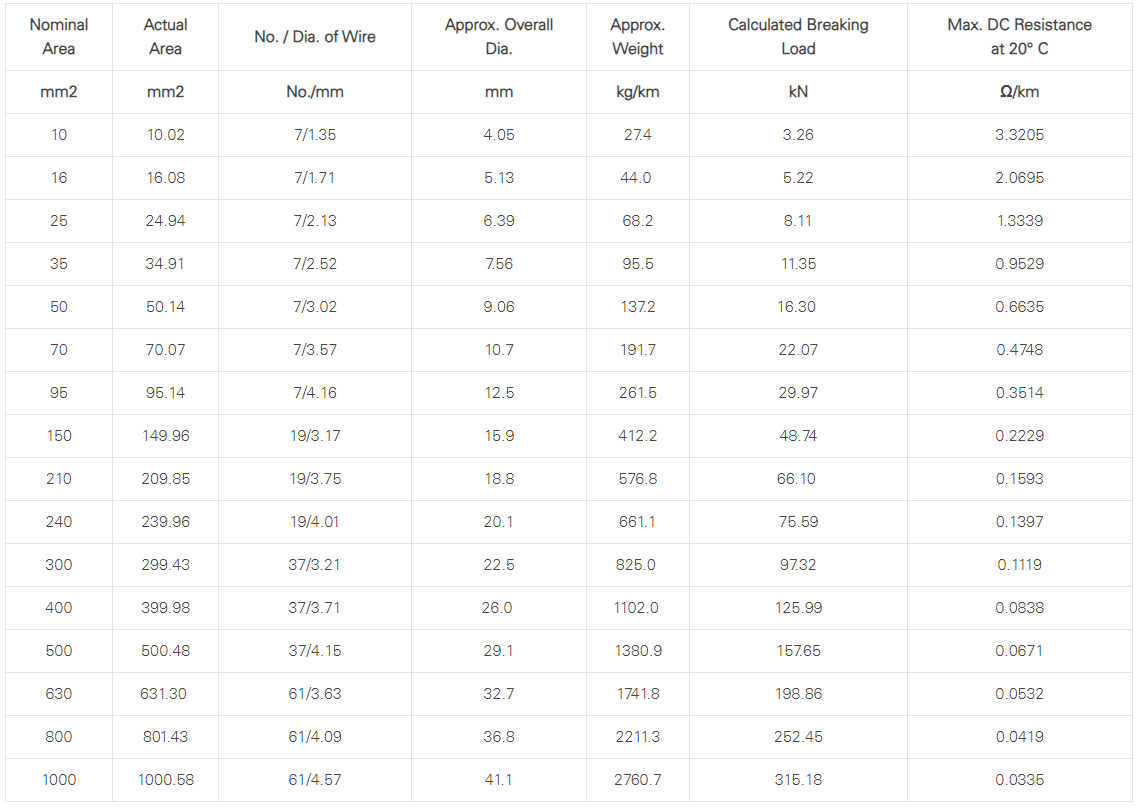

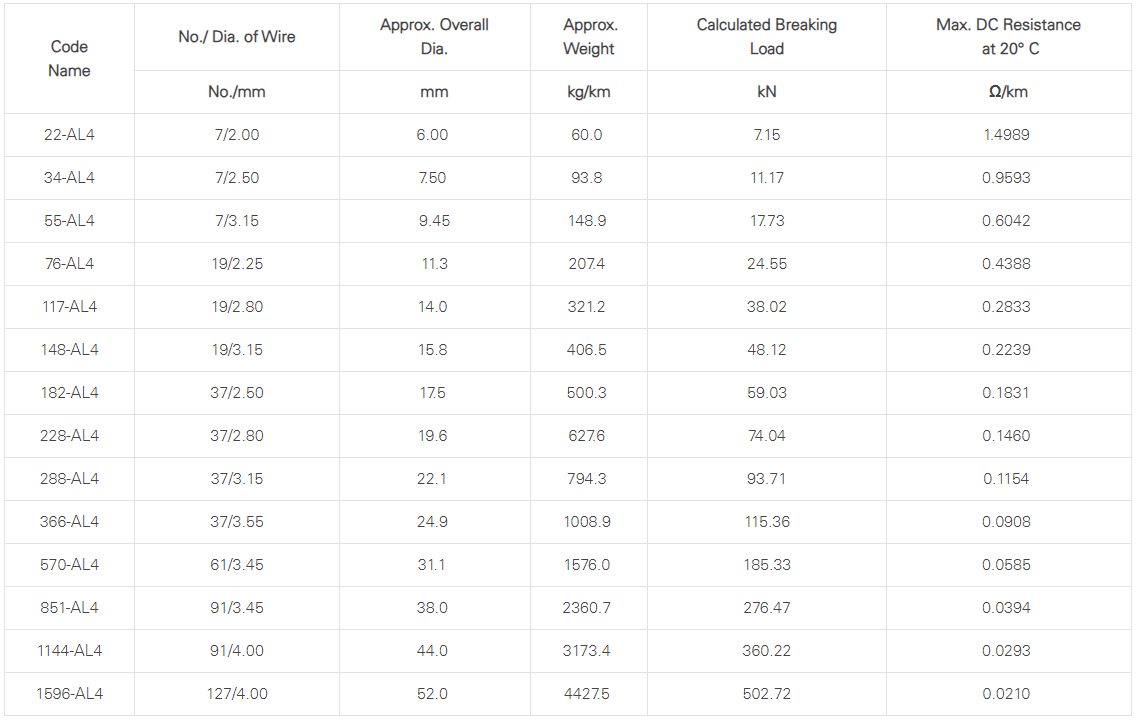

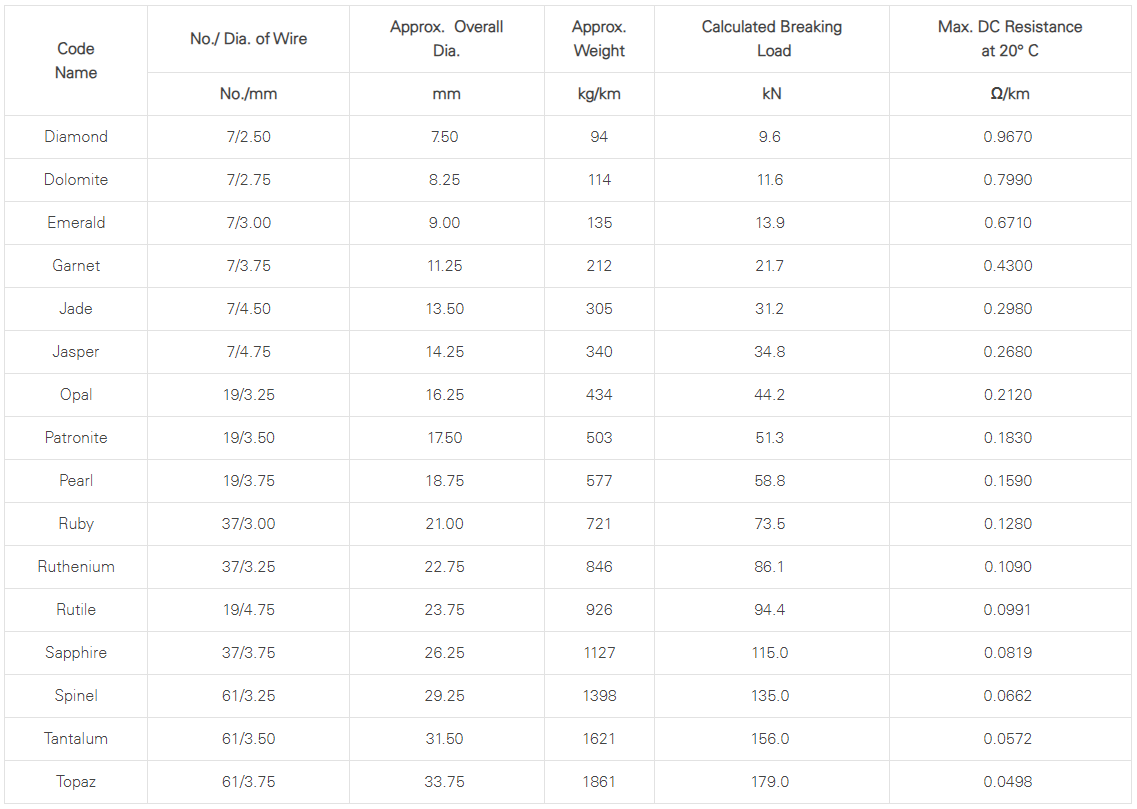

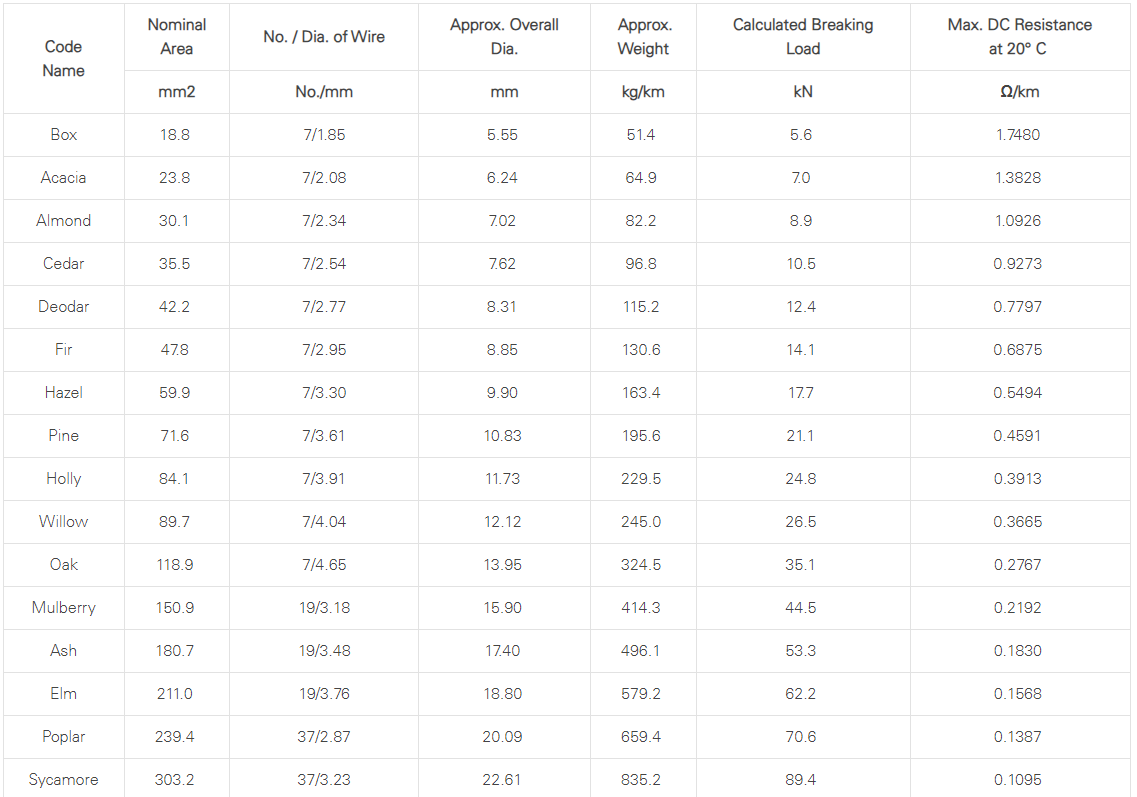

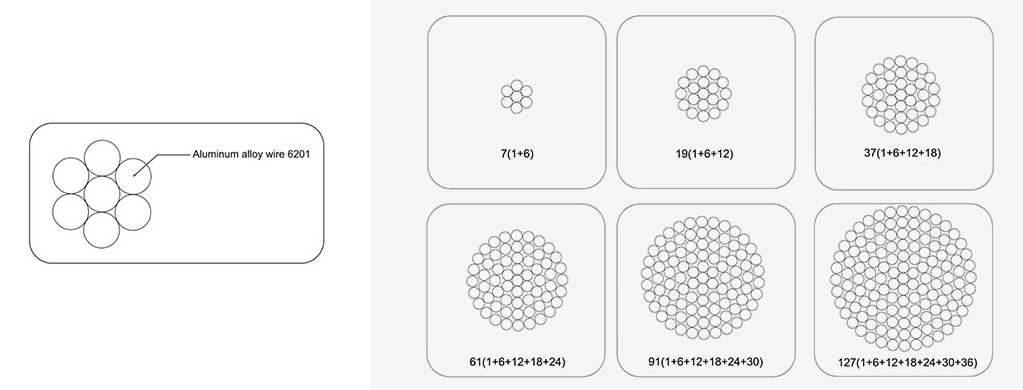

Generally, the AAAC 6201 Conductor is formed by the following construction:
