APPLICATION
Fixed installation in dry or damp premises on walls, boards or trays, in channels or embedded in plaster
STANDARD
BS 6004

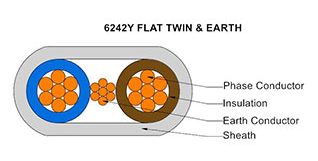

CONSTRUCTION
1.Phase Conductor:
Class 1 plain copper, solid, or class 2 plain copper, stranded
2.Insulation:
PVC type Tl 1
3.Earth Conductor:
Class 1 plain copper, solid, or class 2 plain copper, stranded
4.Outer Sheath:
PVC type 6
Colors for core identification: Brown and Blue
Colour of sheath: Grey
Operating temperature: Maximum 70°C, Minimum bending 0 °C.
Minimum bending radius:
Diameter up to 10mm: 3 x overall diameter.
Diameter 10mm to 25mm: 4 x overall diameter
Nominal Voltage:Uo/U: 300/ 500 V
