APPLICATION
For installation in ground, outdoors, indoors and in cable ducts for power station,industry and distribution networks.
STANDARD
IEC 60502-2,GB/T 12706.2
VOLTAGE
8.7/15kV

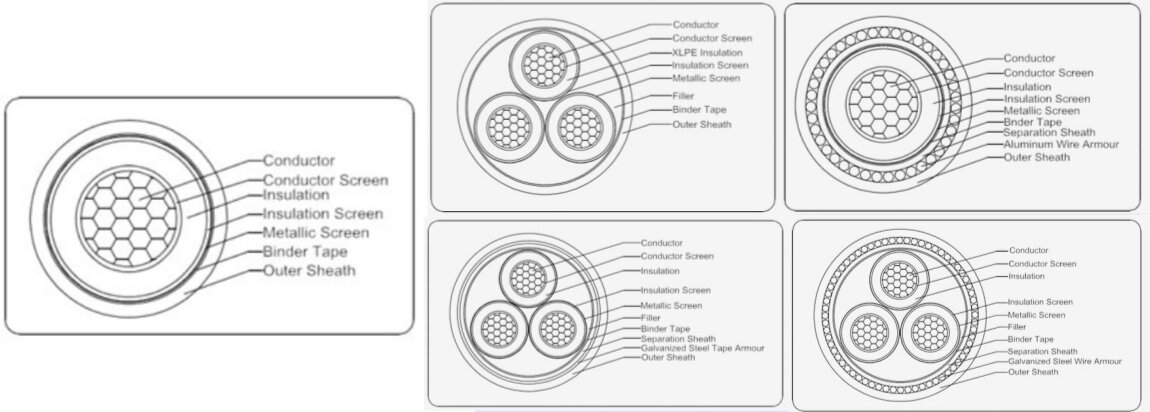

CONSTRUCTION
1.Conductor:Circular stranded, compacted copper conductor or aluminum conductor, class 2
2.Conductor Screen:Semi-conducting Compound
3.Insulation:XLPE (Cross-linked polyethylene)
4.Insulation Screen:Semi-conducting Compound
5.Metallic Screen:Copper Tape
6.Filler (only for multi core cable):Non-hygroscopic
7.Binder Tape:Non-woven fabric
8.Separation Sheath(for armoured cables):PVC (Polyvinyl chloride)
9.Armour
Single core:Aluminum Wire Armour(AWA)
Three cores: Galvanized Steel Tape(STA) or Galvanized Steel Wire(SWA)
10.Outer Sheath:PVC (Polyvinyl chloride), PE(Polyethylene), LSZH(Low Smoke Zero Halogen)
