DESCRIPTION

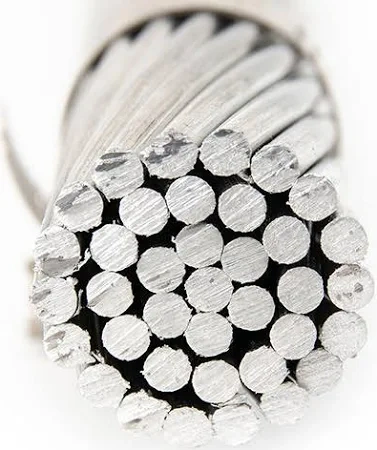

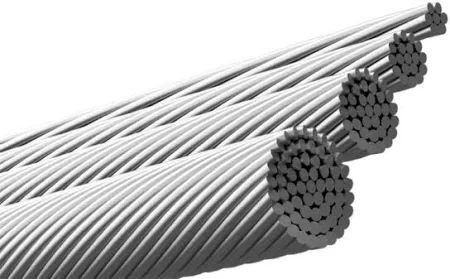

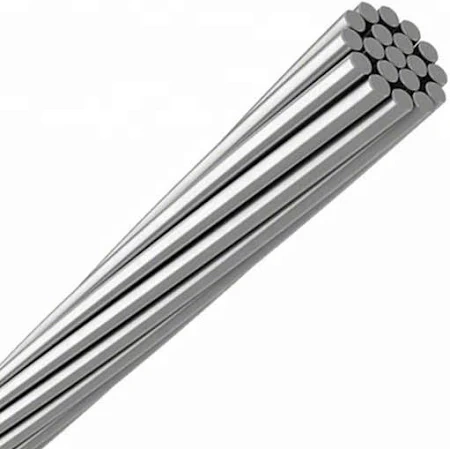

Hard drawn Aluminum wires, stranded in successive layers, in opposite direction to form the Aluminum stranded AAC conductor.
APPLICATION
All Aluminium Conductors are used for aerial distribution lines having relatively short spans, aerial feeders and bus bars of substations.
STANDARD

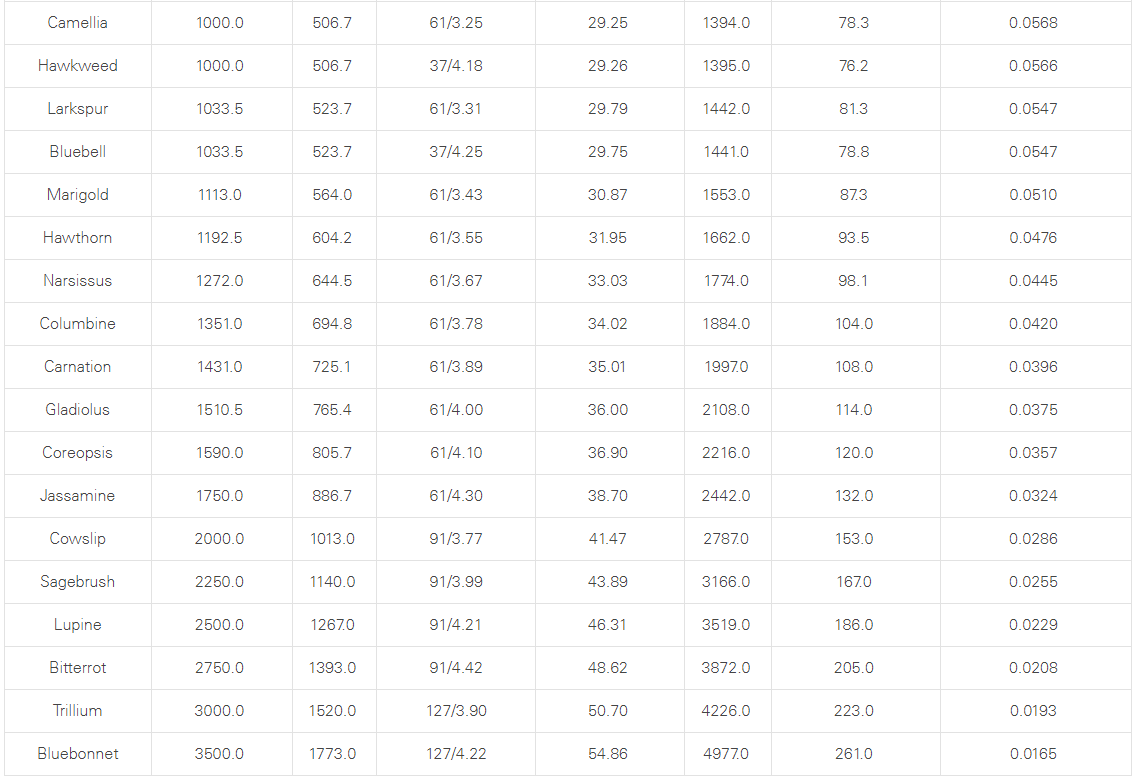

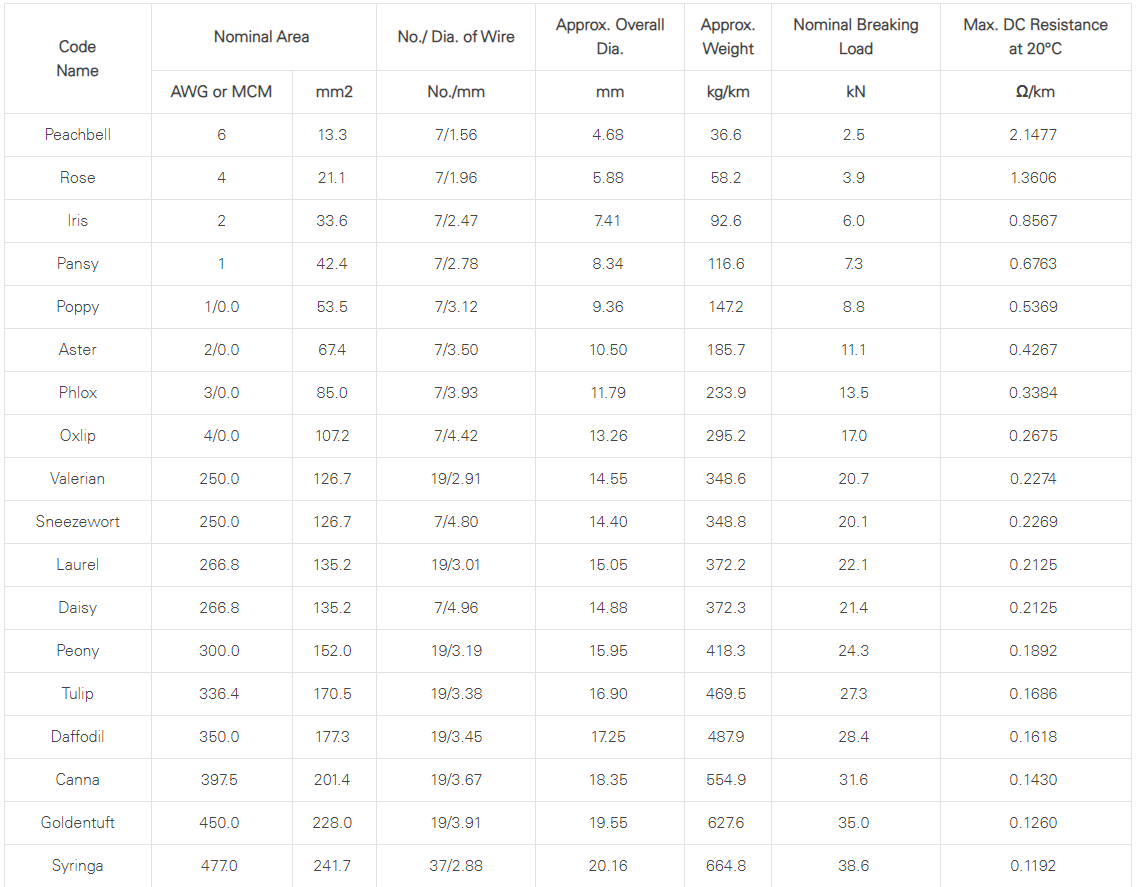

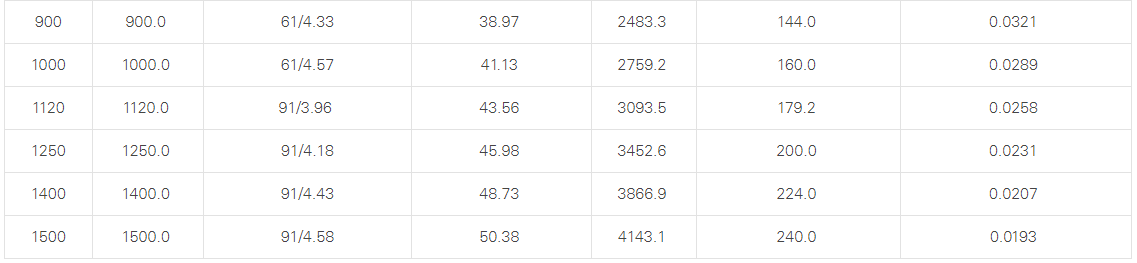

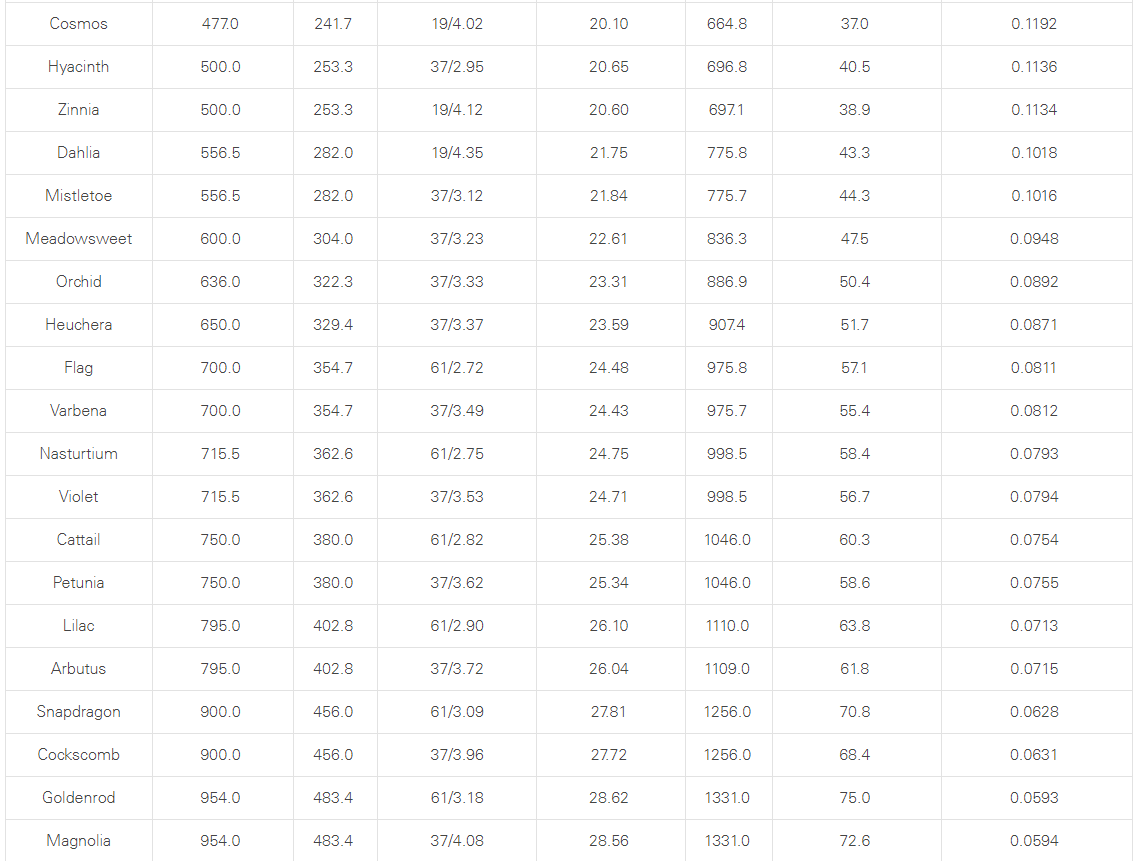

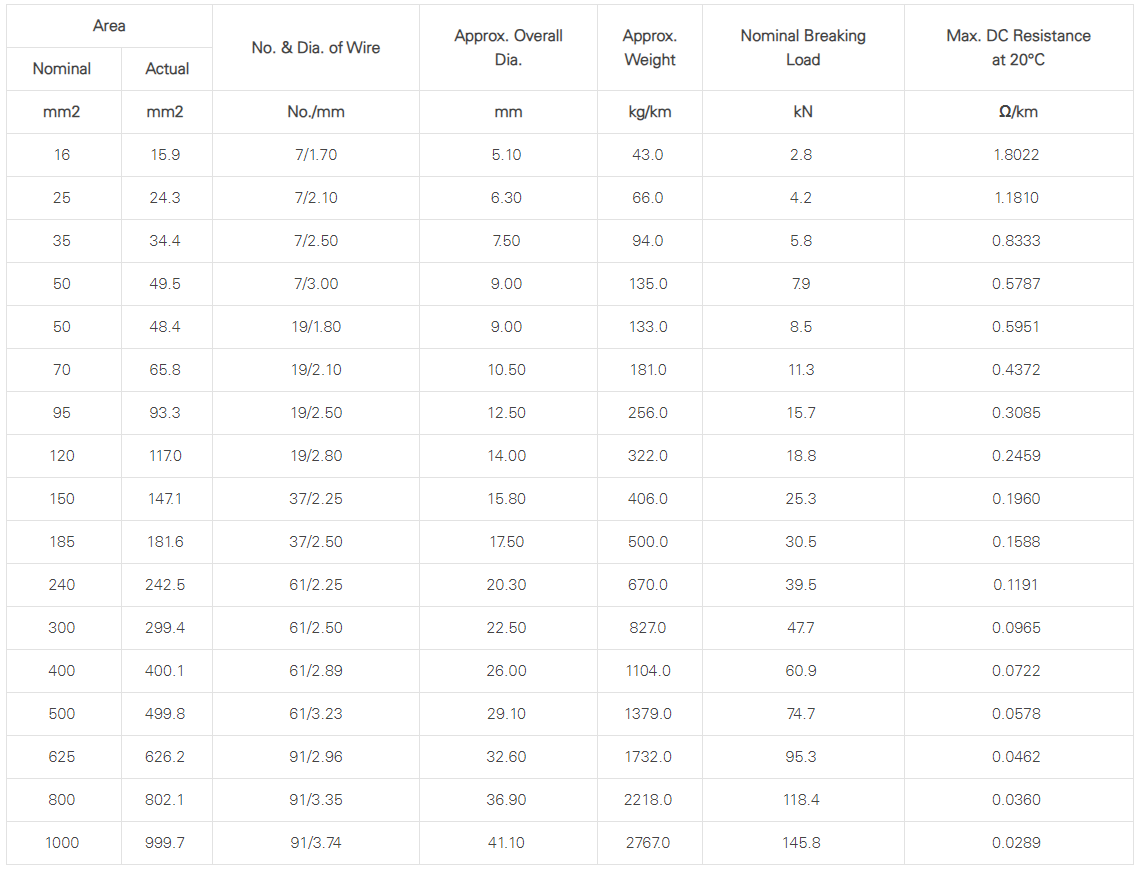

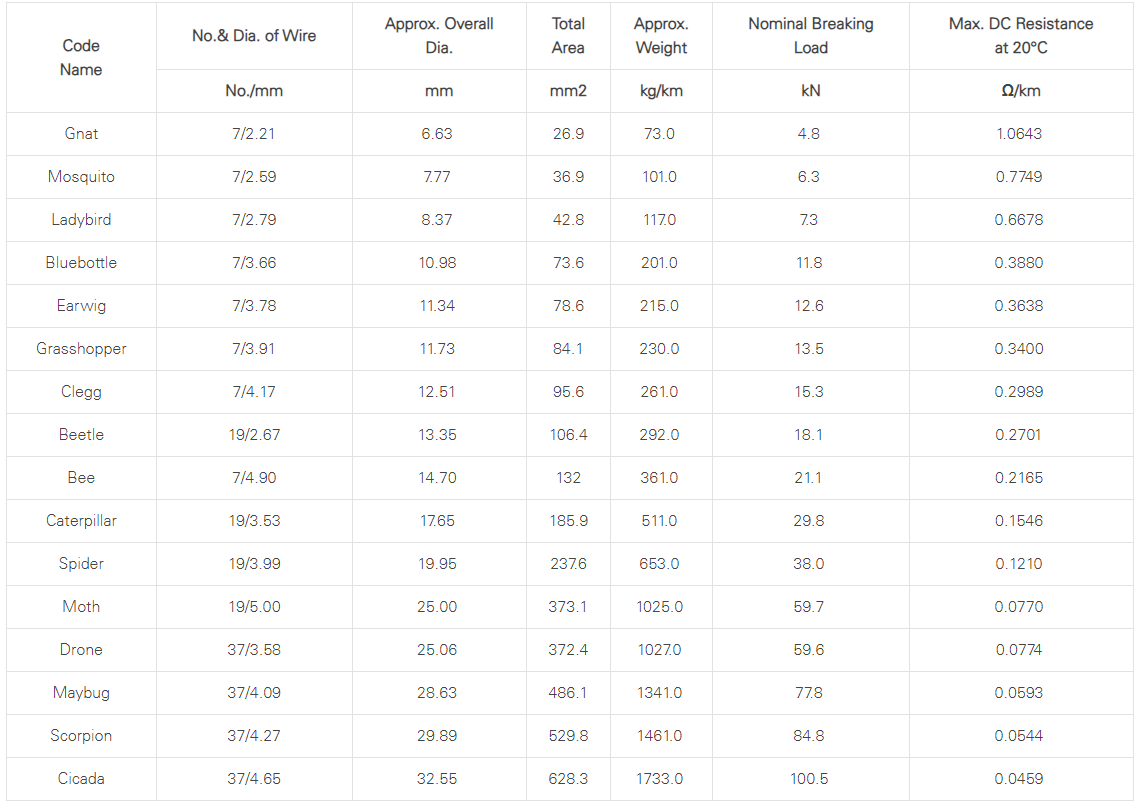

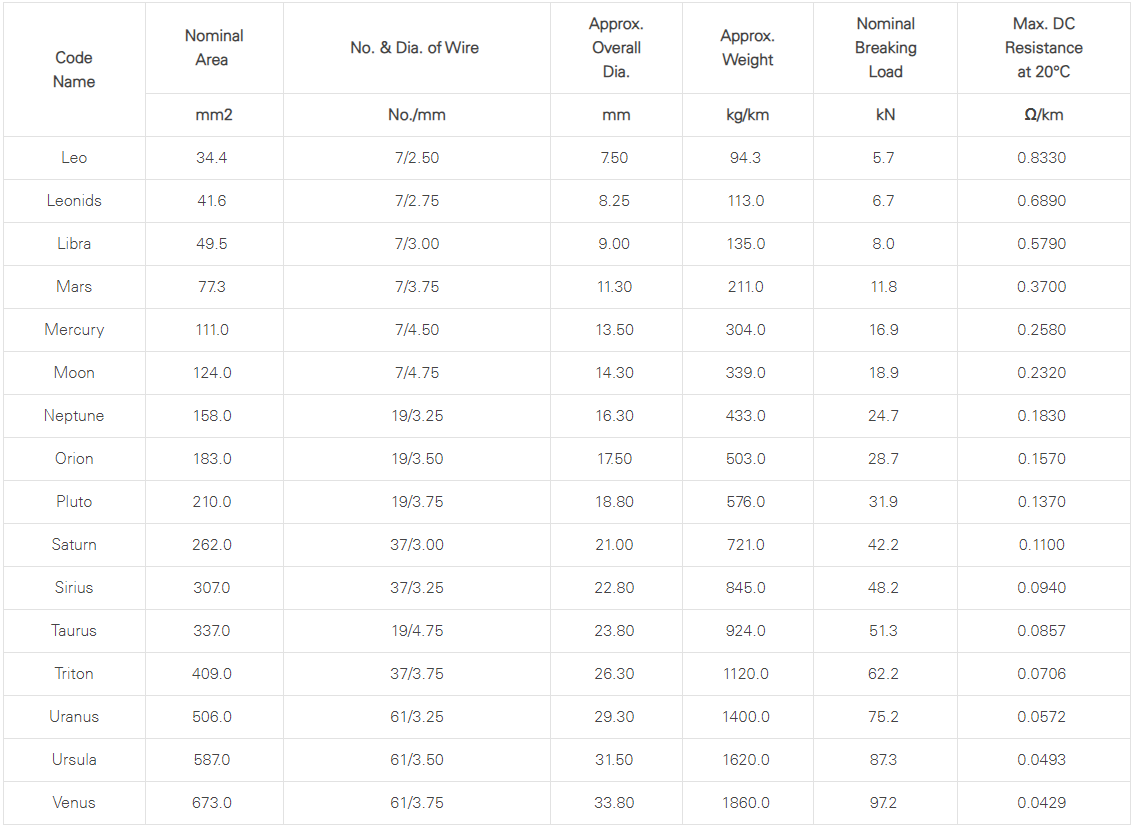

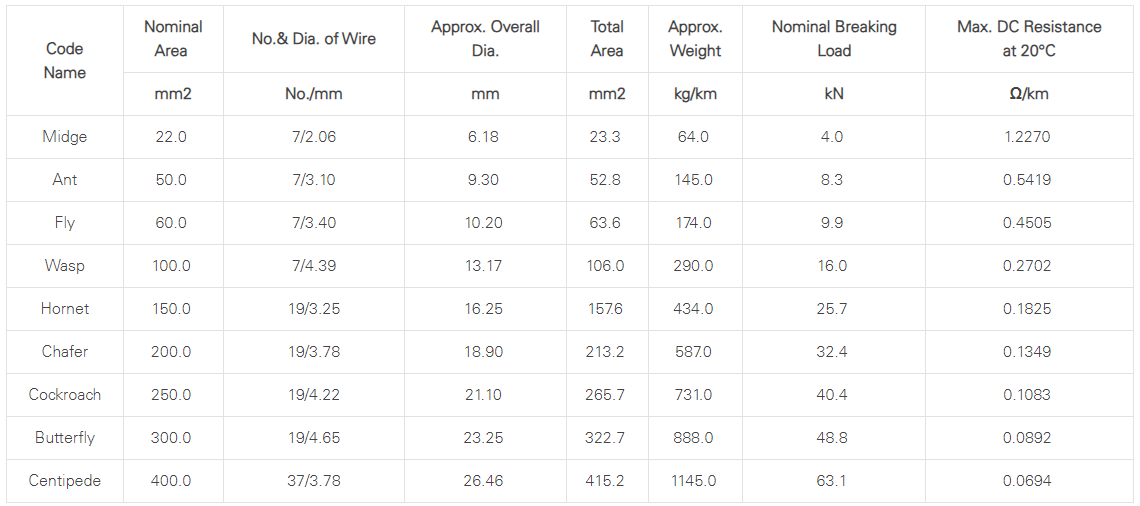

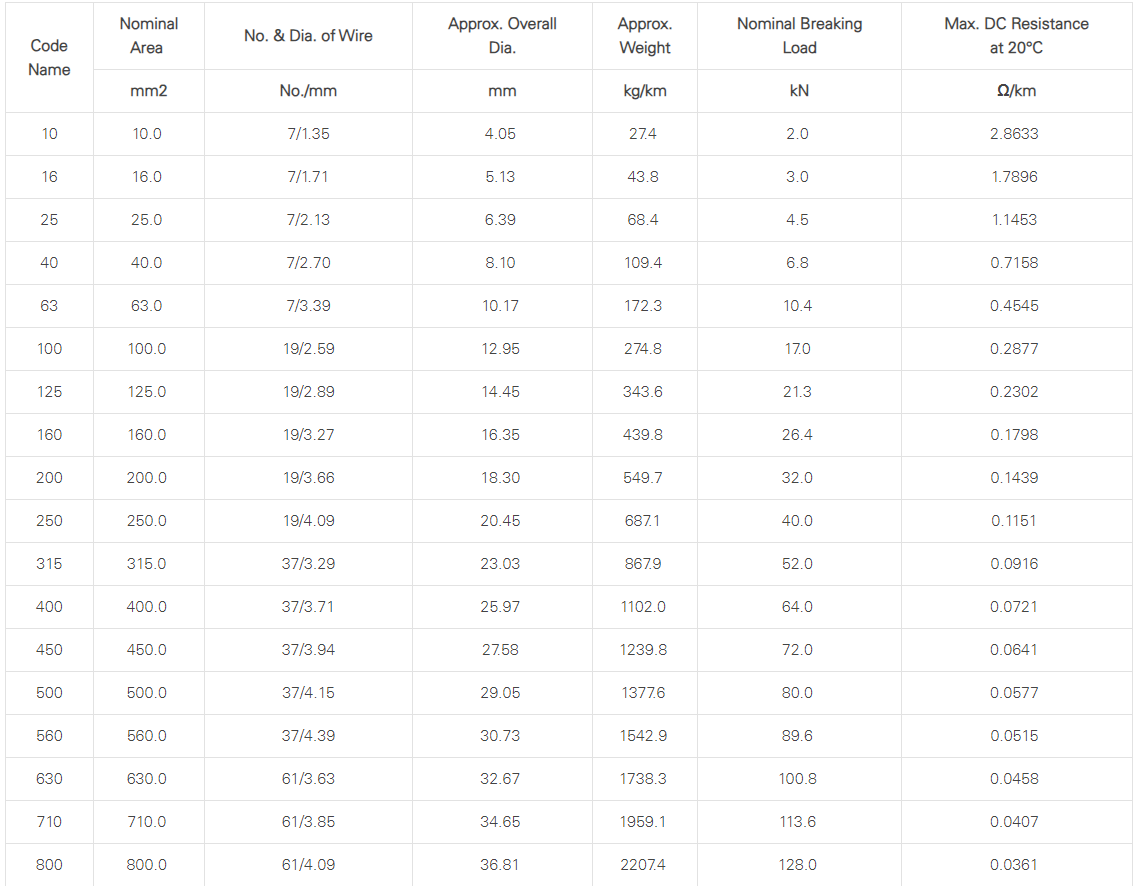

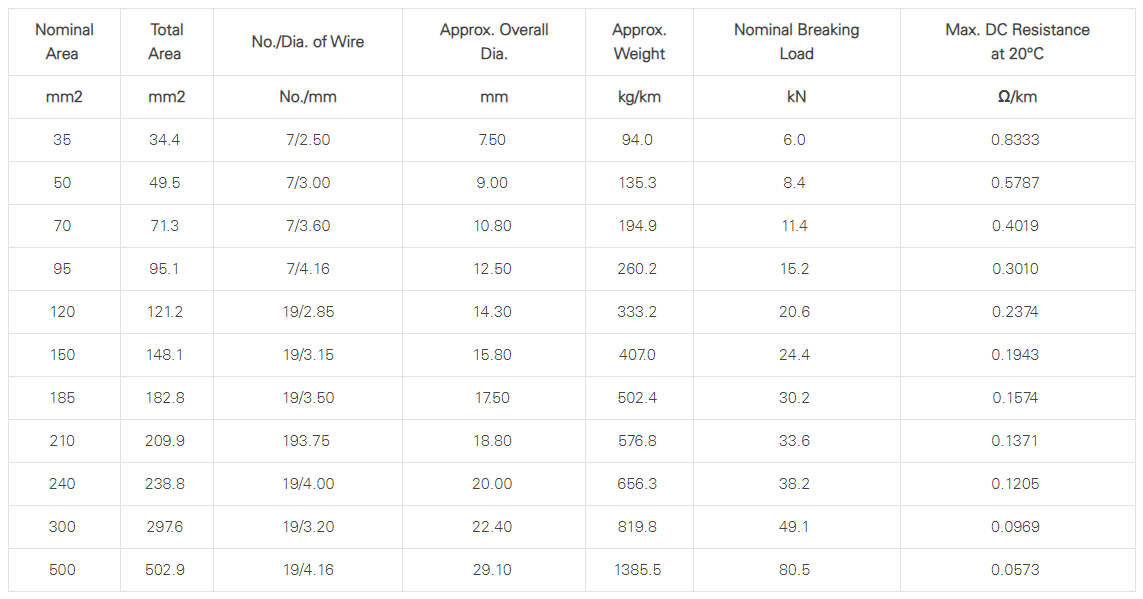

IEC 61089, DIN 48201-5,AS 1531,BS 215-1,BS EN 50182,ASTM B231/B 231/M, GB/T 1179.
CONSTRUCTION
1.Conductor:
Hard drawn aluminum wire

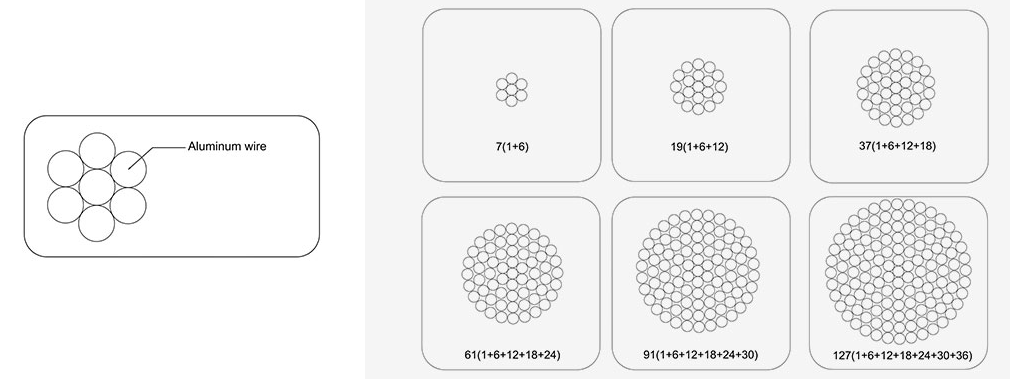

Generally, the AAC Conductor is formed by the following construction:
