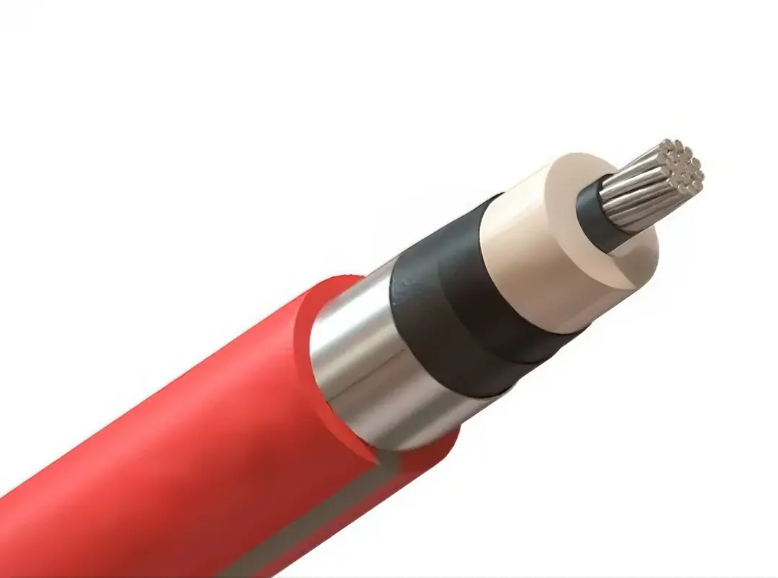

APPLICATION
AL RH5Z1-OL/-2OL is a Medium Voltage aluminium cable with XLPE insulation and halogen free outer sheath. Longitudinal aluminum screen provides additional water protection. Suitable for power distribution in multiple applications including renewable energy installations, external use or direct burial.
DESCRIPTION
Medium Voltage aluminium conductor with XLPE insulation, with longitudinal aluminium tape screen, LSZH sheath.
STANDARD
IEC 60502-2,UNE 211620
MAIN CHARACTERISTICS
Voltage Rating:12/20(24) kV,18/30(36) kV
Temperature Rating:-15°℃ to +90°C
Minimum Bending Radius:20 x overall diameter
Fire characteristics
No flame propagation according to UNE-EN 60332-1 /IEC 60332-1.
CPR fire reaction: Eca according to EN 50575.
Halogen-free according to UNE-EN 60754-1/IEC 60754-1.
Low emission of corrosive gases according to UNE-EN 60754-2/IEC 60754-2.
Environmental characteristics
UV resistance according to UNE 211605.
Water resistance:AD8 lmmersion.

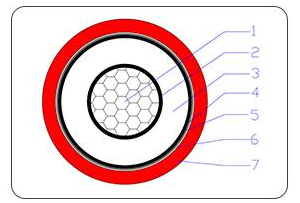

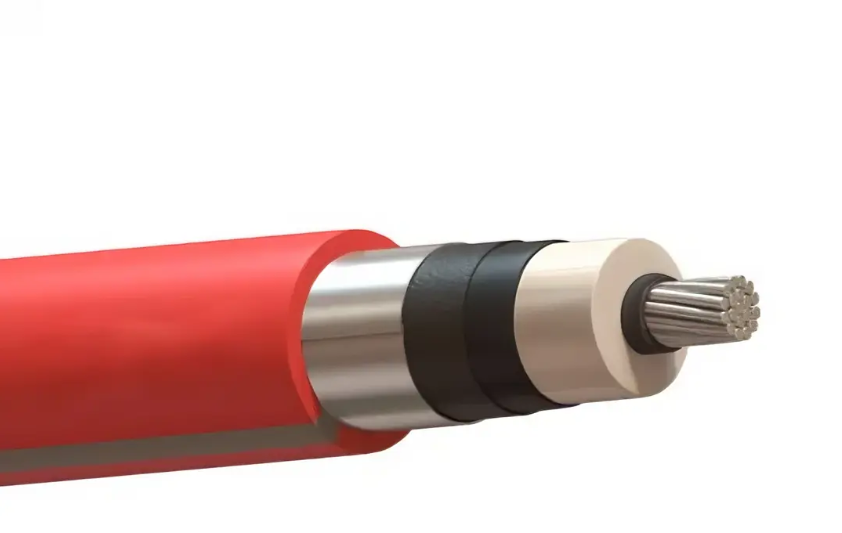

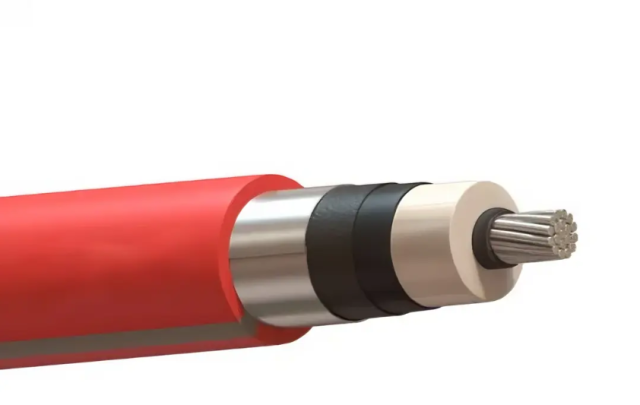

CONSTRUCTION
1.Conductor:Class 2 stranded aluminium according to UNE-EN 60228 and lEC 60228.
Optionally, with longitudinal seal (type -2OL).
2.Conductor Screen:Semi-conductive compound
3.Insulation:Cross-linked polyethylene(XLPE) according to HD 620-1, natural colour.
4.Insulation Screen:Semi-conductive compound (strippable type).
5.Longitudinal Seal:Semi-conductive swellable water-blocking tape
6.Metal screen:0.3 mm thick aluminium tape applied longitudinally to the water-blocking tape and adhered to the outer sheath.
7.Outer Sheath:LSZH(red color with two gray stripes)
