DESCRIPTION

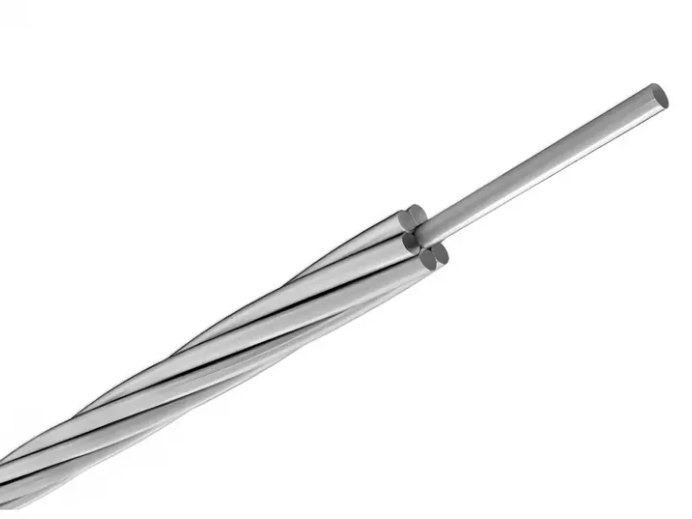

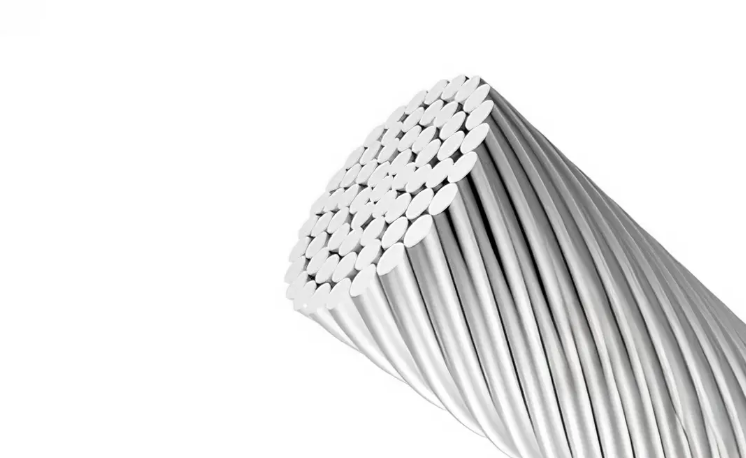

The AAAC 1120 are concentrically stranded conductor, it consists one or more layers of aluminum alloy wire 1120
APPLICATION
In air circuits where more than of the AAC conductor (between 40 and 50%) or lower weight and better corrosion resistance and the ACSR conductor. With a conductivity of 59% lACS, the aluminum alloy 1120 greatly replaces the alloy 6201 in relationto electrical resistance.
STANDARD
AS 1531
CONSTRUCTION

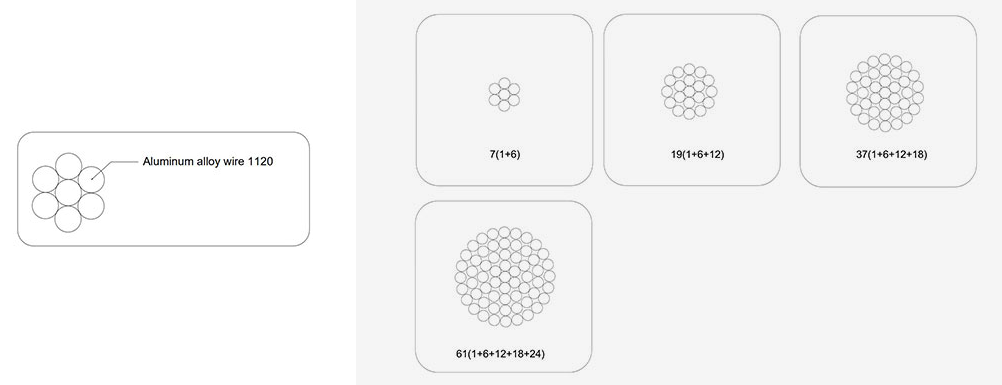

1.Conductor
Hard drawn aluminum alloy wire 1120

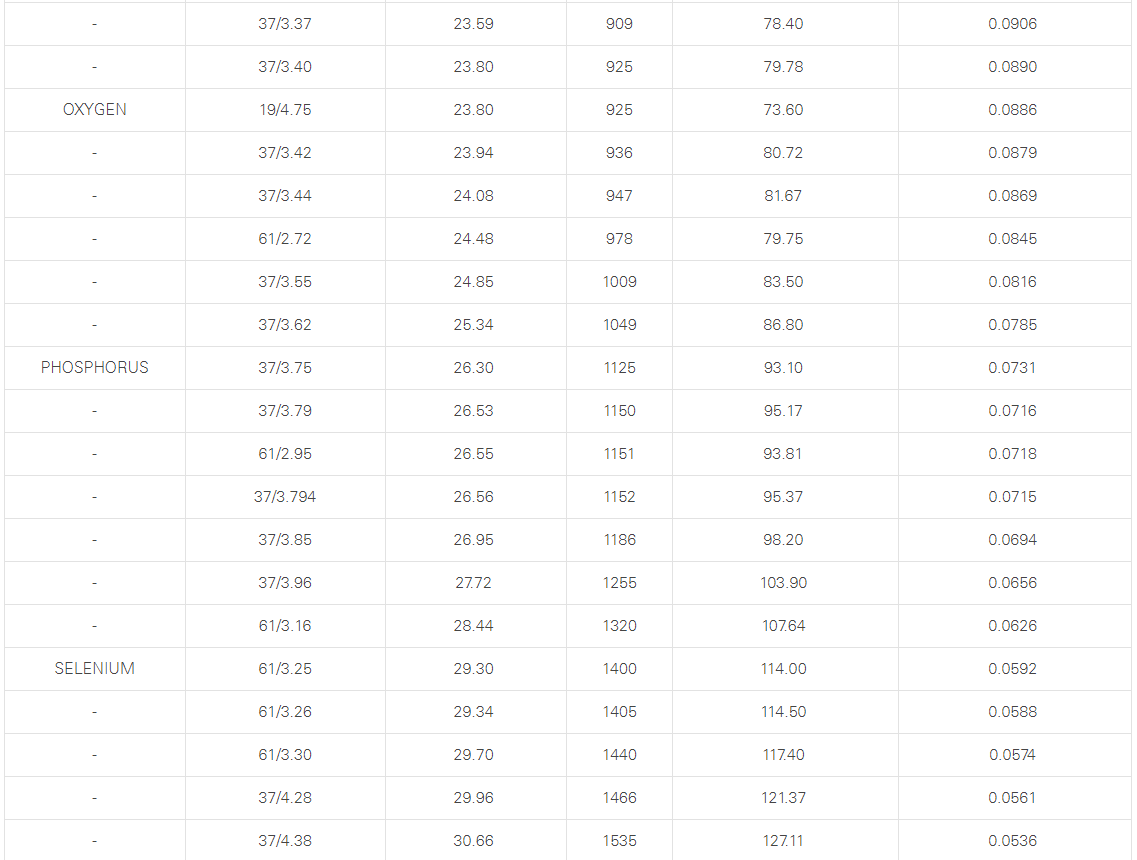

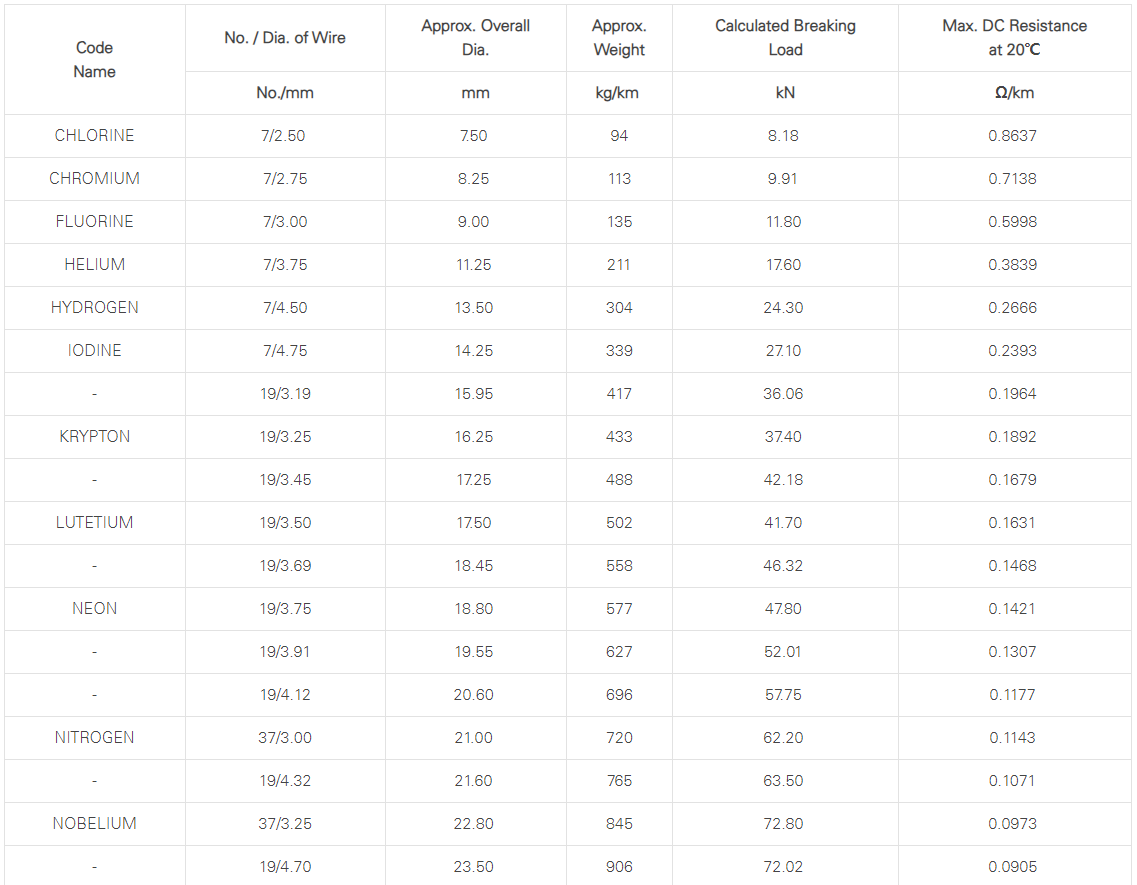

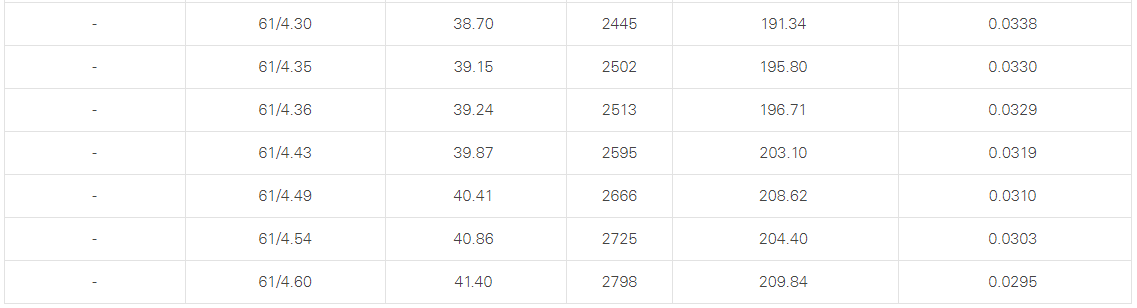

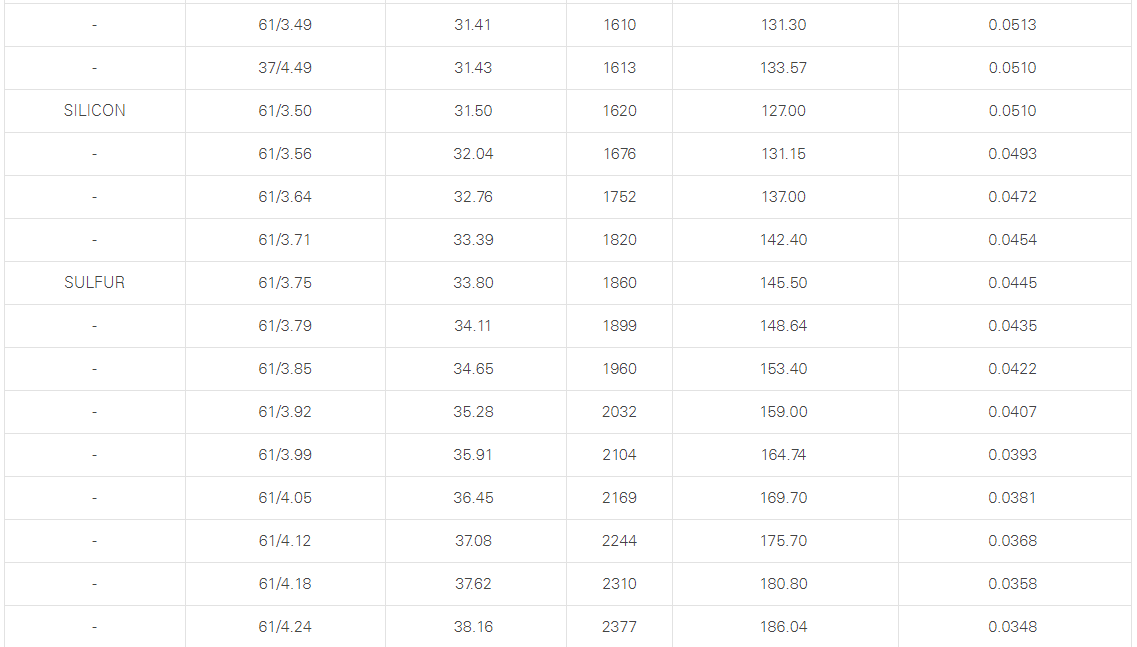

Generally, the AAAC 1120 Conductor is formed by the following construction:
