Voltage: 0.6/1KV Model: YJLHV
Application:
Power industry
Industrial parks and factories
Construction
Transportation
advantage：
The advantages of aluminum alloy power cables primarily include excellent safety, conductivity, corrosion resistance, mechanical properties, connection performance, and economical performance.

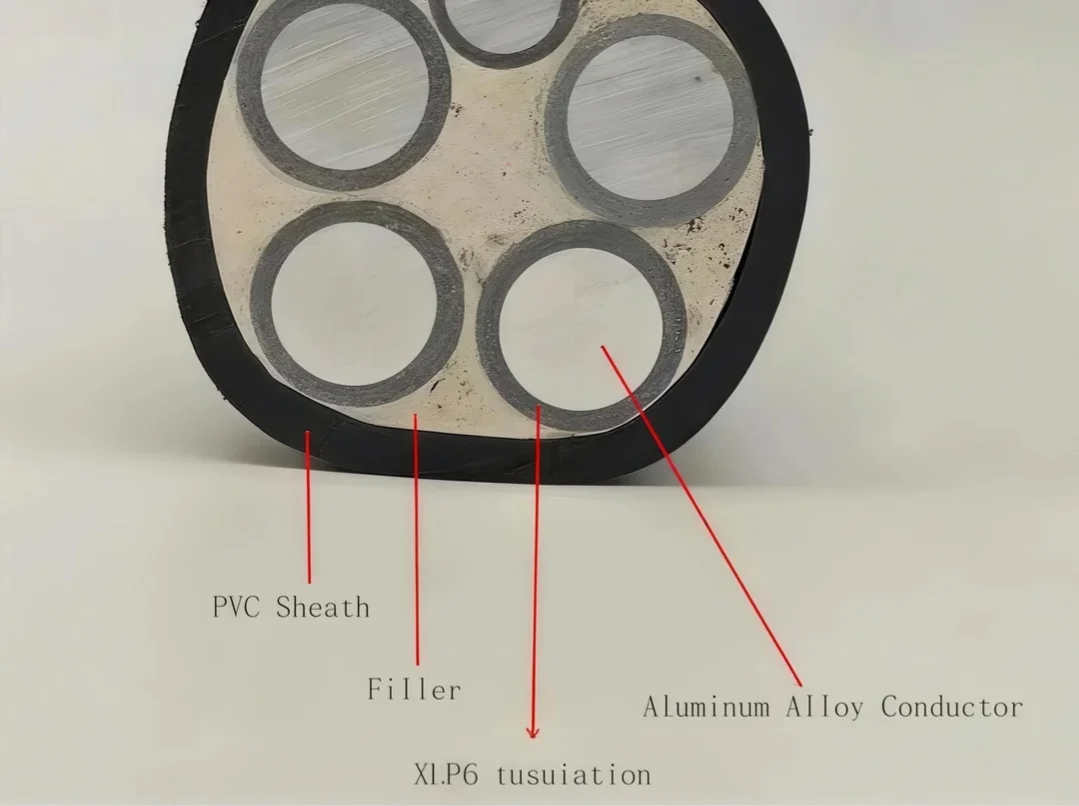

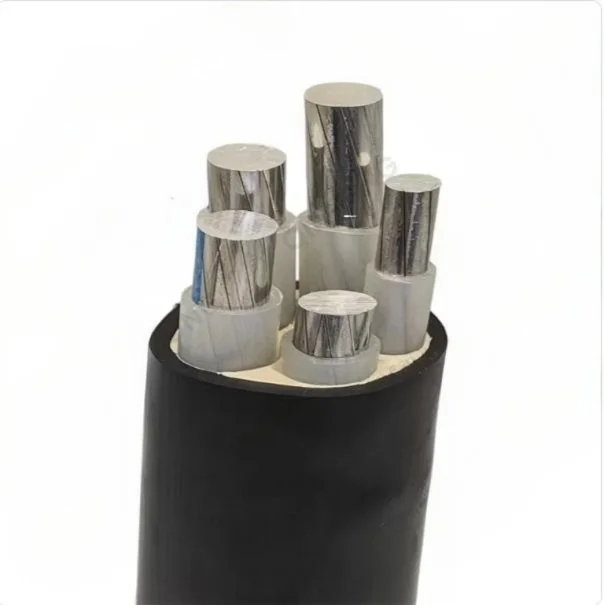

Conductor: Aluminum alloy
Insulation: Cross-linked polyethylene
Insulation color: Natural or customizable
Filling material: Non-hygroscopic
Outer jacket: PVC/PE
Jacket color: Black
Physical properties:
Maximum operating temperature of conductor: 70°C (PVC insulation), 90°C (XLPE insulation)
Minimum operating temperature: -5°C (PVC or LSZH sheath), -20°C (PE sheath)
Short-circuit temperature (no more than 5 seconds): 140°C-160°C (PVC insulation), 250°C (XLPE insulation)
Technical Parameters
3 + 1 - core aluminum alloy conductor cross - linked polyethylene insulated polyvinyl chloride sheathed power cable (0.6/1KV)
| Number of Cores and Nominal Cross - Section (mm²) | Insulation Thickness (mm) | Sheath Thickness (mm) | Approximate Outer Diameter (mm) | Approximate Weight (kg/km) | Maximum DC Resistance of Conductor (20°C) (Ω/km) | Current - Carrying Capacity (A/km) | |
|---|---|---|---|---|---|---|---|
| In Air | On Ground | ||||||
| 3×16 + 1×10 | 0.7/0.7 | 1.8 | 19.4 | 370 | 1.91/3.08 | 65 | 85 |
| 3×25 + 1×16 | 0.9/0.7 | 1.8 | 22.8 | 520 | 1.20/1.91 | 87 | 110 |
| 3×35 + 1×16 | 0.9/0.7 | 1.8 | 25.1 | 650 | 0.868/1.91 | 105 | 130 |
| 3×50 + 1×25 | 1.0/0.9 | 1.8 | 28.2 | 780 | 0.64/1.20 | 130 | 160 |
| 3×70 + 1×35 | 1.1/0.9 | 1.9 | 31.9 | 1050 | 0.443/0.868 | 165 | 195 |
| 3×95 + 1×50 | 1.1/1.0 | 2.1 | 35.7 | 1460 | 0.320/0.641 | 205 | 235 |
| 3×120 + 1×70 | 1.2/1.1 | 2.2 | 39.6 | 1820 | 0.253/0.443 | 240 | 265 |
| 3×150 + 1×70 | 1.4/1.1 | 2.3 | 43.6 | 2150 | 0.206/0.443 | 270 | 300 |
| 3×185 + 1×95 | 1.6/1.1 | 2.5 | 49.8 | 2725 | 0.164/0.320 | 315 | 340 |
| 3×240 + 1×120 | 1.7/1.2 | 2.7 | 55.3 | 3480 | 0.125/0.253 | 375 | 395 |
| 3×300 + 1×150 | 1.8/1.4 | 2.9 | 57.0 | 4230 | 0.100/0.206 | 435 | 445 |
| 3×400 + 1×185 | 2.0/1.7 | 3.1 | 70.0 | 5520 | 0.0778/0.164 | 510 | 510 |
4 + 1 - core aluminum alloy conductor cross - linked polyethylene insulated polyvinyl chloride sheathed power cable (0.6/KV)
| Number of Cores and Nominal Cross - Section (mm²) | Insulation Thickness (mm) | Sheath Thickness (mm) | Approximate Outer Diameter (mm) | Approximate Weight (kg/km) | Maximum DC Resistance of Conductor (20°C) (Ω/km) | Current - Carrying Capacity (A/km) | |
|---|---|---|---|---|---|---|---|
| In Air | On Ground | ||||||
| 4×16 + 1×10 | 0.7/0.7 | 1.8 | 21.3 | 450 | 1.91/3.08 | 65 | 85 |
| 4×25 + 1×16 | 0.9/0.7 | 1.8 | 25.7 | 650 | 1.20/1.91 | 87 | 110 |
| 4×35 + 1×16 | 0.9/0.7 | 1.8 | 28.2 | 795 | 0.868/1.91 | 105 | 130 |
| 4×50 + 1×25 | 1.0/0.9 | 1.9 | 28.9 | 1020 | 0.641/1.20 | 130 | 160 |
| 4×70 + 1×35 | 1.1/0.9 | 2.0 | 32.2 | 1360 | 0.443/0.868 | 165 | 195 |
| 4×95 + 1×50 | 1.1/1.0 | 2.2 | 36.9 | 1870 | 0.320/0.641 | 205 | 235 |
| 4×120 + 1×70 | 1.2/1.1 | 2.3 | 40.8 | 2342 | 0.253/0.443 | 240 | 265 |
| 4×150 + 1×70 | 1.4/1.1 | 2.5 | 44.7 | 2778 | 0.206/0.443 | 270 | 300 |
| 4×185 + 1×95 | 1.6/1.1 | 2.7 | 50.7 | 3495 | 0.164/0.320 | 315 | 340 |
| 4×240 + 1×120 | 1.7/1.2 | 2.9 | 56.4 | 4416 | 0.125/0.253 | 375 | 395 |
| 4×300 + 1×150 | 1.8/1.4 | 3.1 | 64.0 | 5422 | 0.100/0.206 | 435 | 445 |
| Number of Cores and Nominal Cross - Section (mm²) | Insulation Thickness (mm) | Sheath Thickness (mm) | Approximate Outer Diameter (mm) | Approximate Weight (kg/km) | Maximum DC Resistance of Conductor (20°C) (Ω/km) | Current - Carrying Capacity (A/km) | |
|---|---|---|---|---|---|---|---|
| In Air | On Ground | ||||||
| 3×16 + 2×10 | 0.7/0.7 | 1.8 | 20.8 | 425 | 1.91/3.08 | 65 | 85 |
| 3×25 + 2×16 | 0.9/0.7 | 1.8 | 25.2 | 600 | 1.20/1.91 | 87 | 110 |
| 3×35 + 2×16 | 0.9/0.7 | 1.8 | 26.8 | 720 | 0.868/1.91 | 105 | 130 |
| 3×50 + 2×25 | 1.0/0.9 | 1.9 | 28.7 | 955 | 0.641/1.20 | 130 | 160 |
| 3×70 + 2×35 | 1.1/0.9 | 2.0 | 33.7 | 1230 | 0.443/0.868 | 165 | 195 |
| 3×95 + 2×50 | 1.1/1.0 | 2.2 | 38.3 | 1706 | 0.320/0.641 | 205 | 235 |
| 3×120 + 2×70 | 1.2/1.1 | 2.3 | 43.2 | 2180 | 0.253/0.443 | 240 | 265 |
| 3×150 + 2×70 | 1.4/1.1 | 2.4 | 46.5 | 2525 | 0.206/0.443 | 270 | 300 |
| 3×185 + 2×95 | 1.6/1.1 | 2.6 | 51.9 | 3195 | 0.164/0.320 | 315 | 340 |
| 3×240 + 2×120 | 1.7/1.2 | 2.8 | 58.0 | 4050 | 0.125/0.253 | 375 | 395 |
| 3×300 + 2×150 | 1.8/1.4 | 3.0 | 64.2 | 4983 | 0.100/0.206 | 435 | 445 |
