DESCRIPTION

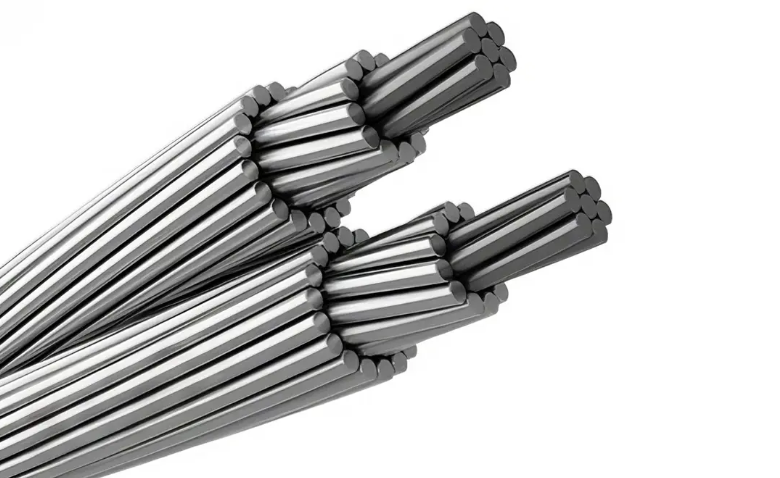

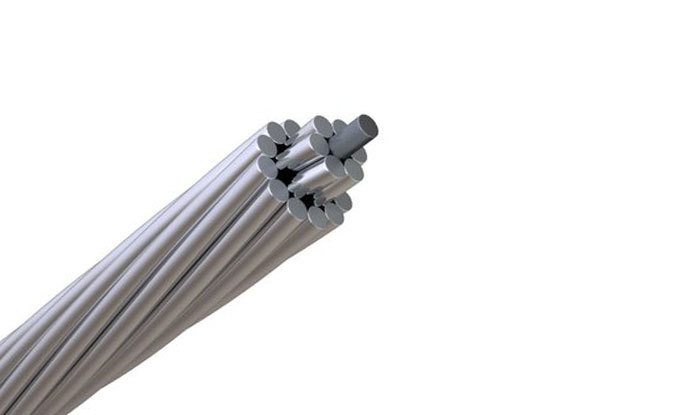

The AACSR conductor is formed by several wires of aluminum alloy and galvanized steel, stranded in concentric layers.The wire or wires which form the core, are made of galvanized steel, and the external layer or layers, are made of aluminum alloy.
APPLICATION
Overhead transmission and distribution lines Medium, High and Extra High Voltage.Specially recommended in, crossings, or where a very high tensile strength is needed.
STANDARD
ASTM B711,IEC 61089,AS 3607,GB/T 1179

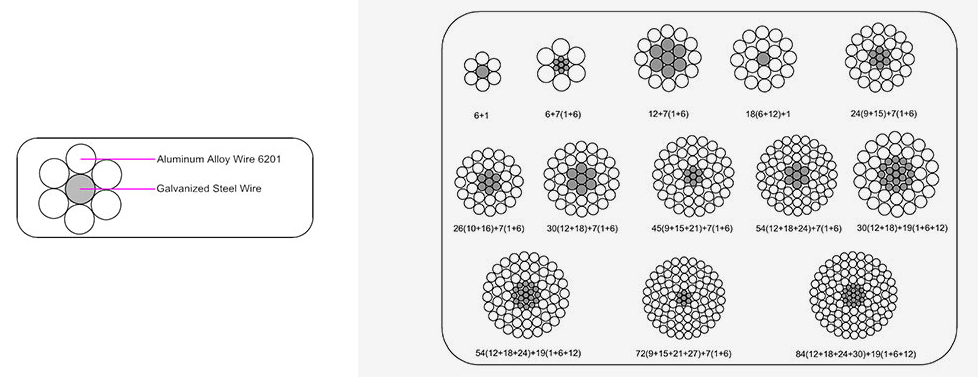

CONSTRUCTION
1.Conductor
1)Outer layer: Aluminum alloy wire 6201
2)Center: Galvanized steel wire

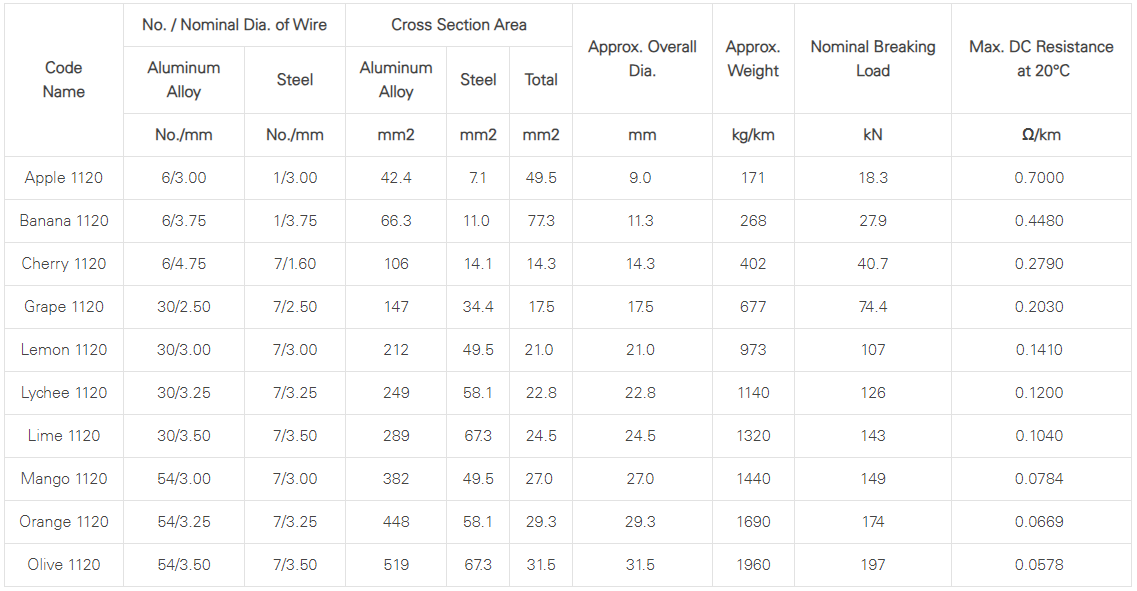

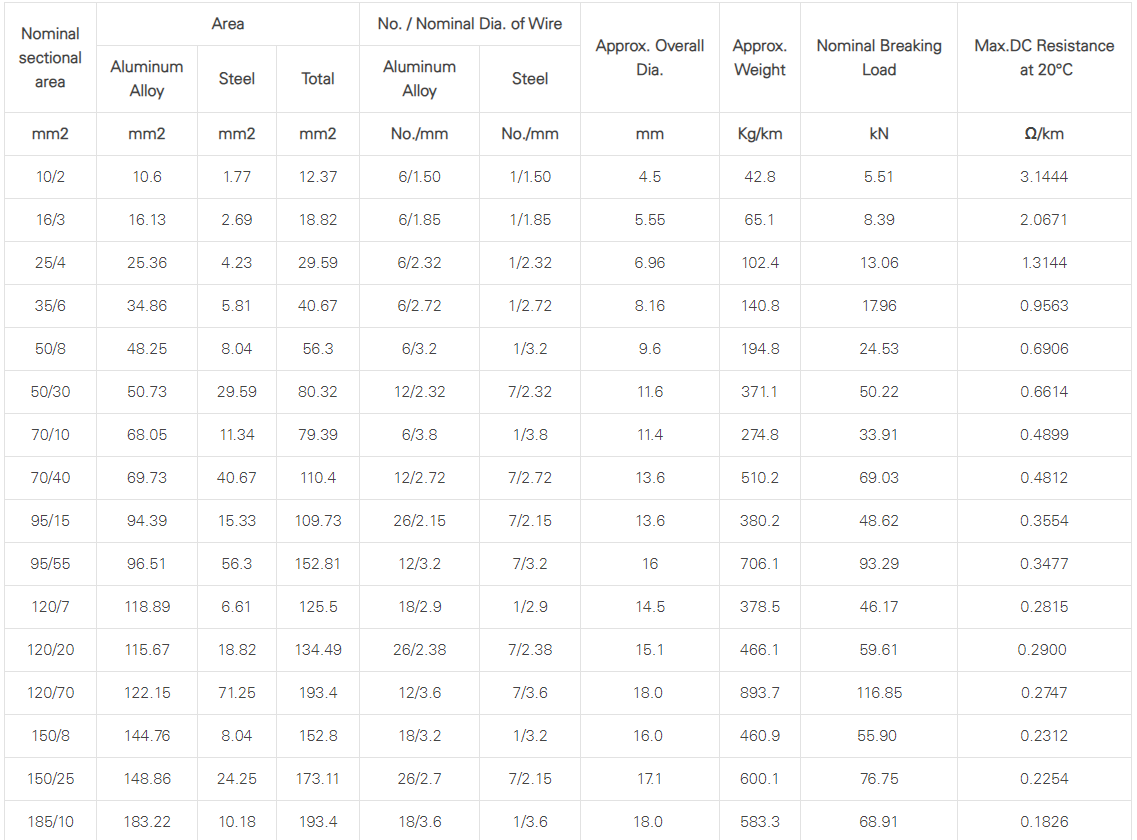

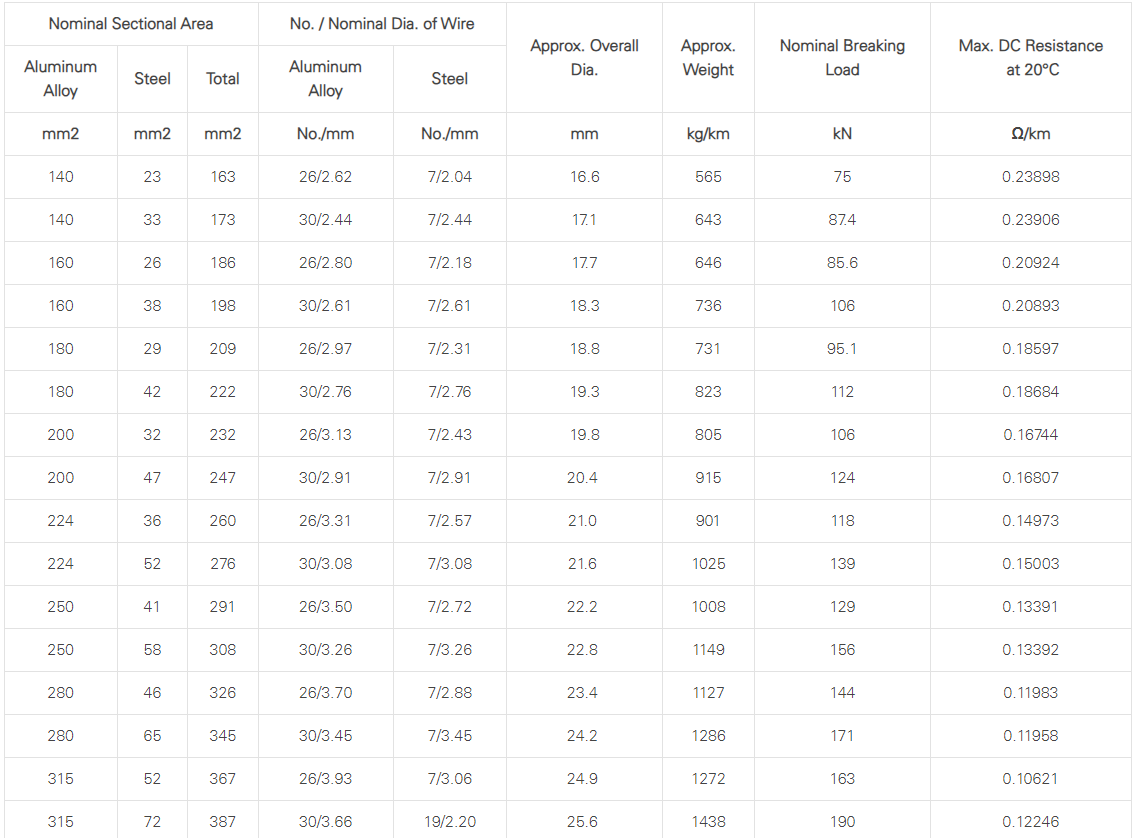

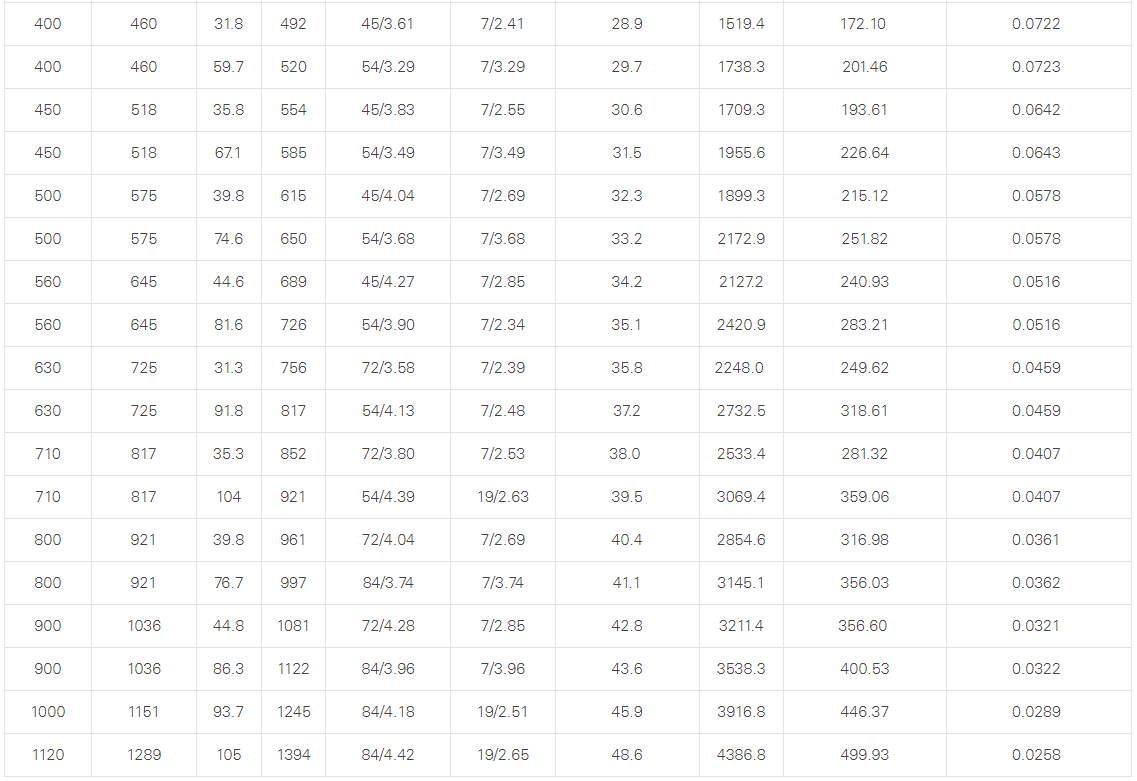

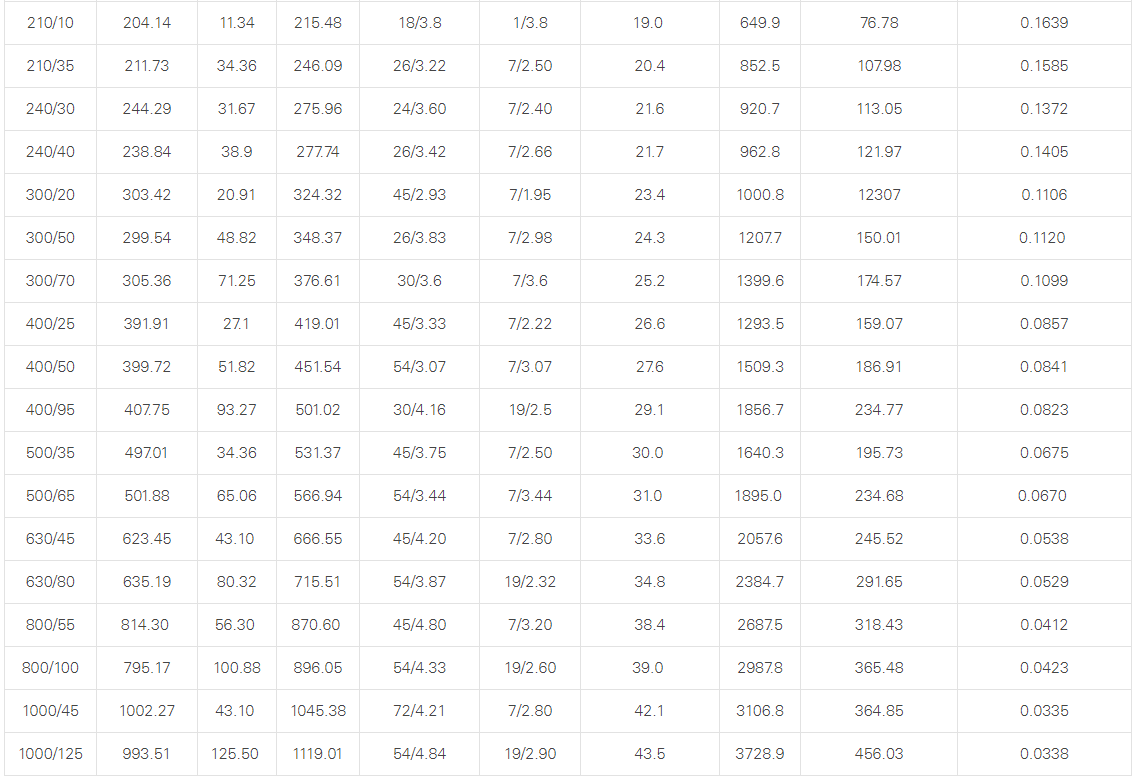

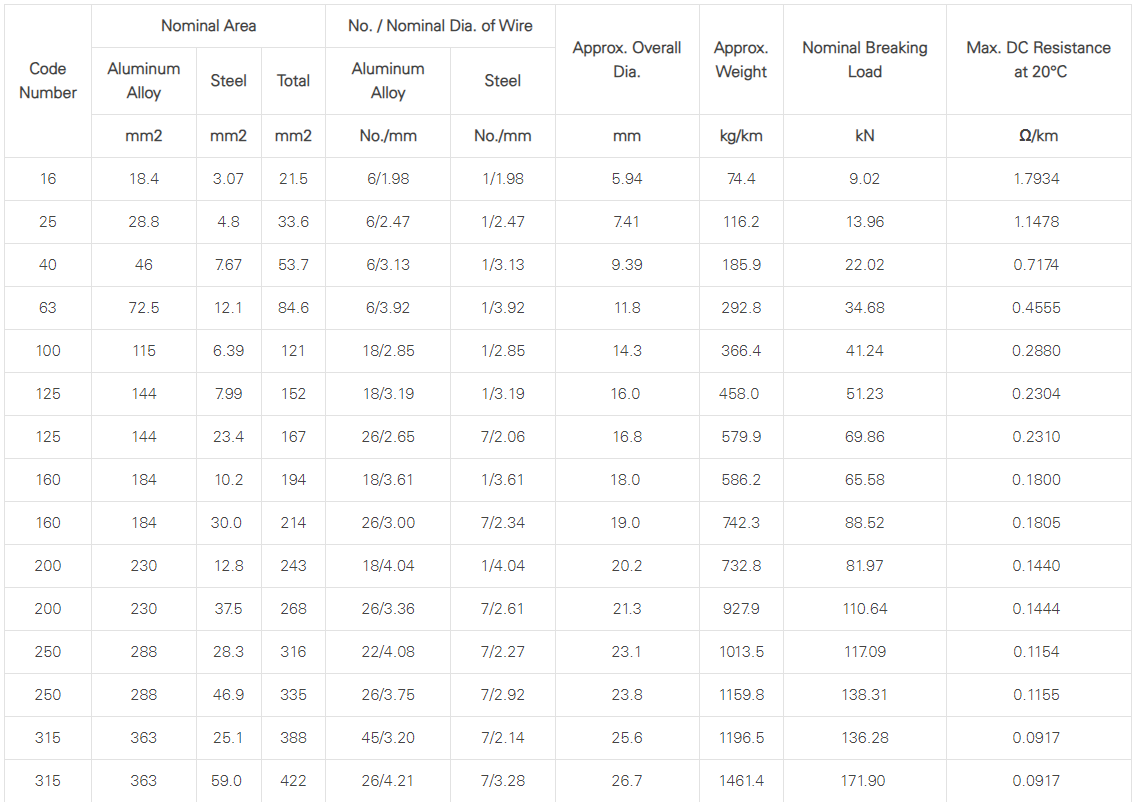

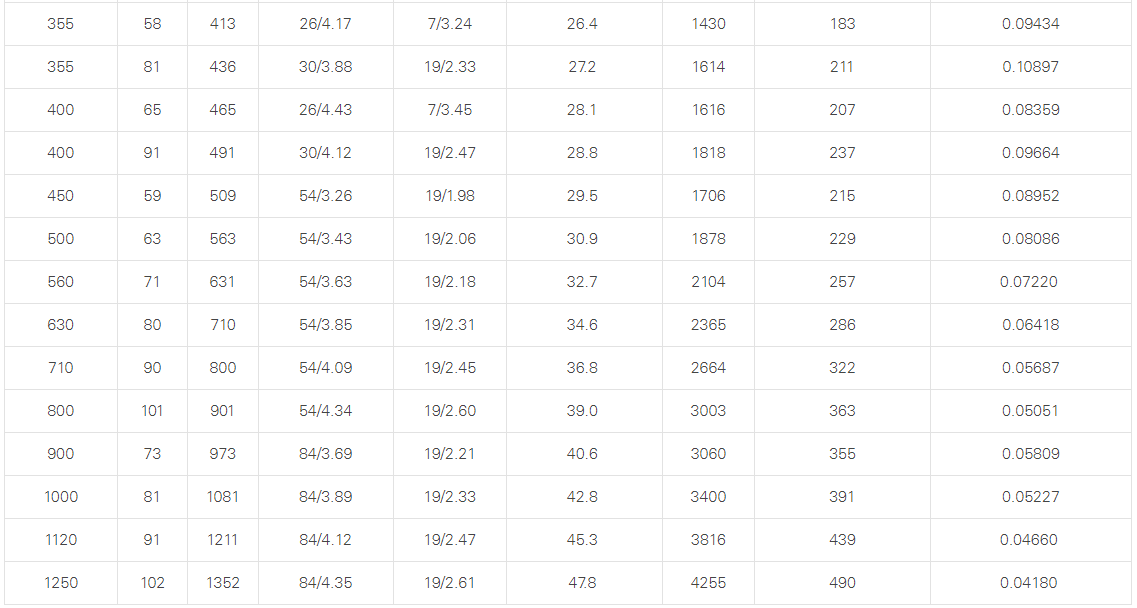

Generally, the AACSR Conductor is formed by the following construction:
