Name: Aluminum alloy conductor steel tape armored power cable
Brand: MY SHOP
Availability: InStock
Rating: 5 (1 reviews)

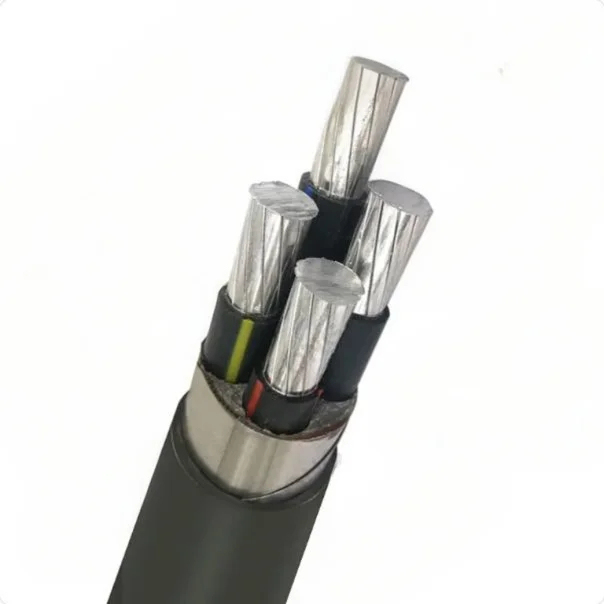

Aluminum alloy conductor steel tape armored power cable

Voltage: 0.6/1kV

Model: YJLHV22 YJLHV32 YJLHV42...

Application：

Power industry

Industrial parks and factories

Construction

Transportation

Product Advantages：

The advantages of aluminum alloy steel armored power cables primarily include excellent safety, conductivity, corrosion resistance, mechanical properties, connection performance, and economical performance.

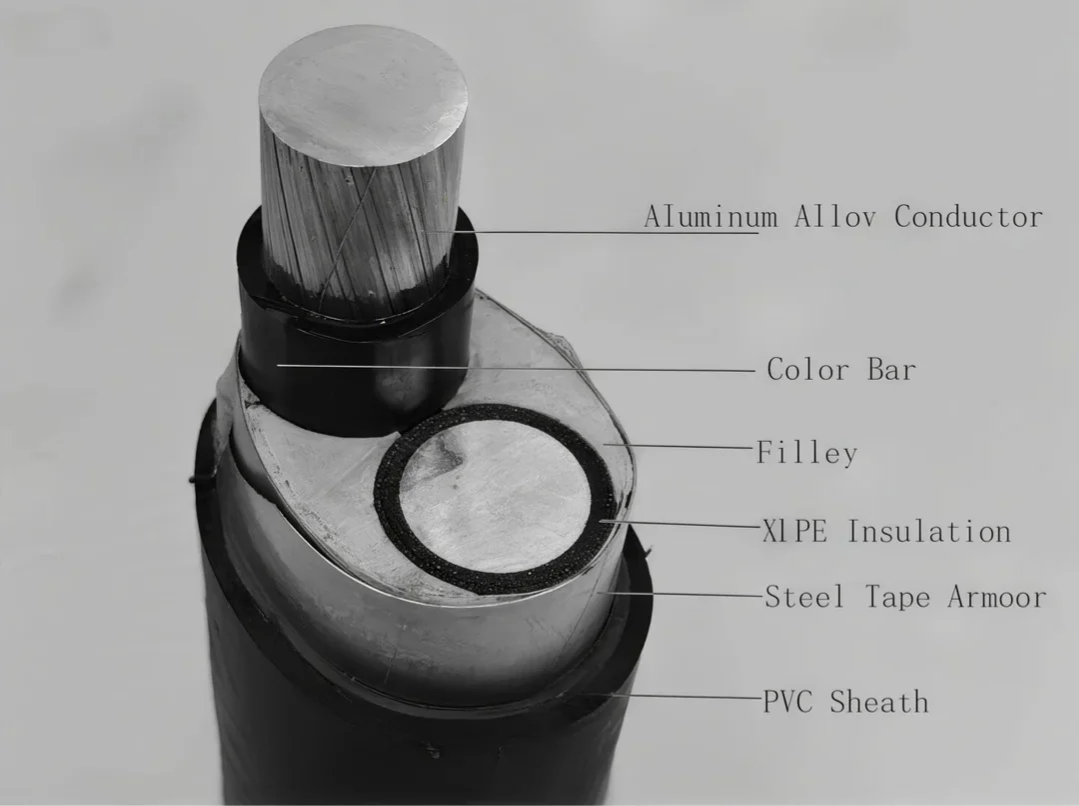

Conductor: Aluminum alloy

Insulation: Cross-linked polyethylene

Insulation color: Natural or customizable

Filling: Non-hygroscopic

Reinforcement: Steel tape armor (or customizable)

Outer jacket: PVC/PE

Jacket color: Black

Physical properties:

Maximum operating temperature of conductor: 70°C (PVC insulation), 90°C (XLPE insulation)

Minimum operating temperature: -5°C (PVC or LSZH sheath), -20°C (PE sheath)

Short-circuit temperature (no more than 5 seconds): 140°C-160°C (PVC insulation), 250°C (XLPE insulation)

Number of Cores and Nominal Cross - Section (mm²)	Insulation Thickness (mm)	Steel Tape Thickness (mm)	Sheath Thickness (mm)	Approximate Outer Diameter (mm)	Approximate Weight (kg/km)	Maximum DC Resistance of Conductor (20°C) (Ω/km)	Current - Carrying Capacity (A/km)
							In Air	On Ground
3×4 + 1×2.5	0.7/0.7	0.2	1.8	15.5	318	7.41/12.1	/	30
3×6 + 1×4	0.7/0.7	0.2	1.8	16.8	371	4.61/7.41	/	38
3×10 + 1×6	0.7/0.7	0.2	1.8	19.3	478	3.08/4.61	50	47
3×16 + 1×10	0.7/0.7	0.2	1.8	22.1	615	1.91/3.08	64	62
3×25 + 1×16	0.9/0.7	0.2	1.8	25.1	794	1.20/1.91	86	78
3×35 + 1×16	0.9/0.7	0.2	1.8	26.8	926	0.868/1.91	105	94
3×50 + 1×25	1.0/0.9	0.2	1.9	30.2	1175	0.641/1.20	125	110
3×70 + 1×35	1.1/0.9	0.2	2.0	35.1	1570	0.443/0.868	165	135
3×95 + 1×50	1.1/1.0	0.5	2.2	40.4	2359	0.320/0.641	200	160
3×120 + 1×70	1.2/1.1	0.5	2.3	45	2886	0.253/0.443	235	185
3×150 + 1×70	1.4/1.1	0.5	2.5	49.1	3396	0.206/0.443	270	205
3×185 + 1×95	1.6/1.1	0.5	2.8	54.3	4070	0.164/0.320	310	235
3×240 + 1×120	1.7/1.2	0.5	2.8	59.1	4855	0.125/0.253	365	260
3×300 + 1×150	1.8/1.4	0.5	3.0	66.0	6028	0.100/0.206	420	290

Number of Cores and Nominal Cross - Section (mm²)

Insulation Thickness (mm)

Steel Tape Thickness (mm)

Sheath Thickness (mm)

Approximate Outer Diameter (mm)

Approximate Weight (kg/km)

Maximum DC Resistance of Conductor (20°C) (Ω/km)

Current - Carrying Capacity (A/km)

In Air

On Ground

4×4 + 1×2.5

0.7/0.7

0.2

1.8

16.3

365

7.41/12.1

4×6 + 1×4

0.7/0.7

0.2

1.8

17.7

429

4.61/7.41

4×10 + 1×6

0.7/0.7

0.2

1.8

20.3

561

3.08/4.61

4×16 + 1×10

0.7/0.7

0.2

1.8

728

1.91/3.08

4×25 + 1×16

0.9/0.7

0.2

1.8

28.1

974

1.20/1.91

4×35 + 1×16

0.9/0.7

0.2

1.9

29.6

1134

0.868/1.91

105

4×50 + 1×25

1.0/0.9

0.2

2.0

1505

0.641/1.20

125

110

4×70 + 1×35

1.1/0.9

0.5

2.2

40.3

2351

0.443/0.868

165

135

4×95 + 1×50

1.1/1.0

0.5

2.3

44.8

2907

0.320/0.641

200

160

4×120 + 1×70

1.2/1.1

0.5

2.6

50.2

3588

0.253/0.443

235

185

4×150 + 1×70

1.4/1.1

0.5

2.8

54.6

4215

0.206/0.443

270

205

4×185 + 1×95

1.6/1.1

0.5

2.9

60.5

5133

0.164/0.320

310

235

4×240 + 1×120

1.7/1.2

0.5

3.0

67.1

6289

0.125/0.253

365

260

4×300 + 1×150

1.8/1.4

0.5

3.2

73.7

7544

0.100/0.206

420

290
