APPLICATION

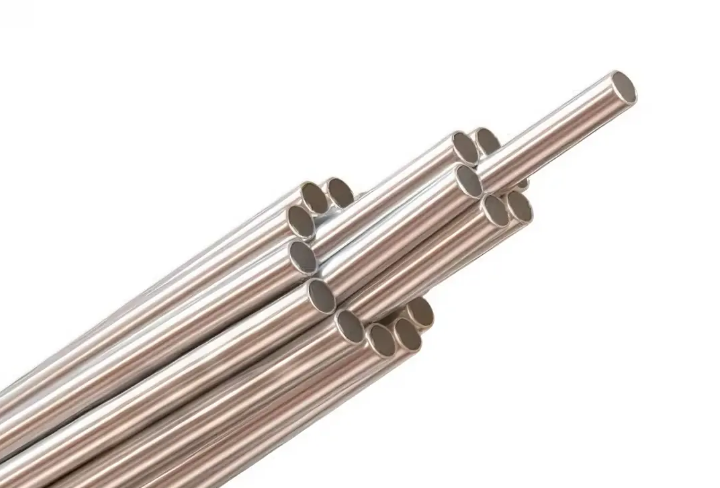

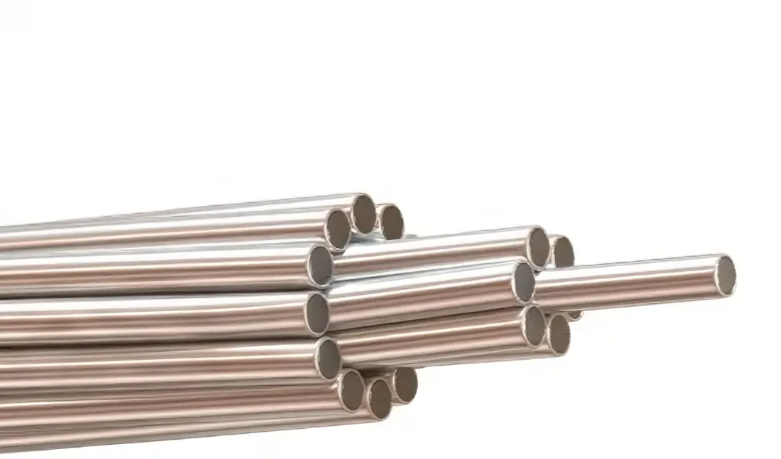

ACS conductor is used as an overhead ground wire to protect power transmission lines from lightning damage.
Due to its excellent characteristics, this product is used extensively in the cable industry for the manufacturing of Optical Ground Wire (OPGW) and steel reinforced cores for phases conductors,all to be used in overhead lines. Also, it can be used in alternative applications an helical hardware for overhead lines or those where the resistance to the corrosion is an important factor.
DESCRIPTION
Bare concentric-lay-stranded conductors made from bare, hard-drawn, round, aluminum clad steel wires for general use of electrical purposes.Conductors are classified as follows:14% conductivity,20.3% conductivity,27% conductivity,35 %conductivity, 40 % conductivity.
STANDARD
lEC 61089 Round Wire Concentric Lay Overhead Electrical Stranded Conductors

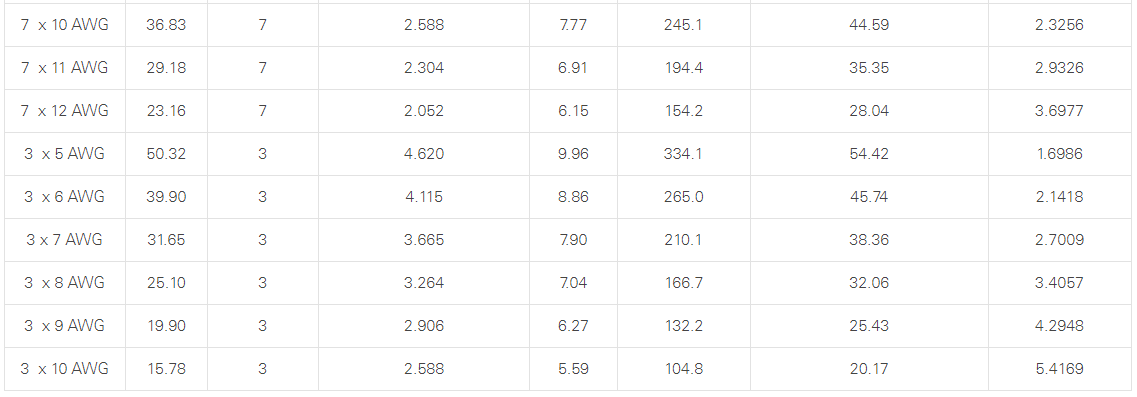

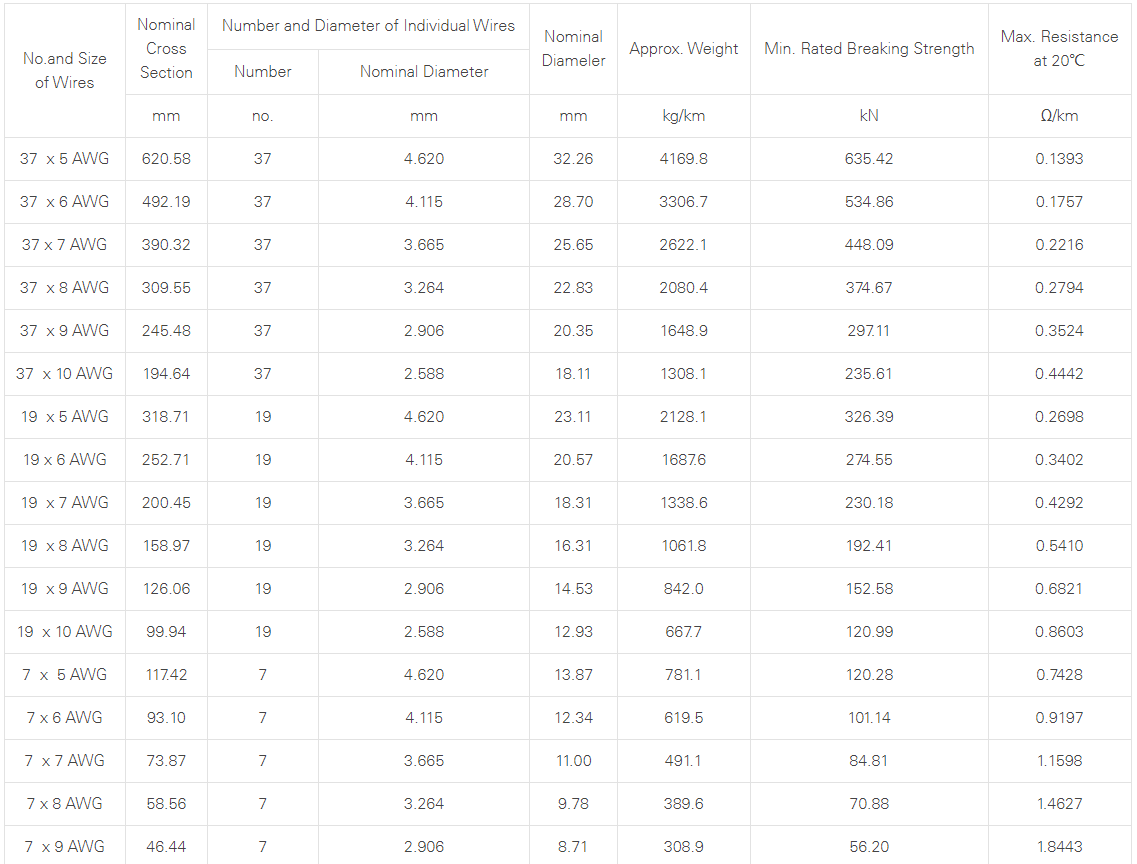

ASTM B 416 Concentric-Lay-Stranded Aluminum-Clad Steel Conductors

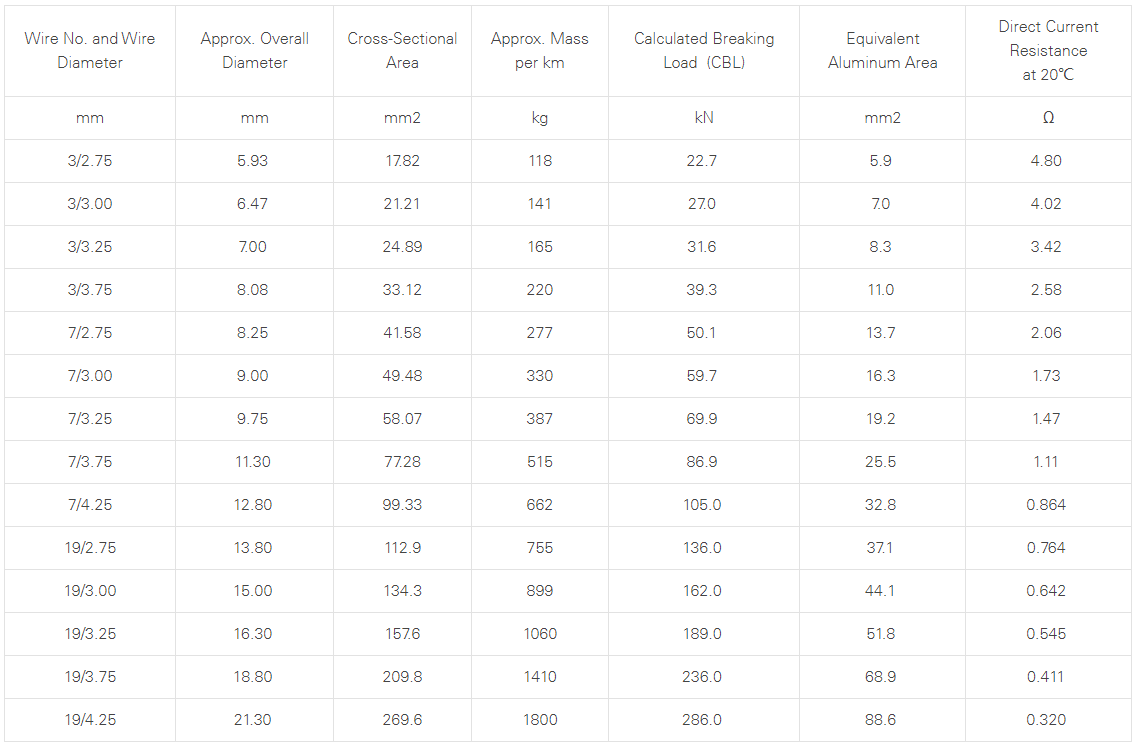

AS 1222.2 Steel Conductors and stays Bare Overhead Part 2:Aluminum clad (SC/AC)

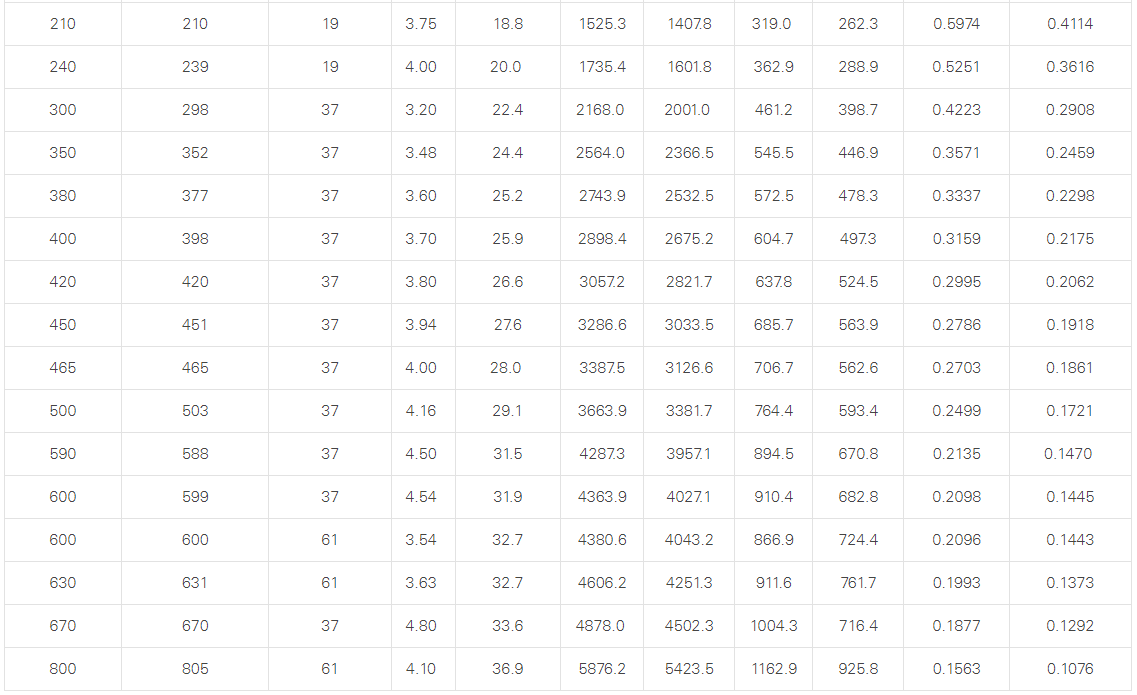

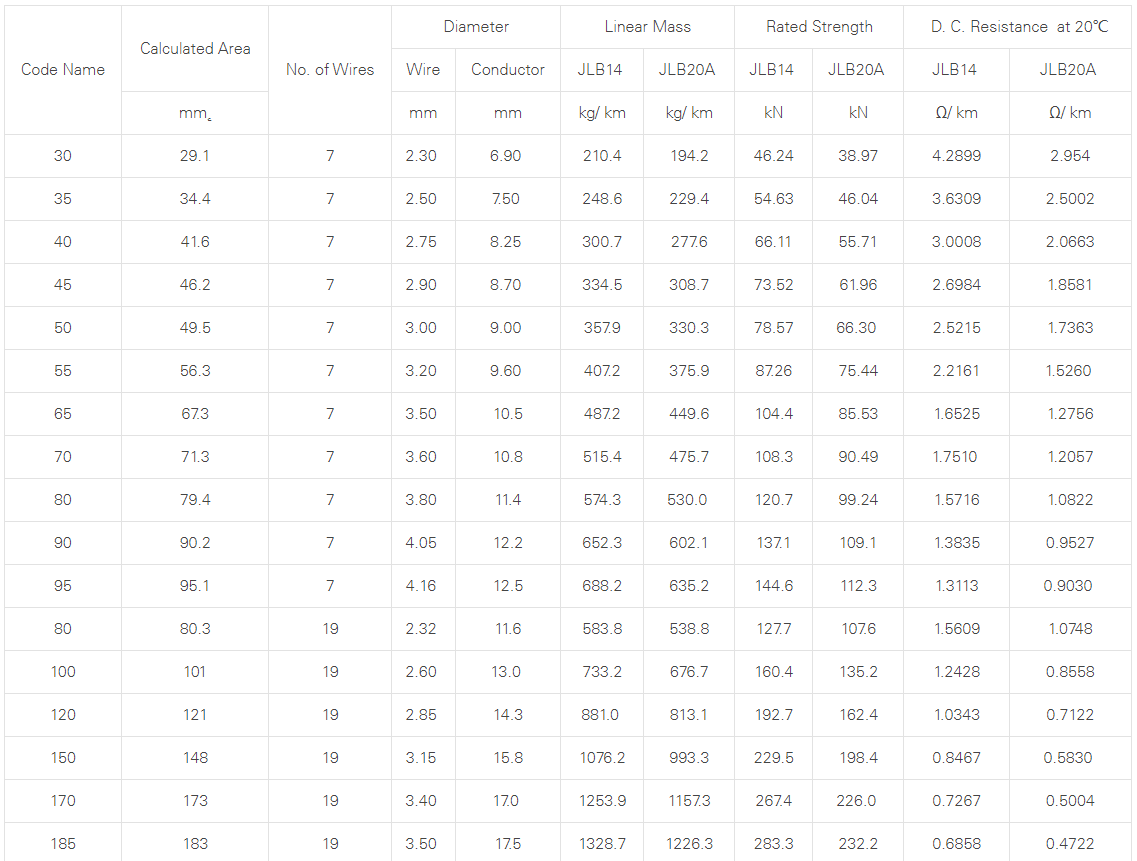

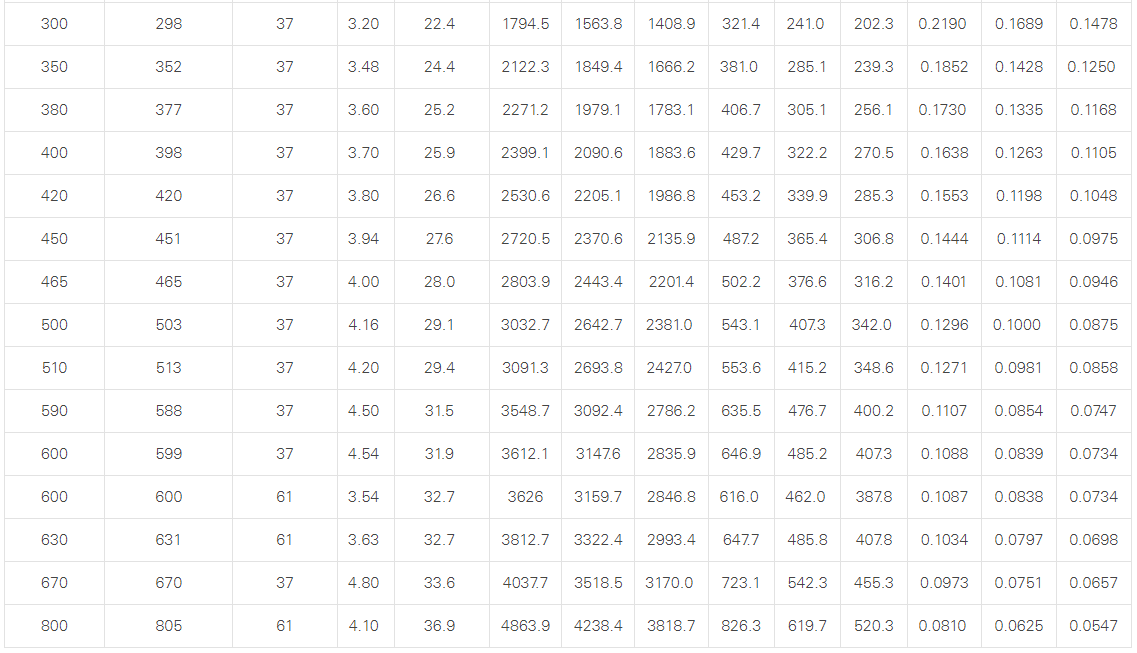

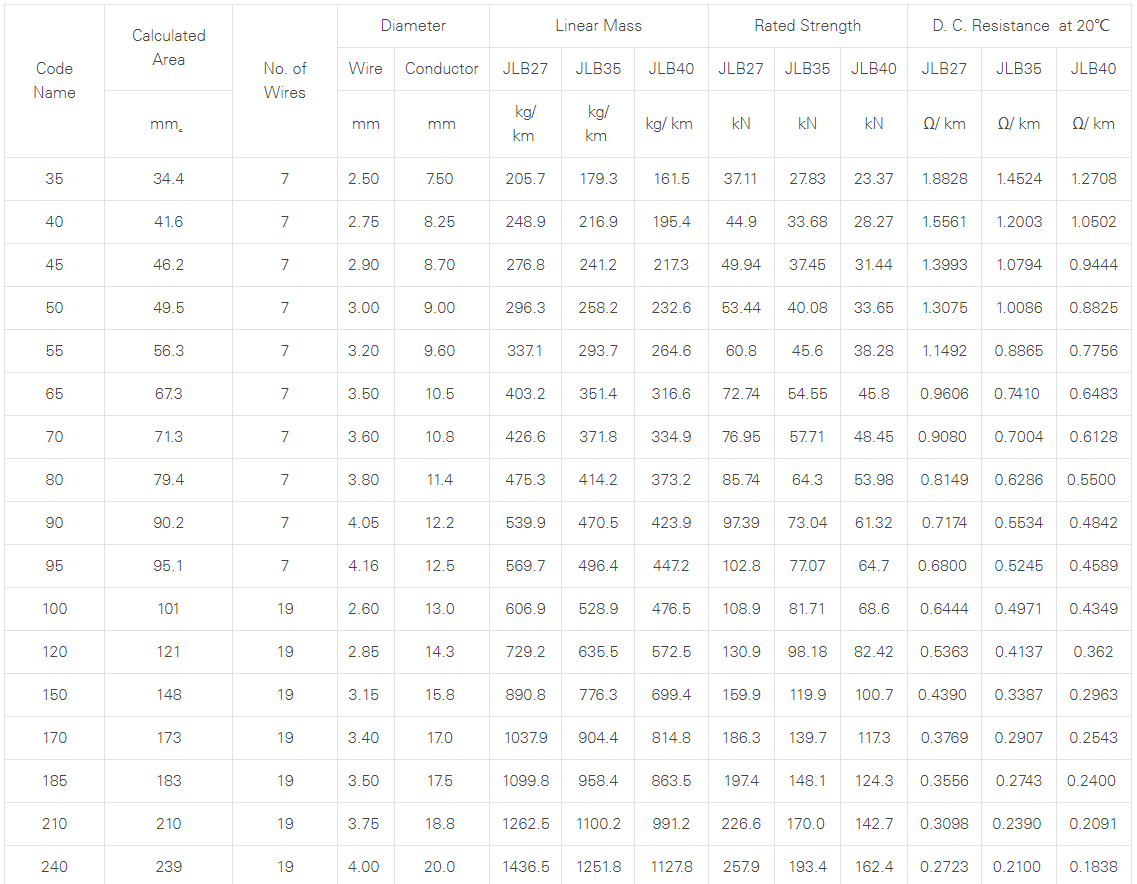

GB/T 1179 Round Wire Concentric Lay Overhead Electrical Stranded Conductors
CONSTRUCTION
1.Conductor
Hard-drawn aluminum clad steel wire

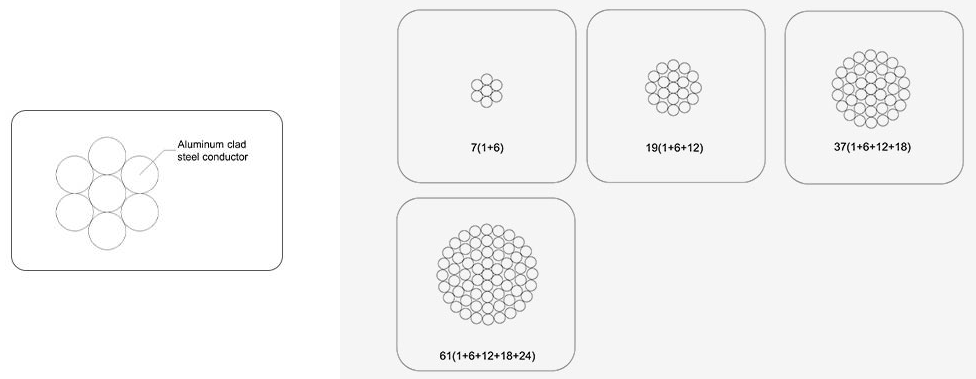

Generally, the ACS Conductor is formed by the following construction:
