DESCRIPTION

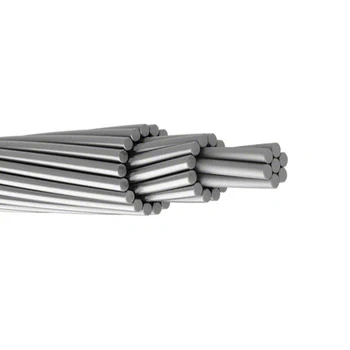

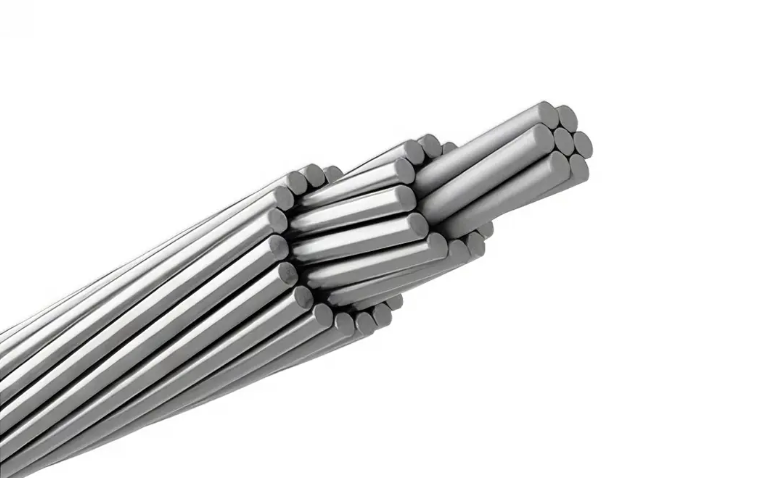

An outer layer of Aluminum conductor concentrically stranded over the central core of solid Aluminum alloy or Stranded Aluminum alloy wire to form ACAR conductor.
APPLICATION
ACAR conductors are used as bare overhead conductor for power transmission and distribution lines,where higher capacity and strength for equal weight are prime line considerations.ACAR is the solution over ACSR due to its better strength-to-weight ratio.
STANDARD
ASTM B524/B524M

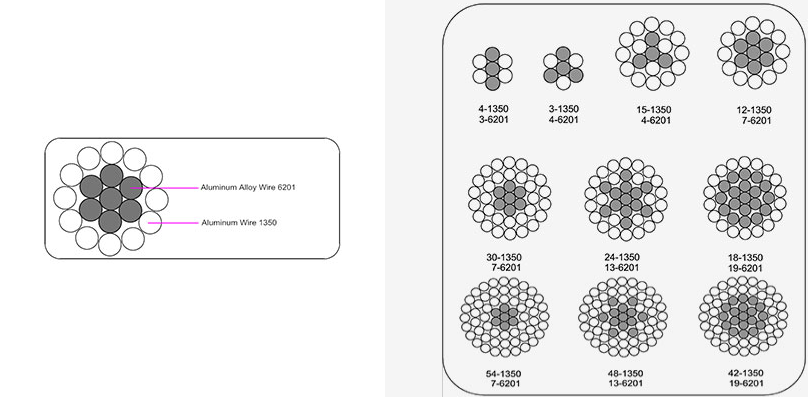

CONSTRUCTION
1.Conductor
1)Outer layer: Aluminum wire 1350
2)Center: Aluminum alloy wire 6201

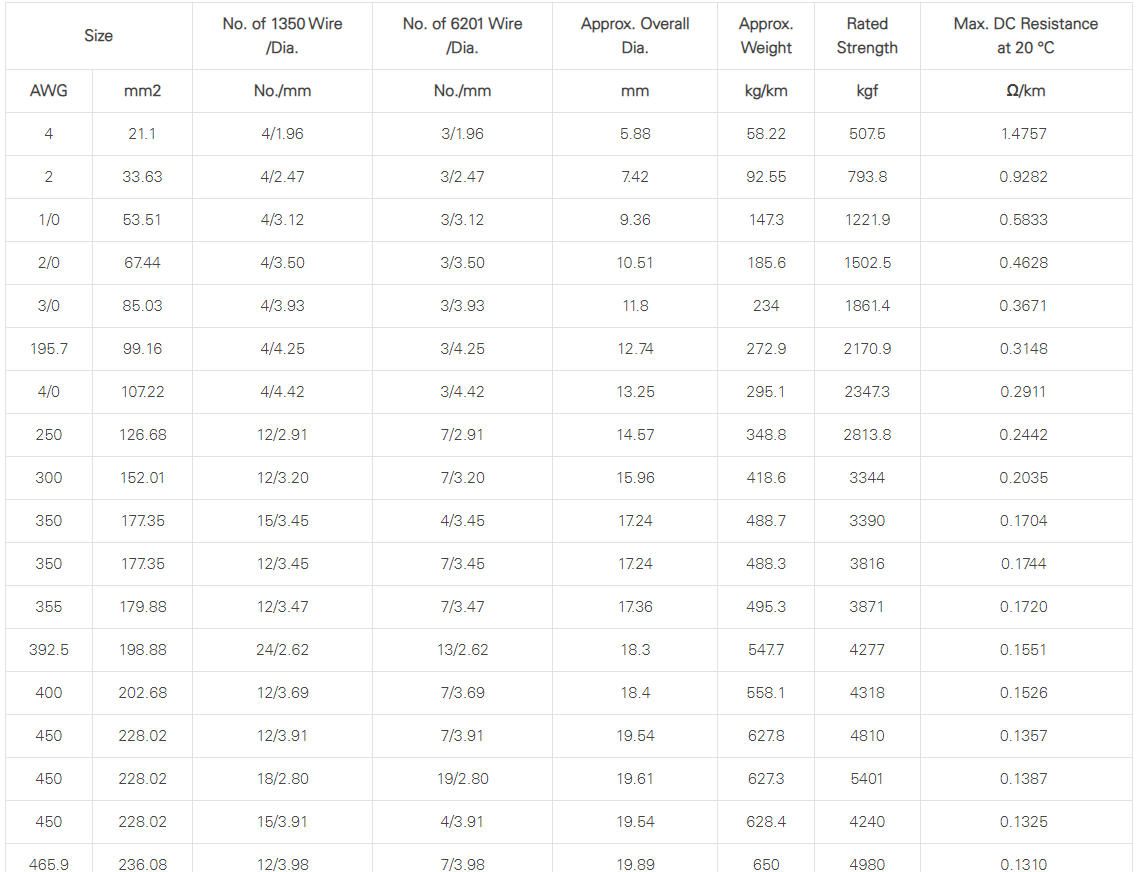

Generally, the ACAR Conductor is formed by the following construction:
