DESCRIPTION

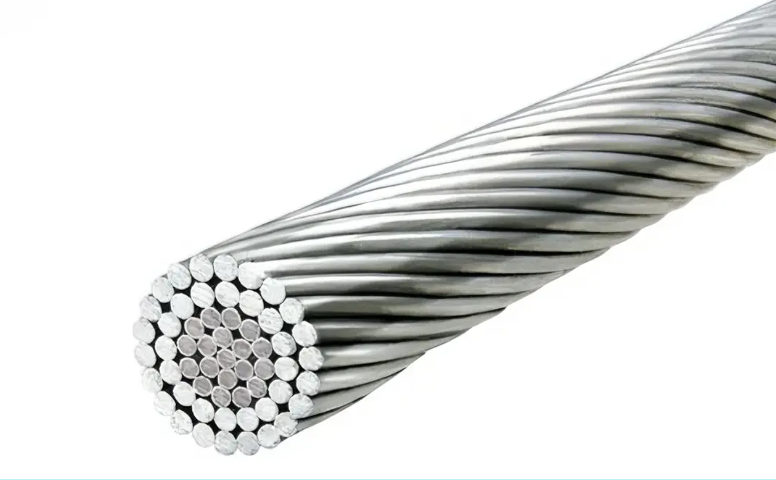

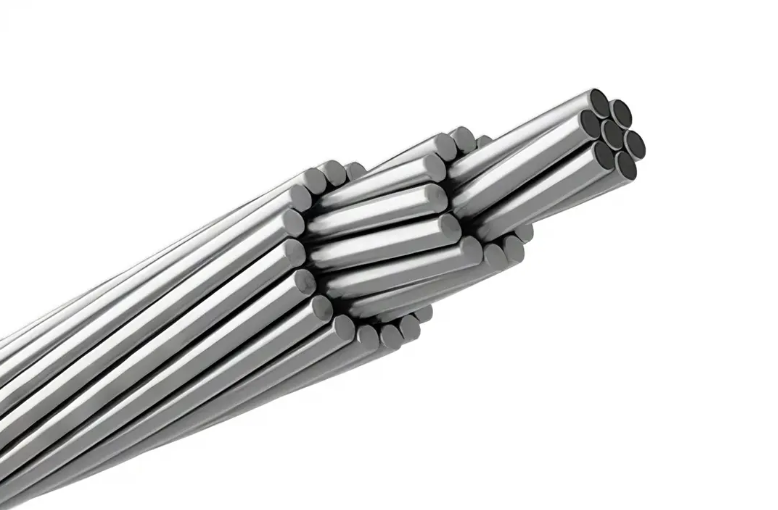

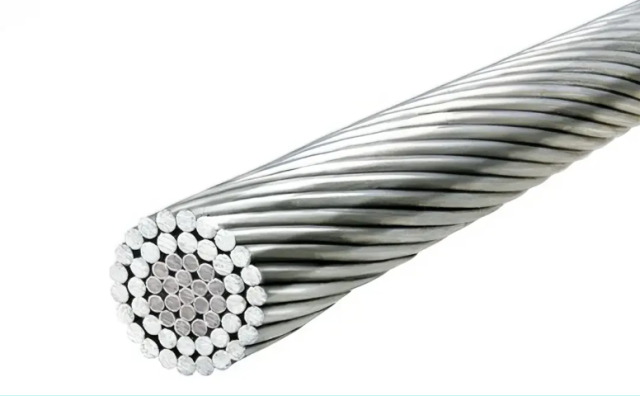

The ACSR/AW conductor is formed by several wires of Aluminium and Aluminum-clad steel, stranded in concentric layers.
APPLICATION
The ACSR/AW conductor is used as bare overhead transmission and as primary and secondary distribution cable.
ACSR/AW offers strength characteristics similar to ACSR, along with slightly greater ampacity and resistance to corrosion due to aluminum-clad-ding of the steel core wres.
STANDARD
ASTM B549, GB/T 1179,AS 3607

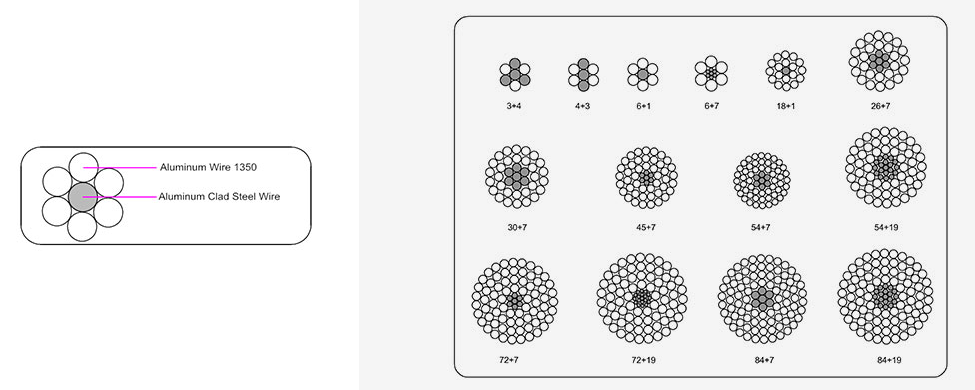

CONSTRUCTION
1.Conductor
1)Outer layer: Aluminum wire 1350
2)Center: Aluminum clad steel wire

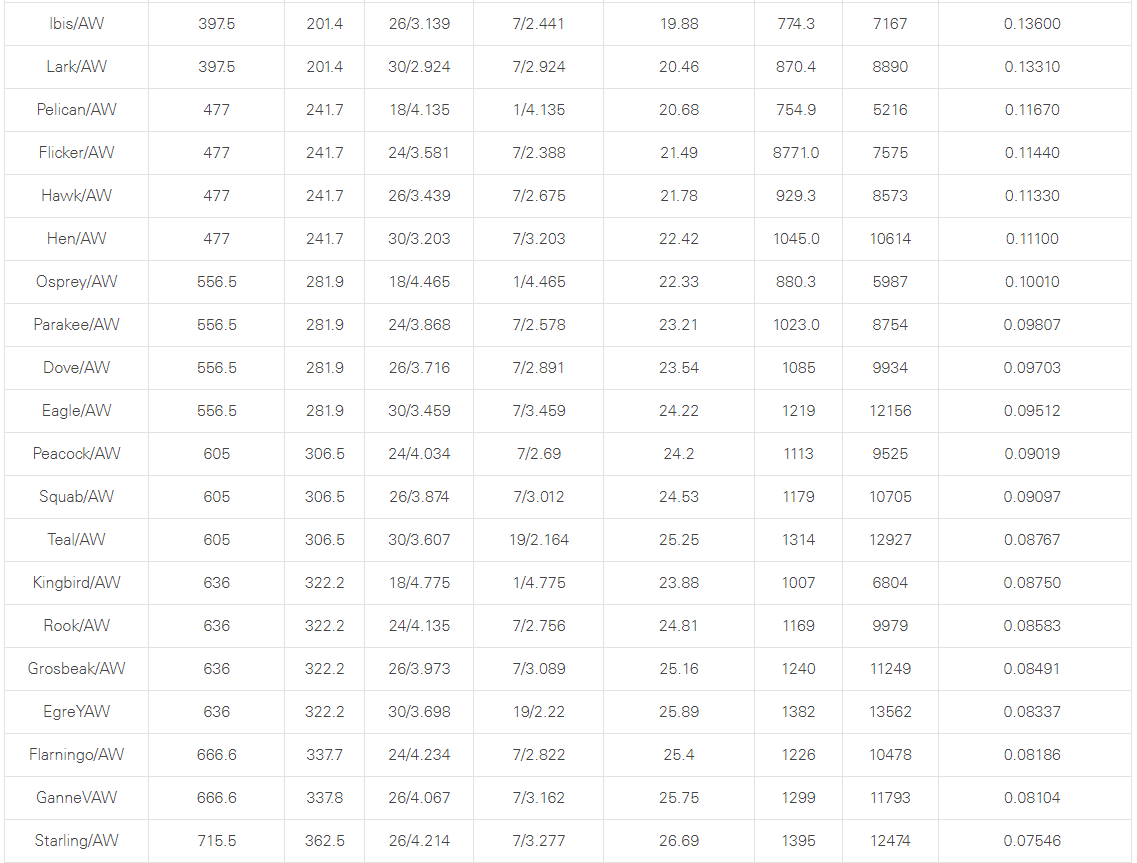

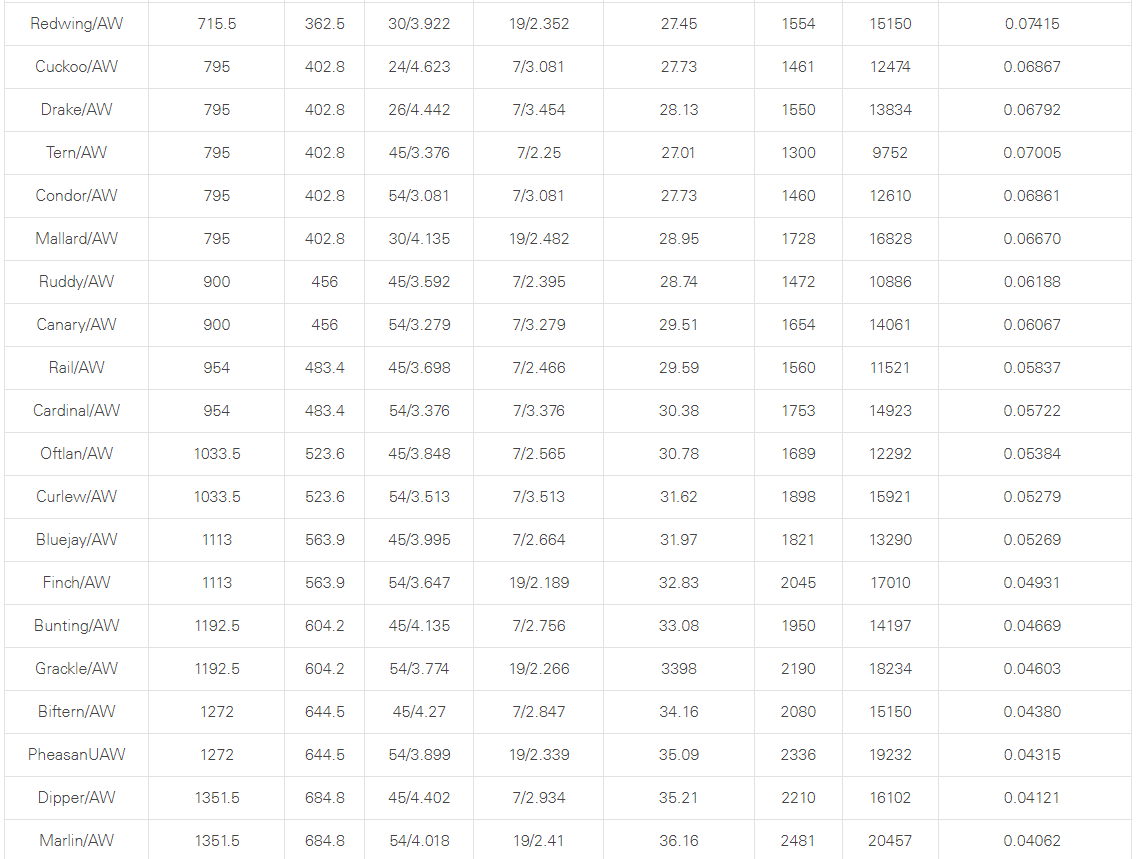

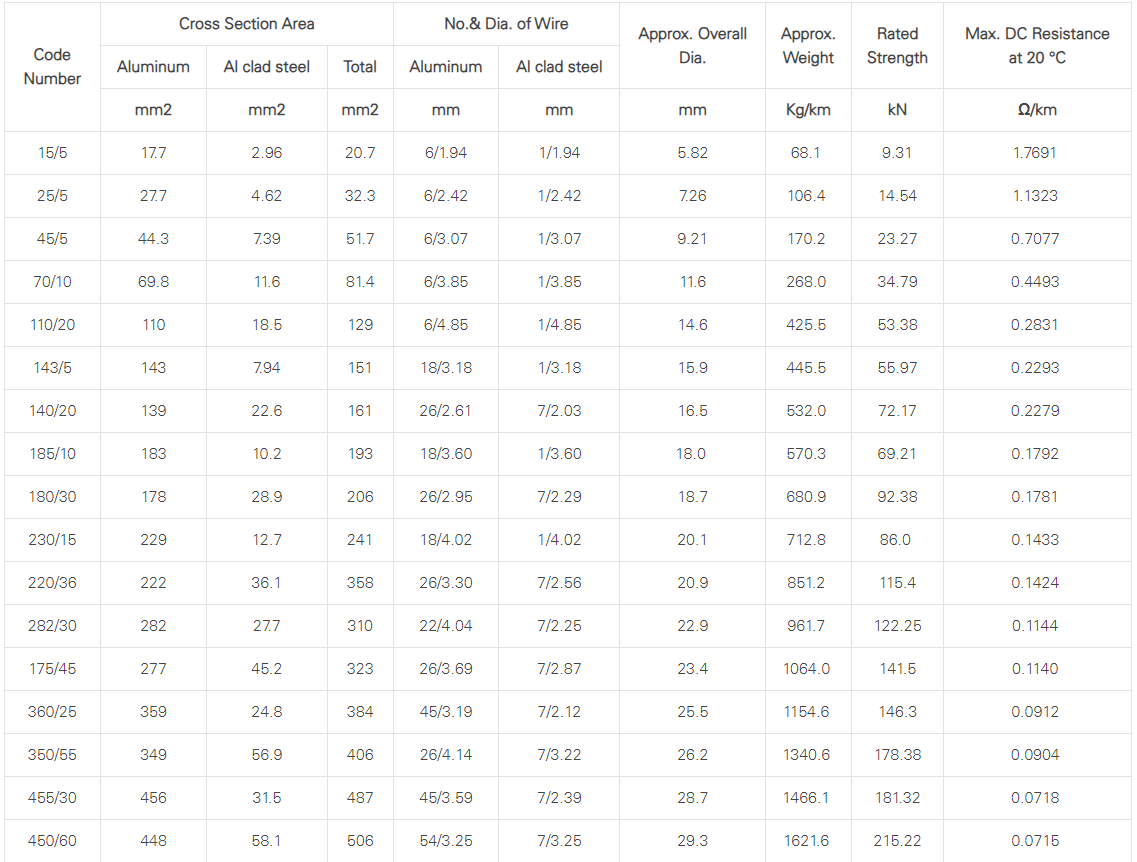

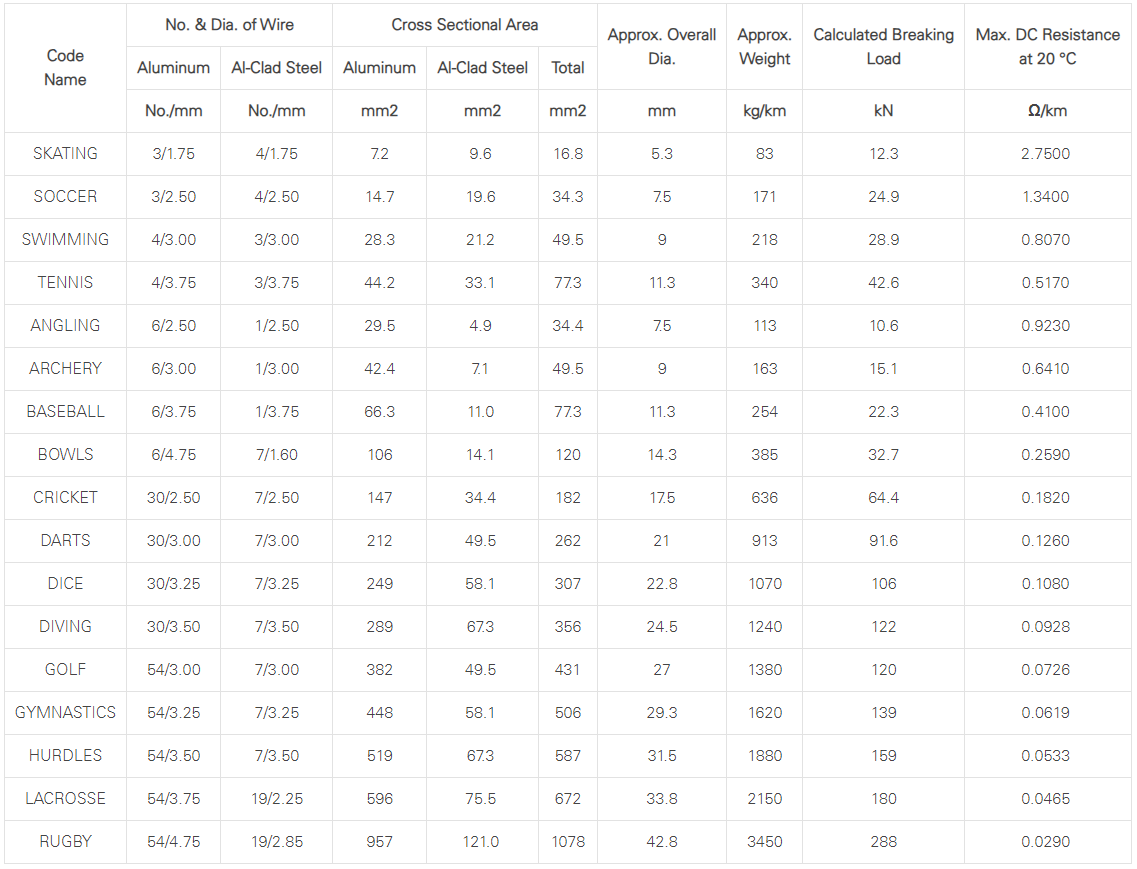

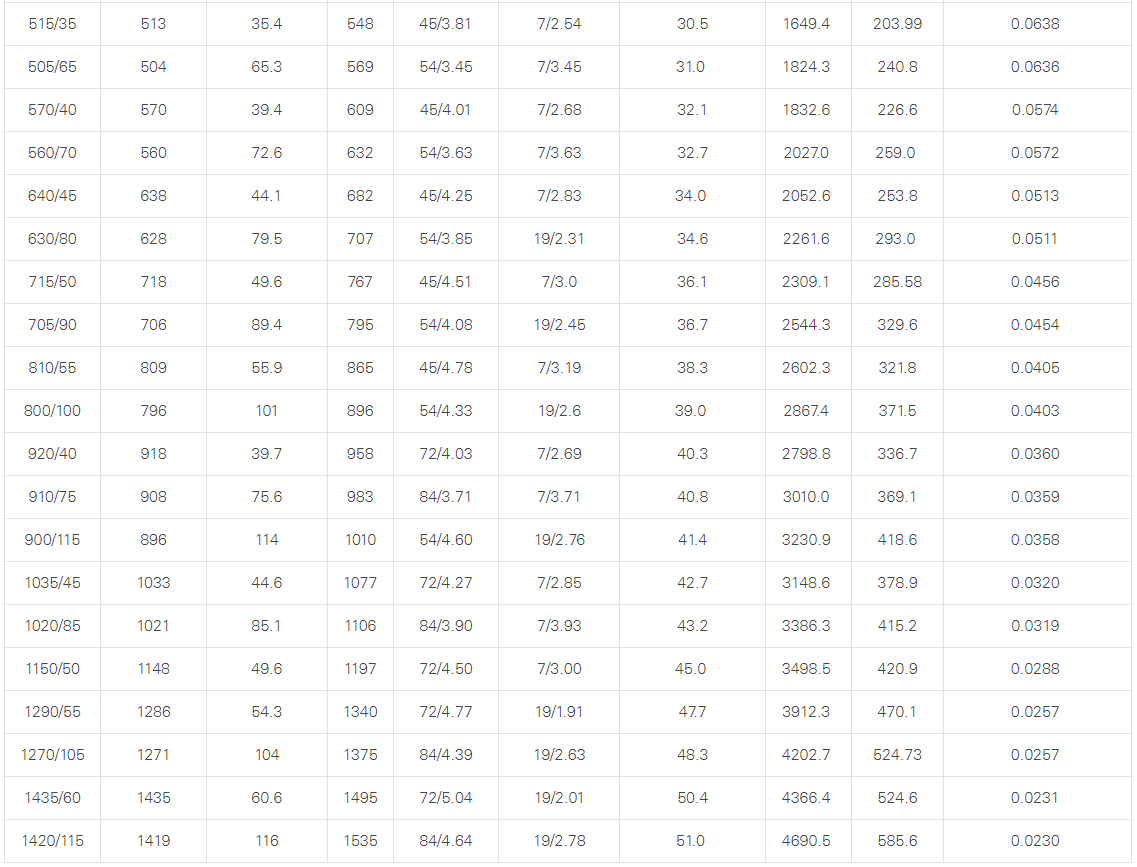

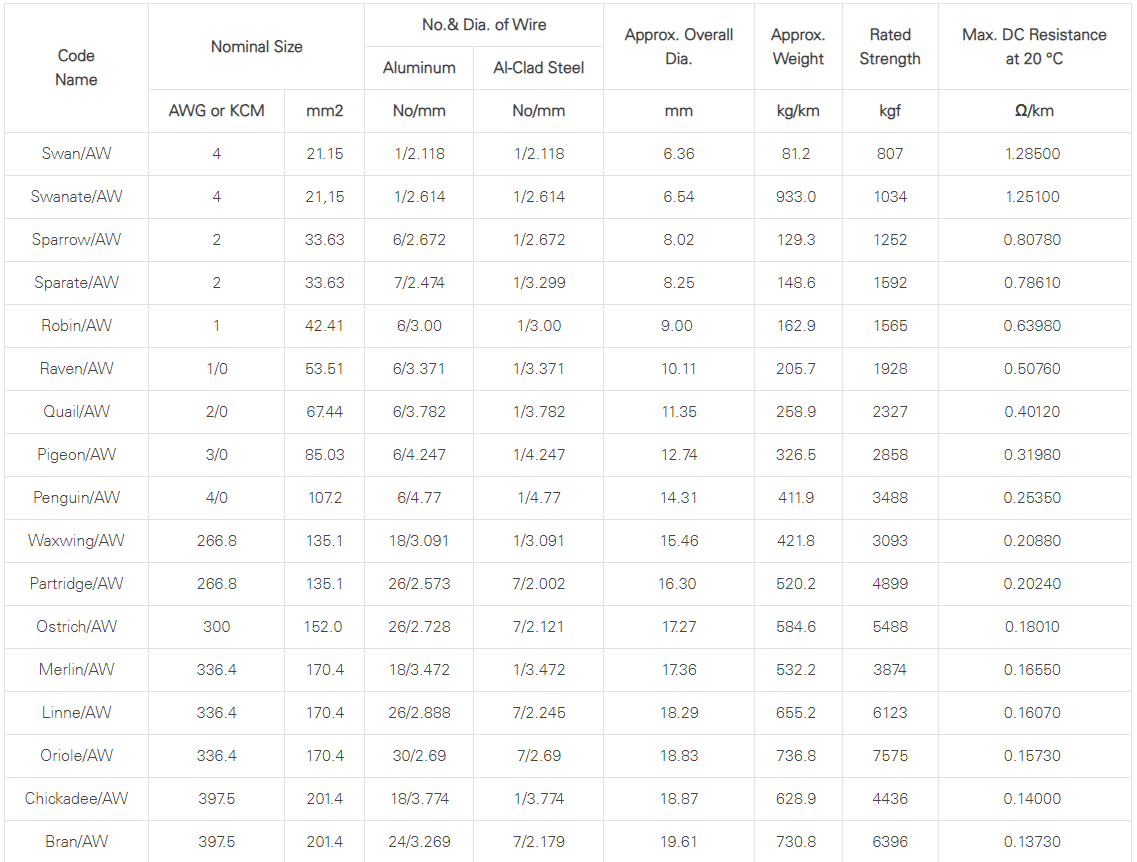

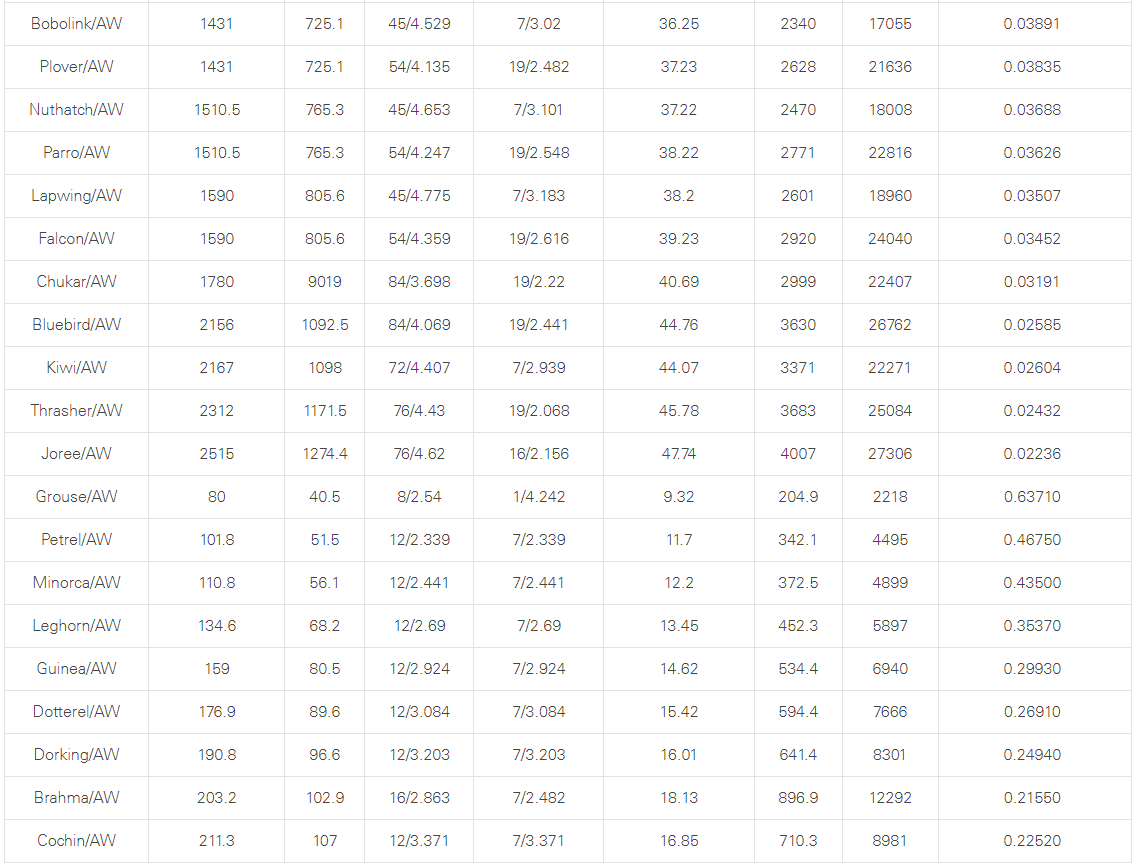

Generally, the ACSR/AW Conductor is formed by the following construction:
