DESCRIPTION

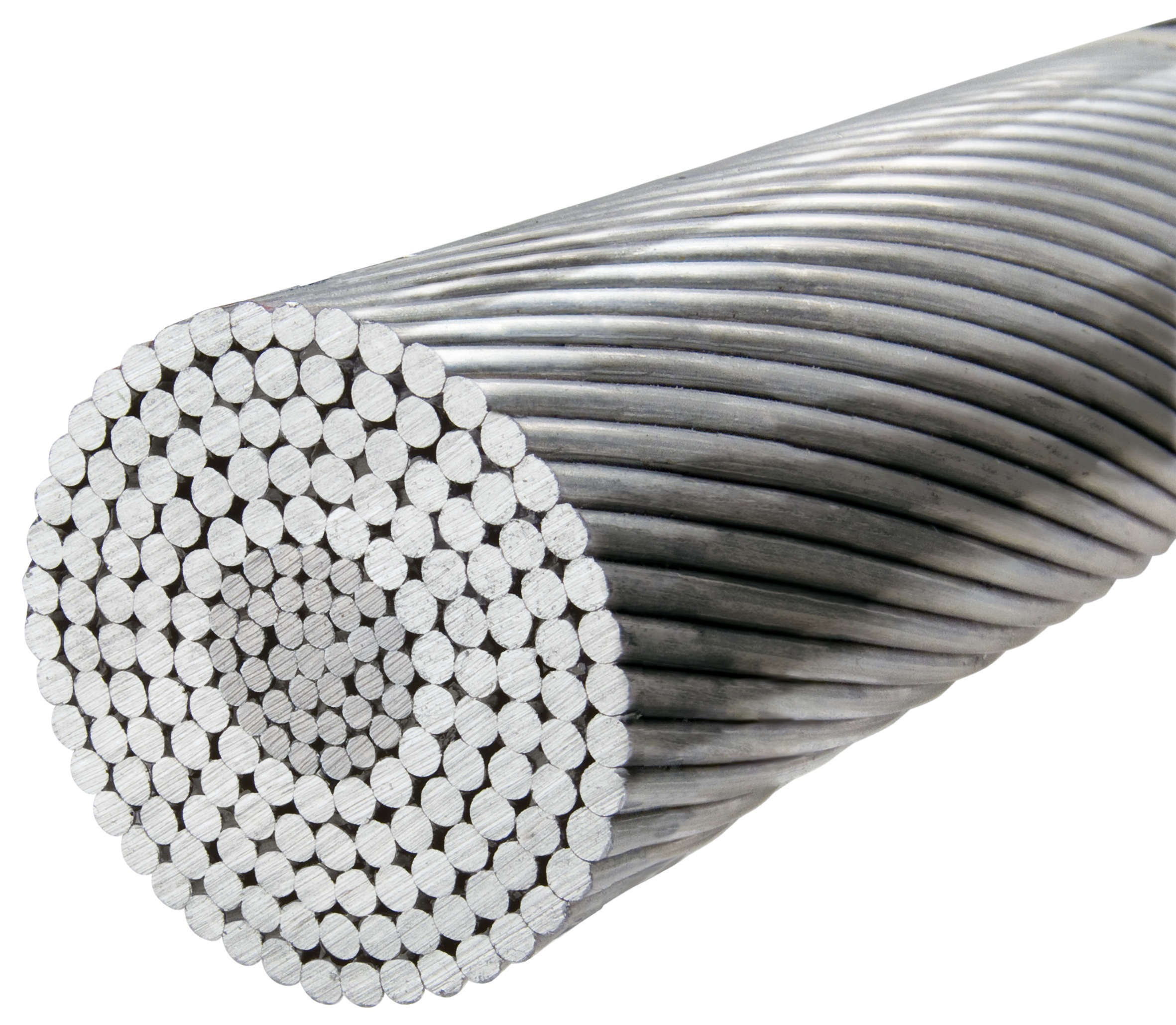

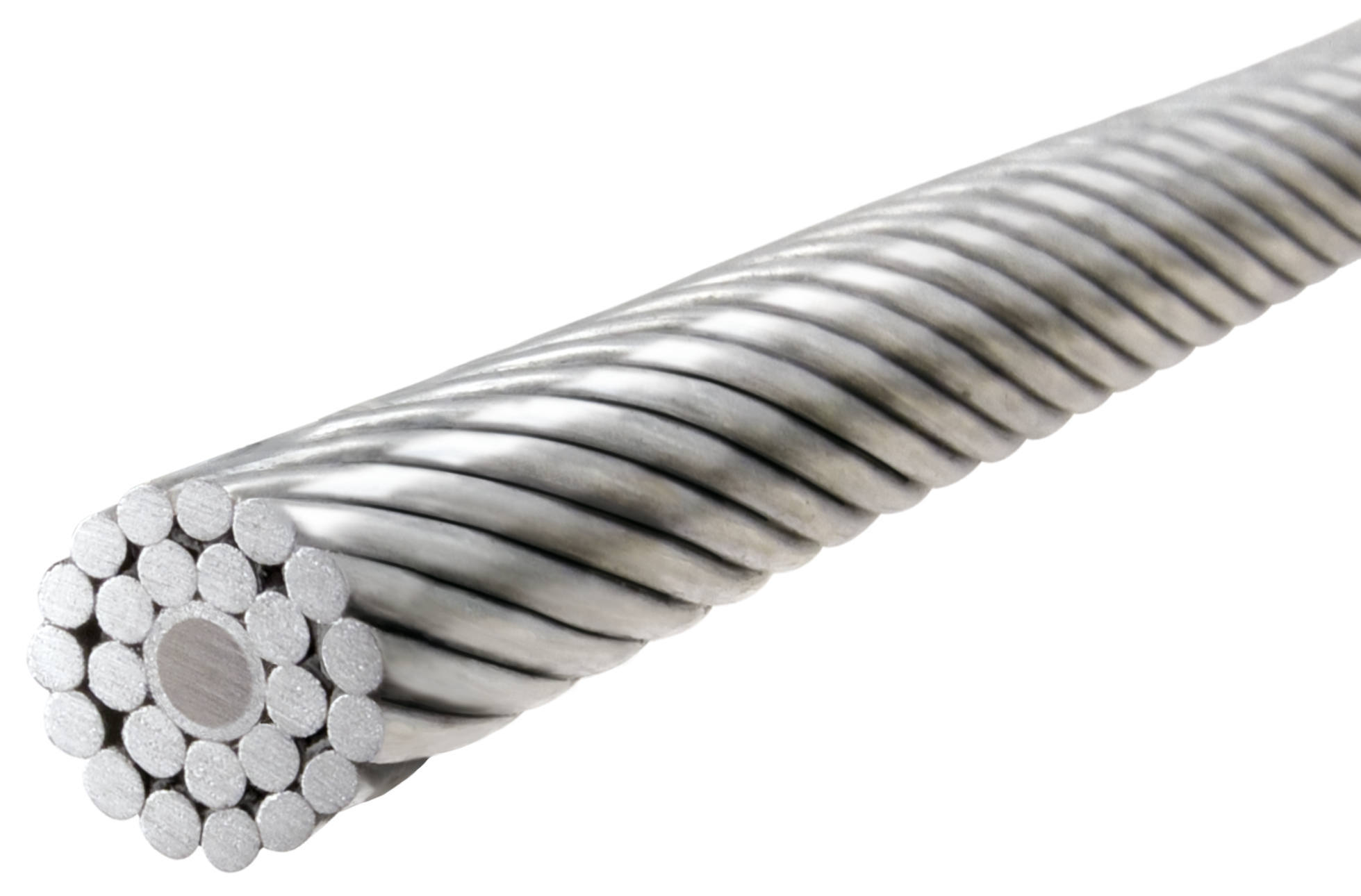

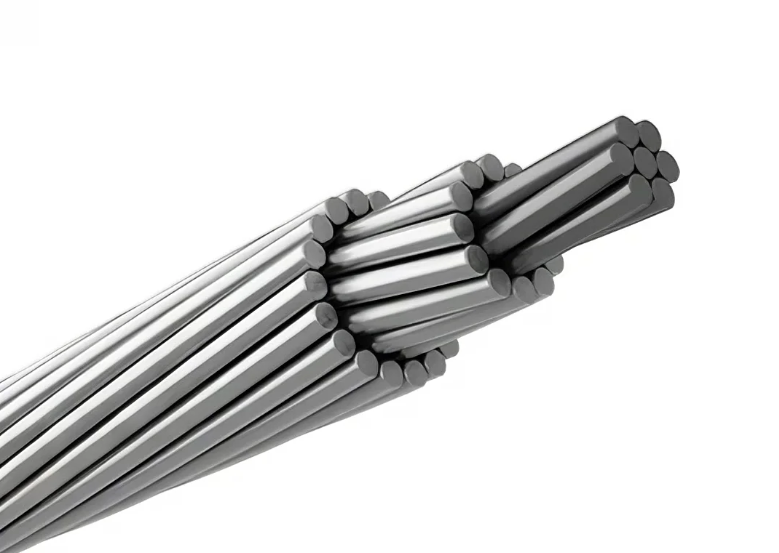

An outer layer of Aluminum of Aluminum conductor concentrically stranded over the central core of galvanized solid or stranded steel wires to form Aluminum steel reinforced conductor.
APPLICATION
ACSR conductor are widely used for electrical power transmission over long distances, since they are ideal for long overhead lines spans.They are also used as a messenger for supporting overhead electrical cables.
STANDARD

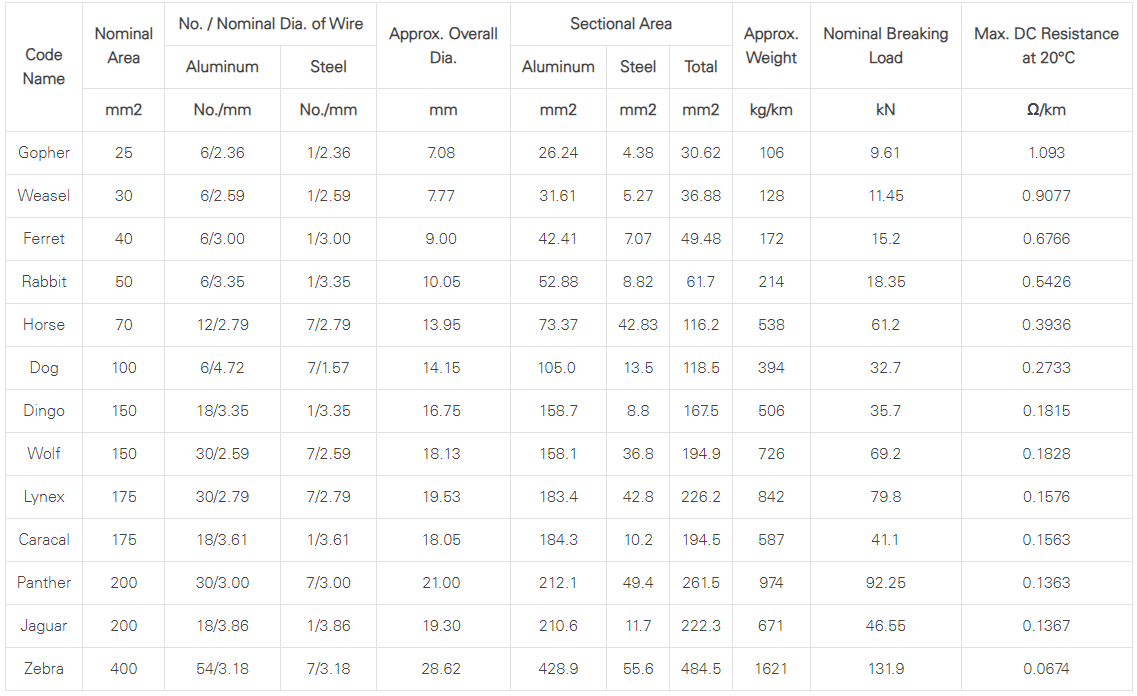

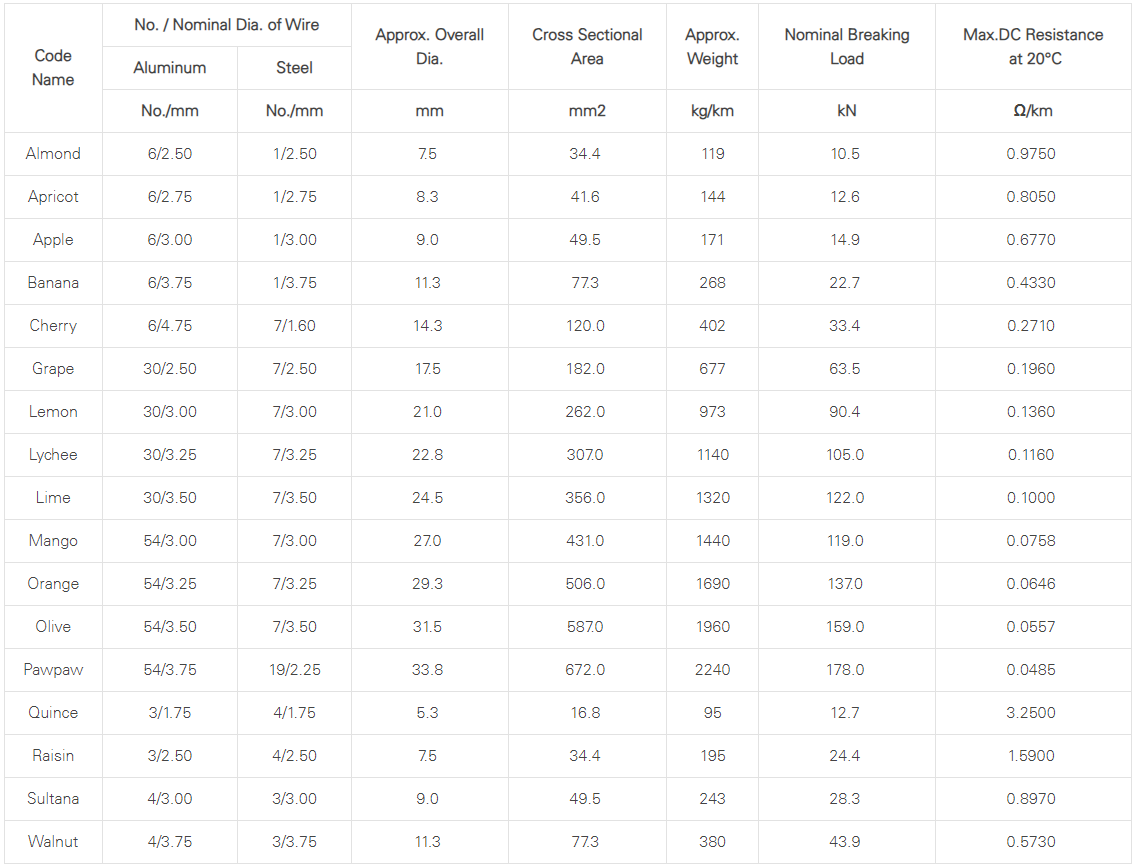

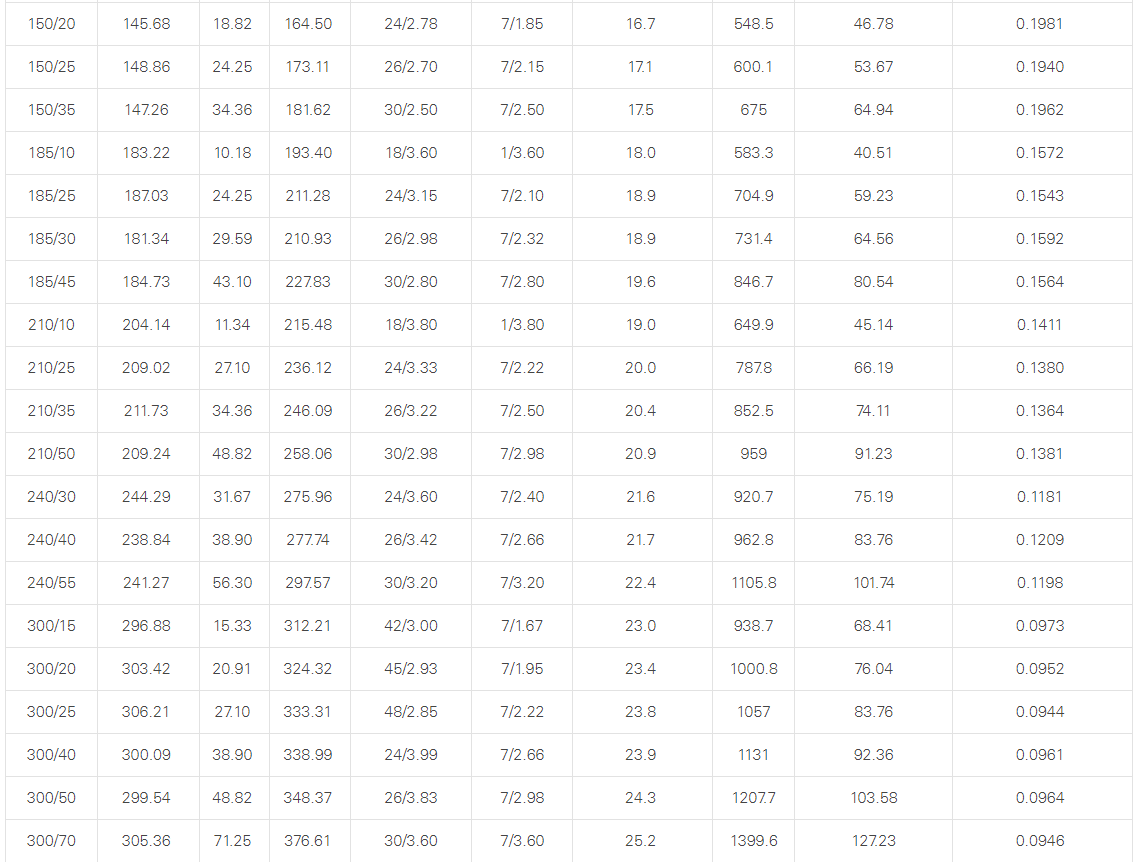

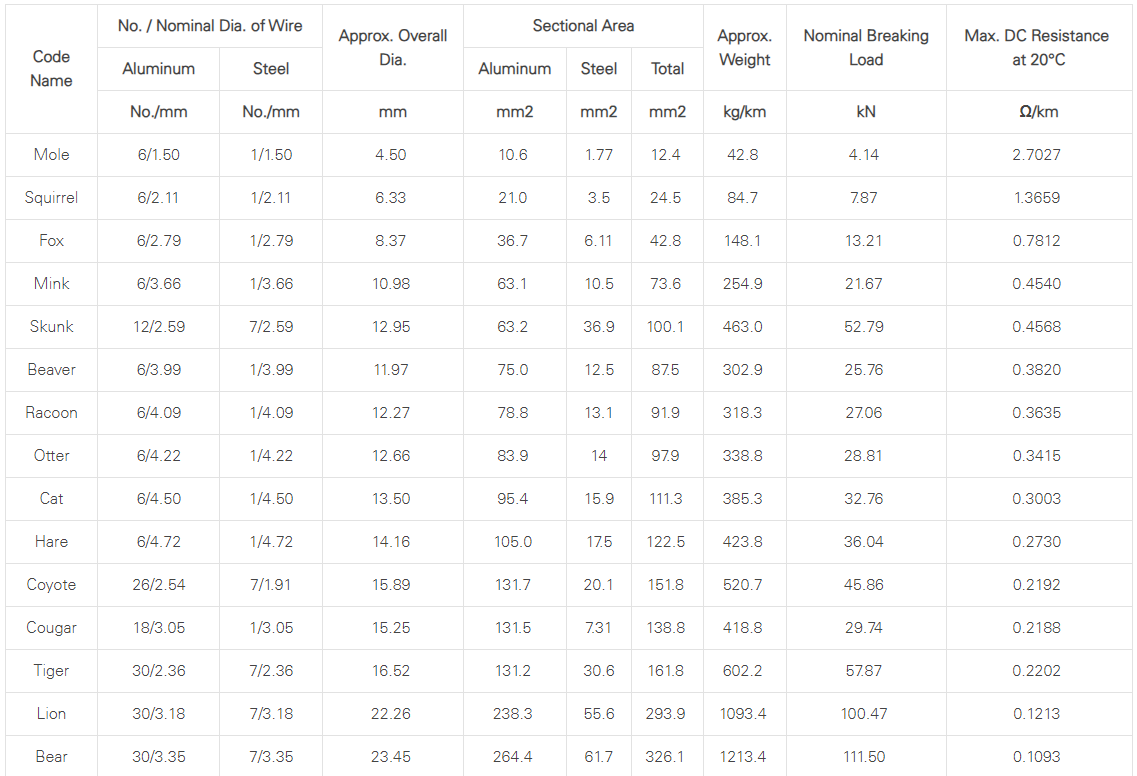

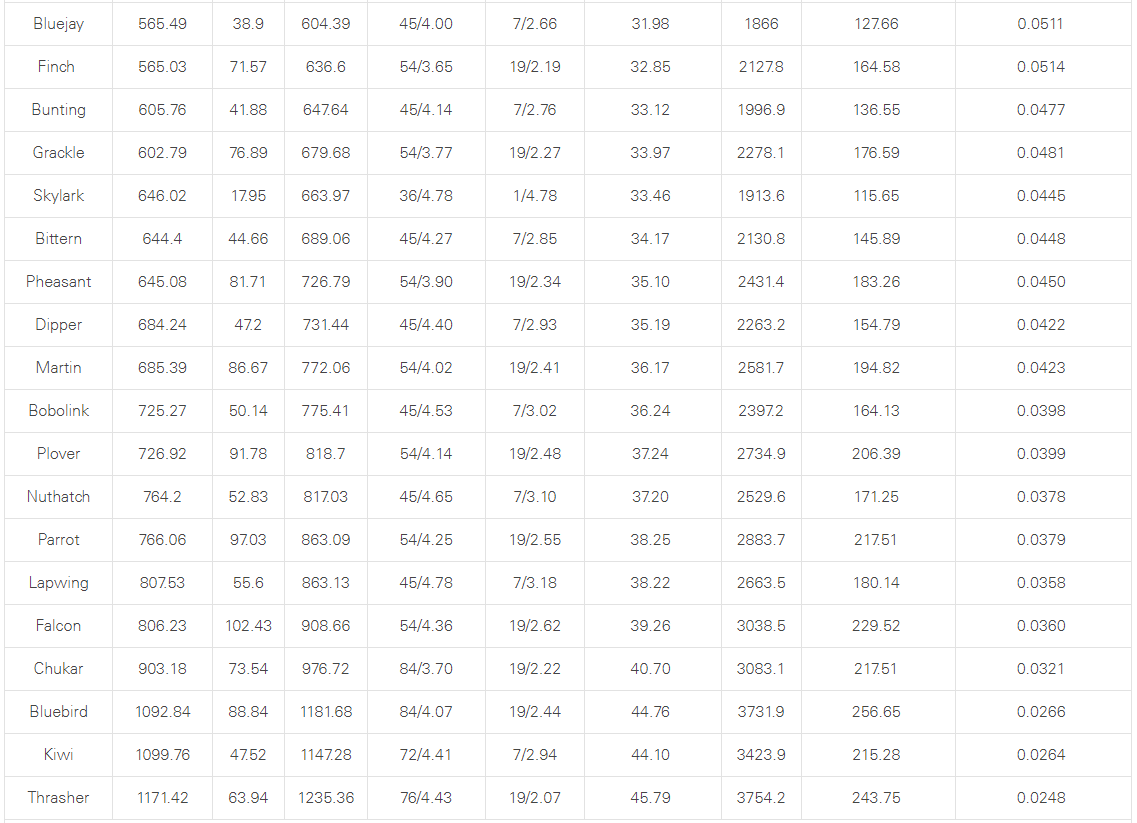

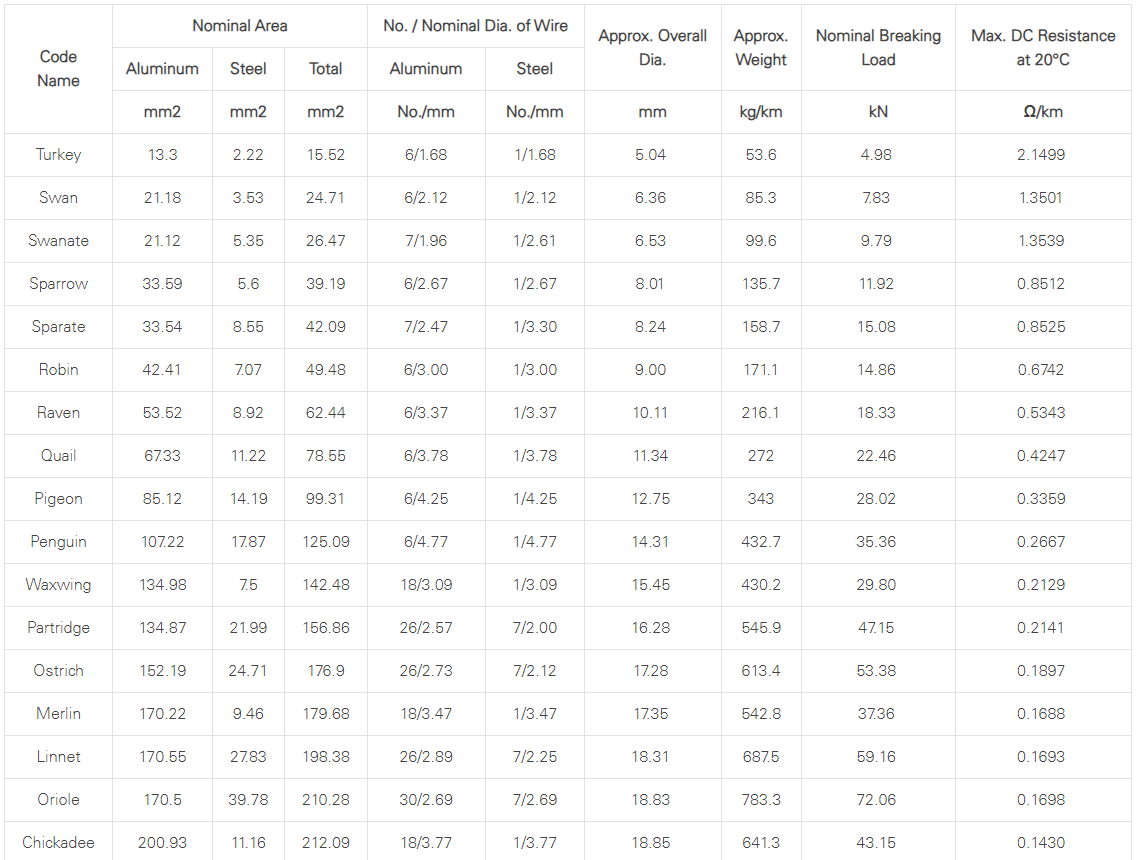

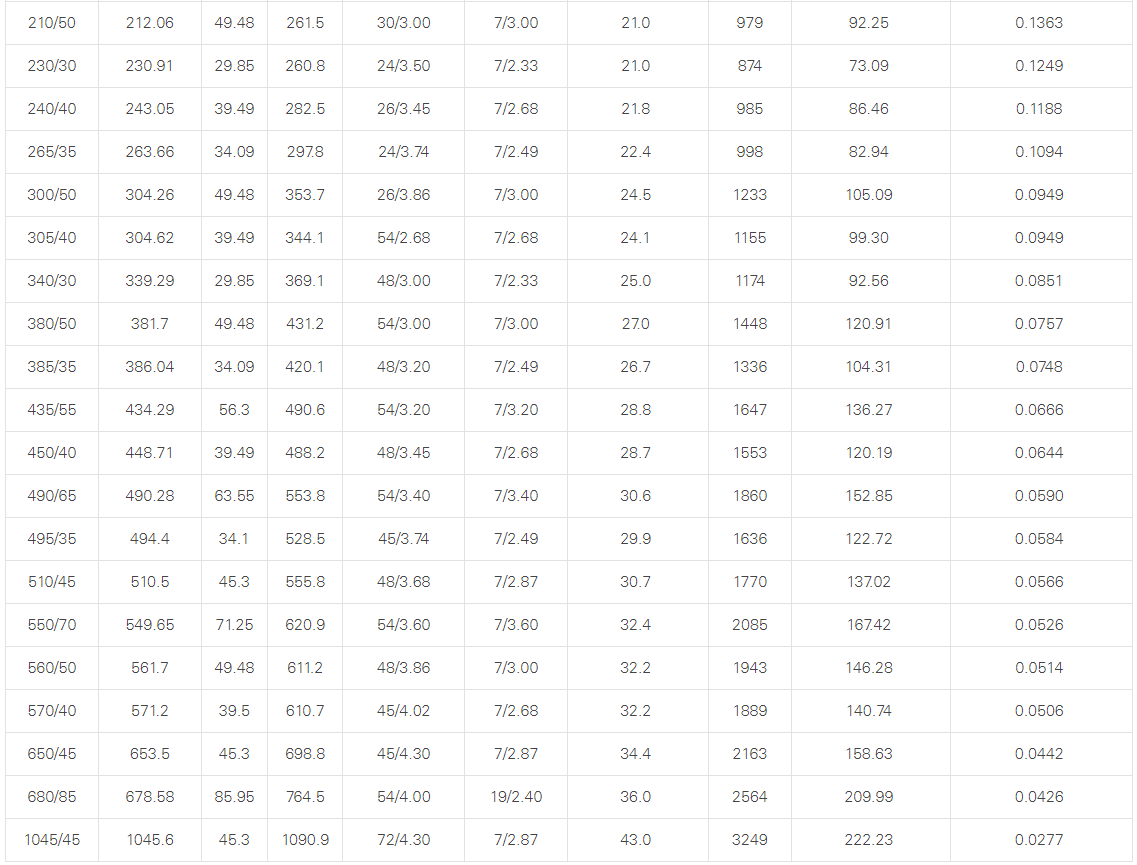

BS EN 50182,IEC 61089,ASTM B 232/B 232M, AS 3607,GB/T 1179,BS 215-2,DIN48204,GOST 839
CONSTRUCTION
1.Conductor
1)Outer layer: Hard drawn aluminum wire
2)Center: Galvanized steel wire

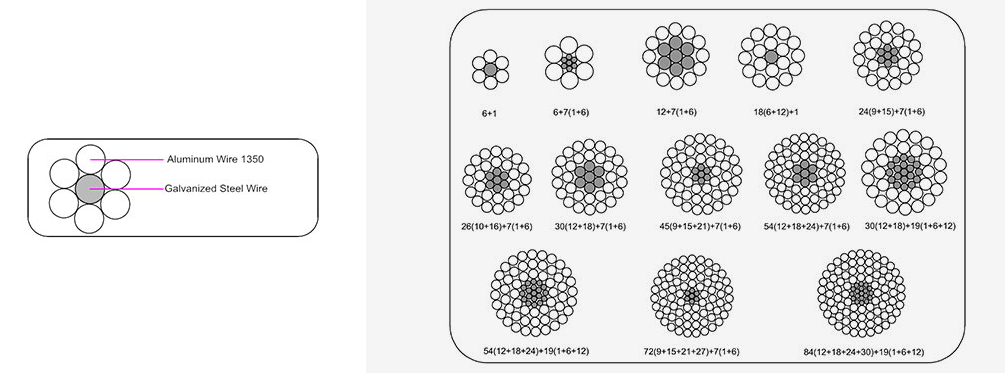

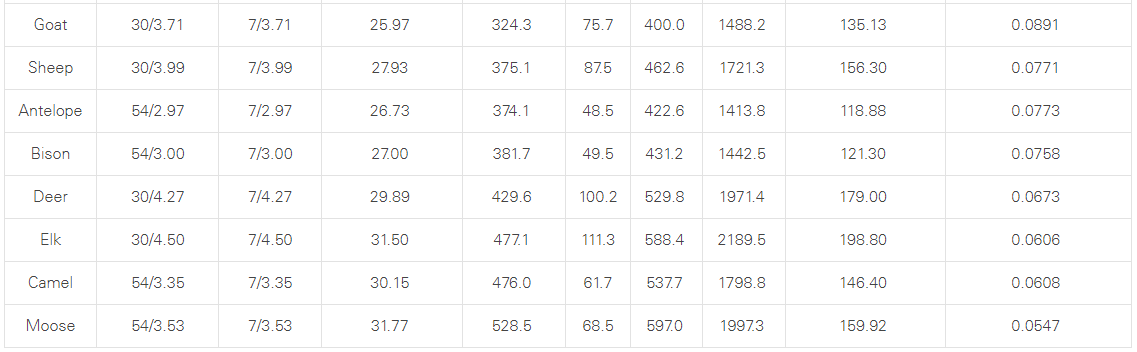

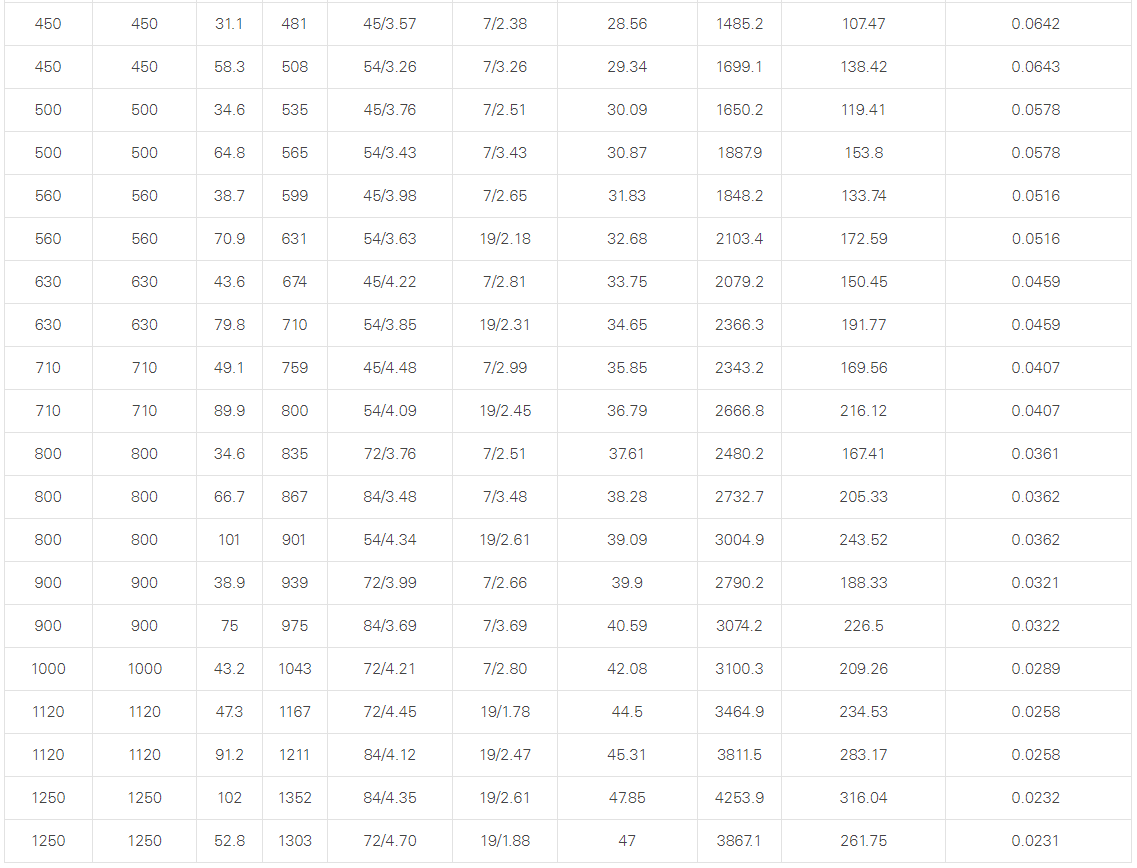

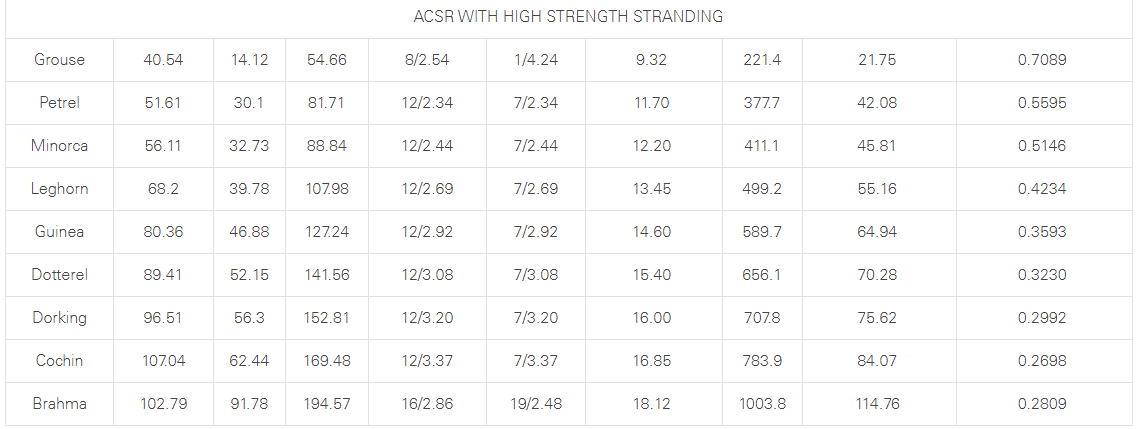

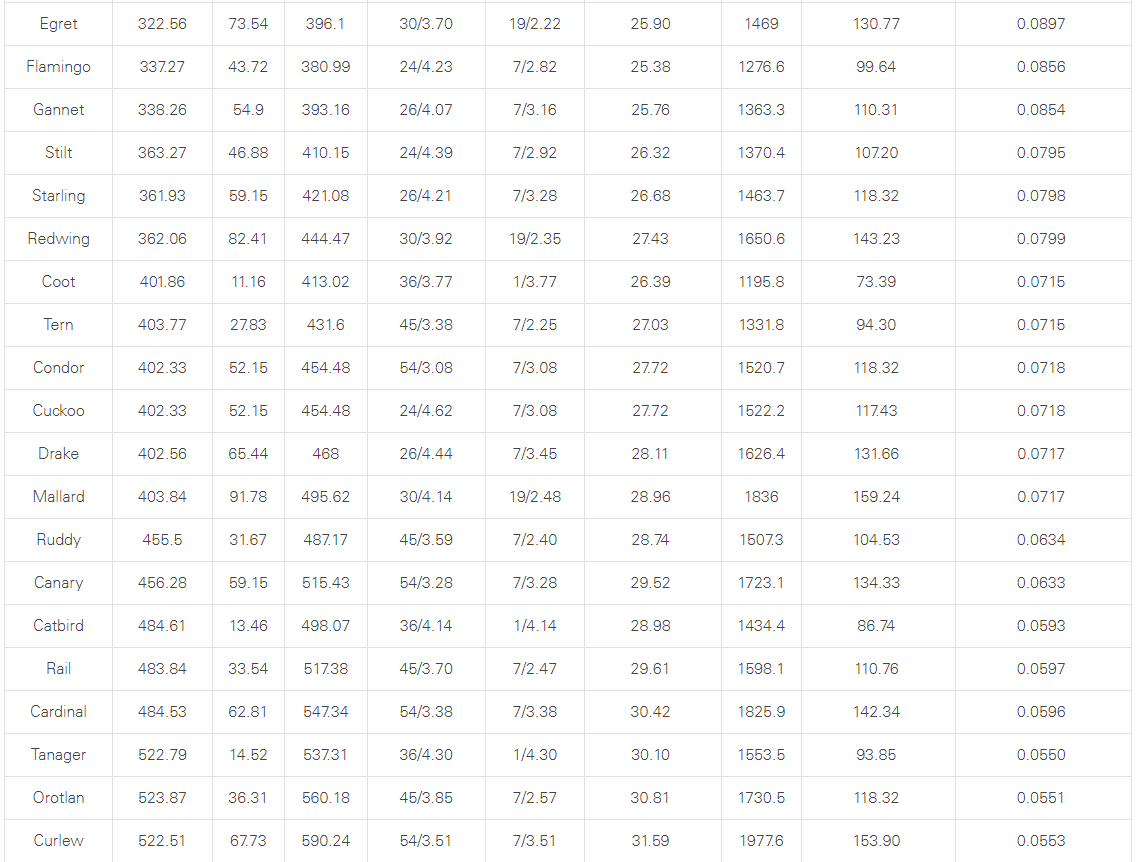

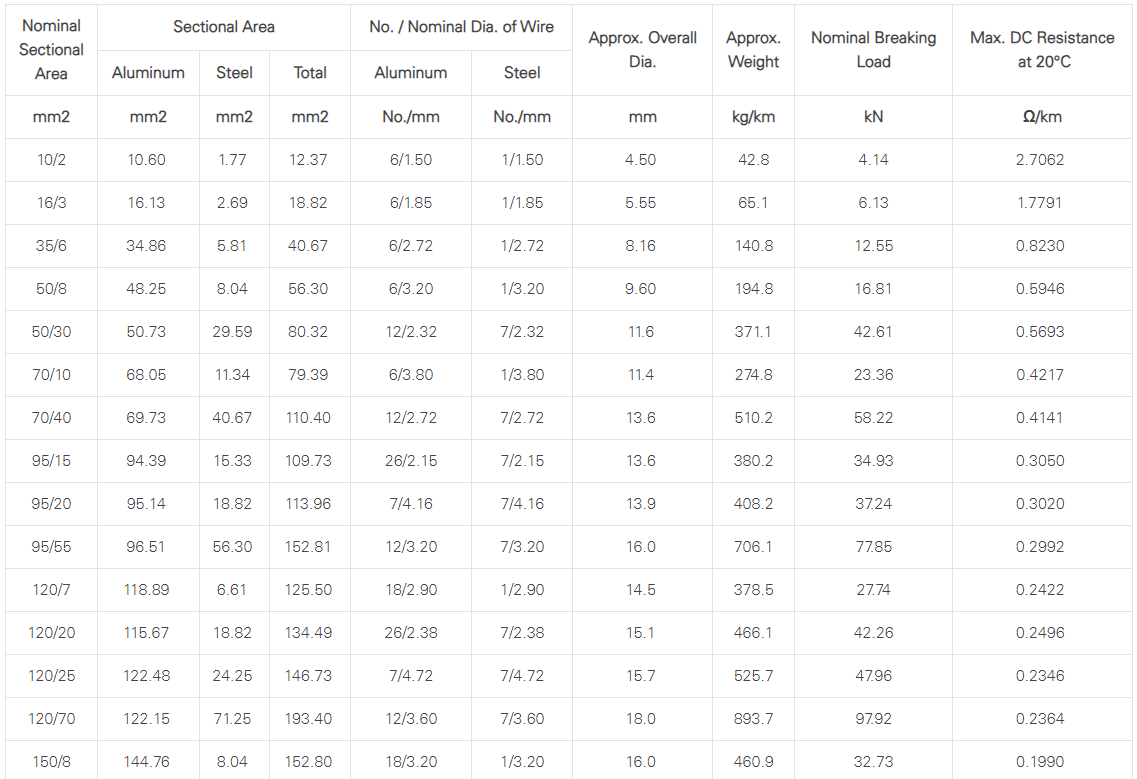

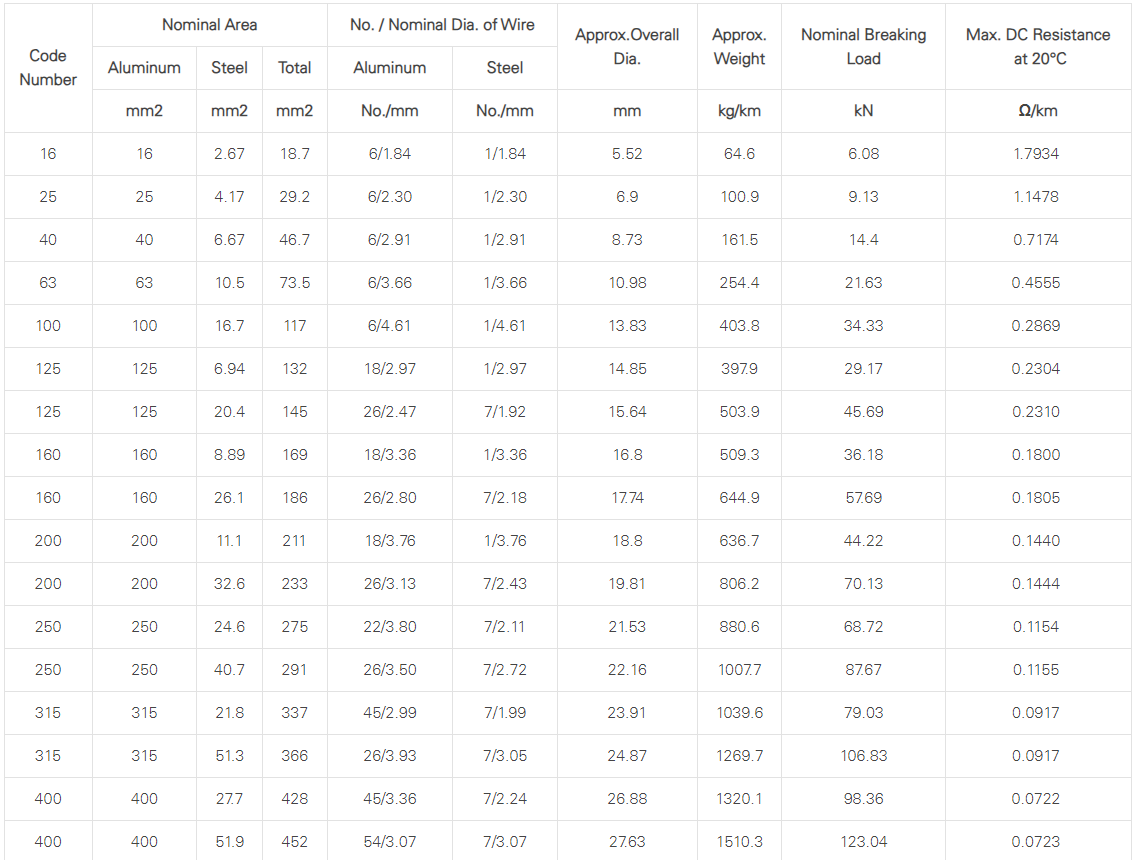

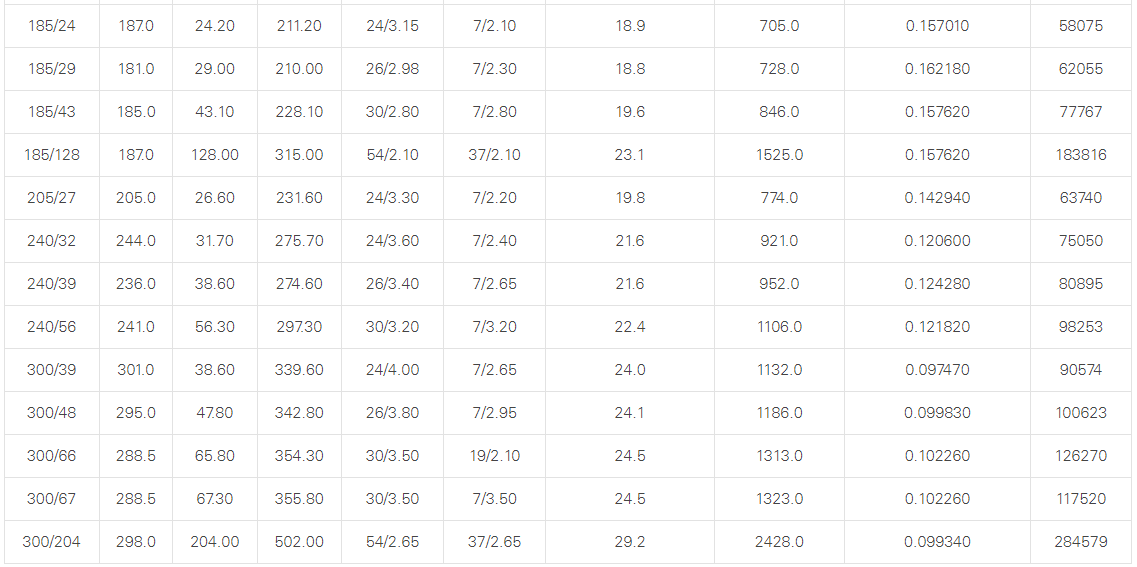

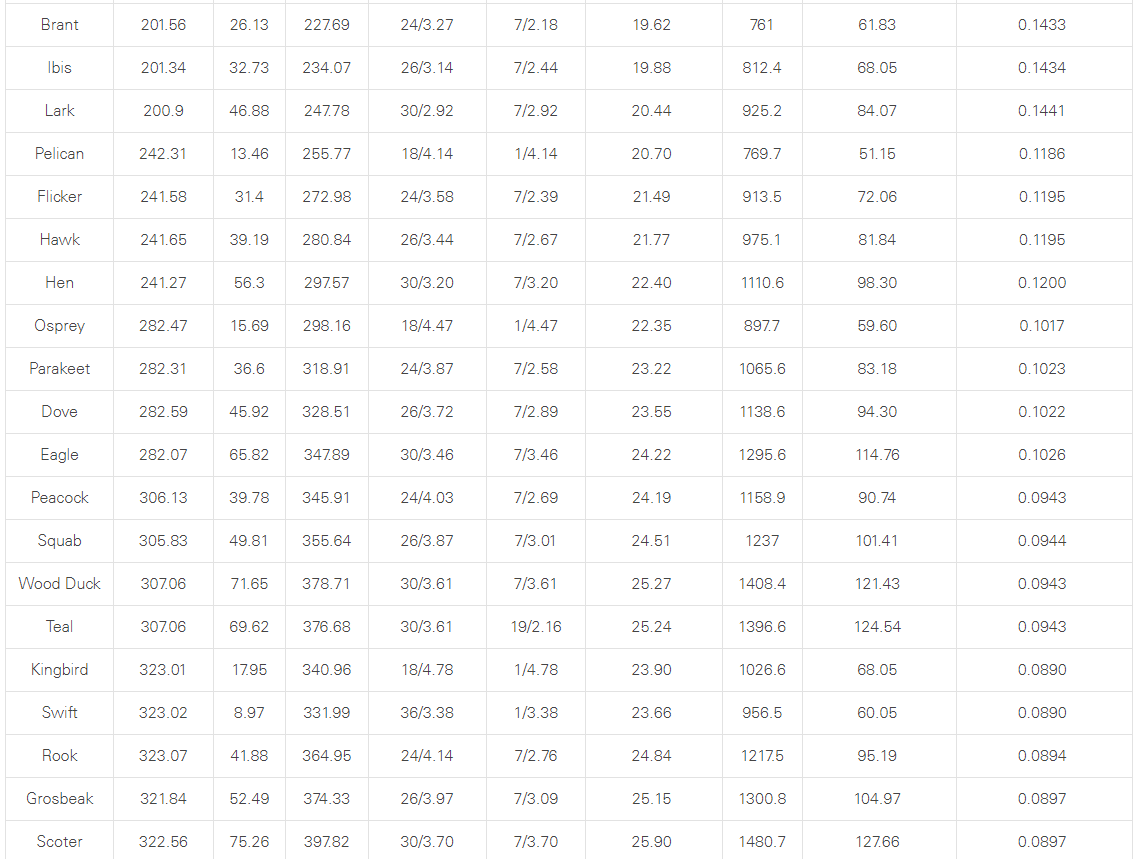

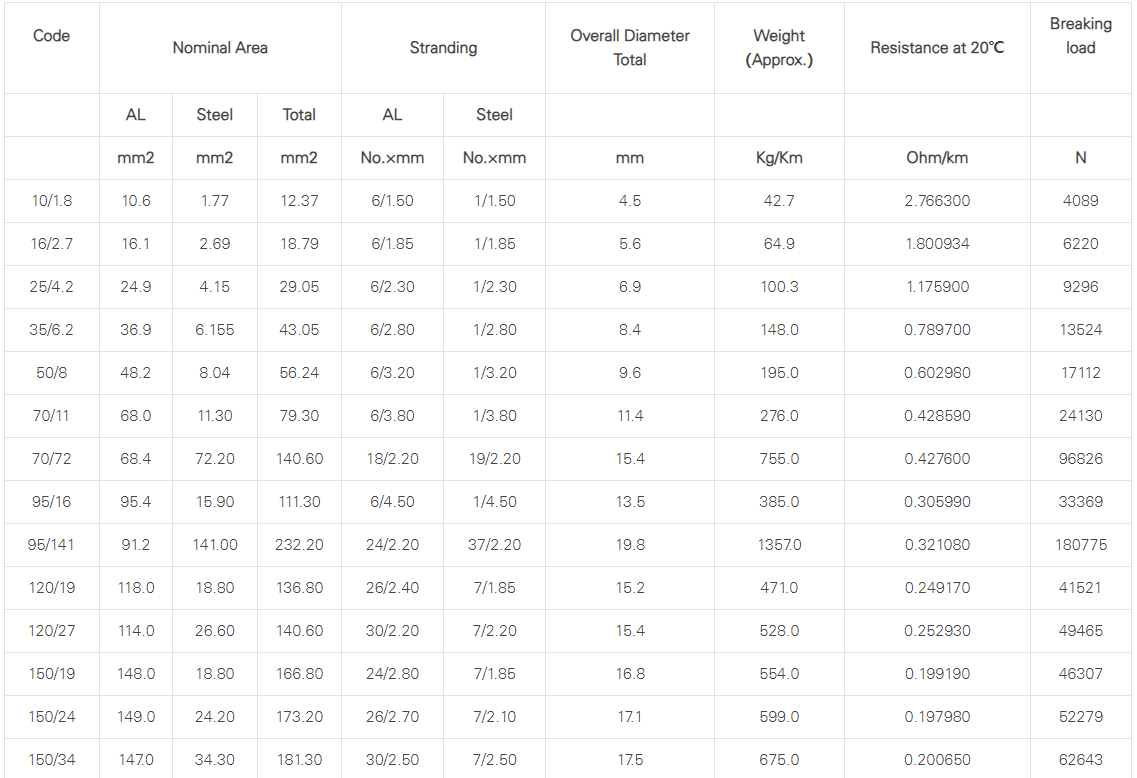

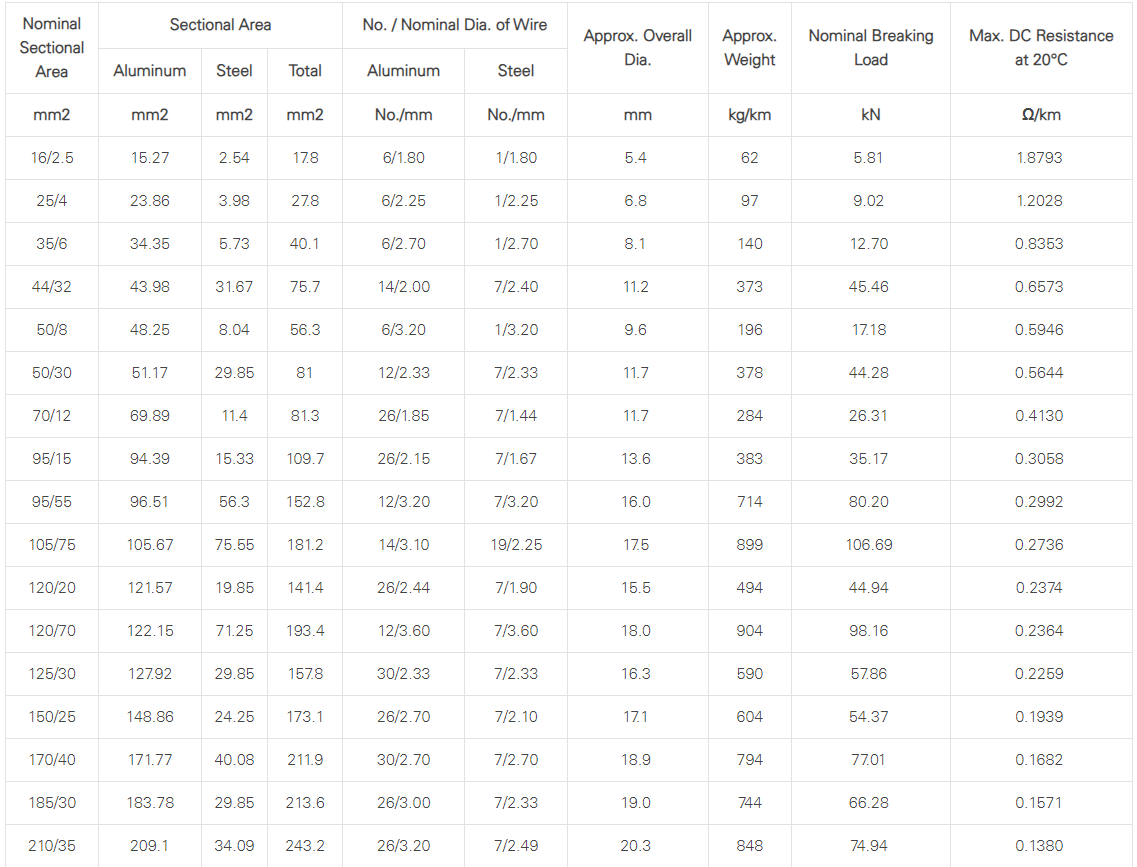

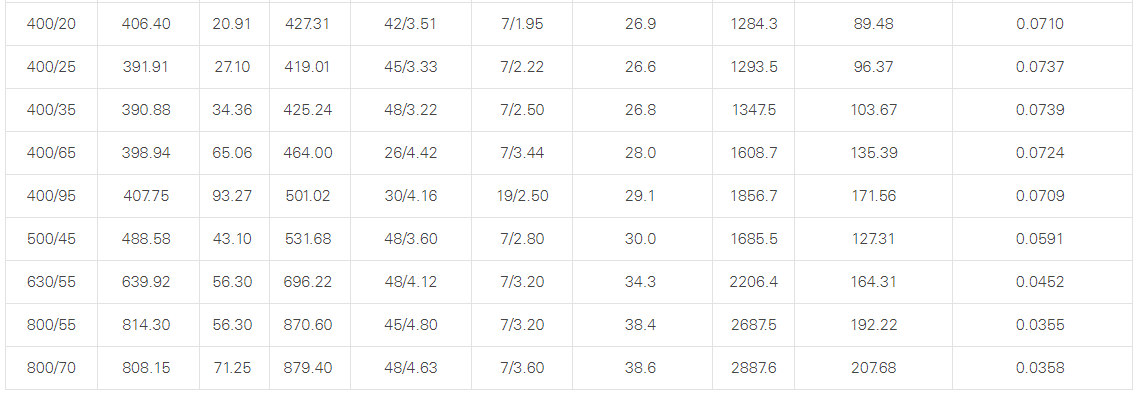

Generally, the ACSR Conductor is formed by the following construction:
