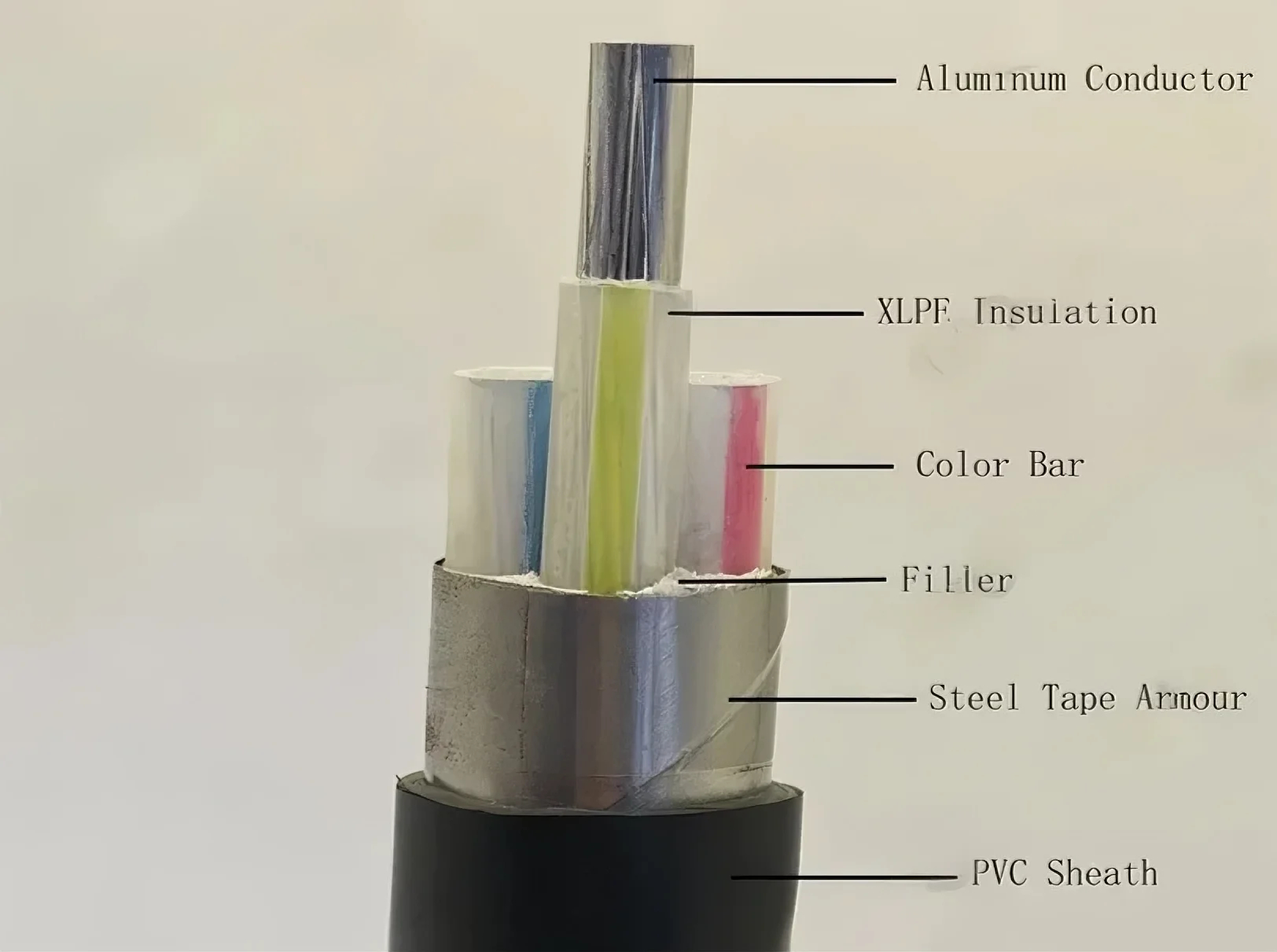

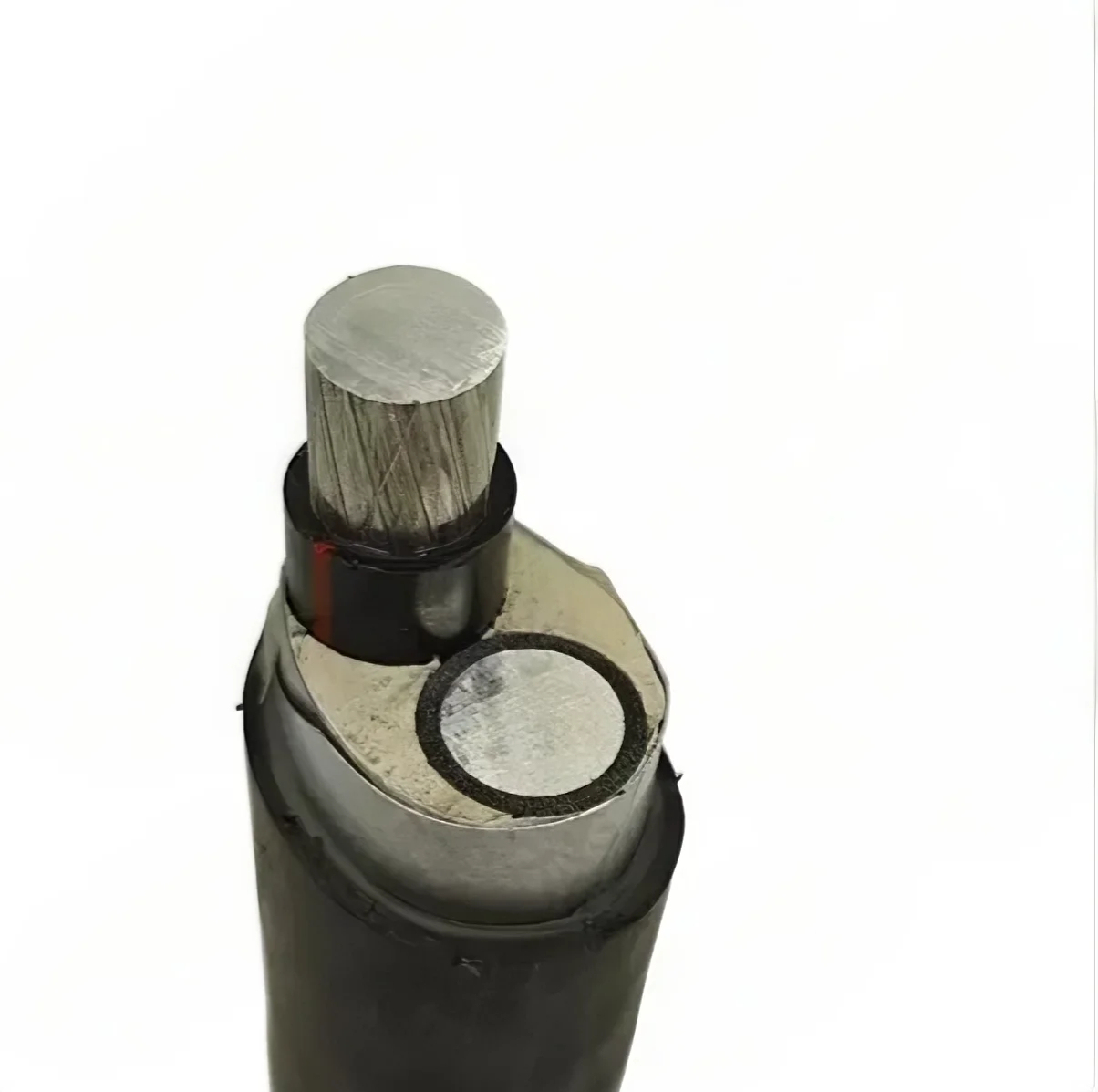

Name: Aluminum core steel tape armored power cable
Brand: MY SHOP
Availability: InStock
Rating: 5 (1 reviews)

Number of Cores and Nominal Cross - Section (mm²)	Insulation Thickness (mm)	Steel Tape Thickness (mm)	Sheath Thickness (mm)	Approximate Outer Diameter (mm)	Approximate Weight (kg/km)	Maximum DC Resistance of Conductor (20°C) (Ω/km)	Current - Carrying Capacity (A/km)
							In Air	On Ground
3×4 + 1×2.5	0.7/0.7	0.2	1.8	15.5	318	7.41/12.1	/	30
3×6 + 1×4	0.7/0.7	0.2	1.8	16.8	371	4.61/7.41	/	38
3×10 + 1×6	0.7/0.7	0.2	1.8	19.3	478	3.08/4.61	50	47
3×16 + 1×10	0.7/0.7	0.2	1.8	22.1	615	1.91/3.08	64	62
3×25 + 1×16	0.9/0.7	0.2	1.8	25.1	794	1.20/1.91	86	78
3×35 + 1×16	0.9/0.7	0.2	1.8	26.8	926	0.868/1.91	105	94
3×50 + 1×25	1.0/0.9	0.2	1.9	30.2	1175	0.641/1.20	125	110
3×70 + 1×35	1.1/0.9	0.2	2.0	35.1	1570	0.443/0.868	165	135
3×95 + 1×50	1.1/1.0	0.5	2.2	40.4	2359	0.320/0.641	200	160
3×120 + 1×70	1.2/1.1	0.5	2.3	45	2886	0.253/0.443	235	185
3×150 + 1×70	1.4/1.1	0.5	2.5	49.1	3396	0.206/0.443	270	205
3×185 + 1×95	1.6/1.1	0.5	2.8	54.3	4070	0.164/0.320	310	235
3×240 + 1×120	1.7/1.2	0.5	2.8	59.1	4855	0.125/0.253	365	260
3×300 + 1×150	1.8/1.4	0.5	3.0	66.0	6028	0.100/0.206	420	290

4 + 1 - core Cross - linked Polyethylene Insulated Steel - Tape Armored Polyvinyl Chloride Sheathed Power Cable (0.6/1kV)

Number of Cores and Nominal Cross - Section (mm²)	Insulation Thickness (mm)	Steel Tape Thickness (mm)	Sheath Thickness (mm)	Approximate Outer Diameter (mm)	Approximate Weight (kg/km)	Maximum DC Resistance of Conductor (20°C) (Ω/km)	Current - Carrying Capacity (A/km)
							In Air	On Ground
4×4 + 1×2.5	0.7/0.7	0.2	1.8	16.3	365	7.41/12.1	/	30
4×6 + 1×4	0.7/0.7	0.2	1.8	17.7	429	4.61/7.41	/	38
4×10 + 1×6	0.7/0.7	0.2	1.8	20.3	561	3.08/4.61	50	47
4×16 + 1×10	0.7/0.7	0.2	1.8	24	728	1.91/3.08	64	62
4×25 + 1×16	0.9/0.7	0.2	1.8	28.1	974	1.20/1.91	86	78
4×35 + 1×16	0.9/0.7	0.2	1.9	29.6	1134	0.868/1.91	105	94
4×50 + 1×25	1.0/0.9	0.2	2.0	34	1505	0.641/1.20	125	110
4×70 + 1×35	1.1/0.9	0.5	2.2	40.3	2351	0.443/0.868	165	135
4×95 + 1×50	1.1/1.0	0.5	2.3	44.8	2907	0.320/0.641	200	160
4×120 + 1×70	1.2/1.1	0.5	2.6	50.2	3588	0.253/0.443	235	185
4×150 + 1×70	1.4/1.1	0.5	2.8	54.6	4215	0.206/0.443	270	205
4×185 + 1×95	1.6/1.1	0.5	2.9	60.5	5133	0.164/0.320	310	235
4×240 + 1×120	1.7/1.2	0.5	3.0	67.1	6289	0.125/0.253	365	260
4×300 + 1×150	1.8/1.4	0.5	3.2	73.7	7544	0.100/0.206	420	290

3 + 2 - core Cross - linked Polyethylene Insulated Steel - Tape Armored Polyvinyl Chloride Sheathed Power Cable (0.6/1kV)

Number of Cores and Nominal Cross - Section (mm²)	Insulation Thickness (mm)	Steel Tape Thickness (mm)	Sheath Thickness (mm)	Approximate Outer Diameter (mm)	Approximate Weight (kg/km)	Maximum DC Resistance of Conductor (20°C) (Ω/km)	Current - Carrying Capacity (A/km)
							In Air	On Ground
3×4 + 2×2.5	0.7/0.7	0.2	1.8	16.6	354	7.41/12.1	/	30
3×6 + 2×4	0.7/0.7	0.2	1.8	18	416	4.61/7.41	/	38
3×10 + 2×6	0.7/0.7	0.2	1.8	20.9	531	3.08/4.61	50	47
3×16 + 2×10	0.7/0.7	0.2	1.8	24	694	1.91/3.08	64	62
3×25 + 2×16	0.9/0.7	0.2	1.8	28.1	920	1.20/1.91	86	78
3×35 + 2×16	0.9/0.7	0.2	1.9	29.6	1034	0.868/1.91	105	94
3×50 + 2×25	1.0/0.9	0.2	2.0	34	1400	0.641/1.20	125	110
3×70 + 2×35	1.1/0.9	0.5	2.2	40.3	2153	0.443/0.868	165	135
3×95 + 2×50	1.1/1.0	0.5	2.3	44.8	2658	0.320/0.641	200	160
3×120 + 2×70	1.2/1.1	0.5	2.5	50.2	3329	0.253/0.443	235	185
3×150 + 2×70	1.4/1.1	0.5	2.6	54.6	3790	0.206/0.443	270	205
3×185 + 2×95	1.6/1.1	0.5	2.8	60.5	4575	0.164/0.320	310	235
3×240 + 2×120	1.7/1.2	0.5	3.0	67.1	5564	0.125/0.253	365	260
3×300 + 2×150	1.8/1.4	0.5	3.2	73.7	6801	0.100/0.206	420	290
