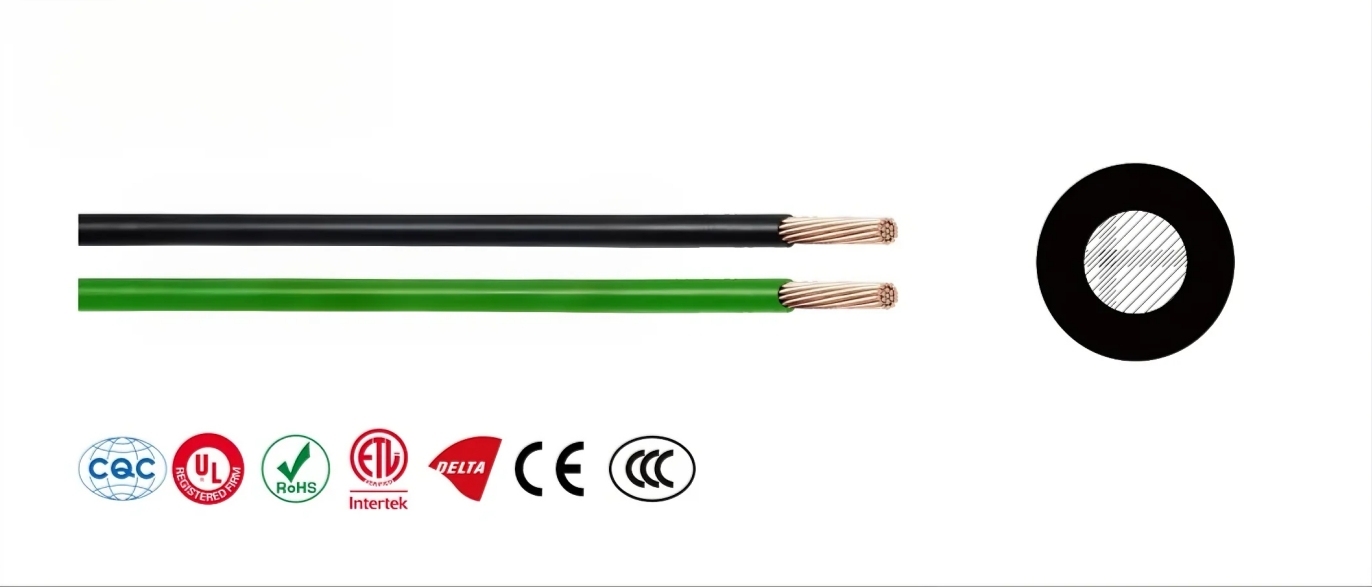

BVR flexible cable

Product Details

Applications: Primarily used for power supply, lighting, sockets, and air conditioning.

Suitable for cables and wires used in AC voltage 450/750V and below devices, household appliances, instruments, and telecommunications equipment.

Product Structure:
Conductor: Bare soft copper conductor or tinned soft copper stranded conductor

Insulation: PVC/C polyvinyl chloride insulation

Core and Sheath Color: Customizable according to customer requirements

Core and Sheath Material: Customizable according to customer requirements

Standards/Certifications:
Reference Standard: JB/T 8734

Conductor Compliance: GB/T 3956

Insulation Compliance: GB/T 5023

Characteristics and Compliance:
Characteristics: Permissible operating temperature should not exceed 70℃

Usage Standards: Insulation thickness, easy cutting, easy stripping

Technical parameters

Rated voltage

450/750V
Minimum bending radius

Fixed installation: 6D (cable outer diameter) Mobile installation: 13D (cable outer diameter)
Temperature Range

Fixed Installation: -10℃ ~ +70℃ Mobile Installation: -5℃ ~ +70℃
Flame retardancy

Passed GB/T18380 test

Excellent chemical resistance

Resistant to oil, cold, acids, alkalis, and solvents (optional)

Cable data

Product Code	Cross section (mm2)	Chip count	Approximate outer diameter (mm)	Approximate weight (kg/km)
A0853101018000100BK	2.5	1	3.7±0.16	33
A0853101019000100BK	4	1	4.2±0.20	48
A0853101020000100BK	6	1	4.8±0.20	68
A0853101021000100BK	10	1	6.7±0.20	115
A0853101022000100BK	16	1	7.8±0.20	173
A0853101023000100BK	25	1	9.5±0.20	268
A0853101024000100BK	35	1	11.2±0.20	366
A0853101025000100BK	50	1	13.1 ±0.20	519
A0853101026000100BK	70	1	15.5±0.20	712
A0853101027000100BK	95	1	18.4±0.20	967
A0853101028000100BK	120	1	19.7±0.20	1199
A0853101029000100BK	150	1	22.6±0.20	1504
A0853101030000100BK	185	1	25.0±0.20	1854
