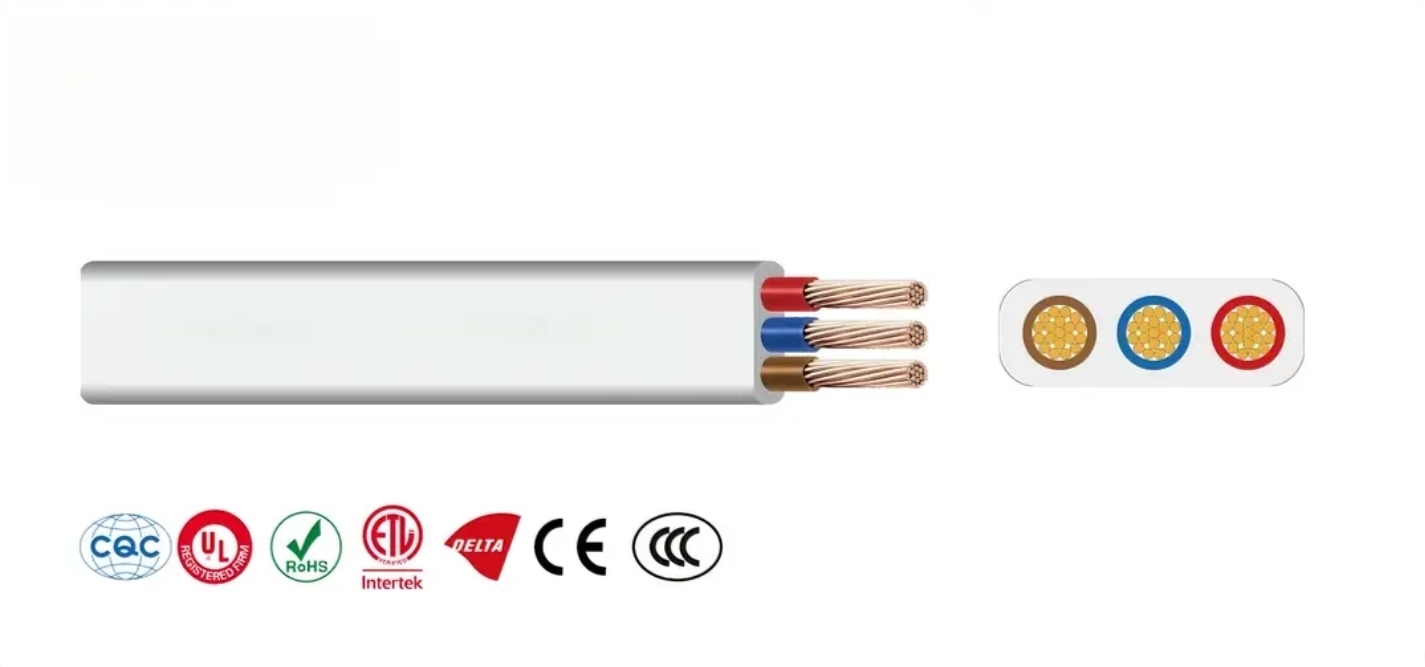

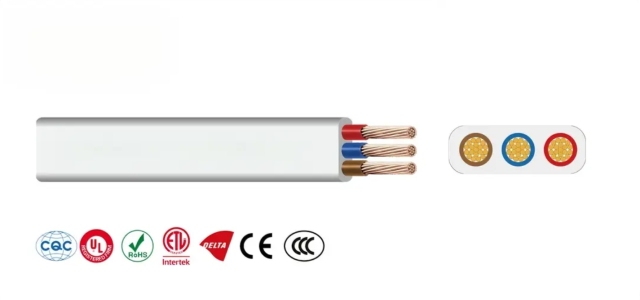

BVVB PVC insulated and PVC sheathed flat cable

Product Details

Applications: Primarily used in lifting equipment in special locations

Cable rails, transmission machinery

Extension telescopic machinery, etc.

Power transmission lines and control systems for mobile electrical appliances

Product Structure:
Conductor: Single solid copper conductor or stranded round copper conductor

Insulation: PVC/C polyvinyl chloride insulation

Inner sheath: PVC/ST4 polyvinyl chloride inner sheath

Outer sheath: PVC/ST4 polyvinyl chloride outer sheath

Core wire and sheath color: Customizable according to customer requirements

Core wire and sheath material: Customizable according to customer requirements

Standards/Certifications:
Reference Standard: JB/T 8734

Conductor Compliance: GB/T 3956

Insulation Compliance: GB/T 5023

Characteristics and Compliance:
Characteristics: Permissible operating temperature should not exceed 70℃

Usage Standards: Insulation thickness, easy cutting, easy stripping

Technical parameters

Rated voltage

U0/U 300/500V
Minimum bending radius

Single solid copper conductor: Fixed installation: 20D (cable outer diameter)
Stranded round copper conductor: Fixed installation: 15D (cable outer diameter)
Temperature range

Fixed installation: -10℃ ~ +70℃
Flame retardancy

Passed GB/T18380 test

Excellent chemical resistance

Resistant to oil, cold, acids, alkalis, and solvents (optional)
Cable data

Product Code	Cross section (mm2)	Chip count	Approximate outer diameter (mm)	Approximate weight (kg/km)
A1131102339000101BK	0.75	2	(4.0±0.4)×(6.2±0.4)	41
A1131102340000101BK	1.0	2	(4.1±0.4)×(6.5±0.4)	47
A1131102341000101BK	1.5	2	(4.6±0.4)×(7.3±0.4)	62
A1131102342000101BK	2.5	2	(5.4±0.6)×(8.7±0.6)	93
A1131102343000101BK	4	2	(5.8±0.6)×(9.6±0.6)	126
A1132102343000101BK	4	2	(6.2±0.6)×(10.4±0.6)	132
A1131102344000101BK	6	2	(6.5±0.6)×(10.8±0.6)	173
A1132102344000101BK	6	2	(7.0±0.6)×(11.7±0.6)	180
A1132102345000101BK	10	2	(8.4±0.8)×(14.4±0.8)	284
A1131103347000101BK	0.75	3	(4.0±0.6)×(8.3±0.6)	57
A1131103348000101BK	1.0	3	(4.1±0.6)×(8.8±0.6)	67
A1131103349000101BK	1.5	3	(4.6±0.6)×(10.1±0.6)	90
A1131103350000101BK	2.5	3	(5.4±0.6)×(12.1±0.6)	134
A1131103351000101BK	4	3	(5.8±0.6)×(13.5±0.6)	184
A1132103351000101BK	4	3	(6.2±0.8)×(14.5±0.8)	192
A1131103352000101BK	6	3	(6.5±0.8)×(15.1±0.8)	253
A1132103352000101BK	6	3	(7.0±0.8)×(16.5±0.8)	263
A1132103353000101BK	10	3	(8.4±1.0)×(20.4±1.0)	416
