NOMINAL VOLTAGE
U0/U=0.6/1kV
OPERATING TEMPERATURE
90°C
MANUFACTURING STANDARD
NTP 370.254 ICEA S-76-474
APPLICATIONS
For air networks of secondary distribution of low-cost electricity in urban and rural areas.
They are installed both in posts and attached to walls, in both cases, with the appropriate accessories.
They do not require the use of insulators.

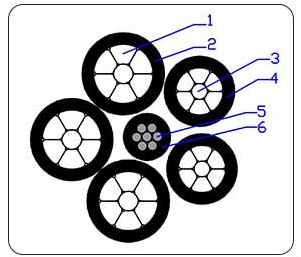

CONSTRUCTION
1.Phase conductor:Hard drawn aluminum conductor (class 2)
2.Insulation:XLPE
3.Lighting conductor:Hard drwan aluminum conductor(class 2)
4.Insulation:XLPE
5.Neutral messenger conductor:Galvanized steel conductor
6.Insulation:XLPE
DESIGNATION
CAAl --- Aluminum conductor with aluminum alloy support conductors, the support conductor can be bare "ND" or insulated "NA".
