APPLICATION
OPGW cables are used power transmission, communication, and lightning protection. lt could replace traditional static /shield /earth wires on overhead transmission lines and add benefit of containing optical fibers which can be used for telecommunications purposes.lt is suitable for high-voltage/ultra-high-voltage lines in intercity or cross-country projects that need both communication and grounding functions over long distances.
Central Al-covered Stainless Steel Tube applies to the transmission line which requires small diameter and large fault current.
DESCRIPTION
The central Al-covered steel tube is surrounded by single or double layers of aluminium clad steel wires(ACS) or mix ACS wires and aluminium alloy wires.
MAIN CHARACTERISTICS
Al-covered Stainless Steel tube design increases the cross section of AL, to reach a better fault current and lightning resistance performance.Good anti-corrosion performance.
Good anti-corrosion performance
STANDARD
ITU-TG.652 Characteristics of a single mode optical fiber.
ITU-TG.655 Characteristics of a non-zero dispersion -shifted single mode fibers optical.
EIA/TIA598 B Col code of fiber optic cables.
IEC 60794-4-10 Aerial optical cables along electrical power lines-family specification for OPGW.
IEC 60794-1-2 Optical fiber cables -part test procedures.
IEEE1138-2009 lEEE Standard for testing and performance for optical ground wire for use on electric utility power lines.
IEC61232 Aluminum -Clad steel wire for electrical purposes.
IEC60104 Aluminum magnesium silicon alloy wire for overhead line conductors.
IEC 61089 Round wire concentric lay overhead electrical stranded conductors.

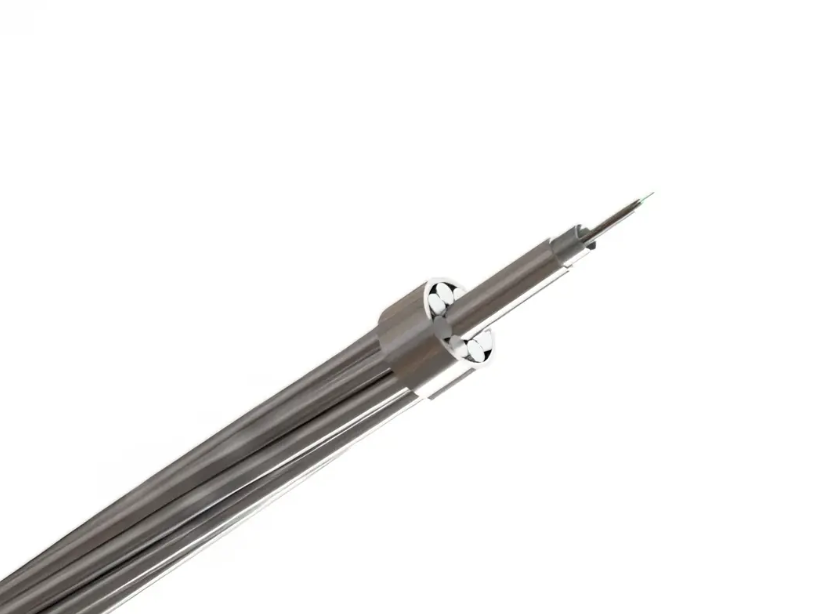

CONSTRUCTION
1.Aluminium clad steel wires/Aluminium alloy wires
2.Optical Fiber
3.Stainless steel tube
4.Al-covered

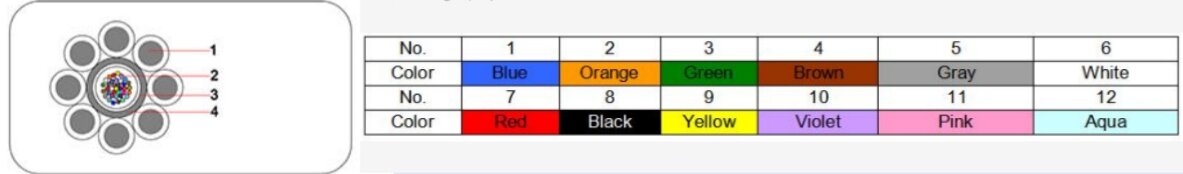

Core ldentification:
Optical fiber core identification is distinguished by 12 Chromatography and color rings colors-12 Chromatography
