APPLICATION
OPGW cables are used power transmission, communication, and lightning protection. lt could replace traditional static / shield /earth wires on overhead transmission lines and add benefit of containing optical fibers which can be used for telecommunications purposes.lt is suitable for high-voltage/ultra-high-voltage lines in intercity or cross-country projects that need both communication and grounding functions over long distances.
DESCRIPTION

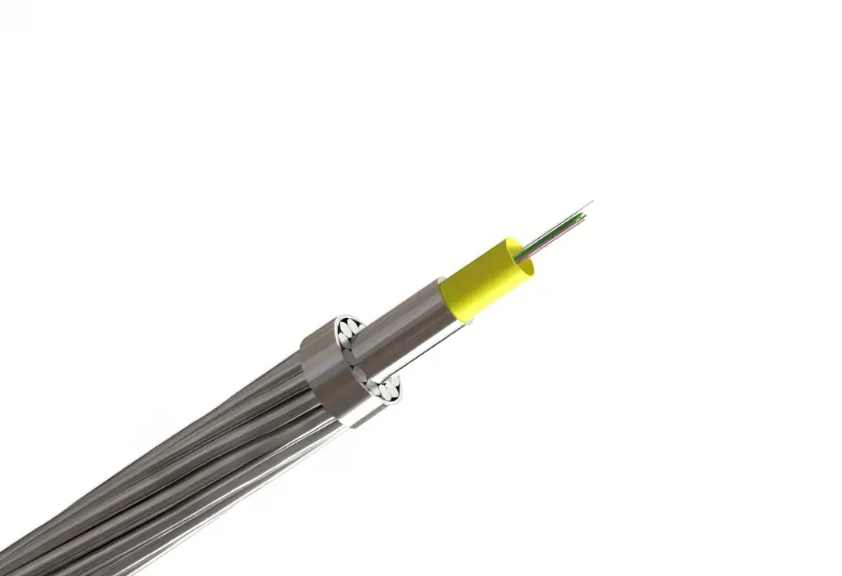

The Central Type Aluminum Tube is surrounded by single or double layers of aluminium clad steel wires(ACS) or mix ACS wires and aluminium alloy wires.
MAIN CHARACTERISTICS
Good anti-corrosion performance and good anti-lightning performance.
Material and structure are uniform, good resistance to vibration fatgue.
Short circuit current has small effect on the optical fiber transmisslon properties.
STANDARD
ITU-TG.652 Characteristics of a single mode optical fiber.
ITU-TG.655 Characteristics of a non-zero dispersion -shifted single mode fibers optical.
EIA/TIA598 B Col code of fiber optic cables.
IEC 60794-4-10 Aerial optical cables along electrical power lines-family specification for OPGW.
IEC 60794-1-2 Optical fiber cables -part test procedures.
IEEE1138-2009 lEEE Standard for testing and performance for optical ground wire for use on electric utility power lines.
IEC61232 Aluminum -Clad steel wire for electrical purposes.
IEC60104 Aluminum magnesium silicon alloy wire for overhead line conductors.
IEC 61089 Round wire concentric lay overhead electrical stranded conductors.
CONSTRUCTION
1.Aluminium clad steel wires/Aluminium alloy wires
2.Loose tube
3.Optical fibers and gel
4.Glass yarn
5.Aramid yarns
6.AL-covered layer

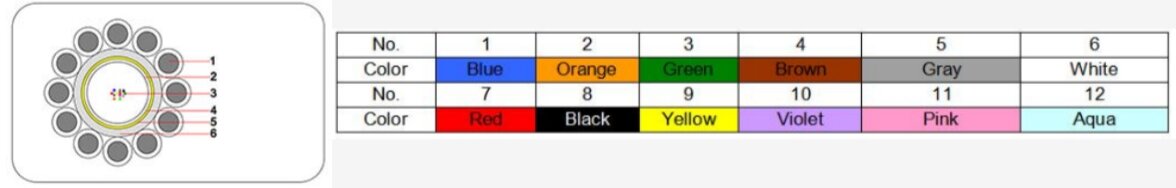

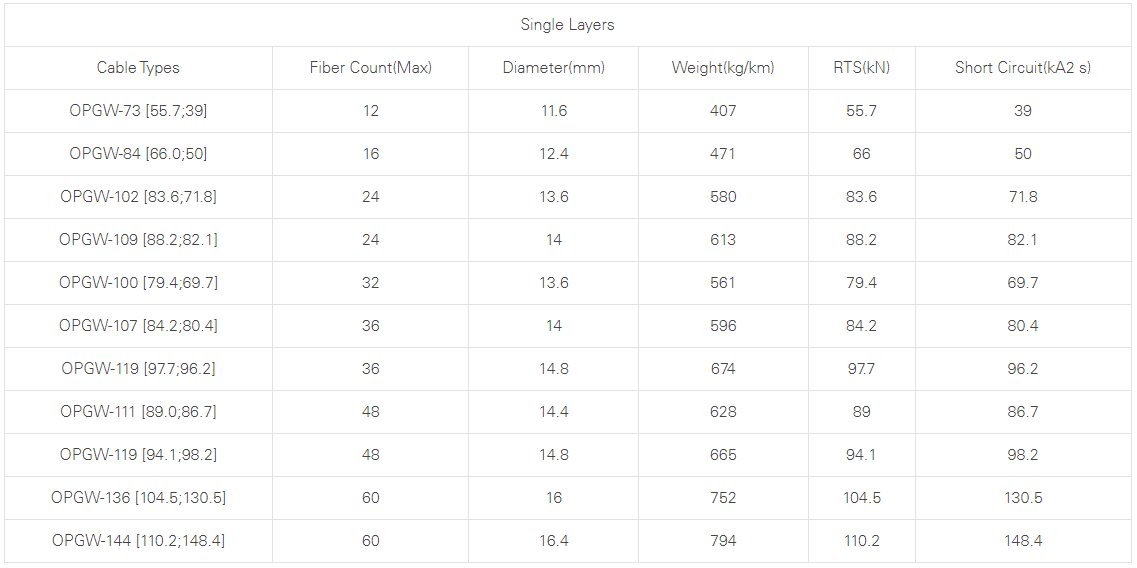

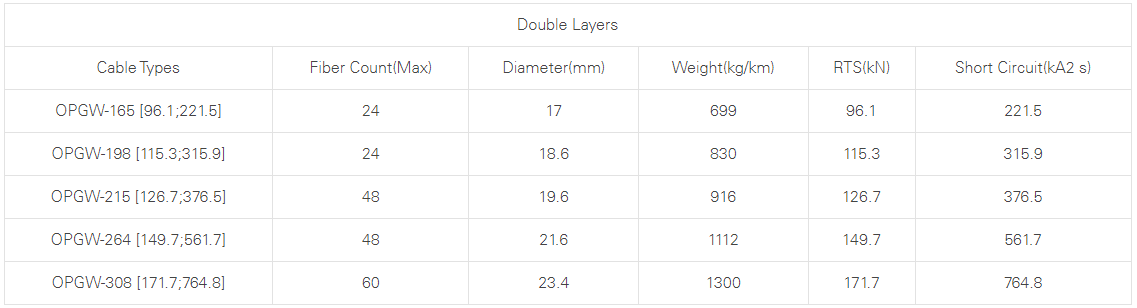

Core ldentification:
Optical fiber core identification is distinguished by 12 Chromatography and color rings colors-12 Chromatography
