The products are suitable for use in electrical instruments and distribution devices with an AC rated voltage (U/U0) of 450/750V or less, signal transmission, control and measurement systems, protection lines, and other occasions in metallurgy, electric power, petrochemical and other industrial and mining enterprises... The large number of cores can shorten the line laying time, and a variety of models and specifications can meet various performance requirements such as shielding, armoring, flame retardancy, and fire resistance as needed.
Implementation standards: GB/T 9330-2008、Enterprise Standards
Product Introduction:This product is suitable for control, monitoring, and protection circuits. The long-term operating temperature for PVC-insulated cables is no more than 70°C, while the long-term operating temperature for XLPE-insulated cables is no more than 90°C. (Note: All of these cables are available in low-smoke, halogen-free, flame-retardant, and fire-resistant constructions.)
Model, name and scope of use
|
model |
name |
Main application areas |
|

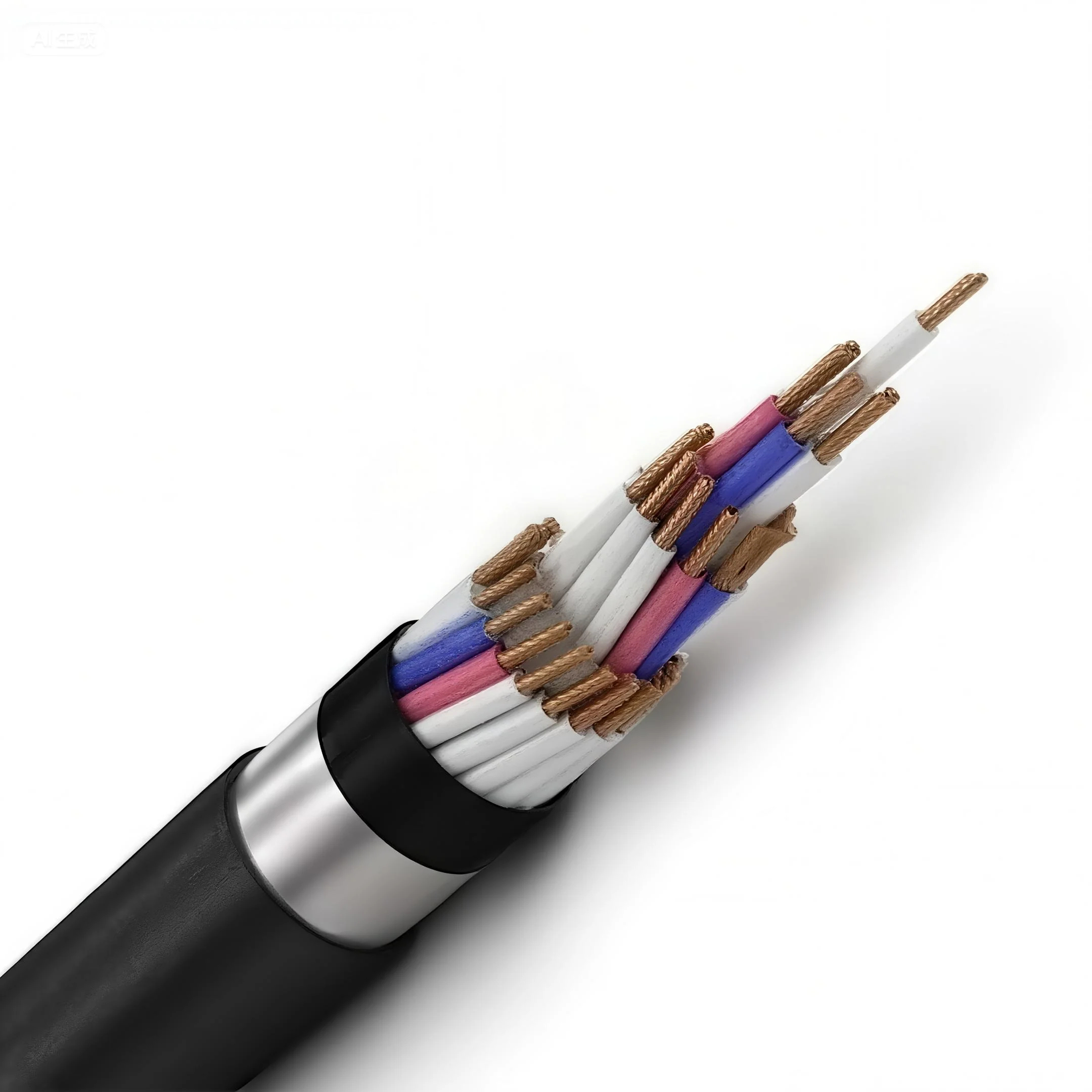

KVV |
PVC insulated PVC sheathed control cable |
Installed in fixed places such as indoors, cable trenches, pipelines, etc. |
|
KVVP |
PVC insulated PVC sheathed braided shield control cable |
Installed indoors, in cable trenches, pipelines and other fixed places where shielding is required |
|
KVVP2 |
PVC insulated PVC sheathed copper tape shielded control cable |
Installed indoors, in cable trenches, pipelines and other fixed places where shielding is required |
|
KVVP3 |
PVC insulated PVC sheathed aluminum-plastic composite tape shielded control cable |
Installed indoors, in cable trenches, pipelines and other fixed places where shielding is required |
|
KVV22 |
PVC insulated PVC sheathed steel tape armored control cable |
Installed indoors, in cable trenches, pipelines and other fixed places subject to large mechanical forces |
|
KVVP2-22 |
PVC insulated PVC sheathed copper tape shielded steel tape armored control cable |
Installed indoors, in cable trenches, pipelines and other fixed places that require shielding and withstand large mechanical forces |
|
KVV32 |
PVC insulated PVC sheathed fine steel wire armored control cable |
Installed indoors, in cable trenches, pipelines and other fixed places that are subject to large mechanical forces and large spans |
|
KVVR |
PVC insulated PVC sheathed control flexible cable |
Installed in indoor places where softness is required |
|
KVVRP |
PVC insulated PVC sheathed braided shielded control flexible cable |
Installed in indoor places where softness and shielding are required |
|
Name |
Implementation standards |
model |
Voltage level |
Specification |
|
|
PVC insulated and PVC sheathed (or flame retardant or flame retardant and fire resistant) control cables with rated voltage of 450/750V and below |
GB/T19666-2005 GB/T9330.2-2008 |
（Z*-）、（Z*N-）KVV、（Z*-）、（Z*N-）KVVP |
450/750V |
2*0.75～61*0.75、2*1.0～61*1.0、2*1.5～61*1.5、 2*2.5～61*2.5、2*4～14*4、2*6～14*6、2*10～10*10 |
|
|
（Z*-）、（Z*N-）KVVP2、（Z*-）、（Z*N-）KVVP3 |
4*0.75～61*0.75、4*1.0～61*1.0、4*1.5～61*1.5、4*2.5～61*2.5、4*4～14*4、4*6～14*6、4*10～10*10 |
||||
|
（Z*-）、（Z*N-）KVV22、（Z*-）、（Z*N-）KVVP2-22 |
7*0.75～61*0.75、7*1.0～61*1.0、4*1.5～61*1.5、4*2.5～61*2.5、4*4～14*4、4*6～14*6、4*10～10*10 |
||||
|
（Z*-）、（Z*N-）KVV32 |
19*0.75～61*0.75、19*1.0～61*1.0、7*1.5～61*1.5、7*2.5～61*2.5、4*4～14*4、4*6～14*6、4*10～10*10 |
||||
|
（Z*-）、（Z*N-）KVVR |
2*0.5～61*0.5、2*0.75～61*0.75、2*1.0～61*1.0、2*1.5～61*1.5、2*2.5～61*2.5 |
||||
|
（Z*-）、（Z*N-）KVVRP |
2*0.5～61*0.5、2*0.75～61*0.75、2*1.0～61*1.0、2*1.5～48*1.5、2*2.5～48*2.5 |
||||
|
Cross-linked polyethylene insulated (or flame retardant, or halogen-free low-smoke flame retardant) control cable with rated voltage of 450/750V and below |
GB/T19666-2005 GB/T9330.2-2008 |
（Z*-）KYJV、（Z*-）KYJVP、WDZ*-KYJY、WDZ*-KYJYP |
450/750V |
2*0.75～61*0.75、2*1.0～61*1.0、2*1.5～61*1.5、2*2.5～61*2.5、2*4～14*4、2*6～14*6、2*10～10*10 |
|
|
（Z*-）KYJVP2、（Z*-）KYJVP3、WDZ*-KYJYP2、WDZ*-KYJYP3 |
4*0.75～61*0.75、4*1.0～61*1.0、4*1.5～61*1.5、4*2.5～61*2.5、4*4～14*4、4*6～14*6、4*10～10*10 |
||||
|
（Z*-）KYJV32、WDZ*-KYJY33 |
19*0.75～61*0.75、19*1.0～61*1.0、7*1.5～61*1.5、7*2.5～61*2.5、4*4～14*4、4*6～14*6、4*10～10*10 |
||||
|
（Z*-）KYJV22、WDZ*-KYJY23 （Z*-）KYJVP2-22、WDZ*-KYJYP2-23 （Z*-）KYJVP22、WDZ*-KYJYP23 |
7*0.75～61*0.75、7*1.0～61*1.0、7*1.5～61*1.5、4*2.5～61*2.5、4*4～14*4、4*6～14*6、4*10～10*10 |
||||
|
Rated voltage 0.6/1kV cross-linked polyethylene insulated flame retardant and fire-resistant control cable |
Enterprise Standards |
(Z*(N))-KYJV、(Z*(N))-KYJVP、(WDZ*(N))-KYJY、(WDZ*(N))-KYJYP |
0.6/1kV |
2*0.75～61*0.75、2*1.0～61*1.0、2*1.5～61*1.5、2*2.5～61*2.5、2*4～14*4、2*6～14*6、2*10～10*10 |
|
|
(Z*(N))-KYJVP2、(Z*(N))-KYJVP3、(WDZ*(N))-KYJYP2、(WDZ*(N))-KYJYP3 |
4*0.75～61*0.75、4*1.0～61*1.0、4*1.5～61*1.5、4*2.5～61*2.5、4*4～14*4、4*6～14*6、4*10～10*10 |
||||
|
(Z*(N))-KYJV22、(WDZ*(N))-KYJY23、(Z*(N))-KYJVP22、(WDZ*(N))-KYJYP23、(Z*(N) )-KYJVP2-22、(WDZ*(N) )-KYJYP2-23 |
7*0.75～61*0.75、7*1.0～61*1.0、7*1.5～61*1.5、4*2.5～61*2.5、4*4～14*4、4*6～14*6、4*10～10*10 |
|
|||
|
(Z*(N))-KYJV32、(WDZ*(N))-KYJY33 |
19*0.75～61*0.75、19*1.0～61*1.0、7*1.5～61*1.5、7*2.5～61*2.5、4*4～14*4、4*6～14*6、4*10～10*10 |
|
|||
|
(Z*(N)) -KYJVR、(WDZ*(N)) -KYJYR |
4*0.5～61*0.5、4*0.75～61*0.75、4*1.0～61*1.0、4*1.5～61*1.5、4*2.5～61*2.5 |
|
|||
|
(Z*(N)) -KYJVRP、(WDZ*(N)) -KYJYRP |
4*0.5～61*0.5、4*0.75～61*0.75、4*1.0～61*1.0、4*1.5～48*1.5、4*2.5～48*2.5 |
|
|||
