These cables are suitable for use in industrial and mining applications such as metallurgy, electric power, and petrochemical industries, with AC rated voltages (U/U0) of 450/750V or less, for signal transmission, control and measurement systems, and protective circuits for electrical instruments and distribution equipment. Their high core count shortens line installation time and offers a wide range of models and specifications, meeting various performance requirements, including shielding, armoring, flame retardancy, and fire resistance.
Implementation standards：GB/T 9330-2008、Enterprise Standards
Product Introduction：This product is suitable for control, monitoring circuits, and protection circuits. The long-term operating temperature of PVC-insulated cables is no more than 70°C, and the long-term operating temperature of XLPE-insulated cables is no more than 90°C. (Note: All of the above cable types are low-smoke, halogen-free, flame-retardant, and fire-resistant.)
Model, name and scope of use
|
model |
name |
Main application areas |
|
KVV |
PVC insulated PVC sheathed control cable |
Installed in fixed places such as indoors, cable trenches, pipelines, etc. |
|

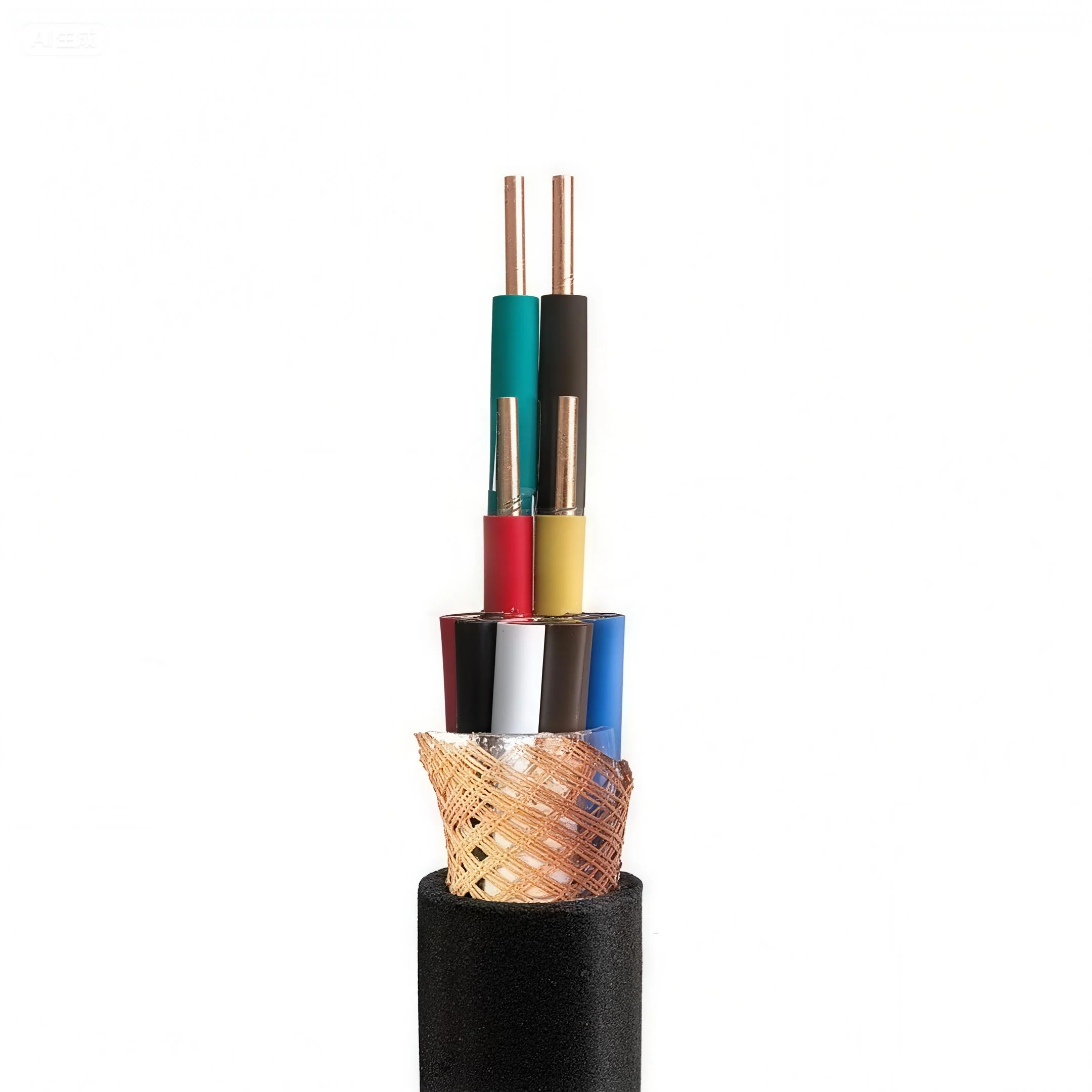

KVVP |
PVC insulated PVC sheathed braided shield control cable |
Installed indoors, in cable trenches, pipelines and other fixed places where shielding is required |
|
KVVP2 |
PVC insulated PVC sheathed copper tape shielded control cable |
Installed indoors, in cable trenches, pipelines and other fixed places where shielding is required |
|
KVVP3 |
PVC insulated PVC sheathed aluminum-plastic composite tape shielded control cable |
Installed indoors, in cable trenches, pipelines and other fixed places where shielding is required |
|
KVV22 |
PVC insulated PVC sheathed steel tape armored control cable |
Installed indoors, in cable trenches, pipelines and other fixed places subject to large mechanical forces |
|
KVVP2-22 |
PVC insulated PVC sheathed copper tape shielded steel tape armored control cable |
Installed indoors, in cable trenches, pipelines and other fixed places that require shielding and withstand large mechanical forces |
|
KVV32 |
PVC insulated PVC sheathed fine steel wire armored control cable |
Installed indoors, in cable trenches, pipelines and other fixed places that are subject to large mechanical forces and large spans |
|
KVVR |
PVC insulated PVC sheathed control flexible cable |
Installed in indoor places where softness is required |
|
KVVRP |
PVC insulated PVC sheathed braided shielded control flexible cable |
Installed in indoor places where softness and shielding are required |
|
Name |
Implementation standards |
model |
Voltage level |
Specification |
|
|
PVC insulated and PVC sheathed (or flame retardant or flame retardant and fire resistant) control cables with rated voltage of 450/750V and below |
GB/T19666-2005 GB/T9330.2-2008 |
（Z*-）、（Z*N-）KVV、（Z*-）、（Z*N-）KVVP |
450/750V |
2*0.75～61*0.75、2*1.0～61*1.0、2*1.5～61*1.5、 2*2.5～61*2.5、2*4～14*4、2*6～14*6、2*10～10*10 |
|
|
（Z*-）、（Z*N-）KVVP2、（Z*-）、（Z*N-）KVVP3 |
4*0.75～61*0.75、4*1.0～61*1.0、4*1.5～61*1.5、4*2.5～61*2.5、4*4～14*4、4*6～14*6、4*10～10*10 |
||||
|
（Z*-）、（Z*N-）KVV22、（Z*-）、（Z*N-）KVVP2-22 |
7*0.75～61*0.75、7*1.0～61*1.0、4*1.5～61*1.5、4*2.5～61*2.5、4*4～14*4、4*6～14*6、4*10～10*10 |
||||
|
（Z*-）、（Z*N-）KVV32 |
19*0.75～61*0.75、19*1.0～61*1.0、7*1.5～61*1.5、7*2.5～61*2.5、4*4～14*4、4*6～14*6、4*10～10*10 |
||||
|
（Z*-）、（Z*N-）KVVR |
2*0.5～61*0.5、2*0.75～61*0.75、2*1.0～61*1.0、2*1.5～61*1.5、2*2.5～61*2.5 |
||||
|
（Z*-）、（Z*N-）KVVRP |
2*0.5～61*0.5、2*0.75～61*0.75、2*1.0～61*1.0、2*1.5～48*1.5、2*2.5～48*2.5 |
||||
|
Cross-linked polyethylene insulated (or flame retardant, or halogen-free low-smoke flame retardant) control cable with rated voltage of 450/750V and below |
GB/T19666-2005 GB/T9330.2-2008 |
（Z*-）KYJV、（Z*-）KYJVP、WDZ*-KYJY、WDZ*-KYJYP |
450/750V |
2*0.75～61*0.75、2*1.0～61*1.0、2*1.5～61*1.5、2*2.5～61*2.5、2*4～14*4、2*6～14*6、2*10～10*10 |
|
|
（Z*-）KYJVP2、（Z*-）KYJVP3、WDZ*-KYJYP2、WDZ*-KYJYP3 |
4*0.75～61*0.75、4*1.0～61*1.0、4*1.5～61*1.5、4*2.5～61*2.5、4*4～14*4、4*6～14*6、4*10～10*10 |
||||
|
（Z*-）KYJV32、WDZ*-KYJY33 |
19*0.75～61*0.75、19*1.0～61*1.0、7*1.5～61*1.5、7*2.5～61*2.5、4*4～14*4、4*6～14*6、4*10～10*10 |
||||
|
（Z*-）KYJV22、WDZ*-KYJY23 （Z*-）KYJVP2-22、WDZ*-KYJYP2-23 （Z*-）KYJVP22、WDZ*-KYJYP23 |
7*0.75～61*0.75、7*1.0～61*1.0、7*1.5～61*1.5、4*2.5～61*2.5、4*4～14*4、4*6～14*6、4*10～10*10 |
||||
|
Rated voltage 0.6/1kV cross-linked polyethylene insulated flame retardant and fire-resistant control cable |
Enterprise Standards |
(Z*(N))-KYJV、(Z*(N))-KYJVP、(WDZ*(N))-KYJY、(WDZ*(N))-KYJYP |
0.6/1kV |
2*0.75～61*0.75、2*1.0～61*1.0、2*1.5～61*1.5、2*2.5～61*2.5、2*4～14*4、2*6～14*6、2*10～10*10 |
|
|
(Z*(N))-KYJVP2、(Z*(N))-KYJVP3、(WDZ*(N))-KYJYP2、(WDZ*(N))-KYJYP3 |
4*0.75～61*0.75、4*1.0～61*1.0、4*1.5～61*1.5、4*2.5～61*2.5、4*4～14*4、4*6～14*6、4*10～10*10 |
||||
|
(Z*(N))-KYJV22、(WDZ*(N))-KYJY23、(Z*(N))-KYJVP22、(WDZ*(N))-KYJYP23、(Z*(N) )-KYJVP2-22、(WDZ*(N) )-KYJYP2-23 |
7*0.75～61*0.75、7*1.0～61*1.0、7*1.5～61*1.5、4*2.5～61*2.5、4*4～14*4、4*6～14*6、4*10～10*10 |
|
|||
|
(Z*(N))-KYJV32、(WDZ*(N))-KYJY33 |
19*0.75～61*0.75、19*1.0～61*1.0、7*1.5～61*1.5、7*2.5～61*2.5、4*4～14*4、4*6～14*6、4*10～10*10 |
|
|||
|
(Z*(N)) -KYJVR、(WDZ*(N)) -KYJYR |
4*0.5～61*0.5、4*0.75～61*0.75、4*1.0～61*1.0、4*1.5～61*1.5、4*2.5～61*2.5 |
|
|||
|
(Z*(N)) -KYJVRP、(WDZ*(N)) -KYJYRP |
4*0.5～61*0.5、4*0.75～61*0.75、4*1.0～61*1.0、4*1.5～48*1.5、4*2.5～48*2.5 |
|
|||
