Voltage: 0.6/1kV
Model: YJV22, YJV32, YJV42...
application：
Power transmission
Building electrical systems
Industrial control and automation
Transportation
advantage
The advantages of copper-core power cables primarily lie in their physical and electrical properties, including low resistivity, high strength, excellent ductility, strong fatigue resistance, good stability, high current carrying capacity, low voltage loss, low energy consumption, low heat generation, and oxidation and corrosion resistance.

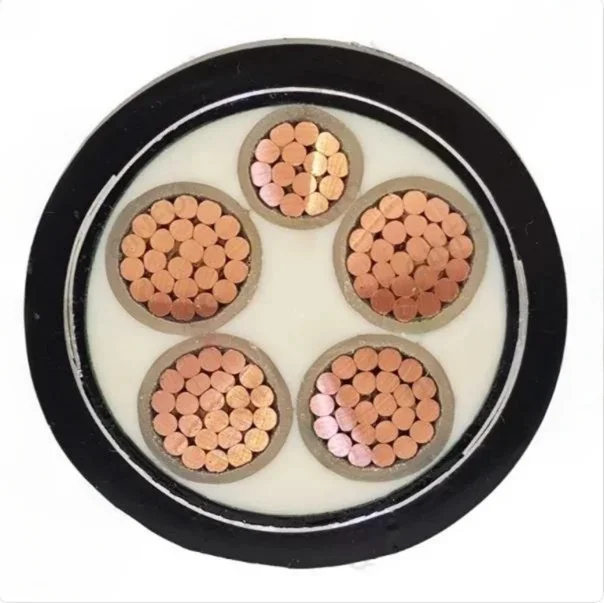

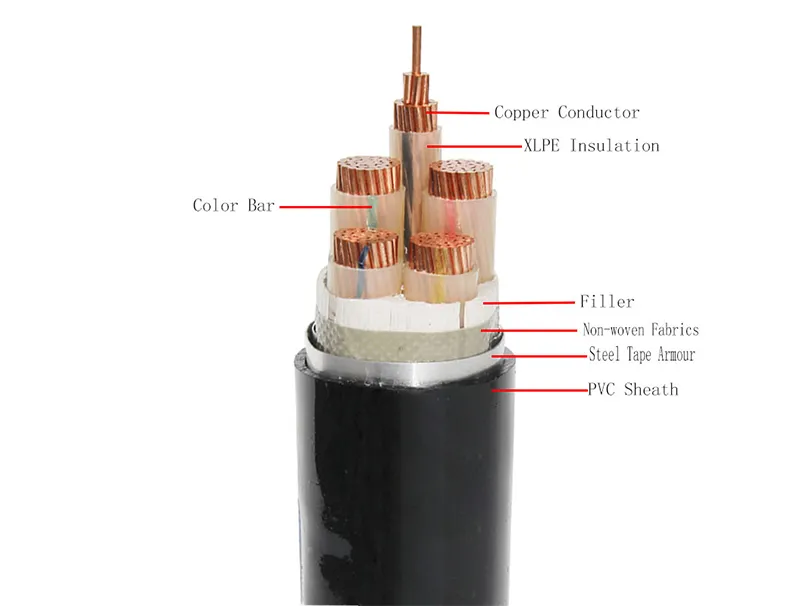

Conductor: Oxygen-free copper
Insulation: Cross-linked polyethylene
Insulation color: Natural or customizable
Filling: Non-hygroscopic material
Reinforcement: Steel tape armor (or customizable)
Outer jacket: PVC/PE
Jacket color: Black
Physical properties:
Maximum operating temperature of conductor: 70°C (PVC insulation), 90°C (XLPE insulation)
Minimum operating temperature: -5°C (PVC or LSZH sheath), -20°C (PE sheath)
Short-circuit temperature (no more than 5 seconds): 140°C-160°C (PVC insulation), 250°C (XLPE insulation)
