APPLICATION
PVC panel wiring for use in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.
STANDARD
BS EN 50525-2-31

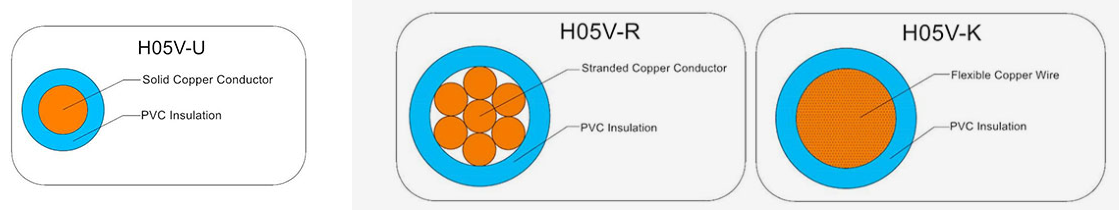

CONSTRUCTION
1.Conductor:
annealed copper conductor acc. to EN 60228:
class 1 solid -H05V-U
class 2 stranded H05V-R
class 5 flexible H05V-K
2.Insulation:
PVC compound type Tl 1
3.Color of insulation:
blue, black, brown, green/yellow or other colors
CHARACTERISTIC
Maximum conductor operating temperature: +70°C
Lowest ambient temperature for fixed installation:-30°C
Lowest installation temperature:-5°C
Nominal voltage: Uo/U: 300/ 500 V
Test voltage: 2000V

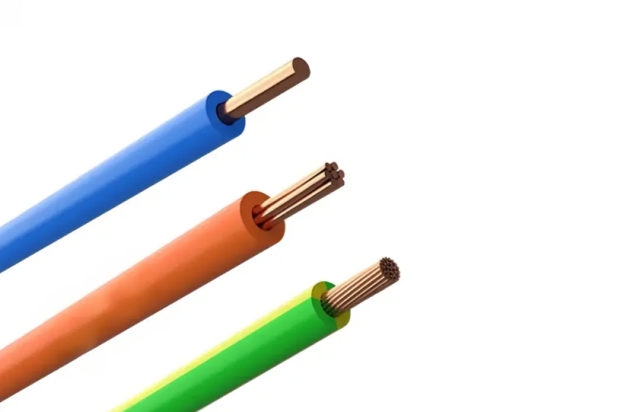

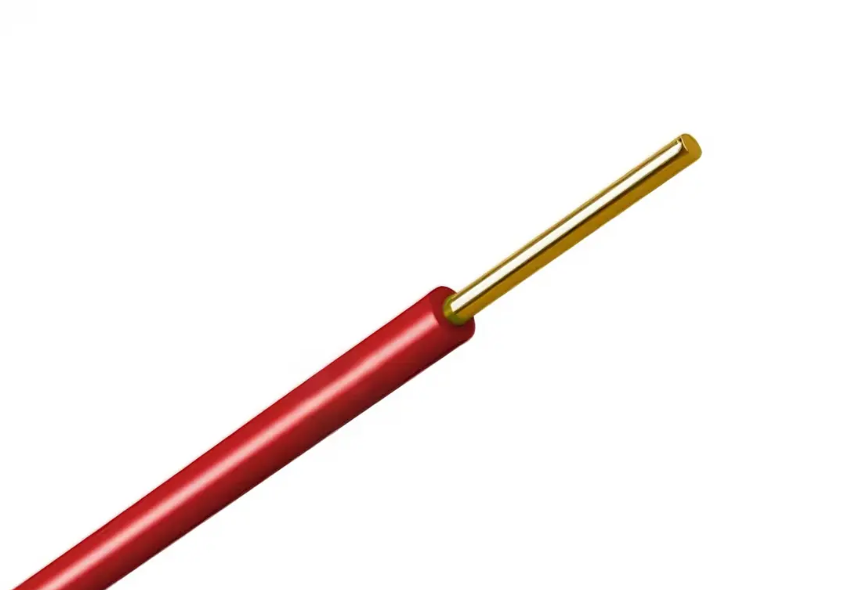

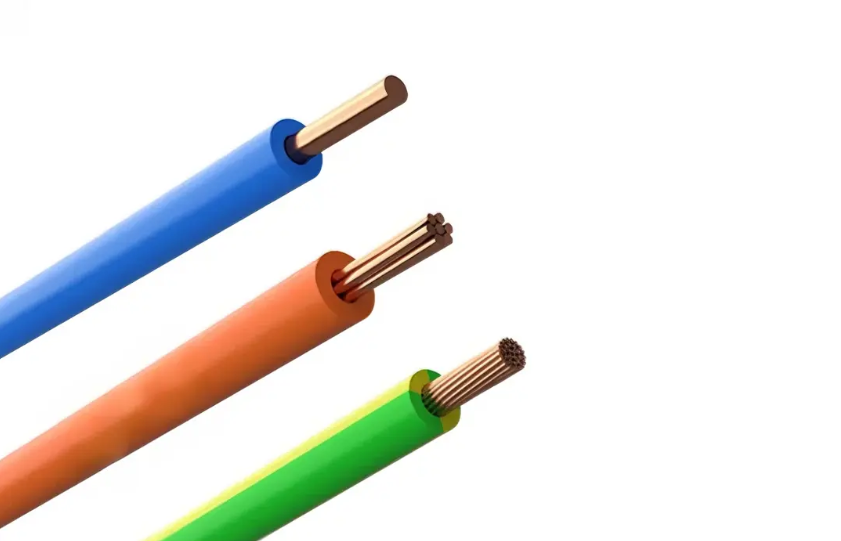

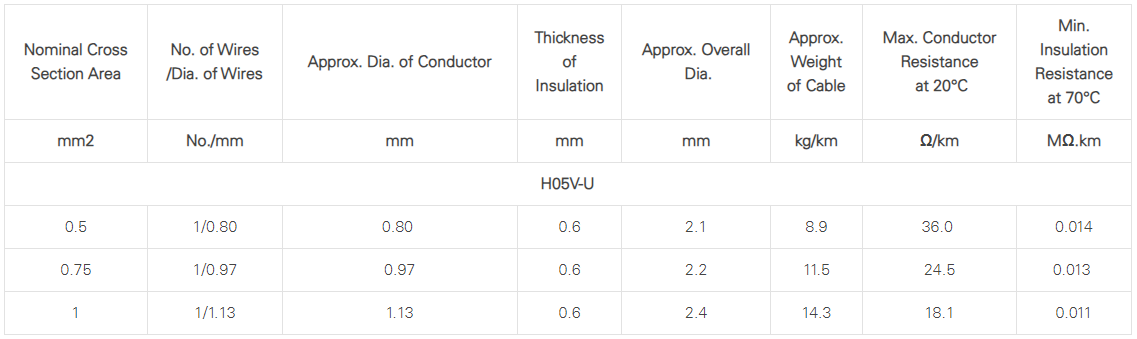

H05V-U

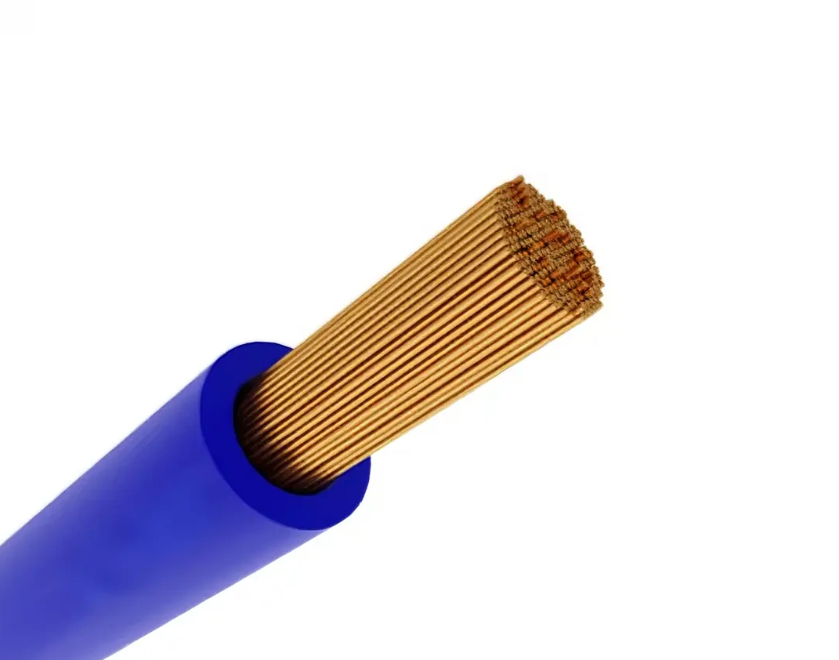

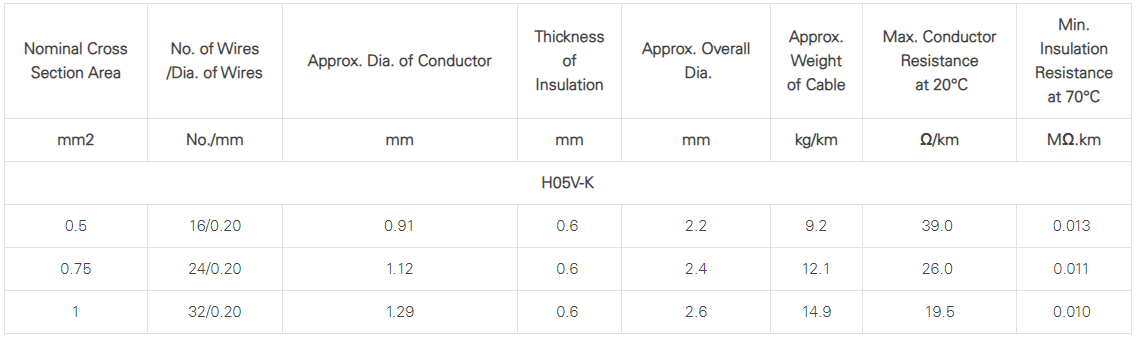

H05V-K

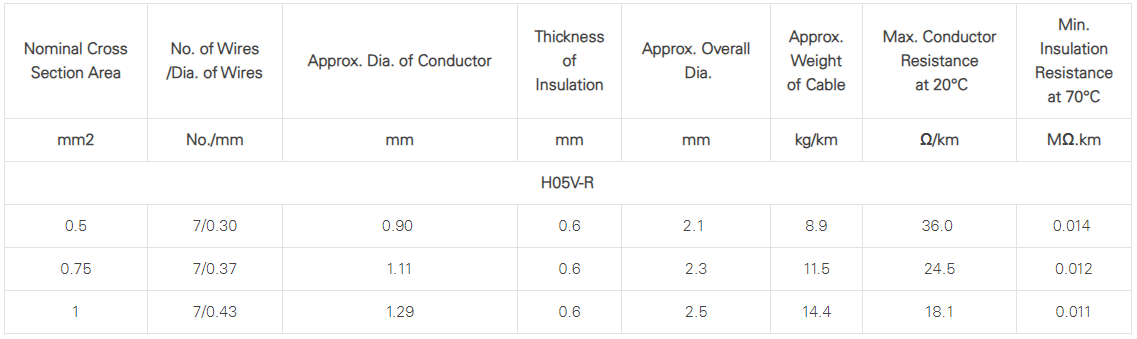

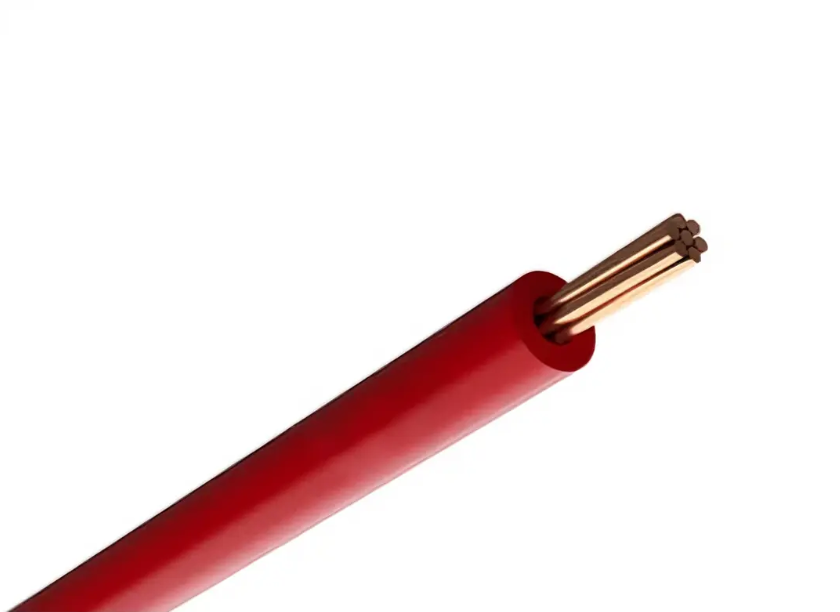

H05V-R
