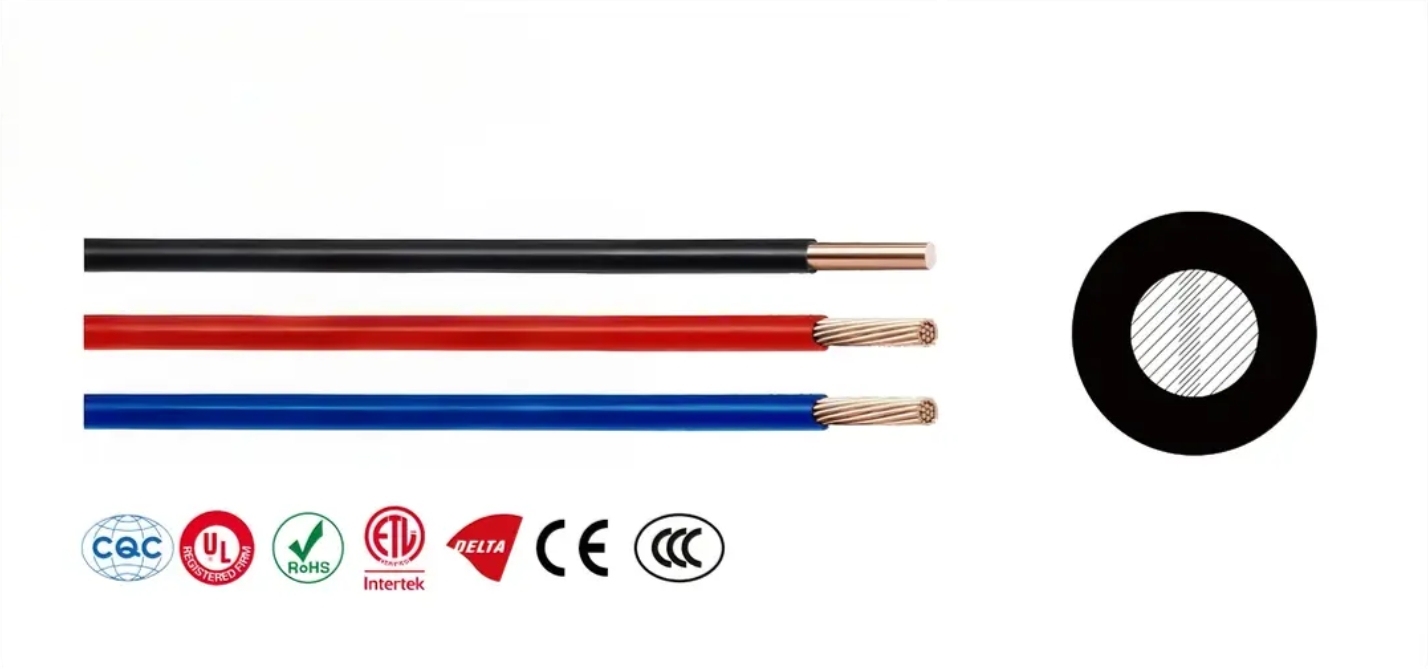

H05V-U，H05V-R，H05V-K

Product Details

Applications
These cables are primarily installed inside equipment and, under protected conditions, in lighting and drying room production facilities, switches, and distribution panels.

Product Structure
Conductor:
H05V-U: Single-strand solid bare copper
H05V-R: Solid/multi-strand bare copper
H05V-K: Multi-strand flexible bare copper

Insulation: PVC insulation, Ti2 class, conforming to VDE-0281

Core and Sheath Color: Custom colors available upon request

Core and Sheath Material: Custom materials available upon request

Standards/Certifications
Reference Standard: EN 50525

Conductor Compliance:
H05V-U: DIN VDE 0295 cl-1
H05V-R: DIN VDE 0295 cl-2
H05V-K: DIN VDE-0295 Cl 5

Characteristics and Compliance
Characteristics: Permissible operating temperature should not exceed 70℃

Usage Standards: Insulation thickness, easy to cut wire, easy to strip
