APPLICATION
Flexible cables for mobile lightweight, suitable for installation in homes, kitchens, offices, for connection of portable light as hair dryers, washing machines, refrigerators etc.., Which may be used for cooking and heating appliances provided they are not in contact with hot parts, not suitable for external use, in industrial buildings or for non-domestic portable tools.
STANDARD
BS EN 50525-2-11

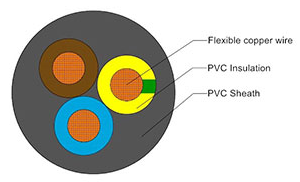

CONSTRUCTION
1.Conductor:
Annealed copper wire to BS 6360, lEC 60228 class 5
2.Insulation:
PVC compound type Tl 2
3.Outer sheath:
PVC compound type TM 2
CHARACTERISTIC
Maximum conductor operating temperature: +60°C
Temperature range:
flexing -5 °C to +70 °C
fixed installation -40 °C to +70 °C
Nominal voltage: Uo/U: 300/ 500 V
Test voltage:2000V
Minimum bending radius: 6xD(cable diameter)
