APPLICATION
These cables are designed to provide high flexibility and have the capacity to withstand weather,oils/greases,mechanical and thermal stresses.
Applications include handling equipment, mobile power supplies,work sites, stage and audio visual equipment, port areas and dams.Also for use in drainage and water treatment, cold environments and severe industrial environments.
STANDARD HD 22.4 S4

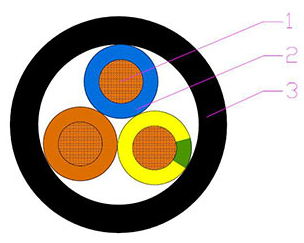

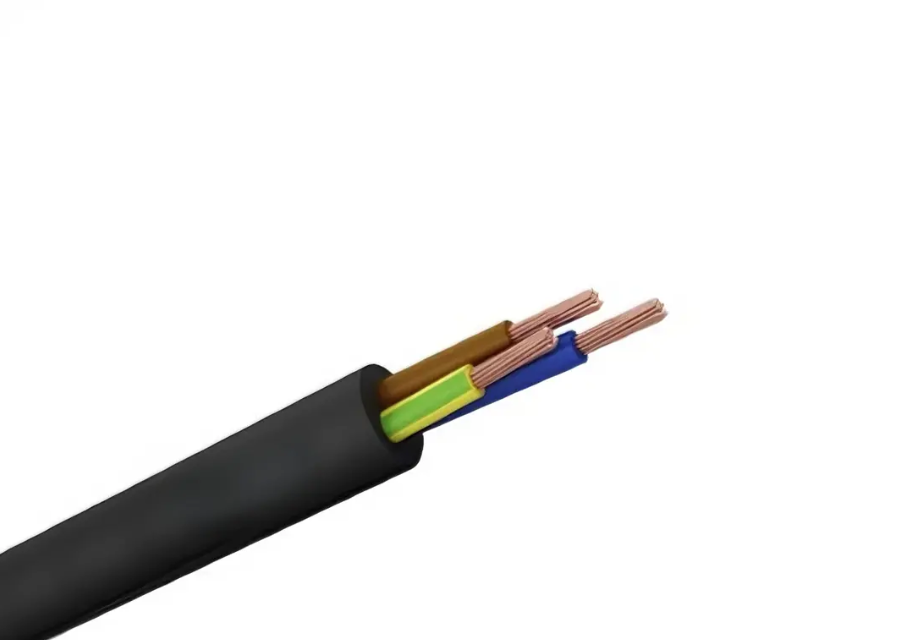

CONSTRUCTION
1.Conductor:
Plain annealed copper wire class 5 to BS EN 60228
2.Insulation:
EPR (Ethylene Propylene Rubber) Type El4 to BS7655
3.Sheath:
PCP (Polychloroprene) Type EM2 to BS7655
TECHINCAL DATA
Voltage rating: 450/750V
Conductor operating temperature:-30°C to +60°℃ (85°C max)
Minimum Bending Radius
Up to 25mm2: 6 x overall diameter
Above 25mm2:8 x overall diameter
Core ldentification
2 Cores: Blue, Brown
3 Cores: Green/Yellow, Blue, Brown
4 Cores: Green/Yellow, Brown, Black, Grey
5 Cores: Green/Yellow, Blue, Brown, Black, Grey
6 Cores and above: Black with White numerals, Green/Yellow
Sheath Color: Black
