APPLICATION
Installation in surface mounted or embedded conduits, or similar closed systems. Suitable for fixed protected installation in, or on,lighting or controlgear for voltages up to 1000V a.c. or, up to 750Vd.c. to earth.
STANDARD
BS EN 50525-2-31

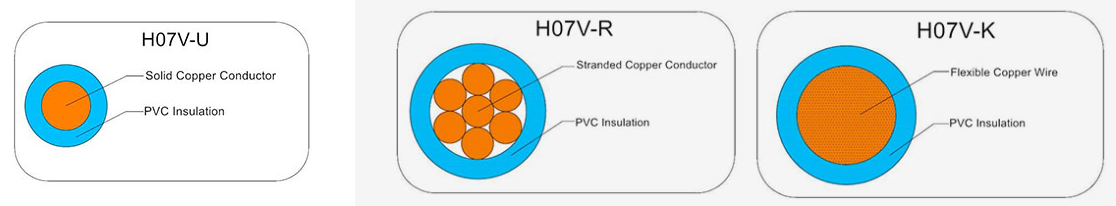

CONSTRUCTION

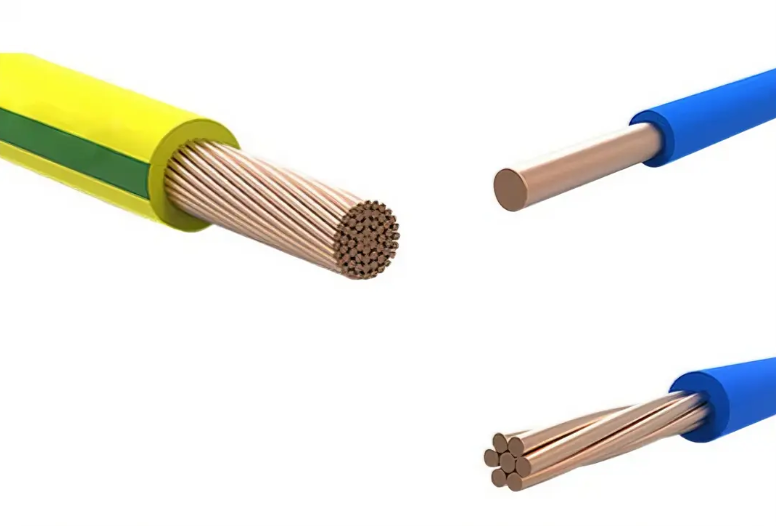

1.Conductor:
Annealed copper conductor acc. to EN 60228:
class 1 solid -H07V-U

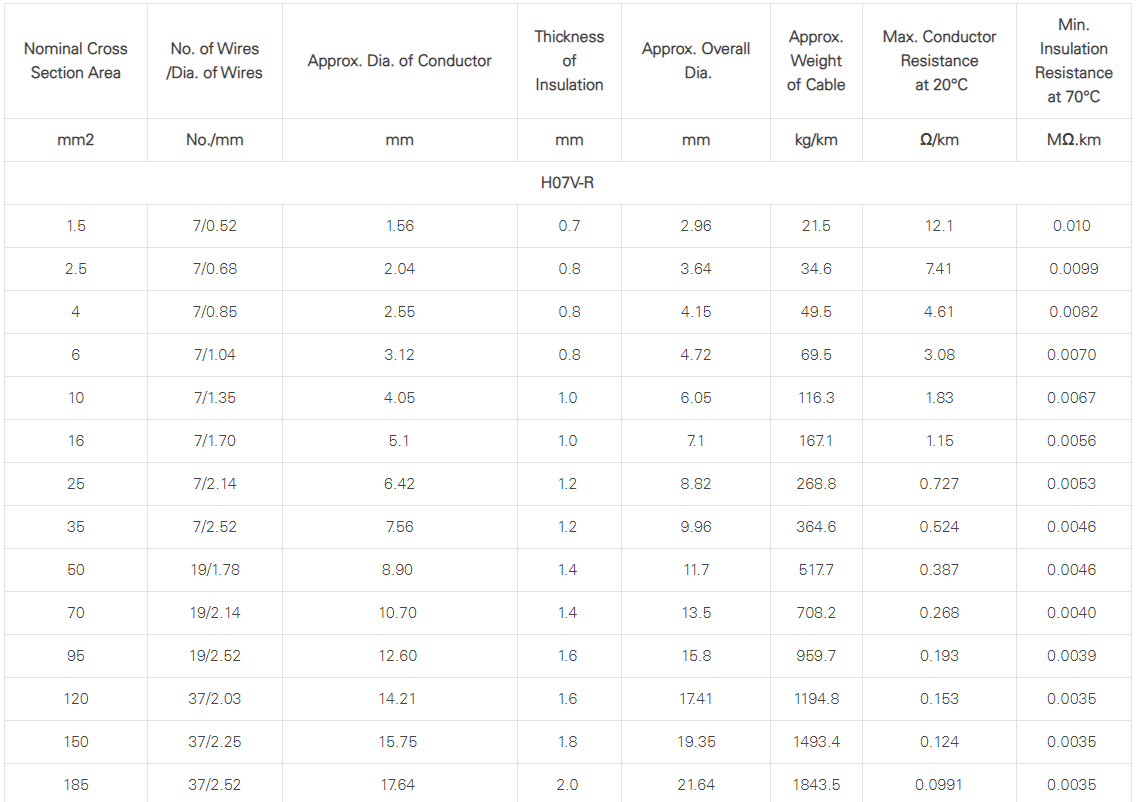

class 2 stranded H07V-R

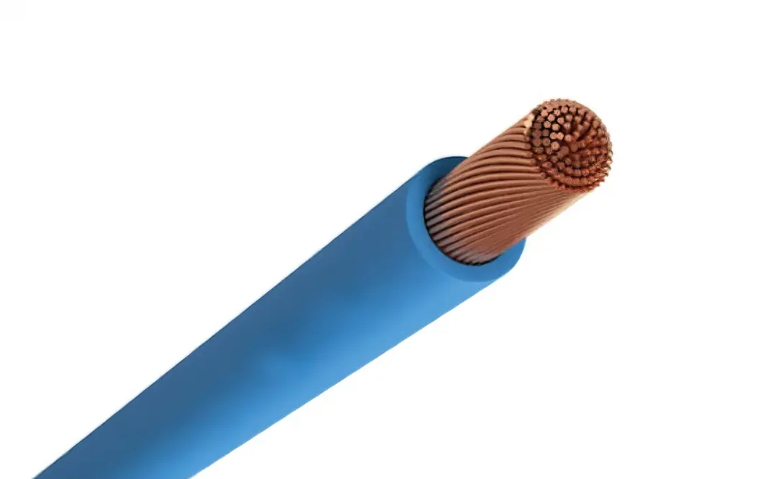

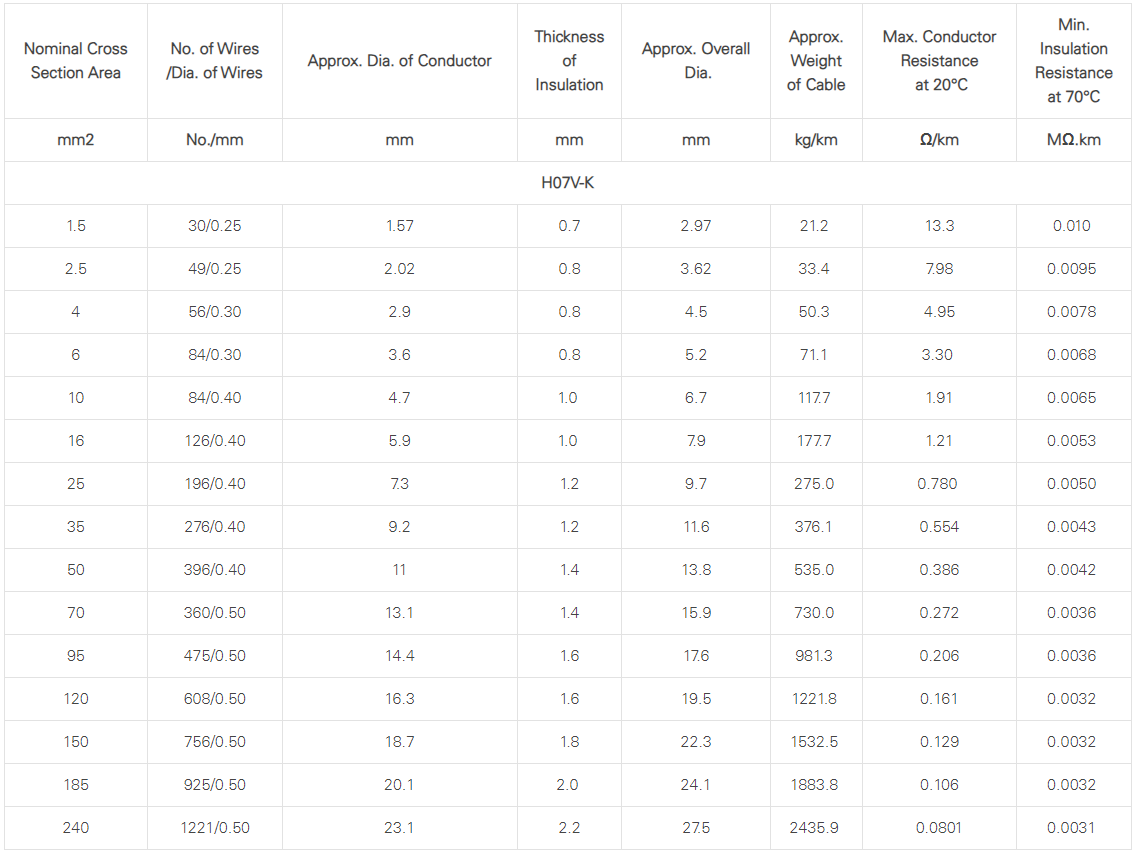

class 5 flexible H07V-K
2.Insulation:
PVC compound type Tl 1
3.Color of insulation:

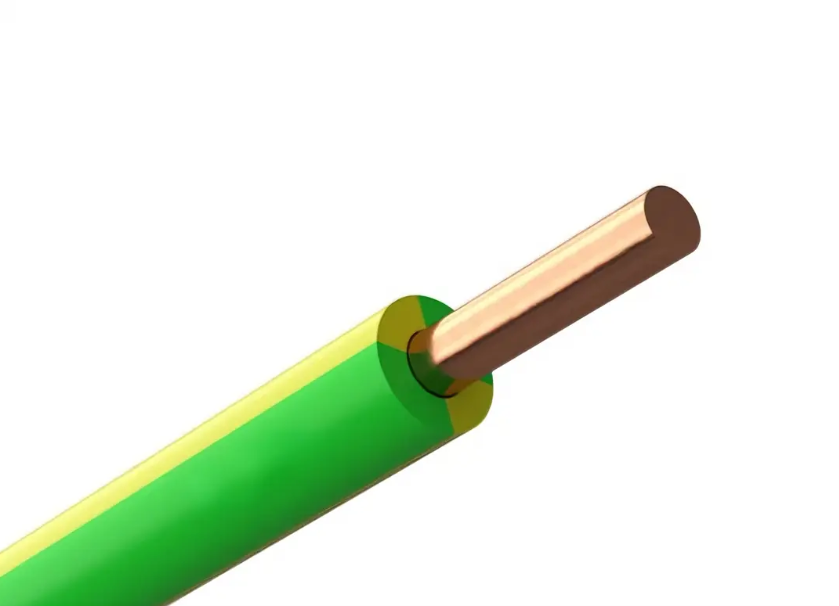

Blue, black, brown, green/yellow or other colors
CHARACTERISTIC
Maximum conductor operating temperature:+70°C
Lowest ambient temperature for fixed installation: -30°C
Lowest installation temperature:-5°C
Maximum short-circuit conductor temperature: +160°C
Nominal voltage:Uo/U: 450/ 750 V
Test voltage: 2500V
Flame retardant:lEC 60332-1-2

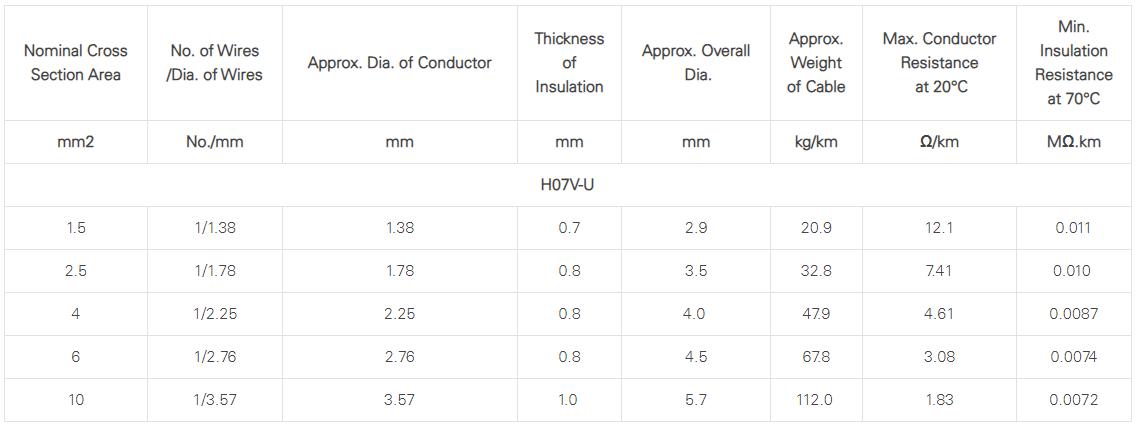

H07V-U
