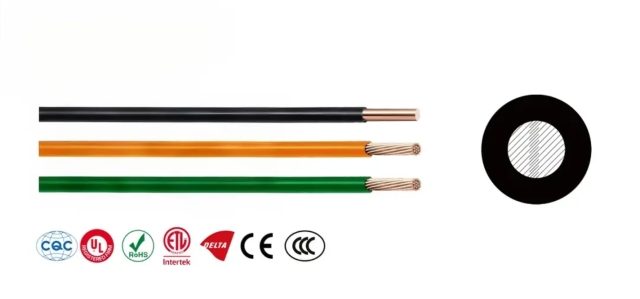

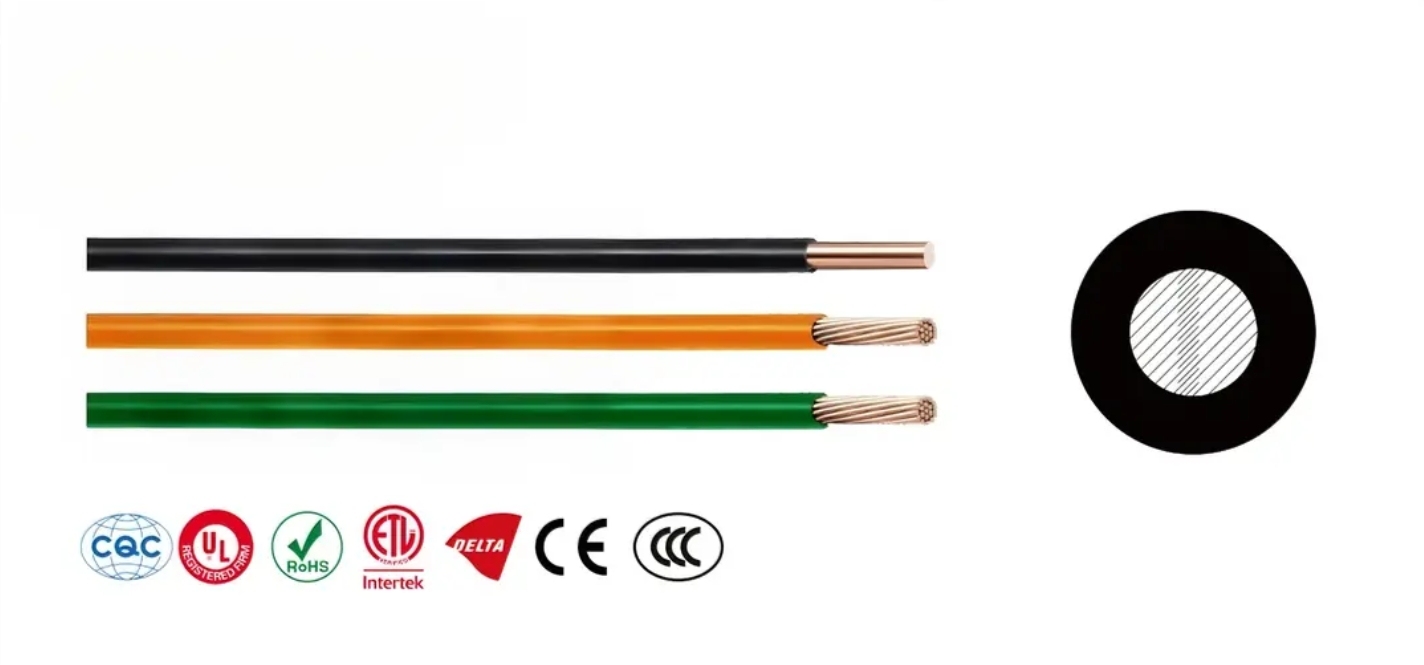

H07V-U，H07V-R，H07V-K

Product Code

Cross section (mm2)

Chip count

Approximate outer diameter (mm)

Approximate weight (kg/km)

B0951101016000100BK

1.5

1

2.8±0.16

21

B0951101018000100BK

2.5

1

3.4±0.16

32

B0951101019000100BK

4.0

1

3.9±0.16

47

B0951101020000100BK

6.0

1

4.4±0.2

63

B1052101016000100BK

1.5

1

3.0±0.16

21

B1052101018000100BK

2.5

1

3.6±0.16

33

B1052101019000100BK

4.0

1

4.2±0.2

48

B1052101020000100BK

6.0

1

4.7±0.2

68

B1052101021000100BK

10

1

6.0±0.2

112

B1052101022000100BK

16

1

7.0±0.2

170

B1052101023000100BK

25

1

8.7±0.2

269

B1052101024000100BK

35

1

9.8±0.2

359

B1052101025000100BK

50

1

11.7±0.2

492

B1052101026000100BK

70

1

13.4±0.2

686

B1052101027000100BK

95

1

15.7±0.2

948

B1052101028000100BK

120

1

17.2±0.2

1460

B1052101029000100BK

150

1

19.2±0.2

1826

B1052101030000100BK

185

1

21.4±0.2

2398

B1052101031000100BK

240

1

24.4±0.2

2992

B1052101032000100BK

300

1

27.1 ±0.2

2938

B1155101016000100BK

1.5

1

3.0±0.16

21

B1155101018000100BK

2.5

1

3.7±0.16

33

B1155101019000100BK

4

1

4.2±0.2

48

B1155101020000100BK

6

1

4.8±0.2

68

B1155101021000100BK

10

1

6.5±0.2

119

B1155101022000100BK

16

1

7.7±0.2

176

B1155101023000100BK

25

1

9.6±0.2

272

B1155101024000100BK

35

1

10.9±0.2

365

B1155101025000100BK

50

1

13.1 ±0.2

527

B1155101026000100BK

70

1

15.0±0.2

710

B1155101027000100BK

95

1

17.8±0.2

966

B1155101028000100BK

120

1

19.8±0.2

1209

B1155101029000100BK

150

1

22.1 ±0.2

1508

B1155101030000100BK

185

1

24.3±0.2

1848

B1155101031000100BK

240

1

27.6±0.2

2410
