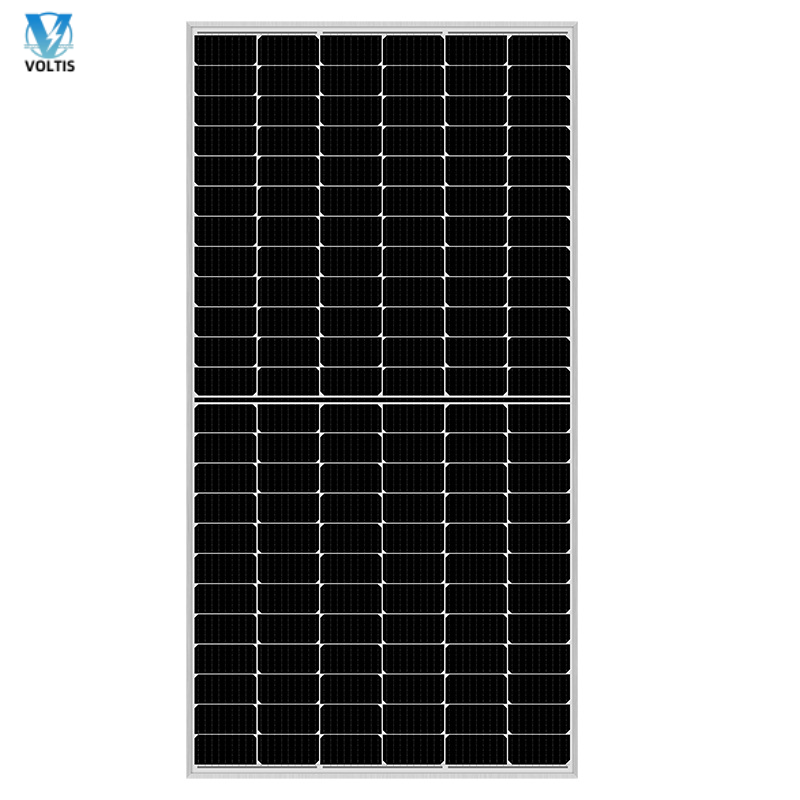

HJT Heterojuction Half Piece 690W-715W Mono Solar Panel

The HJT (Heterojunction) Half-Cut 690W–715W Mono Solar Panel features advanced heterojunction technology combined with half-cell design to deliver higher efficiency and superior power output.
With excellent temperature coefficient and low degradation performance, it ensures stable energy generation even in high-temperature environments. The bifacial design allows additional rear-side power gain, maximizing overall energy yield.
With ultra-high output up to 715W, strong low-light performance, and enhanced reliability, it is an ideal solution for utility-scale solar farms, commercial projects, and high-efficiency photovoltaic systems.
  • HJT Heterojuction Half Piece 690W-715W Mono Solar Panel

PRODUCT DETAILS


PRODUCT PARAMETER
Model JYM690-715W
Maximum Power: Pmax [W] 690W 695W 700W 705W 710W 715W
Open Circut Voltage: Voc[V] 49.84 49.99 50.14 50.29 50.44 50.59
Short Circut Voltage: Isc[A] 17.33 17.39 17.45 17.51 17.57 17.63
Maximum Power Point Voltage: Vmp[V] 41.87 42.02 42.17 42.32 42.47 42.62
Maximum Power Point Current: Imp[A] 16.48 16.54 16.60 16.66 16.72 16.78
Component Efficiency:η[100%] 22.2 22.4 22.5 22.7 22.9 23.0

Cell Arrangement  132 Pieces ( 6*22)

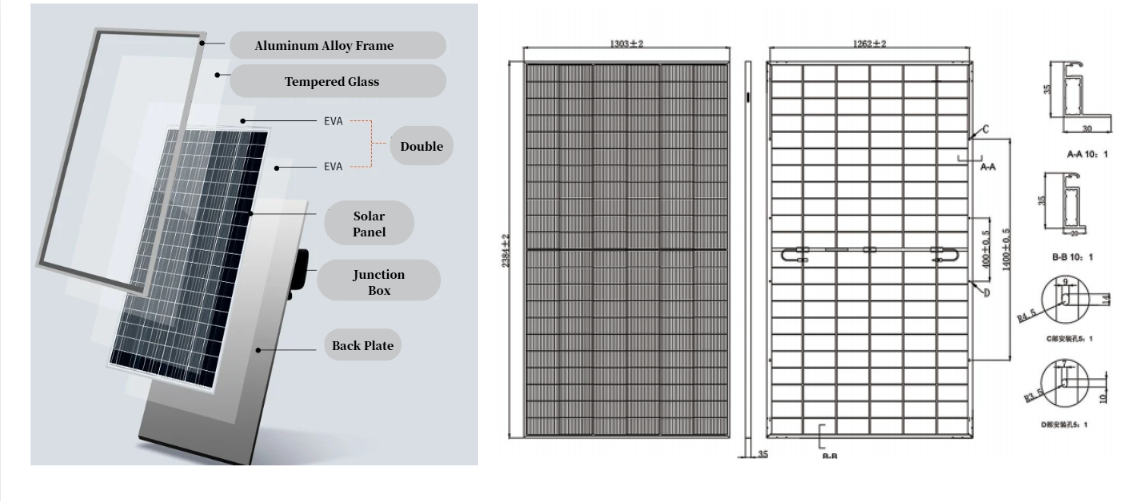

Component Size  2348±2×1303±2×35mm
Component Weight  38kg
Front Glass  2.0mm high transparency and anti reflection coated glass
Back Glass 2.0mm semi tempered glass
Component Border Anodized aluminum alloy
Junction Box IP68, 3 diodes
Conductor 4.0mm²
Wire Length +400mm/-200mm; or customized
Wind Pressure/ Snow Pressure 2400pa/5400pa
Per Pallet 31 Pieces
