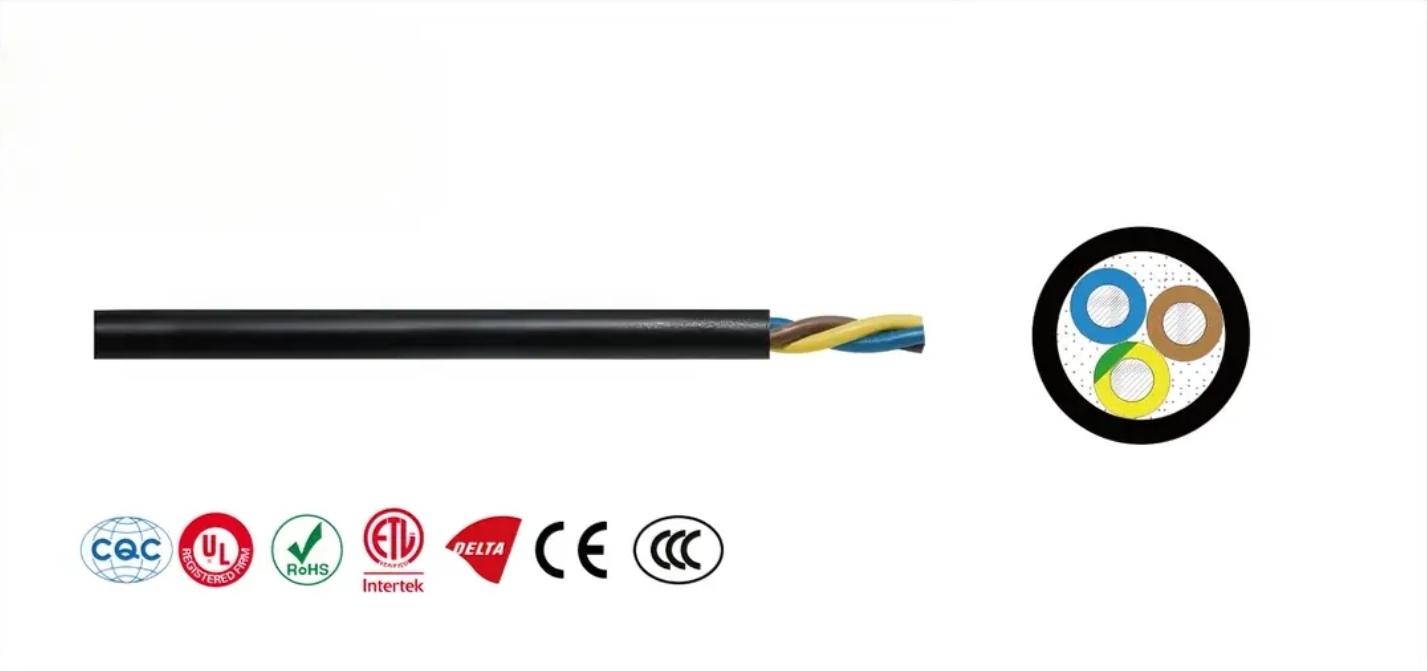

N2XH Cross-linked Polyethylene Insulated Polyolefin Sheathed European Standard Power Cable

Product Code

Cross section (mm2)

Chip count

Approximate outer diameter (mm)

Approximate weight (kg/km)

T0361101019001120BK

4RE

1

7.8±0.4

95.71

T0361101020001120BK

6RE

1

8.3±0.6

117.79

T0362101021001120BK

10RM

1

9.6±0.6

169.55

T0362101022001120BK

16RM

1

10.6±0.6

231.77

T0362101023001120BK

25RM

1

12.3±0.6

335.22

T0362101024001120BK

35RM

1

13.4±0.6

432.03

T0362101025001120BK

50RM

1

15±0.8

563.56

T0362101026001120BK

70RM

1

16.9±0.8

772.04

T0362101027001120BK

95RM

1

18.8±0.8

1023.5

T0362101028001120BK

120RM

1

20.5±1

1269.76

T0362101029001120BK

150RM

1

22.5±1

1548.54

T0362101030001120BK

185RM

1

24.7±1

1912.68

T0362101031001120BK

240RM

1

27.5±1.2

2473.87

T0362101032001120BK

300RM

1

30±1.4

3052.27

T0361102016001120BK

1.5RE

2

9.7±0.6

112.73

T0361102018001120BK

2.5RE

2

10.5±0.6

142.25

T0361102019001120BK

4RE

2

11.4±0.6

181.97

T0361102020001120BK

6RE

2

12.4±0.6

228.84

T0362102021001120BK

10RM

2

15±0.8

343.47

T0362102022001120BK

16RM

2

17±0.8

476.82

T0362102023001120BK

25RM

2

20.4±1

704.8

T0362102024001120BK

35RM

2

23±1

934.58

T0362102025001120BK

50RM

2

26.1 ±1.2

1222.15

T0361103016001120BK

1.5RE

3

10.2±0.6

135.14

T0361103018001120BK

2.5RE

3

11 ±0.6

172.63

T0361103019001120BK

4RE

3

12±0.6

223.64

T0361103020001120BK

6RE

3

13±0.6

290.04

T0362103021001120BK

10RM

3

15.8±0.8

442.24

T0362103022001120BK

16RM

3

18±0.8

629.62

T0362103023001120BK

25RM

3

22±1

965.2

T0362103024001120BK

35RM

3

24.4±1

1258.37

T0362103025001120BK

50RM

3

27.4±1.2

1639.66

T0361104016001120BK

1.5RE

4

10.9±0.6

158.75

T0361104018001120BK

2.5RE

4

11.8±0.6

205.41

T0361104019001120BK

4RE

4

12.9±0.6

276.25

T0361104020001120BK

6RE

4

14.1 ±0.8

358.64

T0362104021001120BK

10RM

4

17.2±0.8

555.78

T0362104022001120BK

16RM

4

19.7±0.8

796.18

T0362104023001120BK

25RM

4

23.8±1

1208.34

T0362104024001120BK

35RM

4

26.4±1.2

1588.28

T0361104501001120BK

4RE/2.5RE

3+1

12.8±0.6

261.88

T0361104502001120BK

6RE/4RE

3+1

14.2±0.8

345.21

T0362104503001120BK

10RM/6RE

3+1

16.8±0.8

516.01

T0362104504001120BK

16RM/10RM

3+1

19.4±0.8

746.09

T0362104505001120BK

25RM/16RM

3+1

23.5±1

1142.24

T0362104506001120BK

35RM/16RM

3+1

25.5±1.2

1431

T0361105016001120BK

1.5RE

5

11.7±0.6

185.87

T0361105018001120BK

2.5RE

5

12.7±0.6

243.01

T0361105019001120BK

4RE

5

14±0.6

329.76

T0361105020001120BK

6RE

5

15.3±0.8

432.7

T0362105021001120BK

10RM

5

18.8±0.8

676.72

T0362105022001120BK

16RM

5

21.5±1

976.02

T0362105023001120BK

25RM

5

26.1 ±1.2

1480.14

T0361107016001120BK

1.5RE

7

12.5±0.6

223.43

T0361107018001120BK

2.5RE

7

13.7±0.6

300.84

T0361107019001120BK

4RE

7

15.1 ±0.8

411.43

T0361110016001120BK

1.5RE

10

15.3±0.8

307.13

T0361110018001120BK

2.5RE

10

16.8±0.8

420.05

T0361112016001120BK

1.5RE

12

15.7±0.8

342.38

T0361112018001120BK

2.5RE

12

17.3±0.8

471.56

T0361112019001120BK

4RE

12

19.2±0.8

657.01

T0361114016001120BK

1.5RE

14

16.4±0.8

385.33

T0361114018001120BK

2.5RE

14

18.1 ±0.8

534.4

T0361119016001120BK

1.5RE

19

18.1 ±0.8

487.92

T0361119018001120BK

2.5RE

19

20±0.8

686.37

T0361124016001120BK

1.5RE

24

20.8±1

606.72

T0361124018001120BK

2.5RE

24

23.2±1

859.54

T0361130016001120BK

1.5RE

30

22±1

720.04

T0361130018001120BK

2.5RE

30

24.5±1

1027.88

T0361140016001120BK

1.5RE

40

24.4±1

921.74
