APPLICATION
Medium voltage aerial power distribution.Transformer feeders,power plants,industrial and operation installations, in places where underground networks cannot be possible, mining installations, tree-lined urban zones or with little space.
STANDARD
IEC 60228,IEC 60502-1,ICEA S-93-639
VOLTAGE
6/10kV, 8.7/15kV, 12/20kV, 18/30kV
MAIN CHARACTERISTICS
Excellent properties against heat aging. Resistance to abrasion,moisture and sunlight. Good resistance to traction. The outer sheath has the following characteristics:low emission dense smoke and halogen free. Flame retardant.

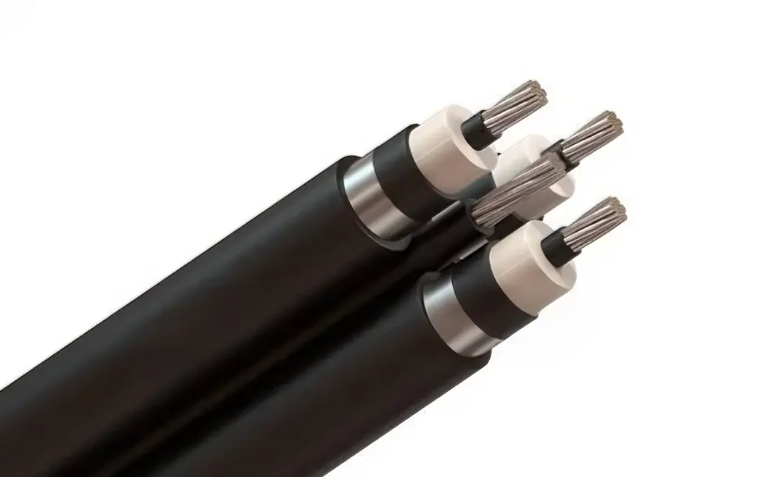

CONSTRUCTION
1.Conductor:Compact stranded aluminium 1350, class 2
2.Conductor Screen:Semi-conducting compound
3.Insulation:Cross linked polyethylene XLPE-TR (Tree retardant)
4.Insulation Screen:Semi-conducting compound
5.Screen:Aluminum tape
6.Outer Sheath:Linear Low Density Polyethylene LLDPE-UV
7.Messenger:Galvanized stranded steel wire
8.Insulation:Linear Low Density Polyethylene LLDPE-UV
