Product Details
Voltage: 0.4kV 10-35kV...

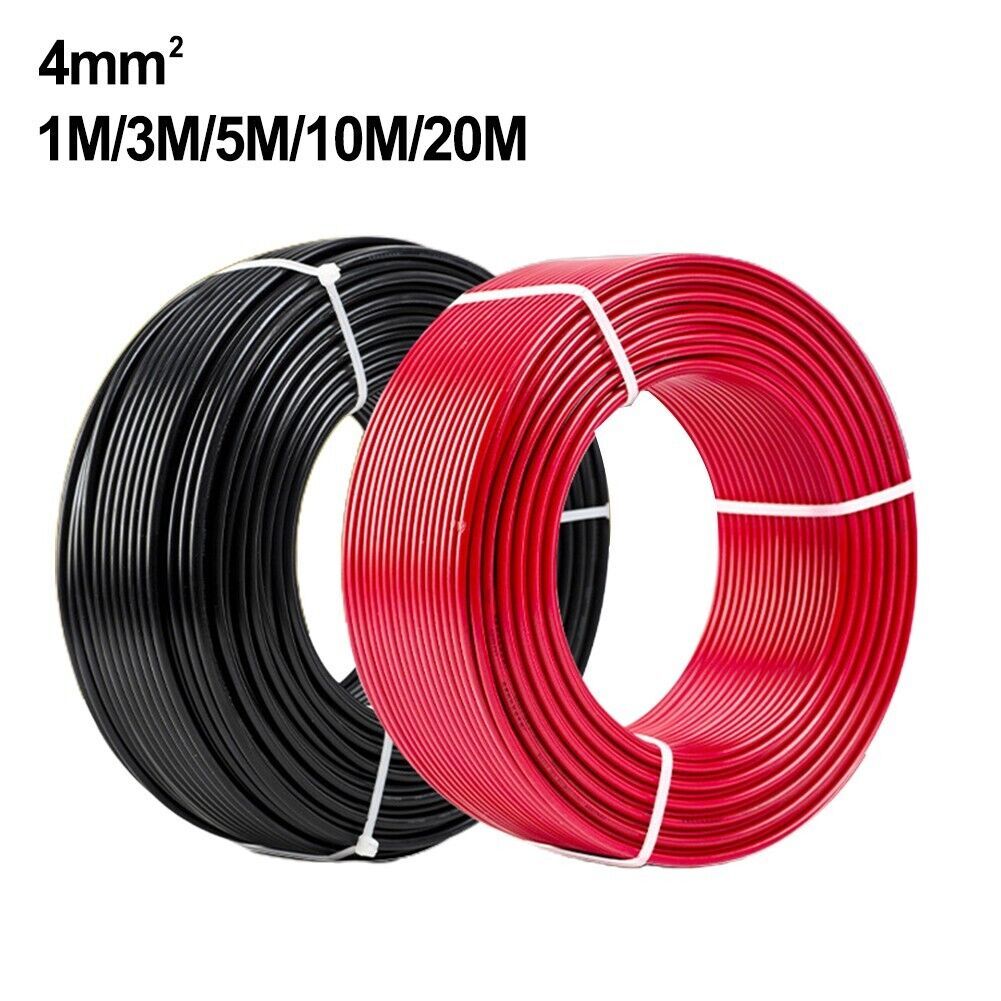

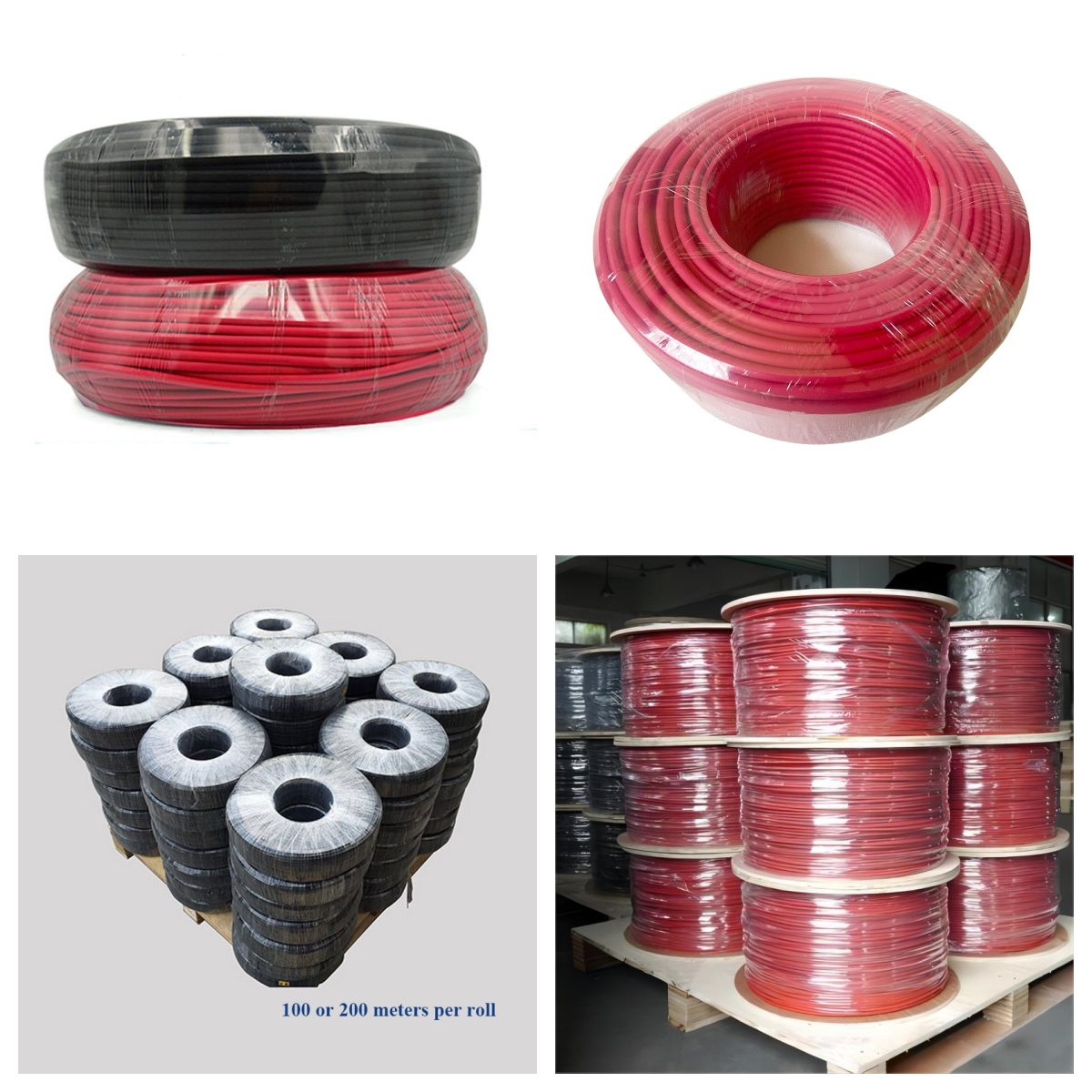

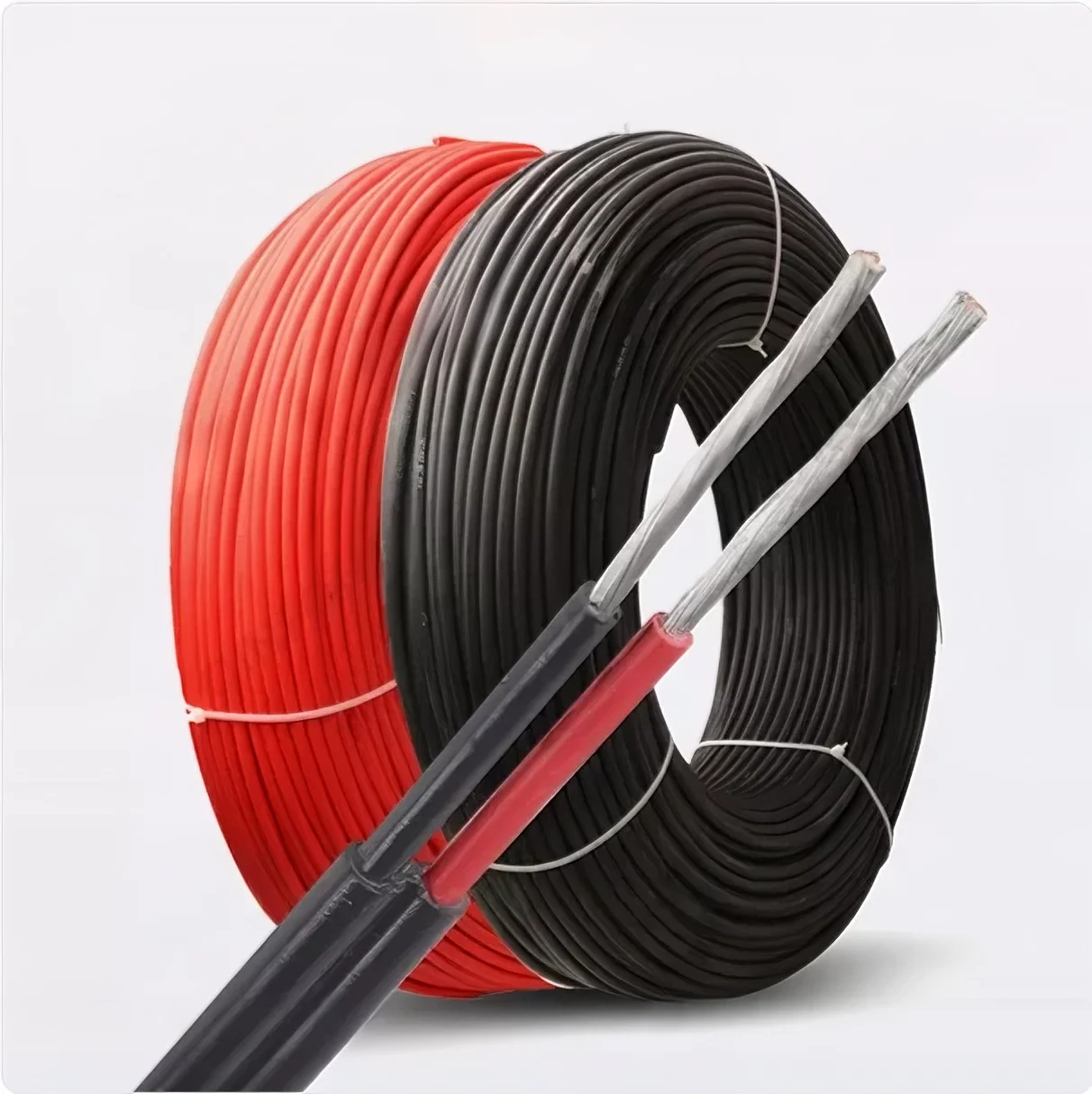

Model: TUV PV1-F...
Product Introduction:
After undergoing radiation treatment, these cables possess excellent corrosion and weather resistance, making them suitable for connecting solar panels and related components, especially for outdoor use. They are resistant to sunlight and aging. Made of low-smoke, halogen-free, flame-retardant materials, they are safer to use.
Advantages:
This product offers excellent resistance to UV rays, heat, cold, ozone, hydrolysis, acid, salt, and abrasion.
Applications:
Photovoltaic cables are primarily used in solar photovoltaic systems, performing critical tasks such as transmitting power, connecting components, and monitoring system operation.
Conductor: Tinned copper wire
Insulation and jacket: Low-smoke, halogen-free polyolefin
Technical Parameters
Table of PVV - F Cable Parameters
| Model | Conductor Cross - Section (mm²) | Conductor Diameter (mm) | Conductor Resistance (Ω/km) | Insulation Thickness (mm) | Sheath Thickness (mm) | Overall Diameter (mm) | DC Resistance at 20°C (Ω/km) |
|---|---|---|---|---|---|---|---|
| PVV - F | 1.5 | 5.0/0.2 | 1.6 | 1 | 0.8 | 5.2 | 12.2 |
| PVV - F | 2.5 | 5.0/0.3 | 2 | 1 | 0.8 | 5.6 | 7.50 |
| PVV - F | 4 | 5.0/0.3 | 2.8 | 1 | 0.9 | 6.4 | 4.7 |
| PVV - F | 6 | 8.4/0.3 | 3.3 | 1 | 0.9 | 7 | 3.1 |
| PVV - F | 10 | 14.2/0.4 | 4.4 | 1 | 0.9 | 8.2 | 1.84 |
| PVV - F | 16 | 22.0/0.4 | 5.5 | 1 | 1 | 9.7 | 1.10 |
| PVV - F | Twenty - five | 38.0/0.4 | 6.5 | 12 | 12 | 11.3 | 0.724 |
| PVV - F | Thirty - five | 52.6/0.4 | 7.5 | 12 | 12 | 12.3 | 0.529 |
