APPLICATION

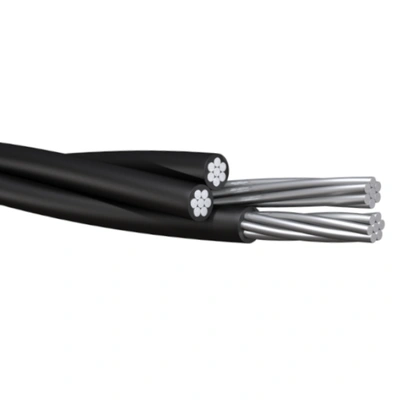

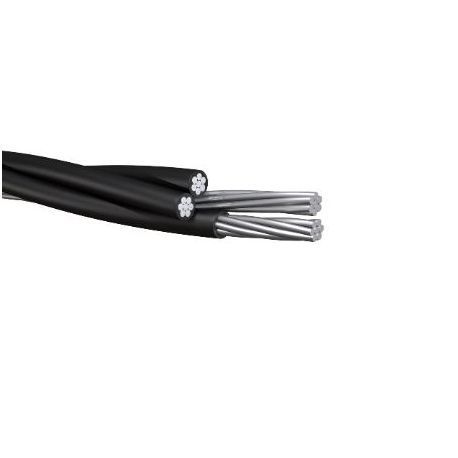

Used to supply 3-phase power, usually from a pole-mounted transformer, to the user's service head where connection to the service entrance cable is made.To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors.
SPECIFICATION
Voltis Cable's quadruplex service drop cable meets or exceeds the following ASTM specifications.
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.

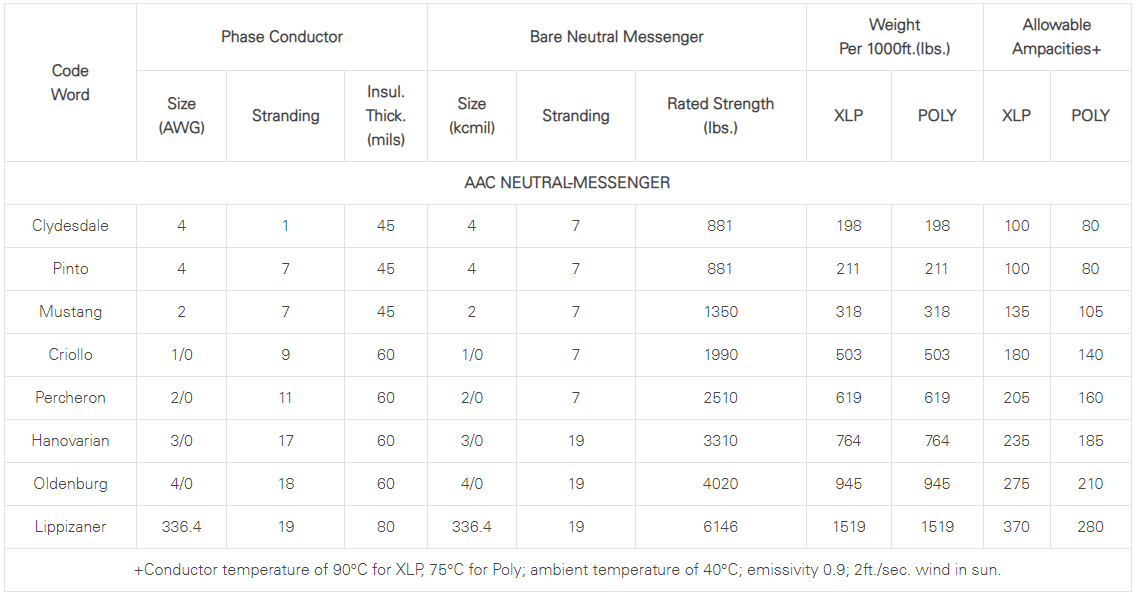

B-231 Aluminum Conductors, Concentric-Lay-Stranded.

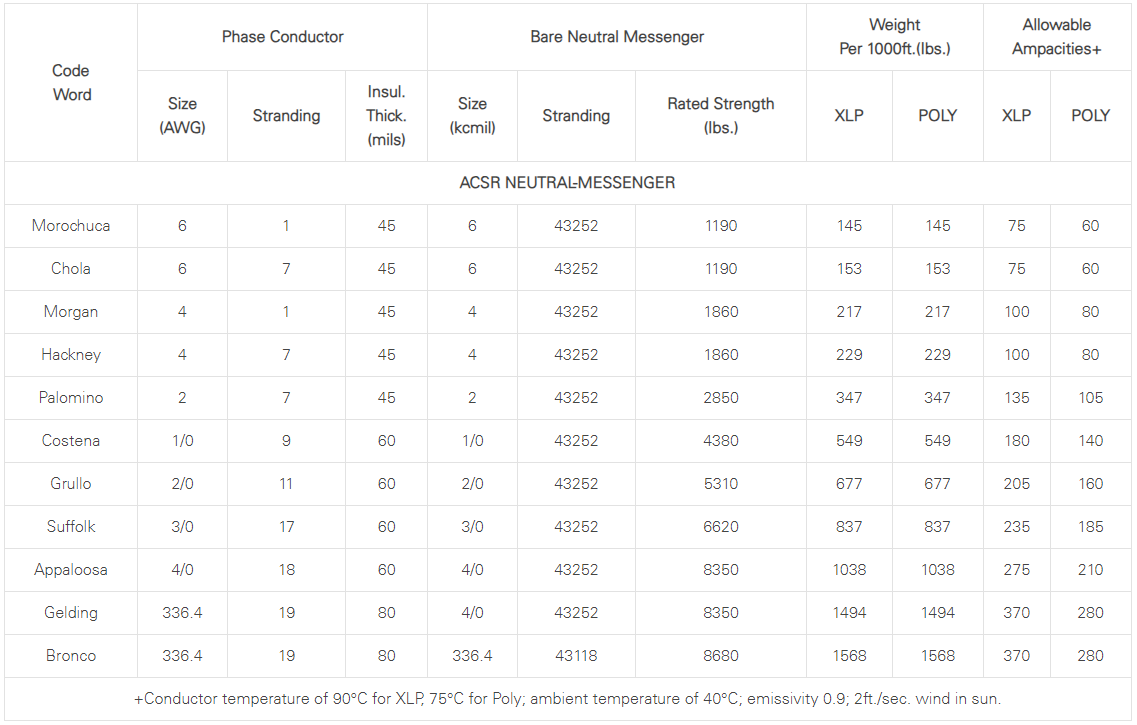

B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).

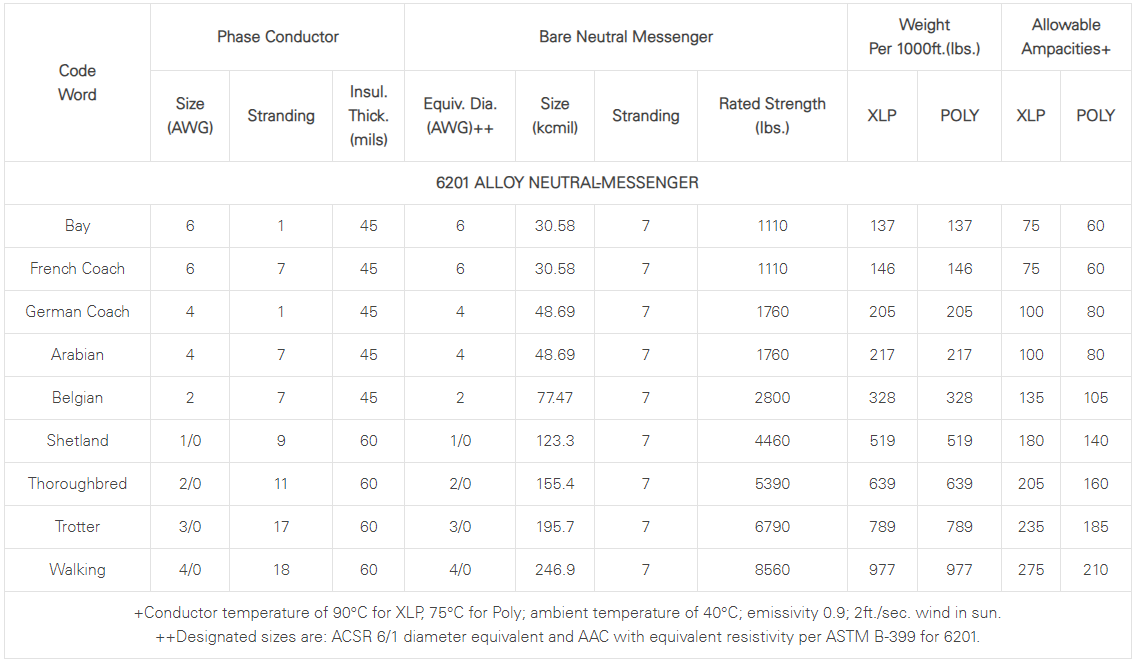

B-399 Concentric-Lay-Stranded,6201-T81 Aluminum Alloy Conductors.
B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire.
Voltis Cable's quadruplex service drop cable meets or exceeds all applicable requirements of lCEA S-76-474.
CONSTRUCTION
Conductors are concentrically stranded, compressed 1350-H19 aluminum. Insulated with either polyethylene or crosslinked polyethylene (XLP). Neutral messengers are concentrically stranded6201, AAC, or ACSR. Conductors are manufactured with ridges for phase identification (one conductor one ridge, one conductor two ridges,one conductor plain.)

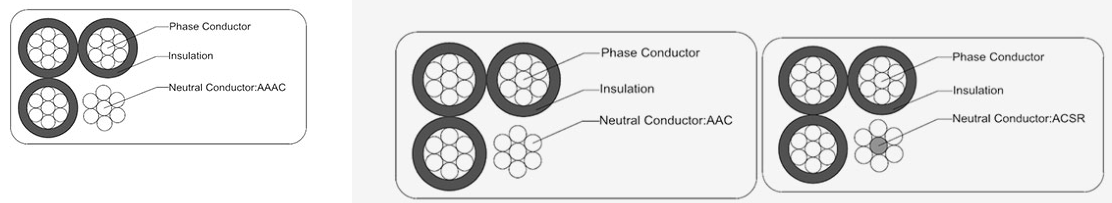

1.Phase Conductor
Circular stranded, rounded, aluminum conductor 1350
2.Neutral(Messenger) Conductor
Bare AAC, AAAC 6201, ACSR
3.Insulation
Black color Polyethylene(PE) or Cross-linked polyethylene(XLPE)
