APPLICATION
The RVK cable is for power distribution and can be used for all types of low voltage industrial-type connections, building installations, in urban grids, etc.This cable is particularly suitable for use in challenging layouts because of its high flexibility, also making the installation process substantially easier. lt can be buried or installed in ducts as well as outdoors without requiring additional protection.
The RVK cable is rated AD8 for water resistance, permitting permanent submersion to 5m depth.
DESCRIPTION
RVK cable is composed of Class 5 (fexible) copper conductor,XLPE insulation, and PVC sheath.
STANDARD
IEC 60502-1.UNE 21123-2
MAIN CHARACTERISTICS
Voltage Rating (Uo/U) 0.6/1kV
Temperature Rating -15°C to +90°C
Minimum Bending Radius 5 x overall diameter

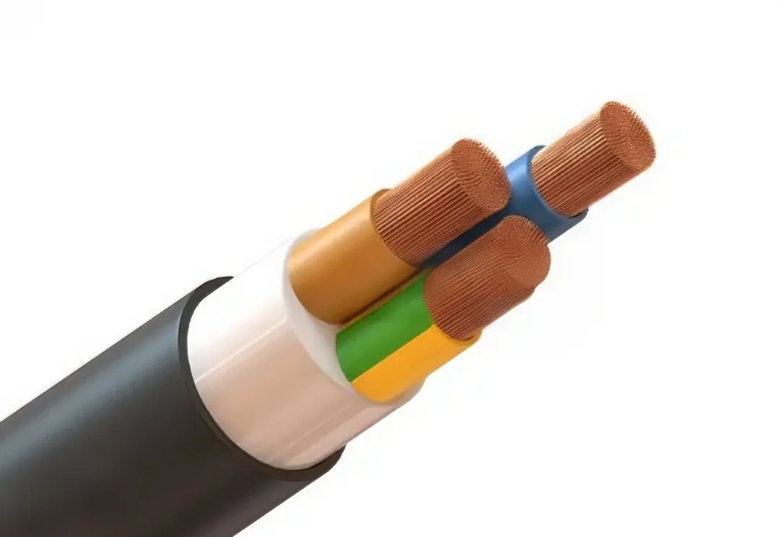

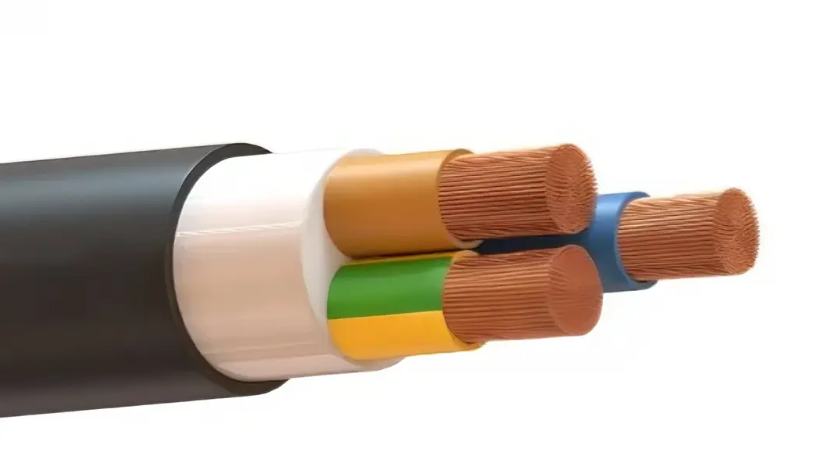

CONSTRUCTION
1.Conductor:Class 5 flexible copper conductor
2.Insulation:XLPE (Cross-Linked Polyethylene)
3.Sheath:PVC (Polyvinyl Chloride)
Core ldentification:
1 core: Natural
2 cores: Blue + Brown
3 G: Blue + Brown + Green/Yellow
3 cores: Brown + Black + Grey
3+1 cores: Brown + Black + Grey + Blue (reduced cross-section)
4 G: Brown + Black + Grey + Green/Yellow
4 cores: Brown + Black + Grey + Blue
5 G: Brown + Black + Grey + Blue + Green/Yellow
6G or more: Black numbered + Green/Yellow
Other colours available on request
Sheath Colour:Black
