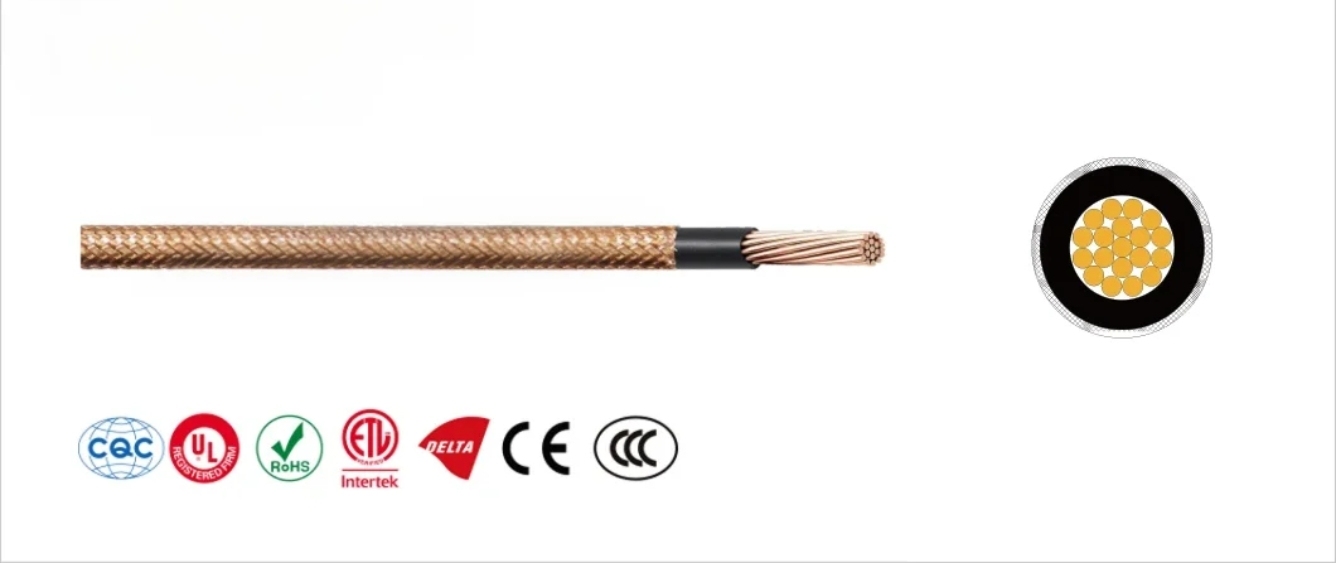

RVP copper core PVC insulated shielded flexible wire

Product Details

Applications

Wires and cables used in information transmission systems

Mainly include telephone cables

TV cables

Electronic cables

RF cables

Fiber optic cables

Data cables

Magnetic wires

Power communication cables

Other composite cables, etc.

Product Structure

Conductor: Bare soft copper stranded conductor

Insulation: PVC/C polyvinyl chloride insulation

Shielding: Copper wire braided for enhanced anti-interference

Core wire and sheath color: Customizable according to customer requirements

Core wire and sheath material: Customizable according to customer requirements

Standards/Certifications

Reference Standard: JB/T 8734

Insulation Compliance: GB/T 5023

Characteristics and Compliance

Characteristics: Permissible operating temperature should not exceed 70℃

Usage Standards: Insulation thickness, easy cutting, easy stripping

Technical parameters

Rated voltage

U0/U 300/300V
Minimum bending radius

Fixed installation: 6D (cable outer diameter) Mobile installation: 13D (cable outer diameter)
Temperature range

Fixed installation: -15℃ ~ +70℃
Flame retardancy

Passed GB/T18380 test

Excellent chemical resistance

Resistant to oil, cold, acids, alkalis, and solvents (optional)
Cable data

Product Code	section（mm2）	Chip count	Approximate outer diameter (mm)	Approximate weight (kg/km)
A2726201001021400BK	0.08	1	1.6±0.4	4.6
A2726201003021400BK	0.12	1	1.7±0.4	5.4
A2726201005011400BK	0.2	1	1.8±0.4	7.8
A2726201008011400BK	0.3	1	2.1±0.4	10
A2726201011011400BK	0.4	1	2.2±0.4	11.7
A2725101012011400BK	0.5	1	2.3±0.4	13
A2725101013011400BK	0.75	1	2.5±0.4	16
A2725101014011400BK	1	1	2.9±0.4	21
A2725101016011400BK	1.5	1	3.2±0.4	27
A2725101018011400BK	2.5	1	3.9±0.4	41
A2726202001011400BK	0.08	2	2.9±0.4	12
A2726202003011400BK	0.12	2	3.1±0.4	13.5
A2726202005011400BK	0.2	2	3.3±0.4	15.8
A2726202008011400BK	0.3	2	3.9±0.4	21
A2726202011011400BK	0.4	2	4.1±0.4	24
A2725102012011400BK	0.5	2	4.3±0.4	27
A2725102013011400BK	0.75	2	4.7±0.4	33
