APPLICATION
Self-supporting isolated and projected cable (ABC Cable) is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system.It provides higher level of safety and reliability, lower power losses and ultimate system economy by reducing installation,maintenance and operative cost.
Voltis Cable Self-supporting isolated and projected cables are designed to supply 0.6/1,20,35, Kilo volt aerial service for temporary service at construction sites, as a service drop (power pole to service entrance), as a secondary cable (pole to pole) or street lighting.This overhead cable provides reinforced insulation acc.lEC 61140 and fulfill therefore Class ll acc.lEC 61140.lt is not flame retardant. But this could be if requested change to aflame retardant cable.
STANDARD
Basic design to GOST 31946 standard
1.Conductor:Aluminium conductor, round stranded compressed (RM)
2.Insulation:XLPE compound, UV-resistant
Stranding:
Around a load-bearing element of high traction resistance that can be made of aluminum or aluminum alloy. One, two or three conductors for phase, being able to carry one or two additional conductors for public lighting
DESCRIPTION

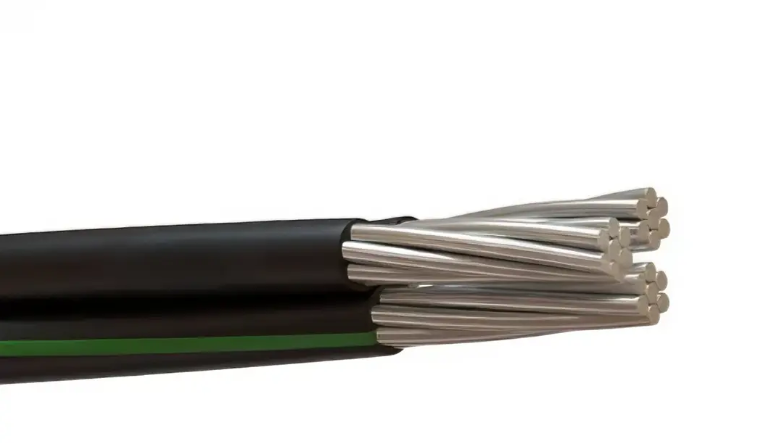

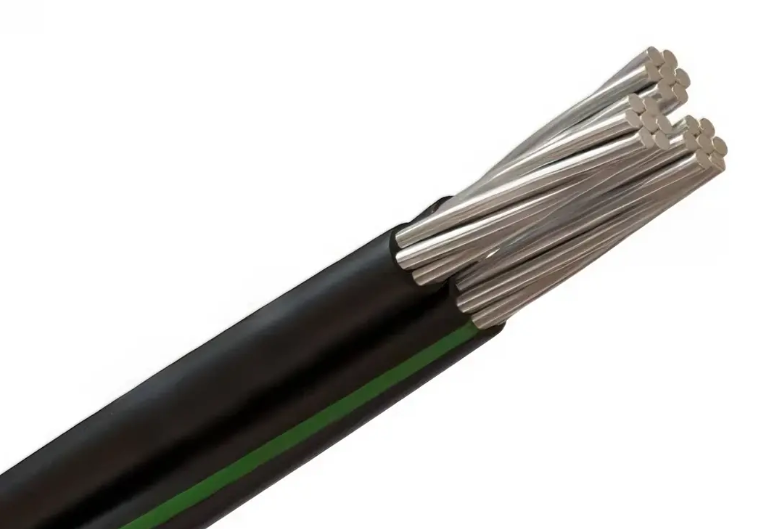

Self-supporting isolated and projected cable
SIP-1 AMKA (Finland)
Self-supporting wire with aluminum conductors, insulated from light-stabilized cross-inked polyethylene, with zero bearing insulated aluminum alloy conductor. Wires with a zero carrier core of 50 mm² or more can be made with one, two or three auxiliary cores. Nominal cross section of auxiliary conductors for outdoor lighting circuits 16, 25 or 35 mm², for control circuits 1.5; 2.5 or 4 mm². Lighting conductors with a cross section of 16 mm² only stranded
SlP-2 Torsada (France)
Self-supporting wire with aluminum conductors, insulated from light-stabilized cross-linked PE,with zero load-bearing insulated aluminum alloy conductor
SIP-3 SAX (Finland) PAS-W (Poland)
Protected self-supporting wire with a conductive core made of aluminum alloy, with protective insulation made of light-stabilized cross-inked PE
SIP-4, SIP-5 ALUS, EX Four Core (Sweden), AsXsn (Poland)
Self-supporting insulated wire without bearing element, with aluminum conductors with light-stabilized cross-linked PE insulation. Stranded conductors with a cross section of 16 mm²(SIP-4) or a cross section of 16 to 150 mm² (SlP-5). Conductors with a cross section of 16mm² for SlP-5 can be seamless
