APPLICATION
Updated harmonized (H1Z2Z2-K) European standard solar cable intended for the interconnection within photovoltaic systems such as solar panel arrays.Suitable for fixed installations, internal and external, within conduit or systems.lmpact tested - Suitable for direct burial. For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment. Water resistant to AD8.
STANDARD
EN 50618
RATED VOLTAGE
AC: U0/U 1000/1000V
DC: U0/U 1500/1500V
MAXIMUM VOLTAGE 1800V
TEST VOLTAGE 6.5kV AC
OPERATING CHARACTERISTICS
Temperature Rating: Fixed: -40°C to +90°C
Minimum Bending Radius: 5 x overall diameter
Maximum Conductor Temperature:+120°C (for 20000h)

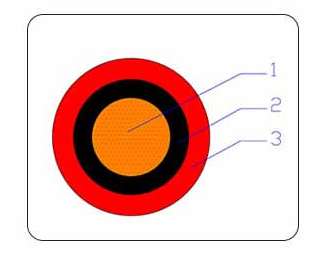

CONSTRUCTION
1.Conductor:
Class 5 flexible tinned copper conductor
2.Insulation:
Halogen-free cross-linked compound
3.Outer Sheath:
Halogen-free cross-inked, flame retardant compound
Sheath Colour
Black or Red, Other colors available on request
