APPLICATION
Primarily used for 120 volt overhead service applications such as street lighting, outdoor lighting, and temporary service for construction.To be used at voltages of 600 volts phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene(XLP) insulated conductors.
SPECIFICATION

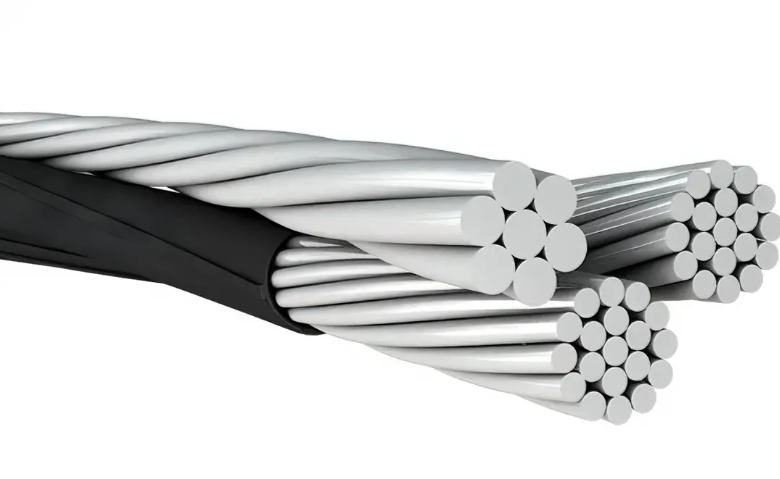

Voltis Cable's triplex service drop cable meets or exceeds the following ASTM specifications:
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
B-231 Aluminum Conductors, Concentric-Lay-Stranded.
B-232 Aluminum Conductors,Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire.
Voltis Cable's duplex service drop cable meets or exceeds all applicable requirements of ANSl/ICEA S-76-474.

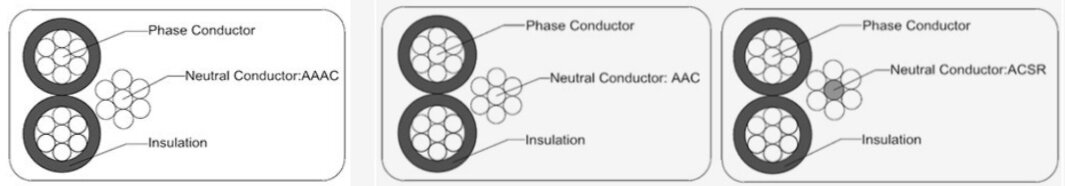

CONSTRUCTION
Conductors are concentrically stranded, compressed 1350-H19 aluminum. Insulated with either polyethylene or crosslinked polyethylene (XLP). Neutral messengers are concentrically stranded6201,AAC, or ACSR.
1.Phase Conductor
Circular stranded, rounded, aluminum conductor 1350
2.Neutral(Messenger) Conductor
Bare AAC, AAAC 6201, ACSR
3.Insulation
Black color Polyethylene(PE) or Cross-linked polyethylene(XLPE)
