APPLICATION
The TSJ/TSJ-N cable is widely used in wiring for low consumption appliances.lt is also used in portable tools and lamps, as well as in portable electrical extension cords.
DESCRIPTION

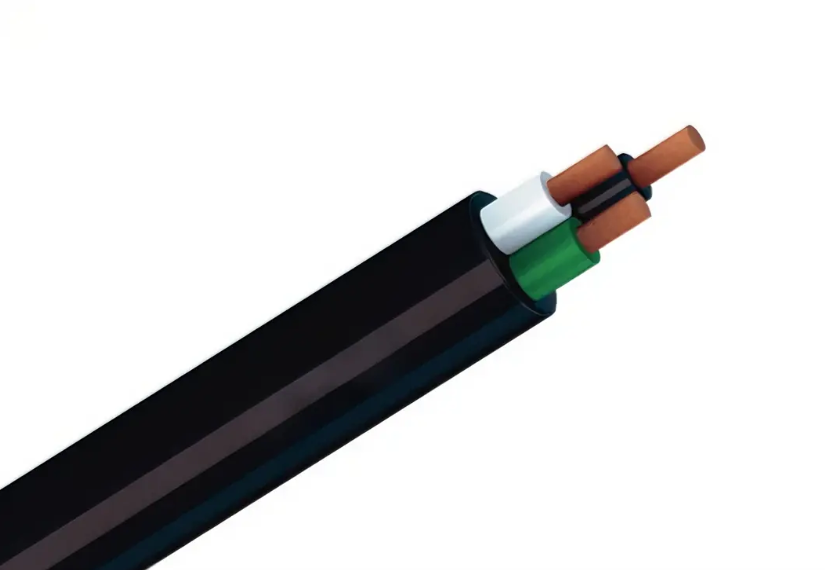

The TSJ/TSJ-N cable is an insulated multiconductor composed by bunch-stranded annealed copper flexible conductors, each single core has a thermoplastic insulation of PVC(Polyvinyl Chloride) and its protected by a Nylon sheath, gathered helically and with a black weather resistant thermoplastic PVC(Polyvinyl Chloride)outer sheath.
STANDARD
NTC 5521，ASTM B172，ASTM B174，UL-62，UL-83
MAIN CHARACTERISTICS
It is manufactured in duplex, triplex and quadruplex formations, in gauges ranging from 18 AWG (0.824 mm²) to 6 AWVG (13.3mm²).
The cores (individual conductors) of the TSJ/TSJ-N multiconductor are manufactured in colors according to their formation. For duplex, black and white. For triplex, black, white and green. For quadruplex, black, white, red and green.
It is designed to operate at a maximum voltage of 600 V.
It can operate at a maximum temperature of 60°C in dry and humid environments.
The conductors' nylon sheath protects them from damage from contact with petroleum products and chemicals, allowing it to be used in industral,residential and commercial environments.
Its black outer cover is resistant to ultraviolet rays, so it can be used outdoors.

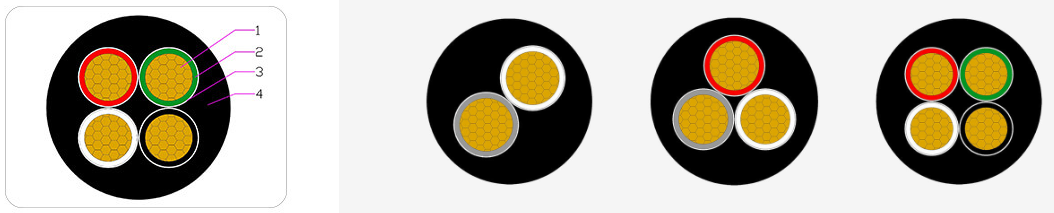

CONSTRUCTION
1.Conductor:Class 5, annealed soft fine wires
2.Insulation:105°C PVC + Nylon
3.Outer sheath:PVC (BLACK)
Core colors:
2 cores: black, white
3 cores: black, white, green
4 cores: black, white, red, green
Cross section:
From 18 AWG (0.824 mm²) to 6 AWVG (13.3 mm²)
