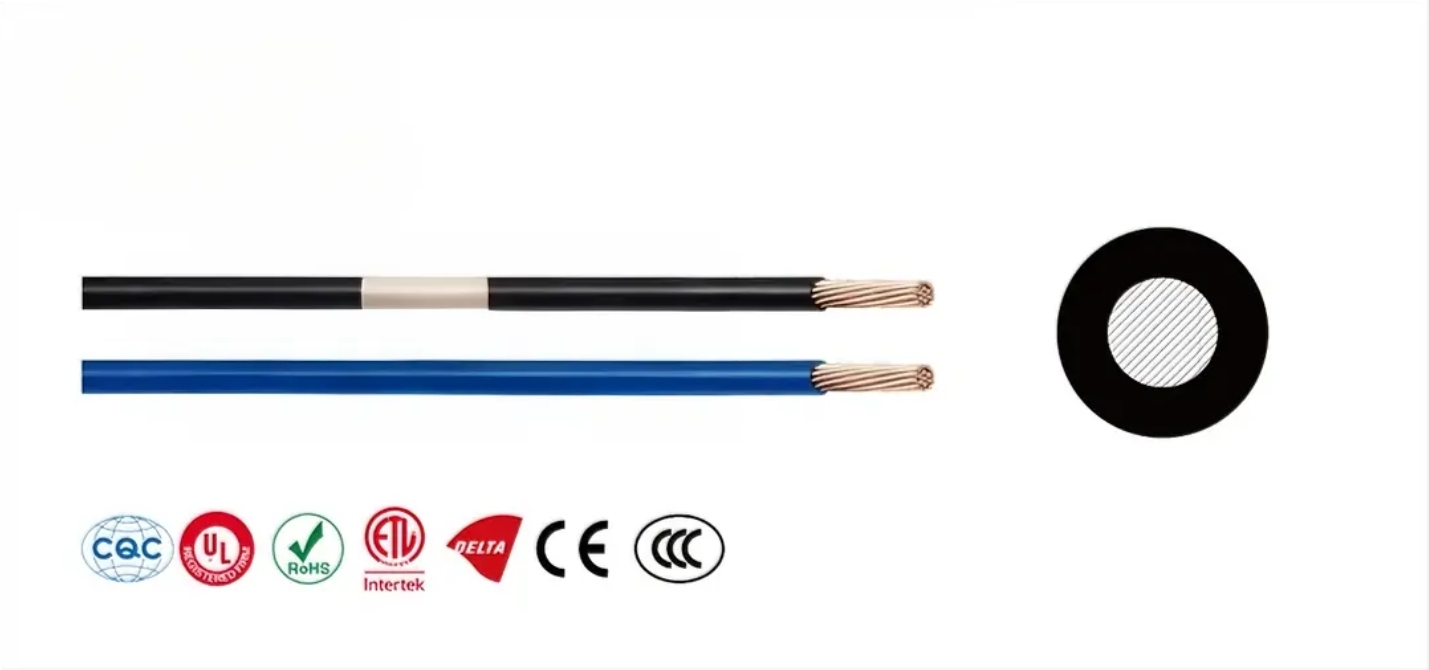

conductor stranding
Complies with UL standards: UL758, UL1581, and CSA, C22.2, No. 210.2
Complies with UL standards: UL758, UL1581, and CSA, C22.2, No. 210.2
1000V AC/1250VDC
| conductor | insulation | Maximum conductor resistance（Q/m，20°C，DC） | Compressive strength（VAC，1min） | |||
|---|---|---|---|---|---|---|
| Line gauge （AWG） |
structure | outer diameter（mm） | nominal thickness （mm） |
Outer diameter (mm) | ||
|
30 |
7/0.10 |
0.30 |
0.76 |
1.82 |
354 |
3000 |
|
28 |
7/0.127 |
0.38 |
0.76 |
1.90 |
223 |
3000 |
|
26 |
7/0.16 |
0.48 |
0.76 |
2.00 |
140 |
3000 |
|
24 |
11/0.16 |
0.61 |
0.76 |
2.13 |
87.6 |
3000 |
|
22 |
17/0.16 |
0.76 |
0.76 |
2.28 |
55.4 |
3000 |
|
20 |
26/0.16 |
0.94 |
0.76 |
2.46 |
34.6 |
3000 |
|
18 |
41/0.16 |
1.18 |
0.76 |
2.70 |
21.8 |
3000 |
|
16 |
26/0.254 |
1.56 |
0.85 |
3.26 |
13.7 |
3000 |
|
14 |
41/0.254 |
2.03 |
0.9 |
3.83 |
8.61 |
3000 |
|
12 |
65/0.254 |
2.36 |
0.9 |
4.16 |
5.43 |
3000 |
|
11 |
82/0.254 |
2.65 |
0.9 |
4.45 |
4.3 |
3000 |
|
10 |
104/0.254 |
2.99 |
0.9 |
4.79 |
3.41 |
3000 |
|
9 |
94/0.254 |
3.76 |
0.9 |
5.56 |
2.70 |
3000 |
|
8 |
118/0.254 |
4.12 |
1.14 |
6.40 |
2.14 |
3000 |
|
7 |
147/0.254 |
4.73 |
1.14 |
7.01 |
1.70 |
3000 |
|
6 |
189/0.254 |
5.37 |
1.52 |
8.41 |
1.37 |
3000 |
|
5 |
238/0.254 |
6.04 |
1.52 |
9.08 |
1.09 |
3000 |
|
4 |
299/0.254 |
6.79 |
1.52 |
9.83 |
0.865 |
3000 |
|
3 |
378/0.254 |
7.62 |
1.52 |
10.66 |
0.686 |
3000 |
|
2 |
457/0.254 |
8.62 |
1.52 |
11.66 |
0.544 |
3000 |
|
1 |
600/0.254 |
10.20 |
2.03 |
14.21 |
0.431 |
3000 |
|
1/0 |
272/0.254 |
10.70 |
2.03 |
14.76 |
0.350 |
3000 |
|
2/0 |
343/0.254 |
12.16 |
2.03 |
16.22 |
0.273 |
3000 |
|
3/0 |
433/0.254 |
13.77 |
2.03 |
17.83 |
0.220 |
3000 |
|
4/0 |
546/0.254 |
15.50 |
2.03 |
19.56 |
0.172 |
3000 |
