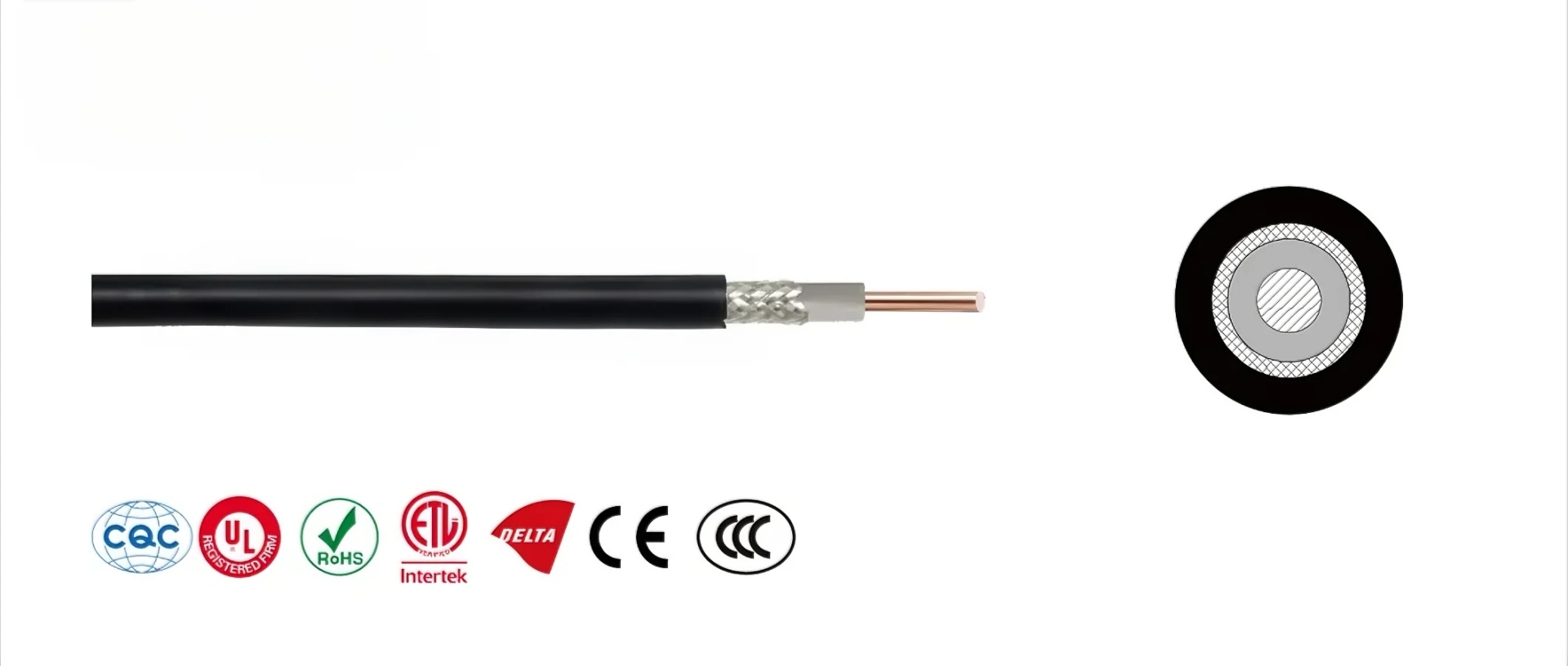

UL1185

Product Details

Applications: Used for internal wiring in general electronic and electrical equipment.

Product Structure:
Conductor: Single or stranded bare copper or tin-plated copper, customizable from 30AWG to 4/0AWG.

Insulation: PVC

Shielding: Tin-plated or bare copper conductor wound.

Outer Sheath: PVC

Flame Retardant: Certified by UL VW-1, CSAFT1, and JQA-F-Mark.

Sheath Color: Customizable.

Advantages: Compliant with RoHS and REACH environmental standards.

Standards/Certifications:
Reference Standards: UL758, UL1581, CSA, C22.2, No. 210.2

Characteristics and Compliance:
Rated Temperature: 80℃

Rated Voltage: 300V

Technical parameters

conductor stranding

Complies with UL standards: UL758, UL1581, and CSA, C22.2, No. 210.2
Rated voltage

300V

Temperature range

Fixed installation: 80℃
Cable data

conductor			insulation		shield	outer sheath		Maximum conductor resistance（Q/m，20°C，DC）	Compressive strength（VAC，1min）
Line gauge（AWG）	structure (No./mm)	outer diameter （mm）	nominal thickness（mm）	outer diameter（mm）	Entangling Structure(No./mm)	nominal thickness(mm)	outer diameter(mm)	Maximum conductor resistance（Q/m，20°C，DC）	Compressive strength（VAC，1min）
30	7/0.10	0.30	0.38	1.10	32/0.10	0.38	2.10	381	2000
28	7/0.127	0.38	0.38	1.20	34/0.10	0.38	2.20	239	2000
26	7/0.16	0.48	0.38	1.30	38/0.10	0.38	2.30	150	2000
24	11/0.16	0.61	0.38	1.40	42/0.10	0.38	2.40	94.2	2000
22	17/0.16	0.76	0.38	1.55	43/0.10	0.38	2.55	59.4	2000
20	26/0.16	0.94	0.38	1.80	45/0.12	0.38	2.85	36.7	2000
18	41/0.16	1.18	0.38	2.05	51/0.12	0.38	3.50	23.2	2000
16	26/0.254	1.49	0.38	2.40	55/0.12	0.38	3.80	14.6	2000
