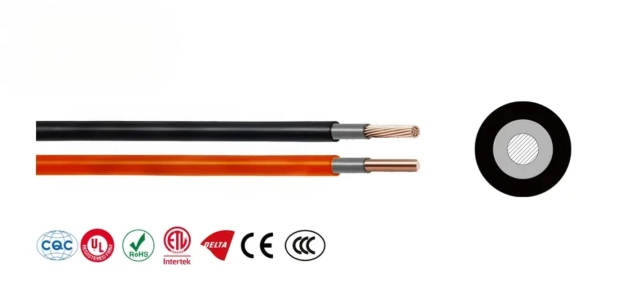

Complies with UL standards: UL758, UL1581, and CSA, C22.2, No. 210.2
600V
| conductor | insulation | Maximum conductor resistance （Q/m，20°C，DC） |
Compressive strength（VAC，1min） | nominal thickness（mm） | outer diameter（mm） | |||
|---|---|---|---|---|---|---|---|---|
| Wire gauge (AWG) | structure | outer diameter（mm） | nominal thickness （mm） |
outer diameter（mm） | ||||
|
28 |
1/0.32 |
0.32 |
0.76 |
1.90 |
0.13 |
2.70 |
227 |
2000 |
|
28 |
7/0.127 |
0.38 |
0.76 |
2.00 |
0.13 |
2.80 |
239 |
2000 |
|
26 |
1/0.404 |
0.40 |
0.76 |
2.00 |
0.13 |
2.80 |
143 |
2000 |
|
26 |
7/0.16 |
0.48 |
0.76 |
2.10 |
0.13 |
2.90 |
150 |
2000 |
|
24 |
1/0.511 |
0.51 |
0.76 |
2.10 |
0.13 |
2.90 |
89.3 |
2000 |
|
24 |
11/0.16 |
0.61 |
0.76 |
2.20 |
0.13 |
3.00 |
94.2 |
2000 |
|
22 |
1/0.643 |
0.64 |
0.76 |
2.25 |
0.13 |
3.10 |
56.4 |
2000 |
|
22 |
17/0.16 |
0.76 |
0.76 |
2.30 |
0.13 |
3.20 |
59.4 |
2000 |
|
20 |
1/0.813 |
0.81 |
0.76 |
2.40 |
0.13 |
3.20 |
35.2 |
2000 |
|
20 |
26/0.16 |
0.94 |
0.76 |
2.55 |
0.13 |
3.40 |
36.7 |
2000 |
|
18 |
1/1 .024 |
1.02 |
0.76 |
2.65 |
0.13 |
3.50 |
22.2 |
2000 |
|
18 |
41/0.16 |
1.18 |
0.76 |
2.80 |
0.13 |
3.60 |
23.2 |
2000 |
|
16 |
1/1 .29 |
1.29 |
0.76 |
2.90 |
0.13 |
3.70 |
14 |
2000 |
|
16 |
26/0.254 |
1.49 |
0.76 |
3.10 |
0.13 |
3.90 |
14.6 |
2000 |
|
14 |
1/1 .6 |
1.60 |
0.76 |
3.20 |
0.13 |
4.00 |
8.78 |
2000 |
|
14 |
41/0.254 |
1.88 |
0.76 |
3.50 |
0.13 |
4.30 |
8.96 |
2000 |
|
12 |
1/2.05 |
2.05 |
0.76 |
3.65 |
0.13 |
4.50 |
5.53 |
2000 |
|
12 |
65/0.254 |
2.36 |
0.76 |
4.00 |
0.13 |
4.80 |
5.64 |
2000 |
