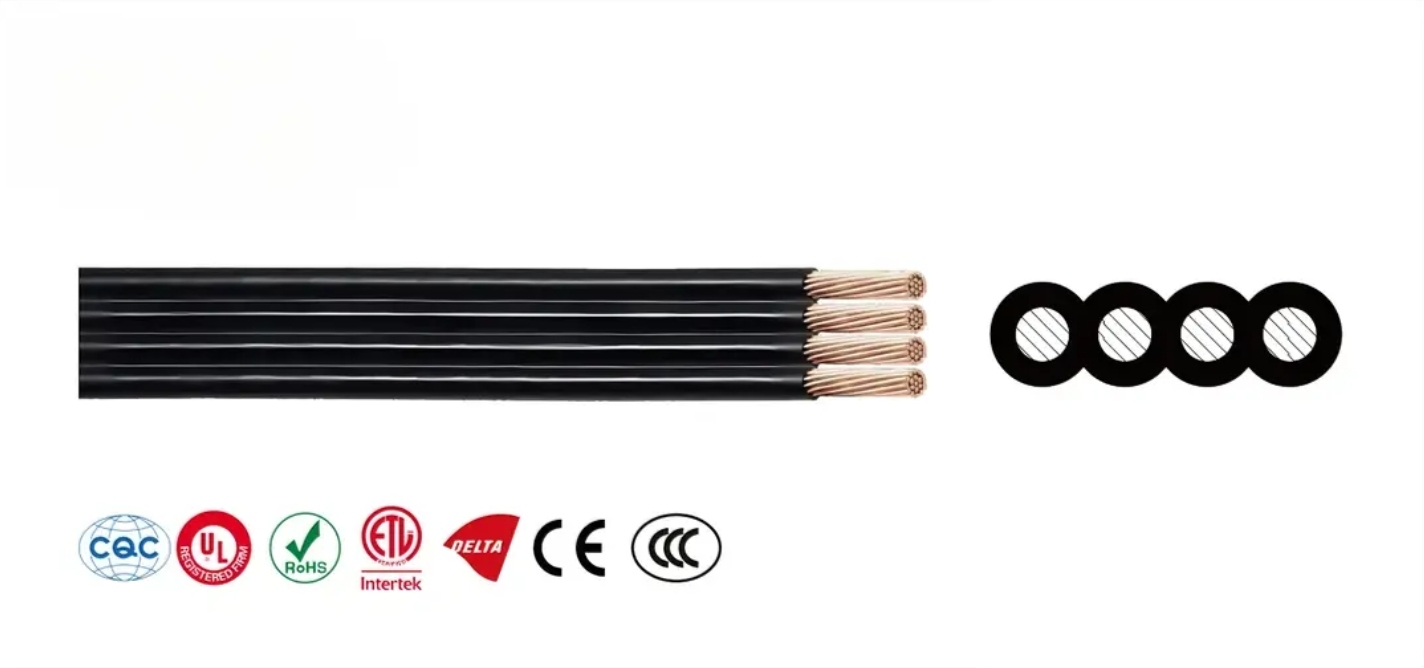

UL2468

Technical parameters

Conductor stranding

Complies with UL standards: UL758, UL1581, and CSA, C22.2, No. 210.2
Rated voltage

300V

Temperature range

Fixed installation: 80℃

Cable data

conductor					insulation		Maximum conductor resistance（Q/m，20°C，DC）	Compressive strength（VAC，1min）
Line gauge（AWG）	spacing	structure	outer diameter（mm）	Chip count	nominal thickness（mm）	outer diameter（mm）	Maximum conductor resistance（Q/m，20°C，DC）	Compressive strength（VAC，1min）
32	1.00	7/0.08	0.24	2	0.38	1.00 × 2.00	595	1500
32	1.00	7/0.08	0.24	3	0.38	1.00 × 3.00	595	1500
32	1.00	7/0.08	0.24	4	0.38	1.00 × 4.00	595	2000
32	1.00	7/0.08	0.24	5	0.38	1.00 × 5.00	595	2000
32	1.00	7/0.08	0.24	6	0.38	1.00 × 6.00	595	2000
32	1.00	7/0.08	0.24	7	0.38	1.00 × 7.00	595	2000
32	1.00	7/0.08	0.24	8	0.38	1.00 × 8.00	595	2000
32	1.00	7/0.08	0.24	9	0.38	1.00 × 9.00	595	2000
32	1.00	7/0.08	0.24	10	0.38	1.00 × 10.00	595	2000
30	1.10	7/0.10	0.30	2	0.38	1.10 × 2.20	381	2000
30	1.10	7/0.10	0.30	3	0.38	1.10 × 3.30	381	2000
30	1.10	7/0.10	0.30	4	0.38	1.10 × 4.40	381	2000
30	1.10	7/0.10	0.30	5	0.38	1.10 × 5.50	381	2000
30	1.10	7/0.10	0.30	6	0.38	1.10 × 6.60	381	2000
30	1.10	7/0.10	0.30	7	0.38	1.10 × 7.70	381	2000
30	1.10	7/0.10	0.30	8	0.38	1.10 × 8.80	381	2000
30	1.10	7/0.10	0.30	9	0.38	1.10 × 9.90	381	2000
30	1.10	7/0.10	0.30	10	0.38	1.10 × 11.00	381	2000
28	1.25	7/0.127	0.38	2	0.38	1.25 × 2.50	239	2000
28	1.25	7/0.127	0.38	3	0.38	1.25 × 3.75	239	2000
28	1.25	7/0.127	0.38	4	0.38	1.25 × 5.00	239	2000
28	1.25	7/0.127	0.38	5	0.38	1.25 × 6.25	239	2000
28	1.25	7/0.127	0.38	6	0.38	1.25 × 7.50	239	2000
28	1.25	7/0.127	0.38	7	0.38	1.25 × 8.75	239	2000
28	1.25	7/0.127	0.38	8	0.38	1.25 × 10.00	239	2000
28	1.25	7/0.127	0.38	9	0.38	1.25 × 11.25	239	2000
28	1.25	7/0.127	0.38	10	0.38	1.25 × 12.50	239	2000
28	1.25	7/0.127	0.38	11	0.38	1.25 × 13.75	239	2000
28	1.25	7/0.127	0.38	12	0.38	1.25 × 15.00	239	2000
26	1.50	7/0.16	0.48	2	0.38	1.45 × 3.05	150	1500
26	1.50	7/0.16	0.48	3	0.38	1.45 × 4.65	150	1500
26	1.50	7/0.16	0.48	4	0.38	1.45 × 6.25	150	2000
26	1.50	7/0.16	0.48	5	0.38	1.45 × 7.85	150	2000
26	1.50	7/0.16	0.48	6	0.38	1.45 × 9.45	150	2000
26	1.50	7/0.16	0.48	7	0.38	1.45 × 11.05	150	2000
26	1.50	7/0.16	0.48	8	0.38	1.45 × 12.65	150	2000
26	1.50	7/0.16	0.48	9	0.38	1.45 × 14.30	150	2000
26	1.50	7/0.16	0.48	10	0.38	1.45 × 15.90	150	2000
26	1.50	7/0.16	0.48	11	0.38	1.45 × 17.50	150	2000
26	1.50	7/0.16	0.48	12	0.38	1.45 × 19.10	150	2000
26	1.50	7/0.16	0.48	13	0.38	1.45 × 20.65	150	2000
26	1.50	7/0.16	0.48	14	0.38	1.45 × 22.25	150	2000
26	2.00	7/0.16	0.48	2	0.38	1.40 ×3.40	150	2000
26	2.00	7/0.16	0.48	3	0.38	1.40 ×5.40	150	2000
26	2.00	7/0.16	0.48	4	0.38	1.40 ×7.40	150	2000
26	2.00	7/0.16	0.48	5	0.38	1.40 ×9.40	150	2000
26	2.00	7/0.16	0.48	6	0.38	1.40 × 11.40	150	2000
26	2.00	7/0.16	0.48	7	0.38	1.40 × 13.40	150	2000
26	2.00	7/0.16	0.48	8	0.38	1.40 × 15.40	150	2000
26	2.00	7/0.16	0.48	9	0.38	1.45 × 17.45	150	2000
26	2.00	7/0.16	0.48	10	0.38	1.45 × 19.45	150	2000
26	2.00	7/0.16	0.48	11	0.38	1.45 ×21.45	150	2000
26	2.00	7/0.16	0.48	12	0.38	1.45 ×23.45	150	2000
26	2.50	7/0.16	0.48	2	0.38	1.45 ×3.95	150	2000
26	2.50	7/0.16	0.48	3	0.38	1.45 ×3.95	150	2000
26	2.50	7/0.16	0.48	4	0.38	1.45 ×3.95	150	2000
26	2.50	7/0.16	0.48	5	0.38	1.45 ×3.95	150	2000
26	2.50	7/0.16	0.48	6	0.38	1.45 ×3.95	150	2000
26	2.50	7/0.16	0.48	7	0.38	1.45 ×3.95	150	2000
26	2.50	7/0.16	0.48	8	0.38	1.45 ×3.95	150	2000
26	2.50	7/0.16	0.48	9	0.38	1.45 ×3.95	150	2000
26	2.50	7/0.16	0.48	10	0.38	1.45 ×3.95	150	2000
26	1.60	11/0.16	0.61	2	0.38	1.45 ×3.05	94.2	2000
26	1.60	11/0.16	0.61	3	0.38	1.45 ×4.65	94.2	2000
26	1.60	11/0.16	0.61	4	0.38	1.45 ×6.25	94.2	2000
24	1.60	11/0.16	0.61	5	0.38	1.45 ×7.85	94.2	2000
24	1.60	11/0.16	0.61	6	0.38	1.45 ×9.45	94.2	2000
24	1.60	11/0.16	0.61	7	0.38	1.45 × 11.05	94.2	2000
24	1.60	11/0.16	0.61	8	0.38	1.50 × 12.65	94.2	2000
24	1.60	11/0.16	0.61	9	0.38	1.50 × 14.30	94.2	2000
24	1.60	11/0.16	0.61	10	0.38	1.50 × 15.90	94.2	2000
24	1.60	11/0.16	0.61	11	0.38	1.50 × 17.50	94.2	2000
24	1.60	11/0.16	0.61	12	0.38	1.50 × 19.10	94.2	2000
24	1.60	11/0.16	0.61	13	0.38	1.45 × 20.65	94.2	2000
24	1.60	11/0.16	0.61	14	0.38	1.45 × 22.25	94.2	2000
24	2.00	7/0.20	0.61	2	0.38	1.40 × 3.40	94.2	2000
24	2.00	7/0.20	0.61	3	0.38	1.40 × 5.40	94.2	2000
24	2.00	7/0.20	0.61	4	0.38	1.40 × 7.40	94.2	2000
24	2.00	7/0.20	0.61	5	0.38	1.40 × 9.40	94.2	2000
24	2.00	7/0.20	0.61	6	0.38	1.40 × 11.40	94.2	2000
24	2.00	7/0.20	0.61	7	0.38	1.40 × 13.40	94.2	2000
24	2.00	7/0.20	0.61	8	0.38	1.40 × 15.40	94.2	2000
24	2.00	7/0.20	0.61	9	0.38	1.45 × 17.45	94.2	2000
24	2.00	7/0.20	0.61	10	0.38	1.45 × 19.45	94.2	2000
24	2.00	7/0.20	0.61	11	0.38	1.45 × 21.45	94.2	2000
24	2.00	7/0.20	61	12	0.38	1.45 × 23.45	94.2	1500
24	2.50	7/0.20	0.61	2	0.38	1.45 × 3.95	94.2	1500
24	2.50	7/0.20	0.61	3	0.38	1.45 × 6.95	94.2	2000
24	2.50	7/0.20	0.61	4	0.38	1.45 × 8.95	94.2	2000
24	2.50	7/0.20	0.61	5	0.38	14.45 × 11.45	94.2	2000
24	2.50	7/0.20	0.61	6	0.38	1.45 × 13.95	94.2	2000
24	2.50	7/0.20	0.61	7	0.38	1.45 × 16.45	94.2	2000
24	2.50	7/0.20	0.61	8	0.38	1.45 × 18.95	94.2	2000
24	2.50	7/0.20	0.61	9	0.38	1.50 × 21.50	94.2	2000
24	2.50	7/0.20	0.61	10	0.38	1.50 × 24.00	94.2	2000
22	1.70	17/0.16	0.76	2	0.38	1.60 × 3.30	59.4	2000
22	1.70	17/0.16	0.76	3	0.38	1.60 ×5.00	59.4	2000
22	1.70	17/0.16	0.76	4	0.38	1.60 ×6.70	59.4	2000
22	1.70	17/0.16	0.76	5	0.38	1.60 ×8.40	59.4	2000
22	1.70	17/0.16	0.76	6	0.38	1.60 × 10.10	59.4	2000
22	1.70	17/0.16	0.76	7	0.38	1.60 × 11.80	59.4	2000
22	1.70	17/0.16	0.76	8	0.38	1.60 × 13.50	59.4	2000
22	1.70	17/0.16	0.76	9	0.38	1.60 × 15.20	59.4	2000
22	1.70	17/0.16	0.76	10	0.38	1.60 × 16.90	59.4	2000
20	1.90	26/0.16	0.94	2	0.38	1.80 × 3.70	36.9	2000
20	1.90	26/0.16	0.94	3	0.38	1.80 × 5.60	36.9	2000
18	2.20	41/0.16	1.18	2	0.38	2.10× 4.30	23.2	2000
16	2.50	26/0.254	1.49	2	0.38	2.40× 4.90	14.6	2000
