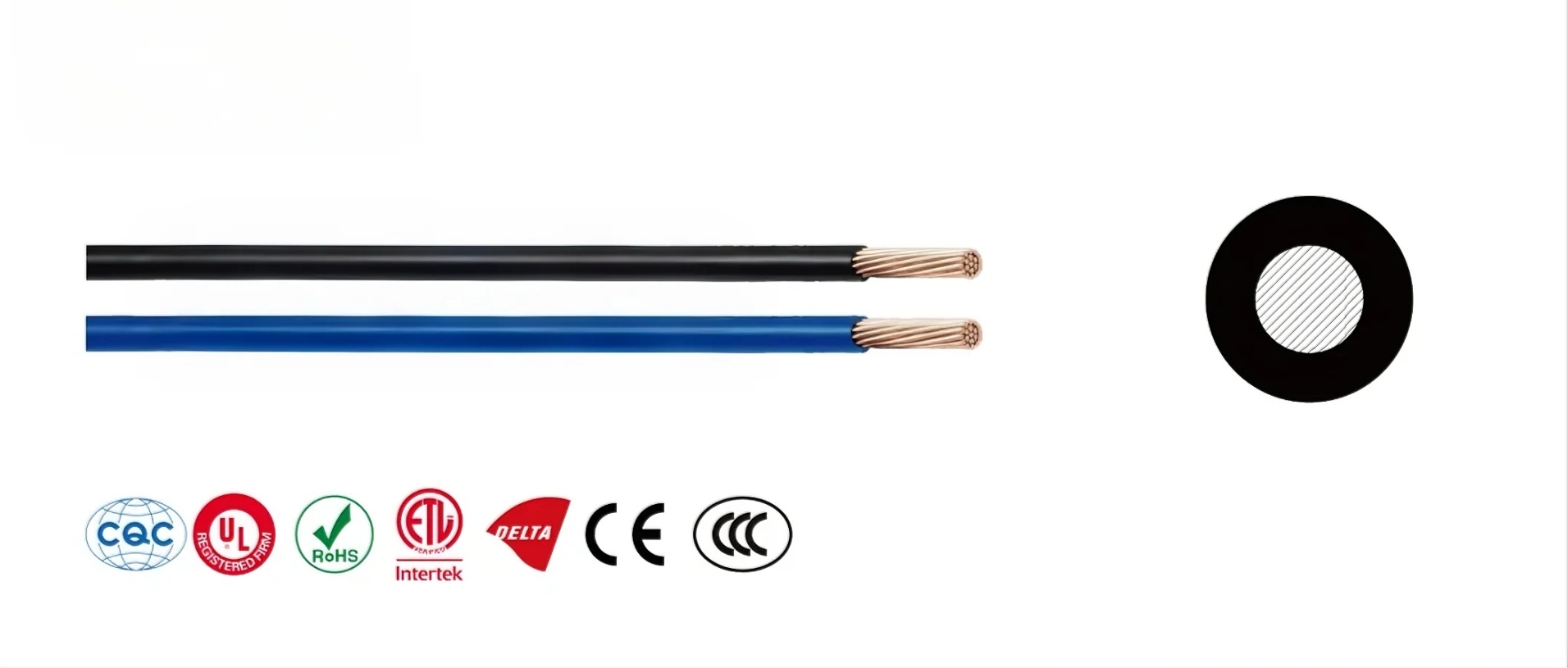

Complies with UL standards: UL758, UL1581, and CSA, C22.2, No. 210.2
300V
| conductor | insulation | Maximum conductor resistance（Q/m，20°C，DC） | Compressive strength（VAC，1min） | |||
|---|---|---|---|---|---|---|
| Line gaug（AWG） | structure | outer diameter （mm） |
nominal thickness （mm） |
outer diameter （mm） |
||
|
32 |
1/0.20 |
0.20 |
0.38 |
1.00 |
563 |
2000 |
|
32 |
7/0.08 |
0.24 |
0.38 |
1.05 |
595 |
2000 |
|
30 |
1/0.254 |
0.25 |
0.38 |
1.05 |
361 |
2000 |
|
30 |
7/0.10 |
0.30 |
0.38 |
1.10 |
354 |
2000 |
|
28 |
1/0.32 |
0.32 |
0.38 |
1.10 |
227 |
2000 |
|
28 |
7/0.127 |
0.38 |
0.38 |
1.18 |
223 |
2000 |
|
28 |
7/0.1270S-1 |
0.38 |
0.38 |
1.20 |
239 |
2000 |
|
26 |
1/0.404 |
0.40 |
0.38 |
1.25 |
143 |
2000 |
|
26 |
7/0.16 |
0.48 |
0.38 |
1.28 |
140 |
2000 |
|
26 |
7/0.16OS-1 |
0.48 |
0.38 |
1.30 |
150 |
2000 |
|
24 |
1/0.511 |
0.51 |
0.38 |
1.35 |
87.6 |
2000 |
|
24 |
11/0.16 |
0.61 |
0.38 |
1.41 |
94.2 |
2000 |
|
24 |
7/0.20OS-1 |
0.60 |
0.38 |
1.40 |
94.2 |
2000 |
|
22 |
1/0.643 |
0.64 |
0.38 |
1.50 |
56.4 |
2000 |
|
22 |
17/0.16 |
0.76 |
0.38 |
1.56 |
55.4 |
2000 |
|
22 |
7/0.2540S-1 |
0.76 |
0.38 |
1.60 |
59.4 |
2000 |
|
20 |
1/0.813 |
0.81 |
0.38 |
1.65 |
35.2 |
2000 |
|
20 |
26/0.16 |
0.94 |
0.38 |
1.74 |
34.6 |
2000 |
|
20 |
7/0.32OS-1 |
0.96 |
0.38 |
1.80 |
36.7 |
2000 |
|
18 |
1/1 .024 |
1.02 |
0.38 |
1.85 |
22.2 |
2000 |
|
18 |
41/0.16 |
1.18 |
0.38 |
1.98 |
21.8 |
2000 |
|
18 |
7/0.4040S-1 |
1.21 |
0.38 |
2.10 |
23.2 |
2000 |
|
16 |
1/1 .29 |
1.29 |
0.38 |
2.20 |
14.0 |
2000 |
|
16 |
26/0.254 |
1.56 |
0.38 |
2.36 |
13.7 |
2000 |
