APPLICATION
Designed for welding equipment and accessories, retain their high flexibilty even under influence of ozone, light, oxygen,protective glass, oil & petrol; resistant to flame propagation,suitable for use in dry and damp conditions, outdoors and indoors
STANDARD BS EN 50525-2-81,HD 22.6

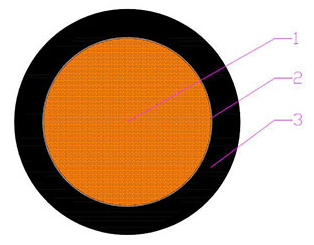

CONSTRUCTION
1.Conductor:Plain annealed copper wire
2.Binder tape:Polyester tape
3.Cover:Type EM 5 to EN 50363-2-2, the cover can consist of one or two layers.
Color of Cover:Black
TECHINCAL DATA
Test Voltage 50Hz: 1000V
Maximum conductor operating temp: +85°C
Lowest ambient temperature for fixed installation:-40°C
Lowest installation temperature: -25°C
Maximum short-circuit conductor temperature: +250°C
Pulling strength: The maximum static pulling strength may not exceed 15N/mm2
Minimum bending radius: 6 xD;D-overall diameter of cable
Flame propagation: EN 60332-1-2:2004,IEC 60332-1-2:2004
