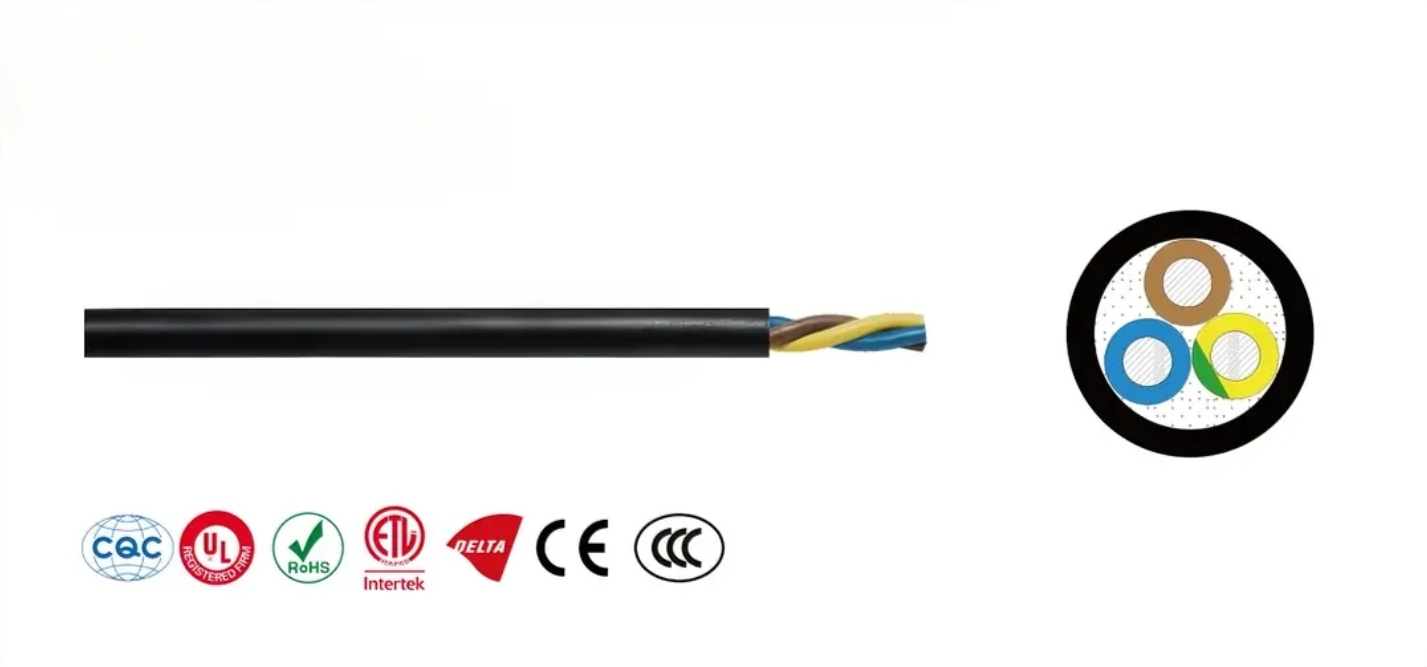

YSLY European Standard Unshielded Control Cable

Product Code

Cross section (mm2)

Chip count

Approximate outer diameter (mm)

Approximate weight (kg/km)

J0135102008001406BK

0.3

2

5±0.4

32.98

J0135102011001406BK

0.4

2

5.2±0.4

36.96

J0135102012001406BK

0.5

2

5.8±0.4

45.81

J0135102013001406BK

0.75

2

6.2±0.4

55.22

J0135102019001406BK

4

2

10.6±0.6

186.75

J0135102020001406BK

6

2

12±0.6

251.46

J0135103008001406BK

0.3

3

5.3±0.4

38.85

J0135103011001406BK

0.4

3

5.5±0.4

44.03

J0135103012001406BK

0.5

3

6.1 ±0.4

54.8

J0135103013001406BK

0.75

3

6.8±0.4

70.13

J0135103019001406BK

4

3

11.4±0.6

240.79

J0135103020001406BK

6

3

12.9±0.6

326.28

J0135104008001406BK

0.3

4

5.7±0.4

46.07

J0135104011001406BK

0.4

4

5.9±0.4

52.59

J0135104012001406BK

0.5

4

6.9±0.4

68.75

J0135104013001406BK

0.75

4

7.4±0.4

84.45

J0135104019001406BK

4

4

12.7±0.6

302.4

J0135105008001406BK

0.3

5

6.4±0.4

56.49

J0135105011001406BK

0.4

5

6.7±0.4

64.49

J0135105012001406BK

0.5

5

7.5±0.4

80.34

J0135105013001406BK

0.75

5

8.2±0.6

103.02

J0135105019001406BK

4

5

14.1 ±0.8

366.84

J0135106008001406BK

0.3

6

6.9±0.4

64.45

J0135106011001406BK

0.4

6

7.2±0.4

73.85

J0135106012001406BK

0.5

6

8.3±0.6

95.94

J0135106013001406BK

0.75

6

8.9±0.6

118.52

J0135106019001406BK

4

6

15.4±0.8

426.37

J0135107008001406BK

0.3

7

6.9±0.4

64.45

J0135107011001406BK

0.4

7

7.2±0.4

73.85

J0135107012001406BK

0.5

7

8.3±0.6

95.94

J0135107013001406BK

0.75

7

8.9±0.6

118.52

J0135107019001406BK

4

7

15.4±0.8

426.37

J0135108008001406BK

0.3

8

7.4±0.4

72.42

J0135108011001406BK

0.4

8

7.9±0.4

86.77

J0135108012001406BK

0.5

8

8.9±0.6

108.08

J0135108013001406BK

0.75

8

9.8±0.6

138.42

J0135108019001406BK

4

8

16.9±0.8

493.53

J0135109008001406BK

0.3

9

8.3±0.6

85.47

J0135109011001406BK

0.4

9

8.7±0.6

97.93

J0135109012001406BK

0.5

9

10±0.6

126.69

J0135109013001406BK

0.75

9

10.7±0.6

156.59

J0135109019001406BK

4

9

18.9±0.8

577.59

J0135110008001406BK

0.3

10

8.8±0.6

100.81

J0135110011001406BK

0.4

10

9.4±0.6

120.34

J0135110012001406BK

0.5

10

10.8±0.6

155.21

J0135110013001406BK

0.75

10

11.6±0.6

192.3

J0135110019001406BK

4

10

20.4±1

707.23

J0135111008001406BK

0.3

11

9.3±0.6

112.72

J0135111011001406BK

0.4

11

9.7±0.6

129.61

J0135111012001406BK

0.5

11

11.1 ±0.6

167.26

J0135111013001406BK

0.75

11

12±0.6

207.79

J0135111019001406BK

4

11

21 ±1

768.01

J0135112008001406BK

0.3

12

9.3±0.6

116.62

J0135112011001406BK

0.4

12

9.7±0.6

134.54

J0135112012001406BK

0.5

12

11.1±0.6

173.52

J0135112013001406BK

0.75

12

12±0.6

216.53

J0135112019001406BK

4

12

21 ±1

807.45

J0135113008001406BK

0.3

13

9.7±0.6

126.07

J0135113011001406BK

0.4

13

10.1 ±0.6

145.55

J0135113012001406BK

0.5

13

11.7±0.6

187.86

J0135113013001406BK

0.75

13

12.8±0.6

240.39

J0135113019001406BK

4

13

22.3±1

886.27

J0135114008001406BK

0.3

14

9.7±0.6

129.97

J0135114011001406BK

0.4

14

10.1 ±0.6

150.47

J0135114012001406BK

0.5

14

11.7±0.6

194.12

J0135114013001406BK

0.75

14

12.8±0.6

249.13

J0135114019001406BK

4

14

22.3±1

925.71

J0135115008001406BK

0.3

15

10.2±0.6

139.81

J0135115011001406BK

0.4

15

10.9±0.6

166.81

J0135115012001406BK

0.5

15

12.5±0.6

214.65

J0135115013001406BK

0.75

15

13.4±0.6

268.17

J0135115019001406BK

4

15

23.7±1

1007.66

J0135116008001406BK

0.3

16

10.2±0.6

143.71

J0135116011001406BK

0.4

16

10.9±0.6

171.74

J0135116012001406BK

0.5

16

12.5±0.6

220.91

J0135116013001406BK

0.75

16

13.4±0.6

276.9

J0135116019001406BK

4

16

23.7±1

1047.1

J0135117008001406BK

0.3

17

10.9±0.6

158.68

J0135117011001406BK

0.4

17

11.4±0.6

183.65

J0135117012001406BK

0.5

17

13.1 ±0.6

236.4

J0135117013001406BK

0.75

17

14.3±0.8

302.77

J0135117019001406BK

4

17

25.2±1.2

1131.36

J0135118008001406BK

0.3

18

10.9±0.6

162.58

J0135118011001406BK

0.4

18

11.4±0.6

188.58

J0135118012001406BK

0.5

18

13.1 ±0.6

242.66

J0135118013001406BK

0.75

18

14.3±0.8

311.51

J0135118019001406BK

4

18

25.2±1.2

1170.8

J0135119008001406BK

0.3

19

10.9±0.6

162.58

J0135119011001406BK

0.4

19

11.4±0.6

188.58

J0135119012001406BK

0.5

19

13.1 ±0.6

242.66

J0135119013001406BK

0.75

19

14.3±0.8

311.51

J0135119019001406BK

4

19

25.2±1.2

1170.8

J0135120008001406BK

0.3

20

11.2±0.6

168.92

J0135120011001406BK

0.4

20

11.7±0.6

196.16

J0135120012001406BK

0.5

20

13.6±0.6

258.54

J0135120013001406BK

0.75

20

14.7±0.8

324.36

J0135120019001406BK

4

20

26±1.2

1234.43

J0135121008001406BK

0.3

21

11.4±0.6

176.77

J0135121011001406BK

0.4

21

12.1 ±0.6

210.91

J0135121012001406BK

0.5

21

13.9±0.6

270.7

J0135121013001406BK

0.75

21

15±0.8

339.96

J0135121019001406BK

4

21

26.7±1.2

1295.73

J0135122008001406BK

0.3

22

12.3±0.6

194.19

J0135122011001406BK

0.4

22

12.9±0.6

224.87

J0135122012001406BK

0.5

22

15±0.8

295.59

J0135122013001406BK

0.75

22

16.1 ±0.8

369.64

J0135122019001406BK

4

22

28.5±1.2

1390.88

J0135123008001406BK

0.3

23

12.8±0.6

210.2

J0135123011001406BK

0.4

23

13.6±0.6

249.89

J0135123012001406BK

0.5

23

15.6±0.8

320.34

J0135123013001406BK

0.75

23

17±0.8

409

J0135123019001406BK

4

23

30±1.2

1528.06

J0135124008001406BK

0.3

24

12.8±0.6

214.1

J0135124011001406BK

0.4

24

13.6±0.6

254.81

J0135124012001406BK

0.5

24

15.6±0.8

326.6

J0135124013001406BK

0.75

24

17±0.8

417.74

J0135124019001406BK

4

24

30±1.2

1567.5

J0135125008001406BK

0.3

25

13.3±0.6

228.17

J0135125011001406BK

0.4

25

13.9±0.6

264.45

J0135125012001406BK

0.5

25

15.9±0.8

339.07

J0135125013001406BK

0.75

25

17.4±0.8

433.84

J0135125019001406BK

4

25

30.6±1.4

1629.91

J0135126008001406BK

0.3

26

13.3±0.6

233.69

J0135126011001406BK

0.4

26

13.9±0.6

271.19

J0135126012001406BK

0.5

26

15.9±0.8

347.81

J0135126013001406BK

0.75

26

17.4±0.8

445.54

J0135126019001406BK

4

26

30.6±1.4

1679.2

J0135127008001406BK

0.3

27

13.3±0.6

237.59

J0135127011001406BK

0.4

27

13.9±0.6

276.12

J0135127012001406BK

0.5

27

15.9±0.8

354.07

J0135127013001406BK

0.75

27

17.4±0.8

454.28

J0135127019001406BK

4

27

30.6±1.4

1718.64

J0135128008001406BK

0.3

28

13.7±0.6

247.63

J0135128011001406BK

0.4

28

14.3±0.8

287.75

J0135128012001406BK

0.5

28

16.7±0.8

376.68

J0135128013001406BK

0.75

28

18±0.8

473.44

J0135128018001406BK

2.5

28

28.5±1.2

1306.51

J0135128019001406BK

4

28

31.7±1.4

1790.18

J0135129008001406BK

0.3

29

13.7±0.6

251.53

J0135129011001406BK

0.4

29

14.3±0.8

292.68

J0135129012001406BK

0.5

29

16.7±0.8

382.94

J0135129013001406BK

0.75

29

18±0.8

482.17

J0135129018001406BK

2.5

29

28.5±1.2

1332.84

J0135129019001406BK

4

29

31.7±1.4

1829.62

J0135130008001406BK

0.3

30

13.7±0.6

257.05

J0135130011001406BK

0.4

30

14.3±0.8

299.43

J0135130012001406BK

0.5

30

16.7±0.8

391.68

J0135130018001406BK

2.5

30

28.5±1.2

1366.83

J0135130019001406BK

4

30

31.7±1.4

1878.91

J0135131008001406BK

0.3

31

14.2±0.8

267.55

J0135131011001406BK

0.4

31

15.1 ±0.8

318.36

J0135131012001406BK

0.5

31

17.3±0.8

407.64

J0135131018001406BK

2.5

31

29.6±1.2

1421.21

J0135131019001406BK

4

31

32.9±1.4

1952.69

J0135132008001406BK

0.3

32

14.2±0.8

273.07

J0135132011001406BK

0.4

32

15.1 ±0.8

325.11

J0135132012001406BK

0.5

32

17.3±0.8

416.38

J0135132018001406BK

2.5

32

29.6±1.2

1455.2

J0135132019001406BK

4

32

32.9±1.4

2001.98

J0135133008001406BK

0.3

33

14.2±0.8

276.97

J0135133011001406BK

0.4

33

15.1 ±0.8

330.04

J0135133012001406BK

0.5

33

17.3±0.8

422.65

J0135133018001406BK

2.5

33

29.6±1.2

1481.53

J0135133019001406BK

4

33

32.9±1.4

2041.42

J0135134008001406BK

0.3

34

14.9±0.8

294.45

J0135134011001406BK

0.4

34

15.6±0.8

342.67

J0135134012001406BK

0.5

34

18.1 ±0.8

447.17

J0135134018001406BK

2.5

34

30.7±1.4

1536.91

J0135134019001406BK

4

34

34.2±1.4

2116.4

J0135135008001406BK

0.3

35

14.9±0.8

299.97

J0135135011001406BK

0.4

35

15.6±0.8

349.41

J0135135012001406BK

0.5

35

18.1 ±0.8

455.9

J0135135018001406BK

2.5

35

30.7±1.4

1570.9

J0135135019001406BK

4

35

34.2±1.4

2165.69

J0135136008001406BK

0.3

36

14.9±0.8

303.87

J0135136011001406BK

0.4

36

15.6±0.8

354.34

J0135136012001406BK

0.5

36

18.1 ±0.8

462.17

J0135136018001406BK

2.5

36

30.7±1.4

1597.23

J0135136019001406BK

4

36

34.2±1.4

2205.13
